360° Panoramic Surround View System (Lite)

  • Model : HD3D-779H7AI805Z4-AHD
  • Summarize : Total Coverage For Your Vehicles: Give your drivers a bird’s-eye, panoramic view of what is happening around your vehicles. Reduce blind spots with enhanced visibility, exonerate drivers with included video recording, and simplify installation with single-step calibration. Simplified Single-Step Calibration: Simply lay out the calibration mats at each corner of the vehicle and choose the calibration button on the touchscreen display. Calibration requires less space around the vehicle than existing technology on the market and can be done indoors or out.
  • More Info : Online Service

Features

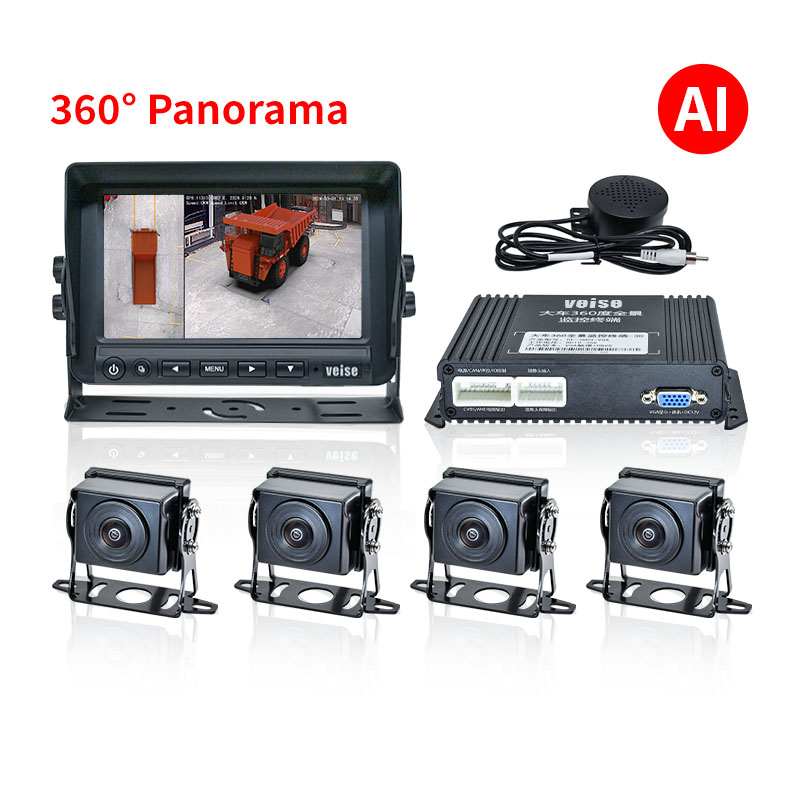

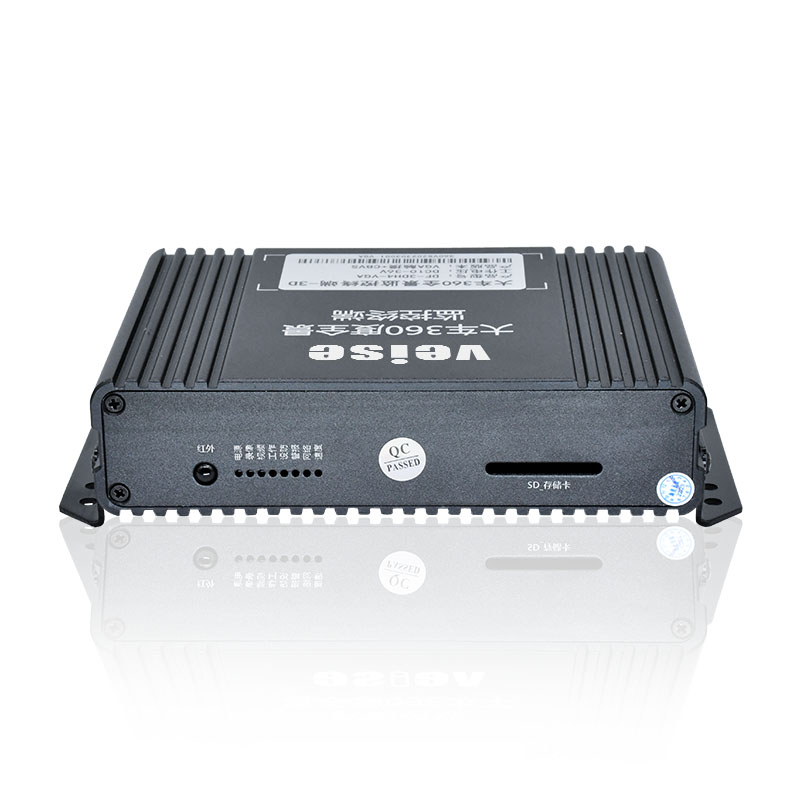

Around View Monitor System(AVM)

Shoot images by multiple (generally four) super-wide cameras. Carry out distortion correction and stitching on the taken images by special algorithms, forming a system that shows the panoramic images around the object. Intellectual (automatic, manual) fast stitching. The steering signal automatically switches between 3D/2D images of the vehicle. Intellectual voice control 12 kinds of image monitor modes. Detection and warning of safe distance for pedestrians and vehicles around the vehicle, achieving 360 ° blind spot free collision prevention

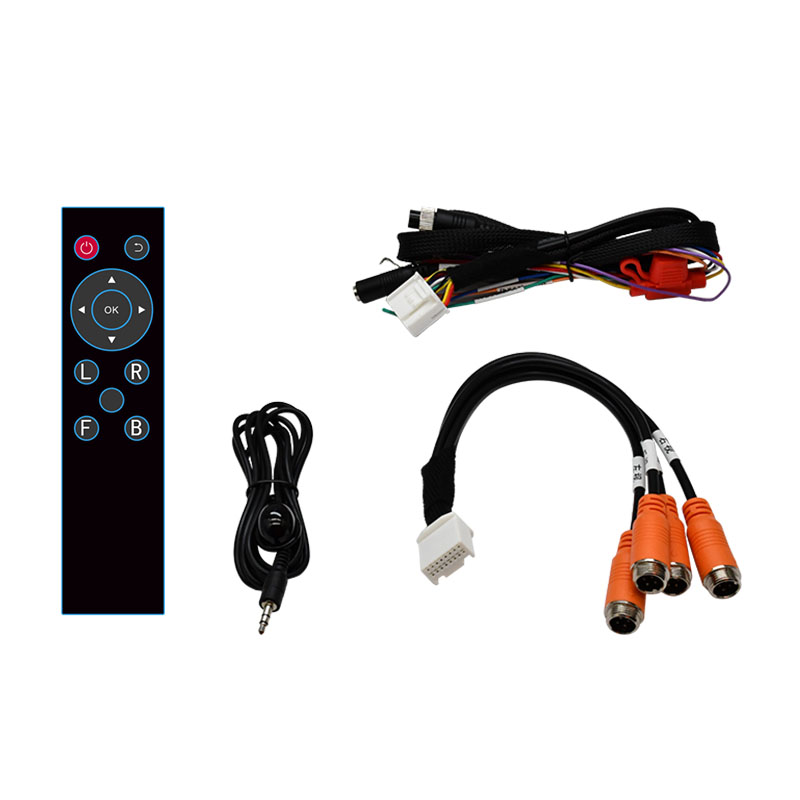

MDVR

Support 4 AHD panoramic cameras input, real-time recording, loop recording, and video playback (SD card storage way).

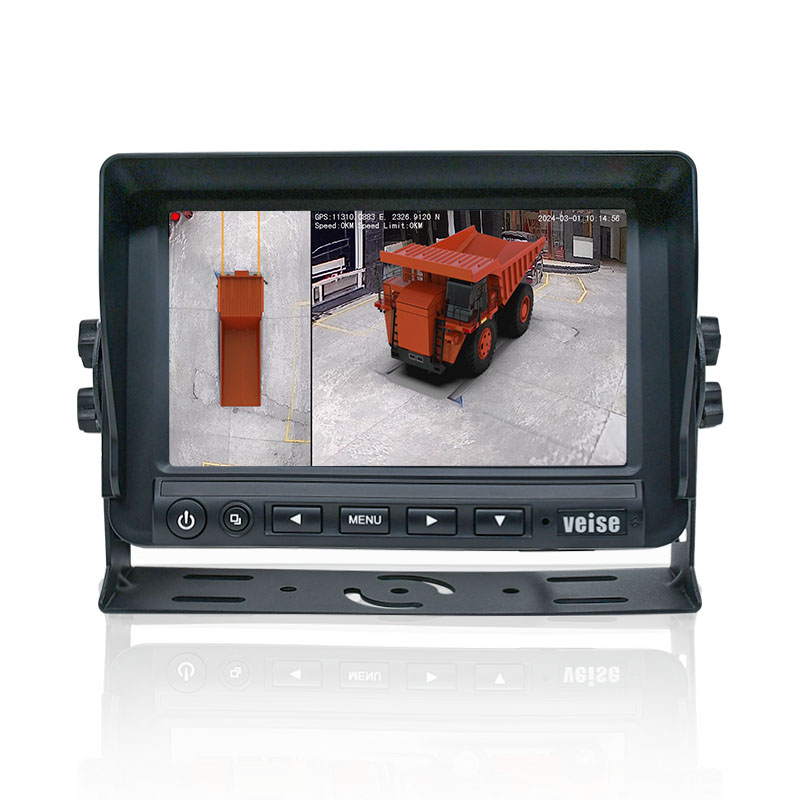

7-inch HD Camera Monitor

Automative-grade industry DSP, 1024×RGB×600 Resolution

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

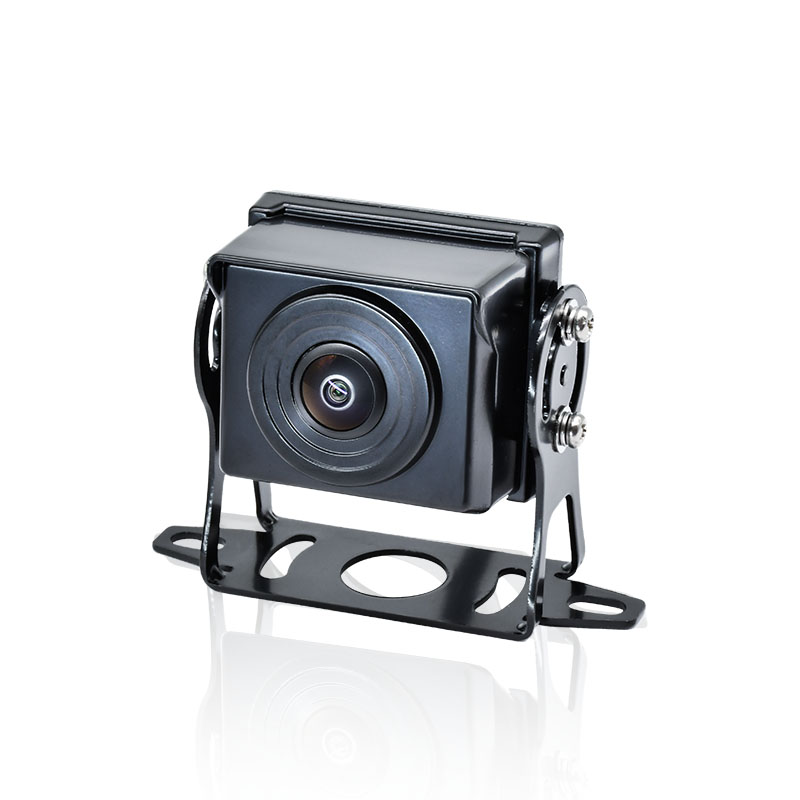

Around View Camera

210° super-wide, automative-grade industry DSP, 2 million HD pixel, IP69K Waterproof Rate, starlight full color, cold-resistant waterproof signal output cable

Parameters

MonitorModelMHD-779
Display screen7-inch IPS screen
Resolution1024×RGB×600
Brightness600cd/m2
Viewing angle
85/85/85/85(left/right/up/down)
Video Inputsupport 2CH AHD1080/720/CVBS Video Signal Input
Power inputDC11-32V/5W
Working Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
BracketU-shaped tinplate bracket
Dimension200*130*82mm(without support)


AVM+DVR

Model

DF-3DH7AI-AHD

power consumption

10-30W

power supply protection

With anti-surge function, anti-reverse connection function, low power protection, short-circuit overload protection

Video Input【optional】

AHD/HDMI/VGA

Video Input

4CH 1080P_AHD panoramic cameras input

Early warning function

BSD

video recording formatH.265
recording Resolution1920*1080
Working Temperature-20℃~+70℃

Storage

SD card(max. support 512GB)

Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)

Dimension (mm)

100*130*29(L*W*H)

Weight

400g


Panoramic cameraModelCHD-805Z

Resolution

1080P

Working Temperature

-20℃~+60℃

Waterproof Rate

IP68

low illumination

0.01 Lux

vibration/shock

GB∕T 2423.56-2018 standard (random 5G vibration)

Horizontal Angle

210°

vertical angle

126°

voltage input

DC8-16V
