Cigarette lighter pole warning lamp DF-J-LY24-DM

  • Model : DF-J-LY24-DM
  • Summarize : Vehicle warning lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products. International standard cigarette lighter power connector installation is quick and easy.
  • More Info : Online Service

Features

  • ECE R65 and SAEJ845 Class1 international standards: 24-watt LED, combined with the mixed wide-angle optical reflector, the diffused light intensity is greater than 280 cd (0°), which plays a role in long-distance safety warning.

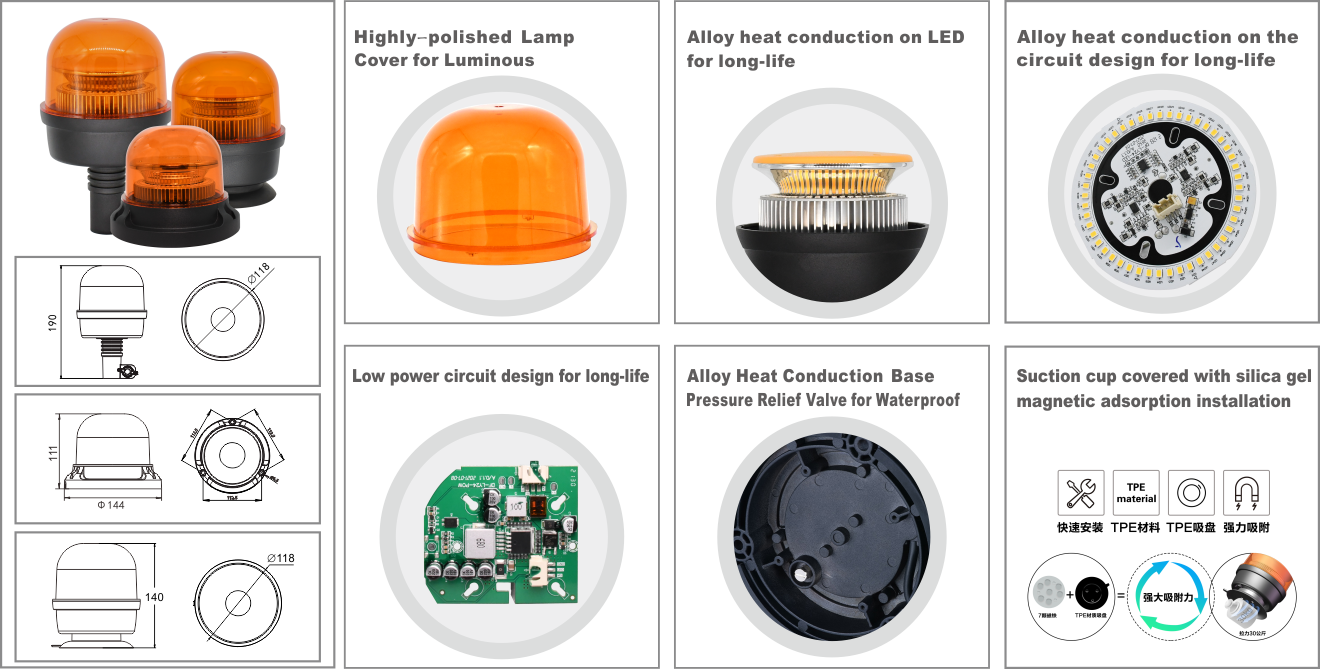

  • The thermal characteristic solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the influence of high temperature on the early light decay of the warning light, and realizes a warranty period of more than three years.
  • IP69K Waterproof Grade: The fully sealed and uniformly pressured patented design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high-pressure water flushing and other mechanical equipment vehicle safety warnings.

  • The flash and shrink fixed pattern, the Flash Frequency: 2 Hz ≤ F ≤ 4 Hz meets the international standards of ECE R65 and SAE J845 Class1.

  • International universal cigarette lighter power connection plug, nylon flexible bracket is high temperature resistant and vibration resistant.

  • Built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design avoid damage to the warning light due to improper use and vehicle pulse voltage.

  • Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses and other vehicle safety warnings.

Parameter

IP69K waterproof car warning lamp

ModelDF-J-LY24-DM
Maximum Power Consumption 28W
Light Source Type 48X0.5W high brightness LED
Waterproof Grade 100% IP69K(100KPa)
Anti-fogging Process 100% nitrogen filling
Thermal temperature pressure relief process

stainless steel waterproof breathable valve
alarm light color amber
Material die-casting aluminum alloy base (ADC12)+aluminum alloy heat dissipation disc +aluminum PCB substrates +PC lamp shade
LensABS mixed wide-angle reflecting mirror
alarm modedouble-flash fixed mode
Color Temperature y≤x-0.120
y≥0.390
y≥0.790-0.670x
0-degree illumination intensity （cd/eff）≥250
Flash Frequency 2 Hz ≤F ≤ 4 Hz
International Quality Standard ECE R65/ R10(EMC)
Installation Method international universally cigarette lighter interface
Anti-vibration Grade10G
Operating Temperature -40℃ to +65℃
operating voltage rangeDC10-32V
Weight 700g

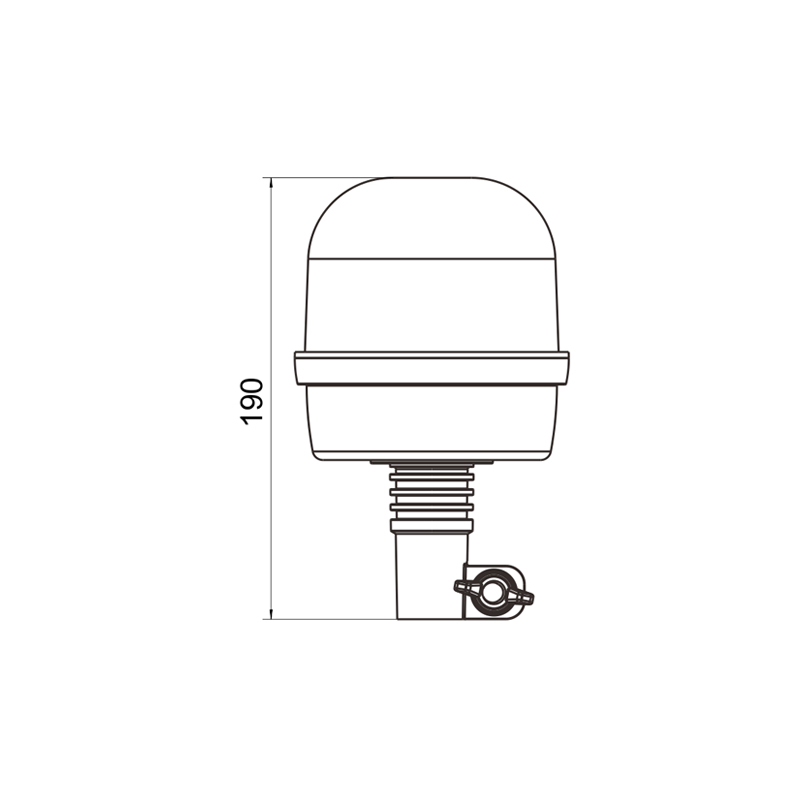

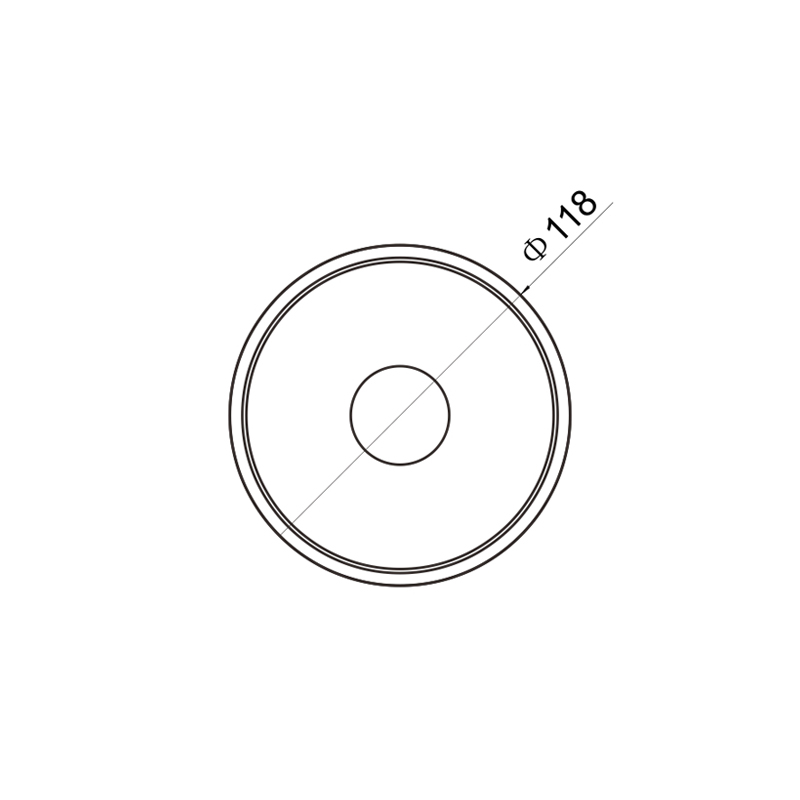

Specification Size190(H) x118(D) mm

/
