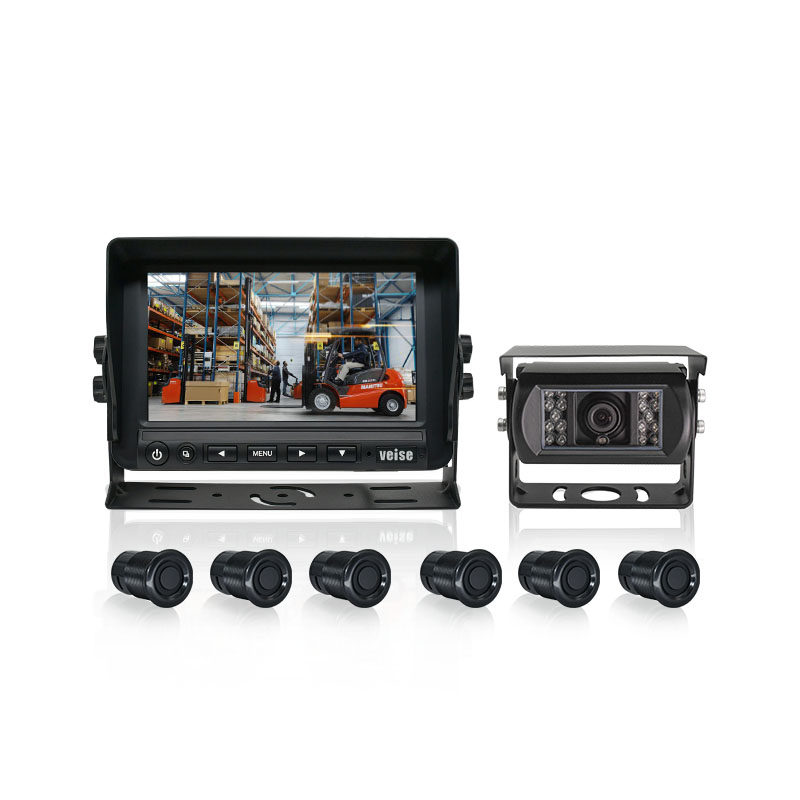

Ultrasonic Reversing Radar Camera System+Warning Function

  • Model : HDS-774M132M1-LB
  • Summarize : Drivers need to be fully focused when driving a vehicle, and any distraction may bring about safety risks and economic losses. Especially when it is impossible to simultaneously observe the display screen during the driving process and there is a lack of reverse radar warning, the risk further increases. To this end, we have introduced the on-board display ultrasonic radar all-in-one machine - this system perfectly integrates the reverse imaging and ultrasonic radar functions, can collect and analyze radar signals in real-time, and provides drivers with precise and obstacle ranging and warning that are not affected by the light environment. This all-in-one machine has higher warning accuracy and a lower false alarm rate compared with the latest AI image algorithm technology. It can identify more types of obstacles, not just pedestrians and vehicles. In addition, the all-in-one machine design simplifies the installation process, without the need for additional radar host boxes and adapter wires, providing drivers with a more convenient and efficient driving assistance experience.
  • More Info : Online Service

Product Features

7-inch HD IPS Screen Monitor

  • Built-in ultrasonic radar intelligent algorithm processor.

  • OSD menu allows separate setting of the detection distance range from 0.3 to 5 meters.

  • Different voice warnings for different areas.

  • Supports 4-channel, 6-channel, and 8-channel radar detection (optional).

Automotive-grade DSP

  • Supports dual monitors.

  • OSD menu allows separate setting of the screen mirror image and normal image, reverse ruler, and trigger priority application functions.

Wide Range Working Voltage

  • DC 8~32V.

  • Independent power output.

  • Load dump pulse voltage protection.

  • External power polarity reverse connection protection.

  • LED constant current and constant voltage protection to avoid improper use and ensure the warranty period.

AHD Camera

  • Automotive-grade DSP.

  • 2 million HD pixels.

  • IP69K Waterproof Rating.

  • IR LED night vision function.

  • Durable and waterproof signal output line.

4-core Bronze Avionics Header Double-shielded Connecting Cable

  • Good anti-interference.

  • Low impedance.

  • Minimal signal transmission attenuation.

  • Double-injection molded avionics header and tail wires.

  • Good resistance to stretching, swinging, and ductility.

Product Parameters

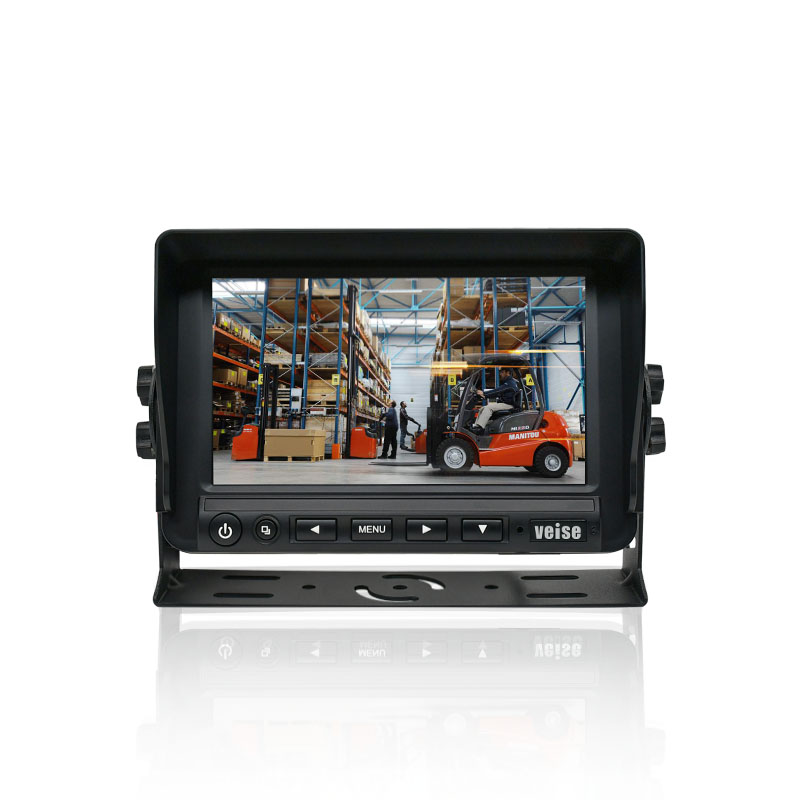

HD Camera Monitor (MHD-774M)

Screen7-inch IPS screen
Resolution1024(H) X 600(V) dot
Video InputMaximally supports 2 channels of AHD1080P/960P/720P/CVBS signal mixed input, can be used in the mixed way
Picture modeFour-picture
System standardPAL/NTSC (AUTO)
Brightness (cd/m²)600
Radar alarmUltrasonic DSP processor
Detecting distance0.3-5 meters
Detecting accuracy0.1 meter
Detecting angleHorizontal 120°, vertical 60°
Reacting time100-150 milliseconds/per
Detecting area3 alarming areas can be freely set (0.4-1m, 1-1.5m, 1.5-5m )

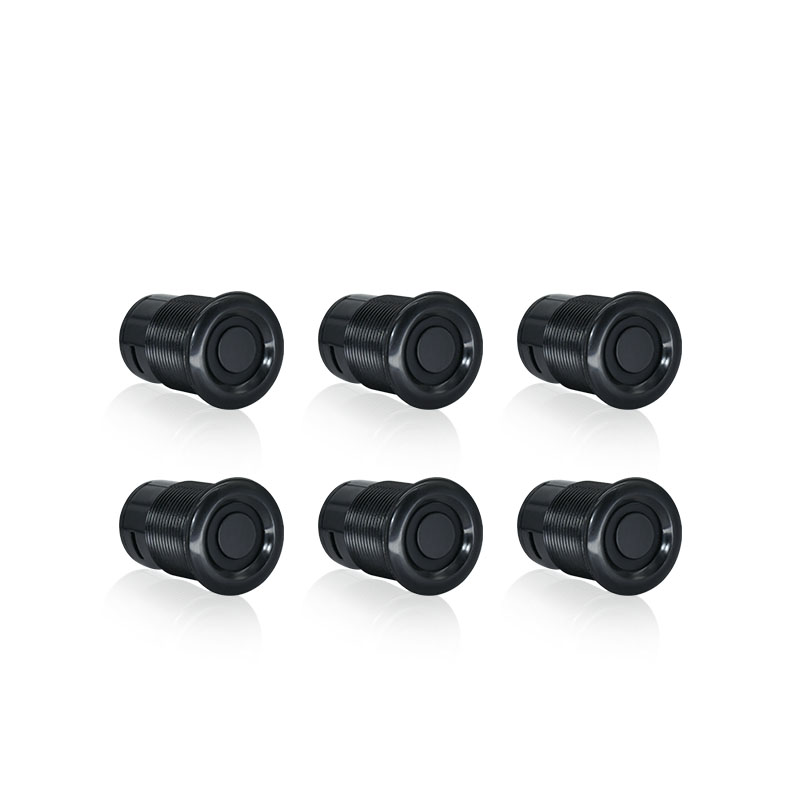

Number of probesSupports 4, 6, or 8 probes (aviation connector cable series connection)
Working frequency40KHz
Load dumpISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)
Anti-vibration Rate5G (meets GB/T2423.56-2008 standard)
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
Outer dimension218 x 149 x 82 mm

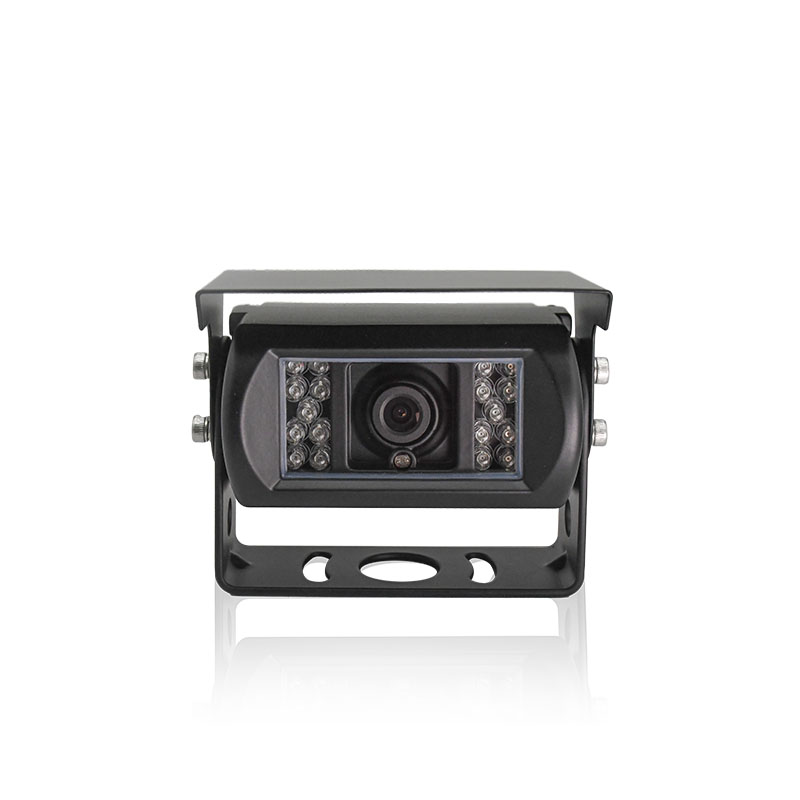

HD Waterproof Camera (CHD-132M)

Image Sensor1/2.8 Color Sony CMOS
Effective Pixel1920(H) X 1080(V)
Horizontal definition1080P
View angle130°
Infrared distance15 meters (18 built-in 850nm infrared lights)
Waterproof RatingIP69K
Working VoltageDC12V±10% (powered by the monitor)
Working Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Anti-vibration Rate5G (meets GB/T2423.56-2008 standard)
Outer dimension108(W) x 78(H) x 75(D) mm

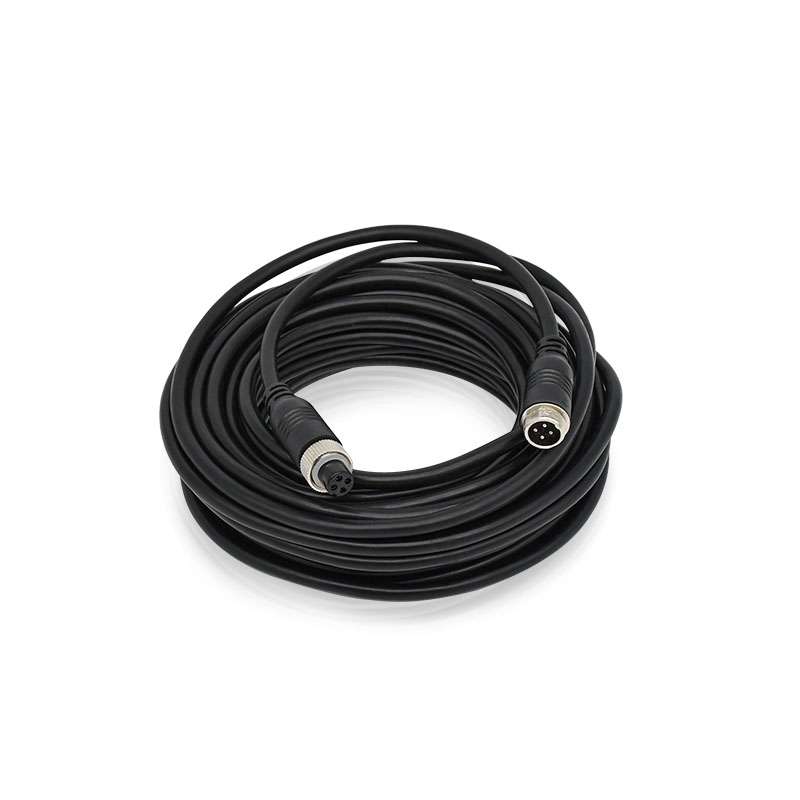

HD Video Cable (XC-HD0004-B-15M)

Interface4-core avionics male and female head
Length15 meters

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
