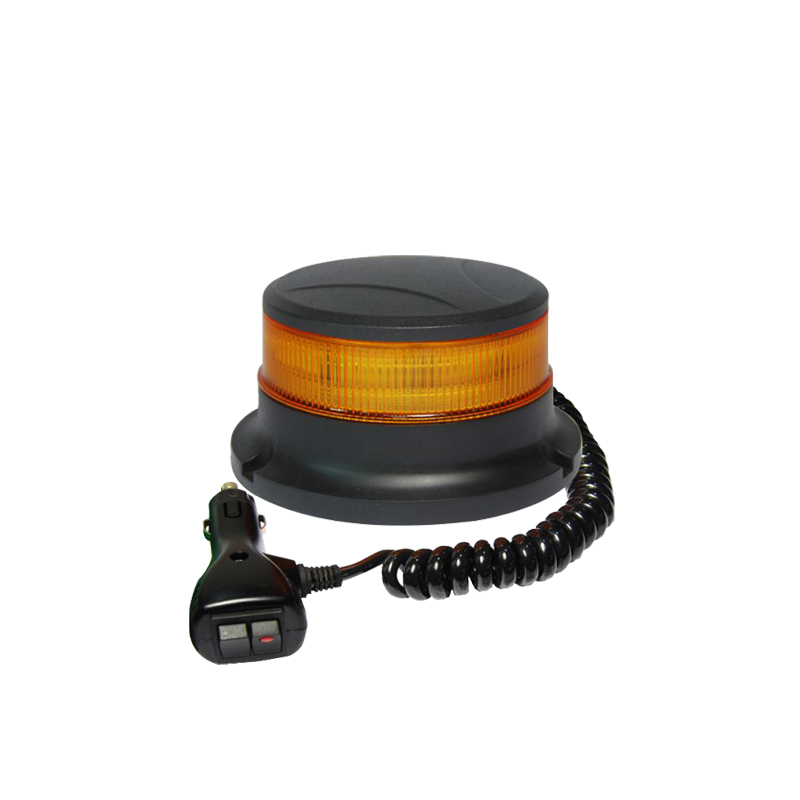

Low Profile LED Beacon Light

  • Model : DF-J-AY24
  • Summarize : Vehicle warning lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products.
  • Manual : download
  • More Info : Online Service

Features

  • ECE R65 and SAEJ845 Class1 international standards: 24-watt LED, combined with the mixed wide-angle optical reflector, the diffused light intensity is greater than 280 cd (0°), which plays a role in long-distance safety warning.

  • The thermal characteristics solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the impact of high temperature on early light decay of the warning light, realizing a warranty period of more than three years.

  • IP69K Waterproof Grade: The fully sealed and uniformly pressured patented design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high-pressure water flushing, and other mechanical equipment vehicle safety warnings.

  • 6 flashes + 2 rotating light warning mode, equipped with a built-in trigger switch for optional selection and memory storage function. The flashing frequency: 2 Hz ≤ F ≤ 4 Hz, which meets the international standards of ECE R65 and SAEJ845 Class1.

  • The power supply connection line is cold-resistant and suitable for snowy and icy climates, preventing brittleness and breakage.

  • The built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design avoid damage to the warning light due to improper use and vehicle pulse voltage.

  • Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses and other vehicle safety warnings.

Parameter

IP69K waterproof car warning lamp

Model：DF-J-AY24
Maximum Power Consumption：28W
Light Source Type：48X0.5W high brightnessLED
Waterproof Grade：100% IP69K(100KPa)
Anti-fogging Process：100% nitrogen filling
Thermal temperature pressure relief process：Stainless steel waterproof breathable valve
alarm light color：amber

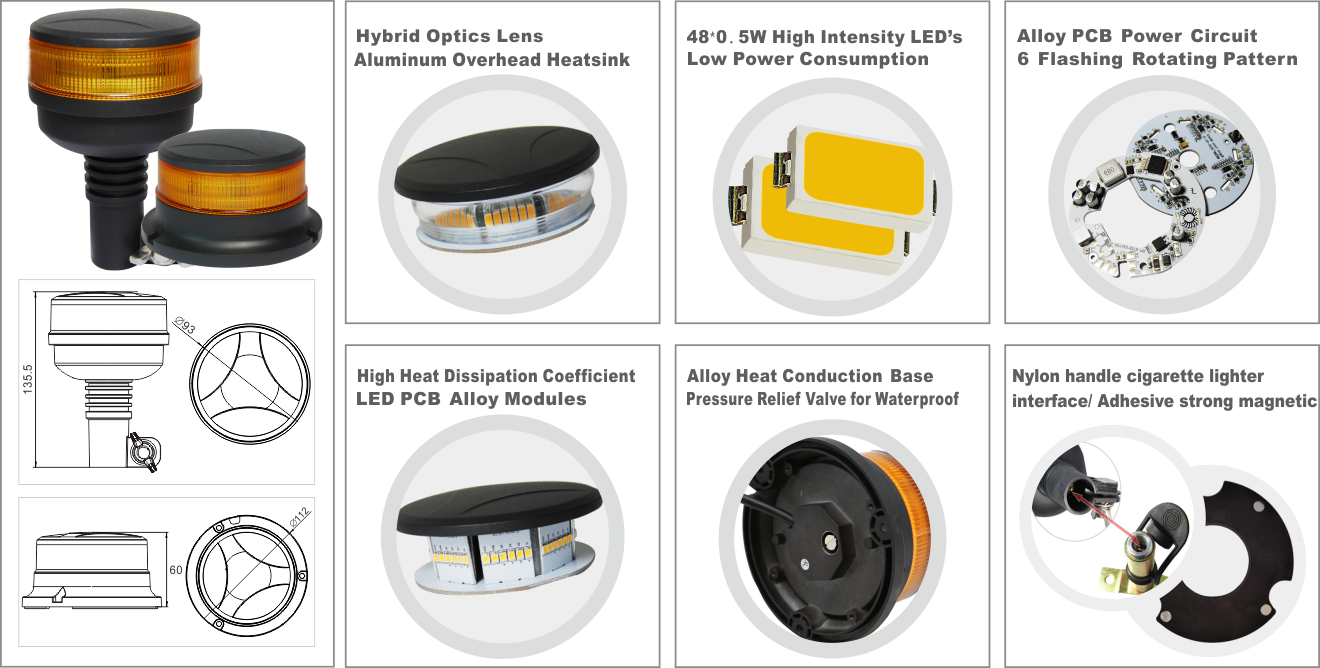

Material：Die-cast aluminum alloy base (ADC12) + aluminum alloy heat sink cover + aluminum-based PCB board + PC lampshade
inner Lens：PMMA Acrylic Fresnel special optical design
alarm mode：6 flash and rotating modes(controlled and memorized via internal momentary switches)
Color Temperaturey≤x-0.120
y≥0.390
y≥0.790-0.670x
0-degree illumination intensity（cd/eff）≥270
flash frequncy ：2 Hz ≤F ≤ 4 Hz
International Quality Standard：ECE R65/ R10(EMC) /SAE J845 Class 1

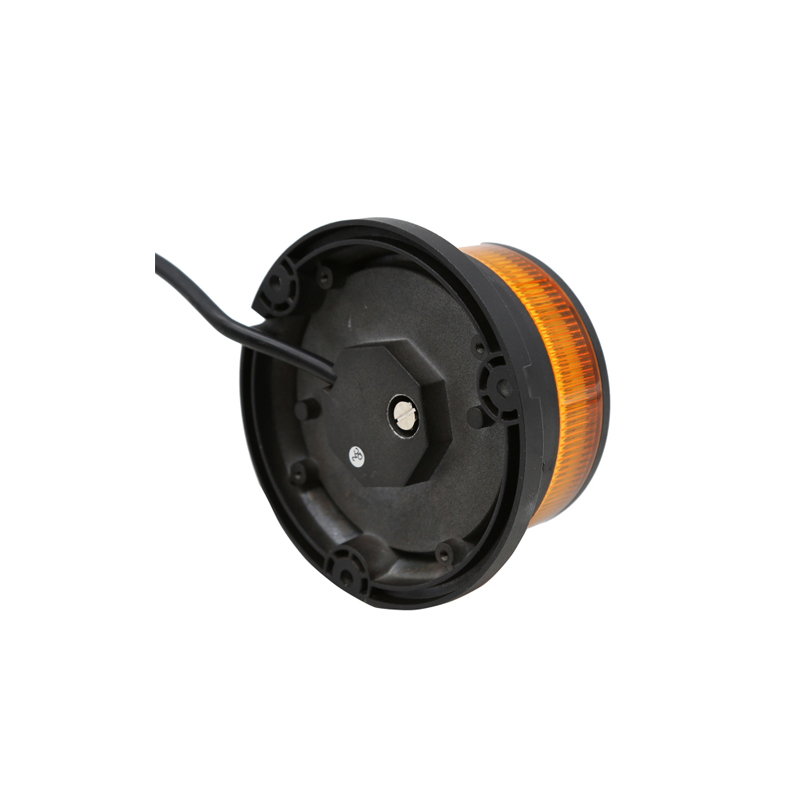

Installation Method；Three-hole screw fixation and magnetic base adsorption type (optional)
Anti-vibration Grade：10G
Operating Temperature：-40℃ to +65℃
operating voltage range：DC10-32V
Weight：450g

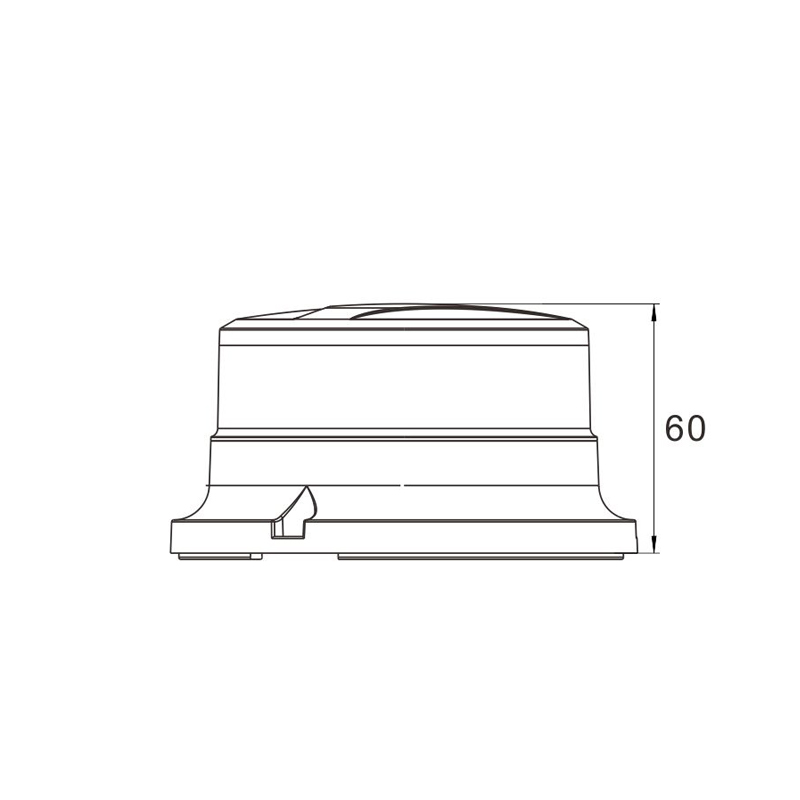

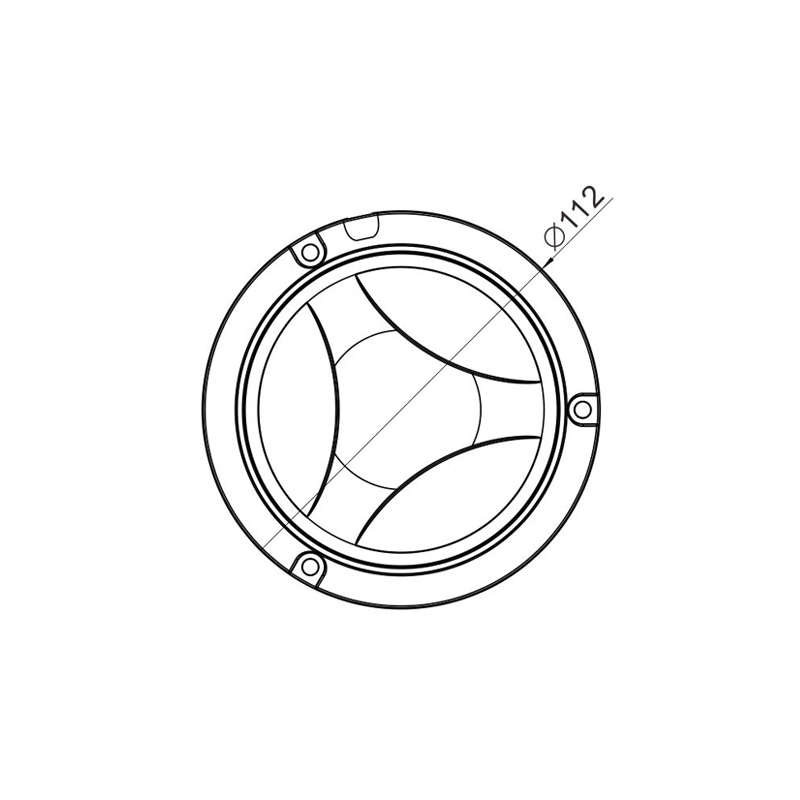

Specification Size：60(H) x112(D) mm


Professional testing laboratory for warning light luminous flux and light intensity, ensuring compliance with international ECE R65, SAEJ845 Class1 light intensity standards.
