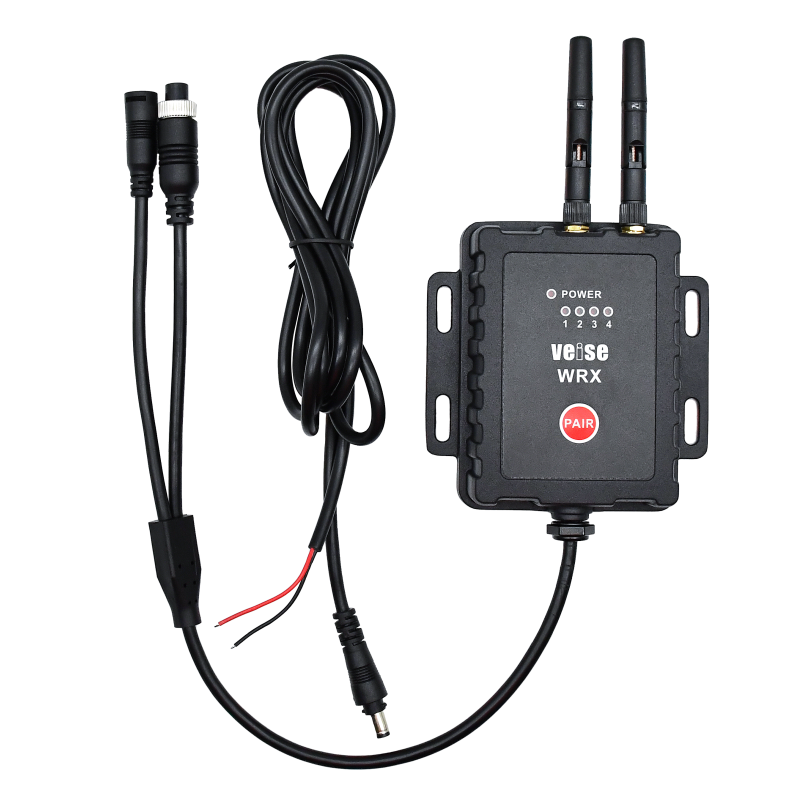

1080P HD waterproof car wireless receiving box

  • Model : RWHD-RX4H
  • Summarize : 1080P HD waterproof card wireless receiving box can be used with any monitor, converting wired transmission into HD wireless transmission, with multiple video output formats. It is used for in-vehicle rear-view monitoring, which is convenient and requires no wiring.
  • More Info : Online Service

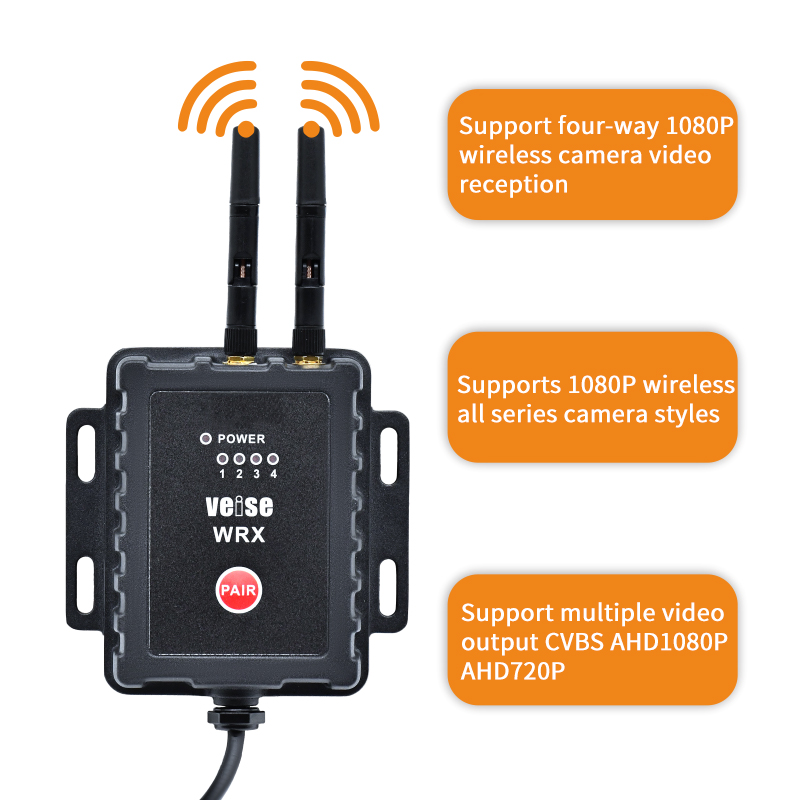

Built-in 2.4G wireless reception, and the double-antenna receiving range reaches 200 meters (open distance)

Supports 4 channels of wireless camera, multiple kinds of picture mode: single-picture, double-picture, three-picture, four-picture.

Multiple kinds of HD video output AHD1080P/720P(customizable CVBS audio output)

Supports 1080P HD wireless car camera series

Input voltage DC9-32V

waterproof and dust-proof function, IP69K prevention rate


1080P HD waterproof car wireless receiving box (RWHD-RX4H)
wireless receiveinput 2.4G wireless reveiver
picture mode1/2/3/4 picture mode
working frequency2400〜2483.5MHZ
reveive sensitivity≤-86 dB
receiving distanceopen distance≤200 meters
Video InputAHD1080P:25FPS/30FPS  AHD720P:25FPS/30FPS
time delaying150ms
Waterproof RatingIP69K
load dumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Anti-vibration RateGB∕T 2423.56-2018 standard (random 5G vibration)
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC9-32V
outer dimension(L x W x T) (106 x 105 x 27.5mm)
