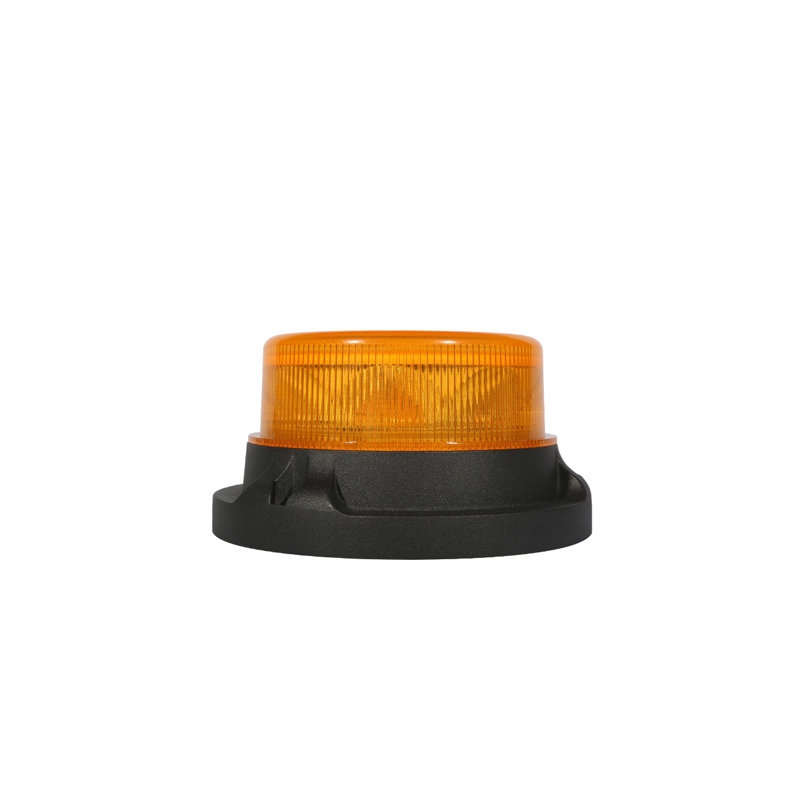

Rotating Beacon Light

  • Model : DF-J-HY08-DM
  • Summarize : Vehicle warning lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products.
  • Manual : download
  • More Info : Online Service

Features

  • The vehicle-mounted warning light is fully sealed, resistant to acid and alkali, and features a patented design ensuring uniform thermal expansion and contraction pressure. Its IP69K Waterproof Grade makes it suitable for outdoor rain and mechanical equipment vehicle safety warnings.

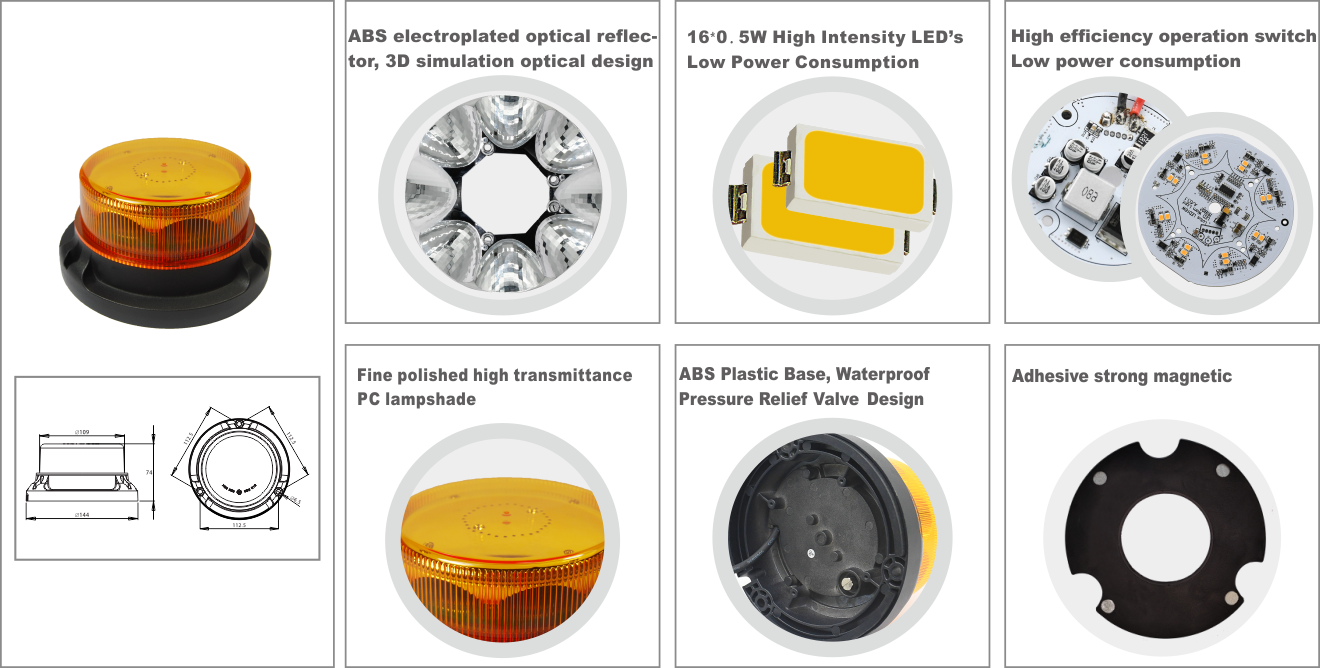

  • 16 high-brightness SMD 0.5-watt LEDs, combined with ABS mixed wide-angle reflectors and high-transmission PC shields, effectively increase light intensity to less than 100 cd (0°) and 70 cd (-8°/+8°), serving as a close safety warning.

  • The LED constant current and constant voltage protection circuit eliminates the thermal characteristics of the warning lamp LED and prevents early light decay.

  • The fixed flashing mode, operating with a flashing frequency of 2 Hz ≤ F ≤ 4 Hz, meets the international standards of ECE R65 and SAEJ845 Class1.

  • The cold-resistant low-temperature power supply connection line adapts to snow and ice climates, preventing brittleness and breakage.

  • With a built-in wide voltage DC10-32V circuit, it avoids damage due to improper use.

  • Vehicle warning lights are widely used in the safety warnings of vehicles in limited environmental engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses, and other vehicles.

Parameter

IP69K waterproof car warning lamp

ModelDF-J-HY08-DM
Maximum Power Consumption8W
Light Source Type16X0.5W high brightness LED
Color Temperature1800k(amber)
Waterproof Grade100% IP69K(100KPa)
Anti-fogging Process100% nitrogen filling
Thermal temperature pressure relief processABS waterproof breathable valve
Warning Light Coloramber
MaterialABS base+ PC lamp shade
inner LensMixed wide-angle reflector special optical design
alarm mode

Single flashing mode (customizable)

Color Temperaturey≤x-0.120
y≥0.390
y≥0.790-0.670x
0-degree light intensity（cd/eff）≥130
Flash Frequency2 Hz ≤F ≤ 4 Hz
International Quality StandardCE

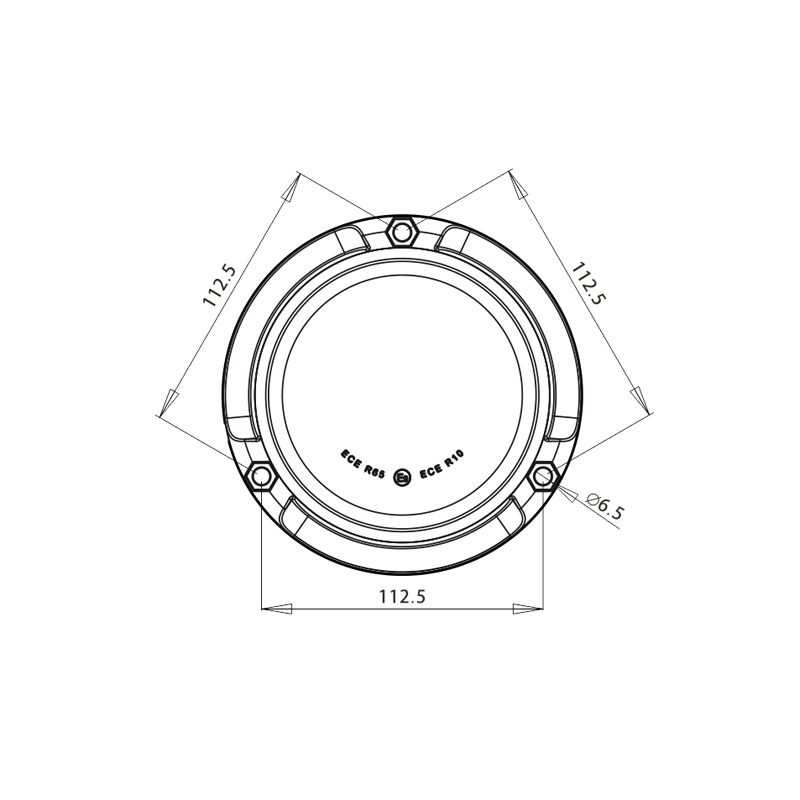

Installation MethodThree-hole screw fixation and magnetic base adsorption type (optional)
Anti-vibration Grade10G
Operating Temperature-40℃ to +65℃
operating voltage rangeDC8-32V
Weight250g
Specification Size74(H) x144(D) mm
