ECE R65 LED Beacon Light

  • Model : DF-J-NY24
  • Summarize : Vehicle warning lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products.
  • More Info : Online Service

Product Features

  • ECE R65 and SAEJ845 Class1 international standards: 24-watt LED, combined with the mixed wide-angle optical reflector, produce a diffused light intensity greater than 280 cd (0°), which plays a role in long-distance safety warning.

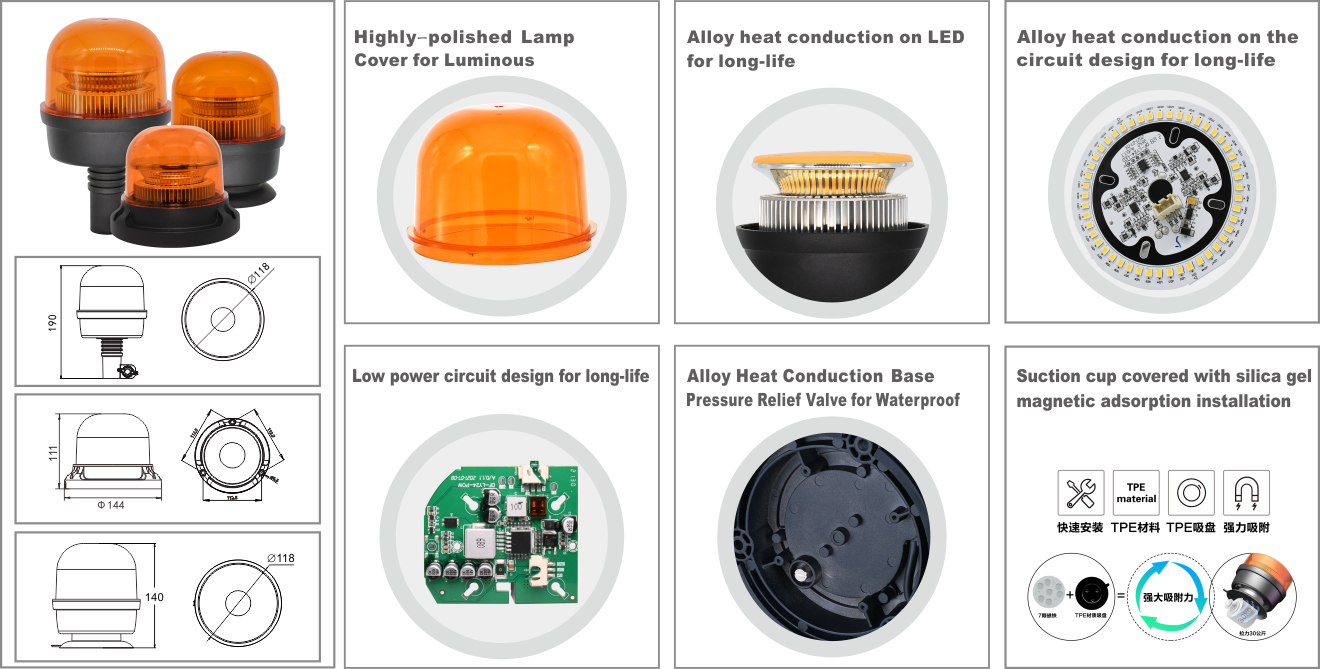

  • The thermal characteristic solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminate the influence of high temperature on the early light decay of the warning light, and realize a warranty period of more than three years.

  • IP69K Waterproof Grade: The fully sealed and uniformly pressured patented design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high-pressure water flushing, and other mechanical equipment vehicle safety warnings.

  • 6 flashes + 2 rotating light warning mode, with a built-in trigger switch for optional selection and memory storage function. The flashing frequency: 2 Hz ≤ F ≤ 4 Hz meets the international standards of ECE R65 and SAEJ845 Class1.

  • The cold-resistant and low-temperature power supply connection line adapts to the snow and ice climate environment and is not easily brittle and broken.

  • Built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design prevent damage to the warning light due to improper use and vehicle pulse voltage.

  • Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses, and other vehicle safety warnings.

Product Parameters

IP69K waterproof car warning light

ModelDF-J-NY24
Maximum Power Consumption28W
Light Source Type48X0.5W high brightnesss LED
Waterproof Grade100% IP69K(100KPa)
Anti-fogging Process100%
Thermal temperature pressure relief processstainless steel waterproof breathable valve
alarm light coloramber
MaterialDie-cast aluminum alloy base (ADC12) + aluminum alloy heat sink plate + aluminum-based PCB board + PC lampshade
LensABS mixed wide-angle reflector
alarm modeDual flashing fixed mode
Color Temperaturey≤x-0.120
y≥0.390
y≥0.790-0.670x
00-degree illumination intensity(cd/eff)≥250
Flash Frequency2 Hz ≤F ≤ 4 Hz
International Quality StandardECE R65/ R10(EMC)

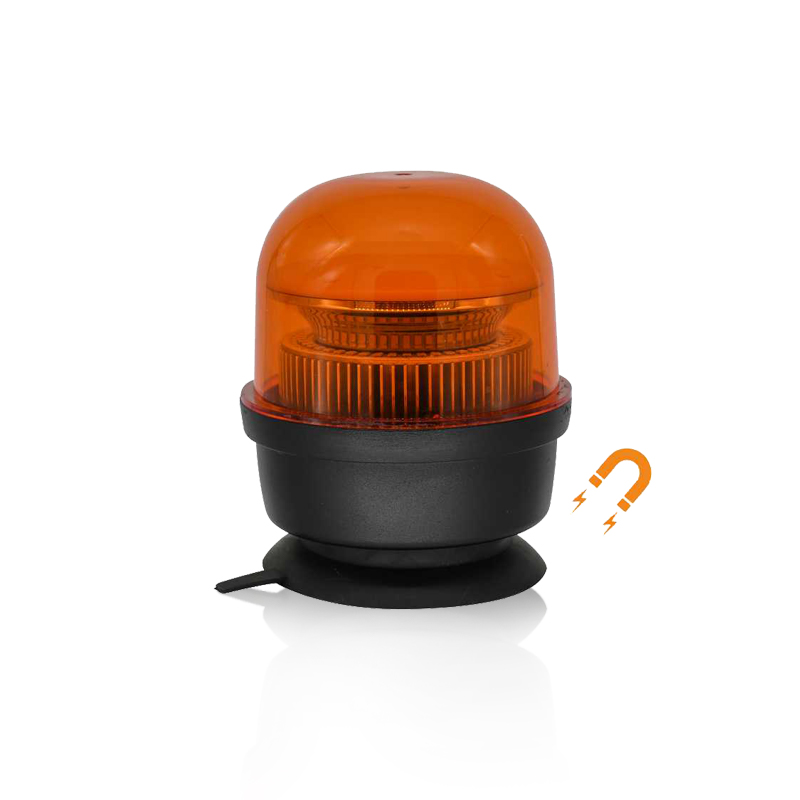

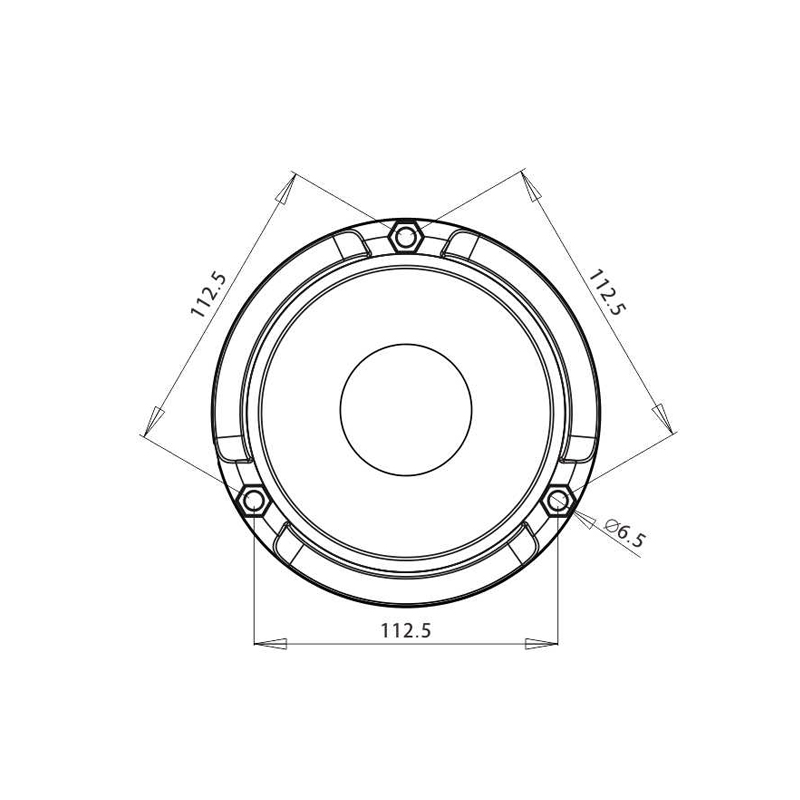

Installation MethodFlange base with three-hole screw fixation and magnetic base attachment (optional)
Anti-vibration Grade10G
Operating Temperature-40℃ to +65℃
operating voltage rangeDC10-32V
Weight700g

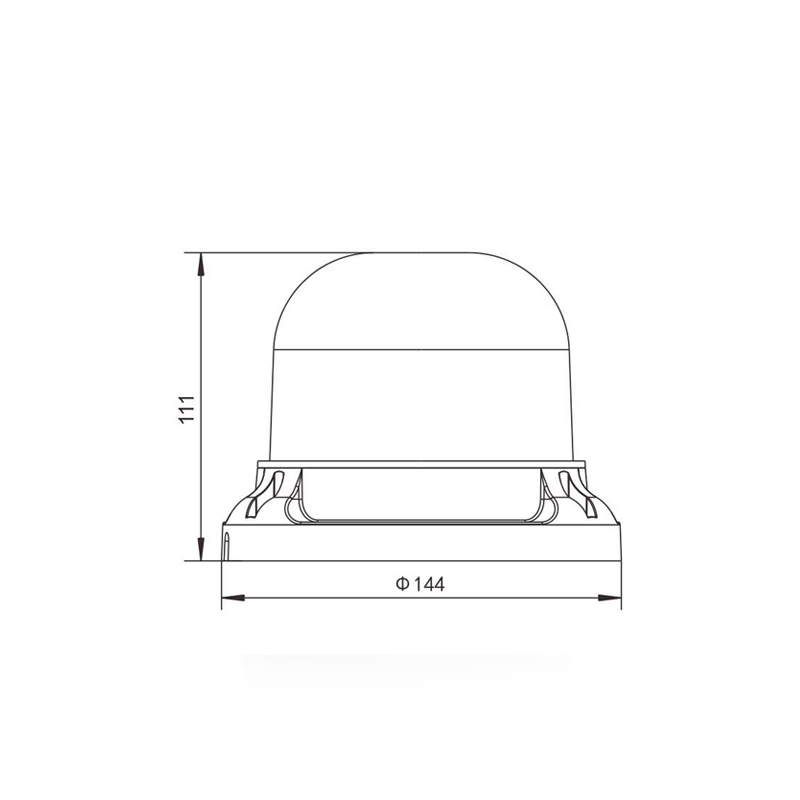

Specification Size111(H) x144(D) mm

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
