Magnetic Mount Beacon Light

  • Model : DF-J-MY24
  • Summarize : Vehicle warning lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products. It's convenient and quick installation with magnet and silicone suction cup adsorption.
  • More Info : Online Service

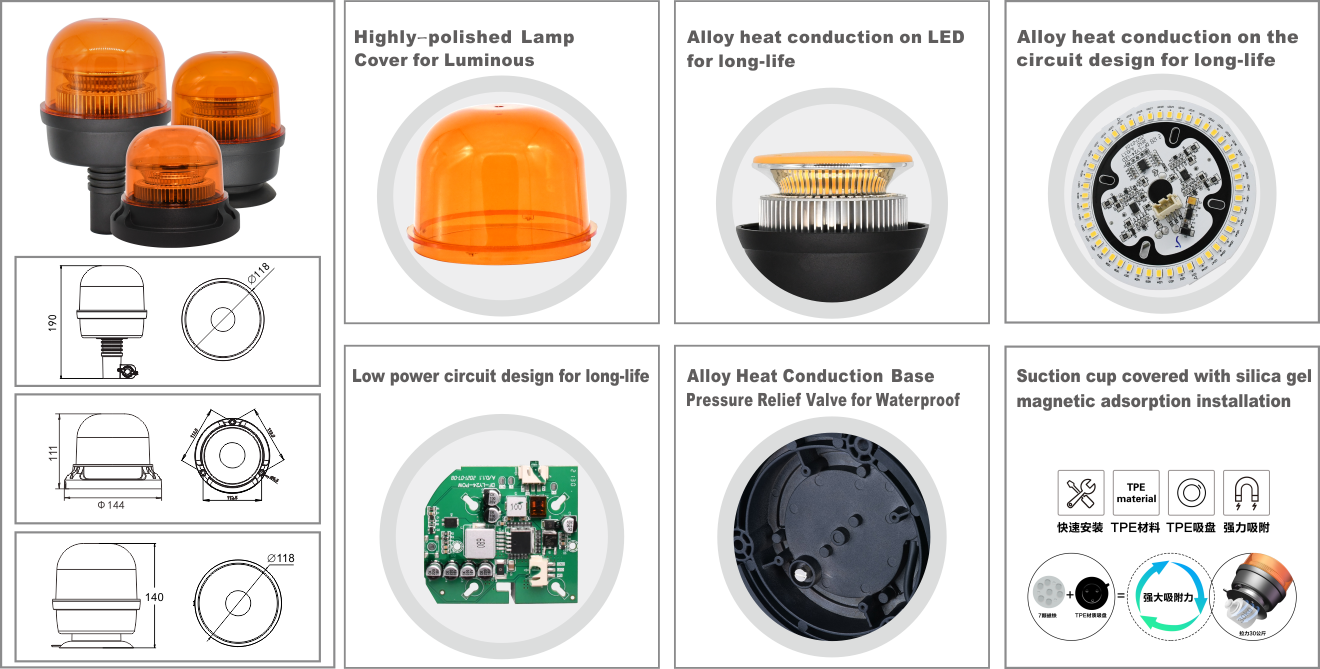

Product Features

  • ECE R65 and SAEJ845 Class1 international standards: 24-watt LED, combined with the mixed wide-angle optical reflector, the diffused light intensity is greater than 280 cd (0°), which plays a role in long-distance safety warning.
  • The thermal characteristic solution of the warning light LED: The modular integrated heat radiating structure design of the LED aluminum substrate, the LED aluminum alloy heat dissipation column and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the influence of excessive temperature on the early light attenuation of the warning light, and realizes a shelf life of more than three years.

  • IP69K Waterproof Grade: The fully sealed pressure uniform constant patent design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high water pressure flushing and other mechanical equipment vehicle safety warnings.

  • Flash fixed mode. The flashing frequency: 2 Hz ≤ F ≤ 4 Hz meets the international standards of ECE R65 and SAEJ845 Class1.

  • The cold-resistant and low-temperature power supply connection line adapts to the snow and ice climate environment and is not easily brittle and broken.
  • The Installation Method of the double adsorption base with embedded magnet of the silica gel sucker, which increases the stability of the warning light.

  • Built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design avoid damage to the warning light due to improper use and vehicle pulse voltage.
  • Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses and other vehicle safety warnings.

Product Parameters

IP69K waterproof car warning light

ModelDF-J-MY24
maximum consumption 28W
Light Source Type 48X0.5W high brightness  LED
Waterproof Grade 100% IP69K(100KPa)
Anti-fogging Process 100% nitrogen filling
Thermal temperature pressure relief process
stainless steel waterproof breathable valve
alarm light color amber
Material die-casting aluminum alloy base(ADC12)+aluminum alloy heat dissipation disc+aluminum PCB substrates+PC lamp shade
LensABS mixed wide-angle reflector
warning modedouble-flash mixed mode
Color Temperature y≤x-0.120
y≥0.390
y≥0.790-0.670x
0-degree illumination intensity(cd/eff)≥250
Flash Frequency 2 Hz ≤F ≤ 4 Hz
International Quality Standard ECE R65/ R10(EMC)
Installation Method suction cup magnetic installation
Anti-vibration Grade 5G
Operating Temperature -40℃ to +65℃
operating voltage range DC10-32V
Weight700g

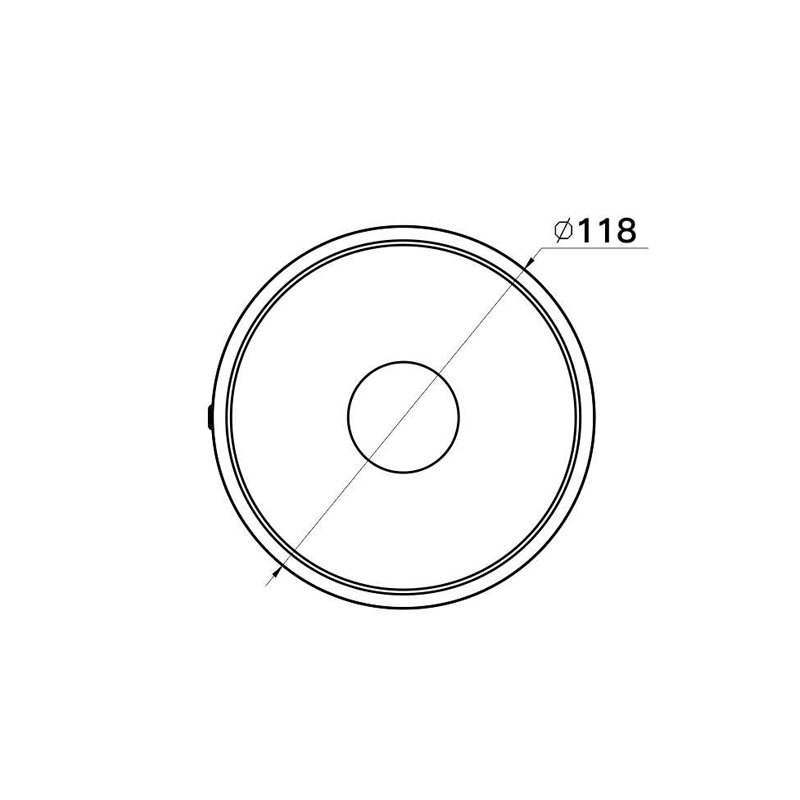

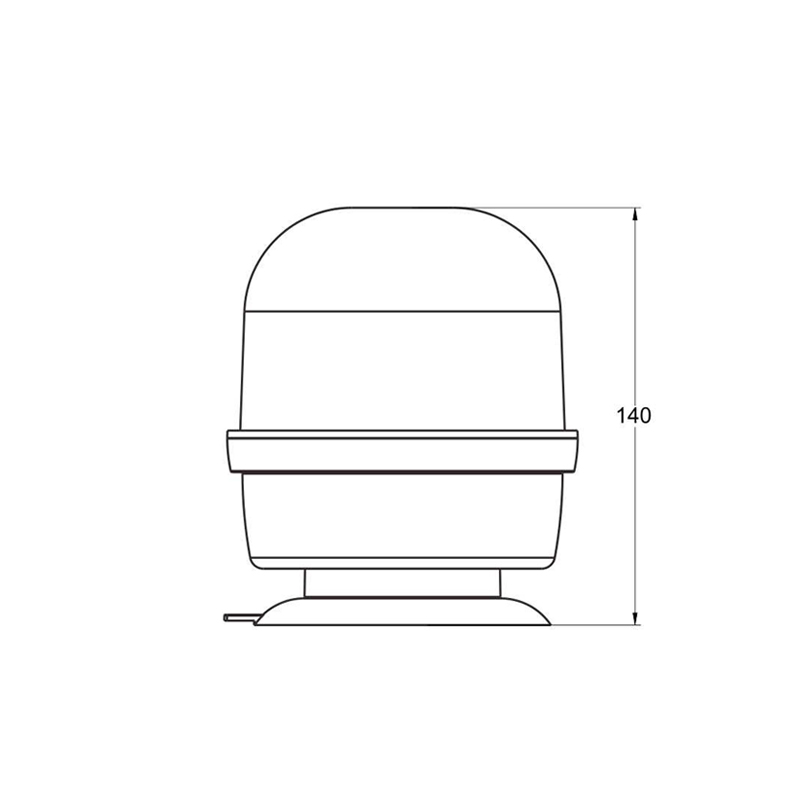

Specification Size 140(H) x118(D) mm

/

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
