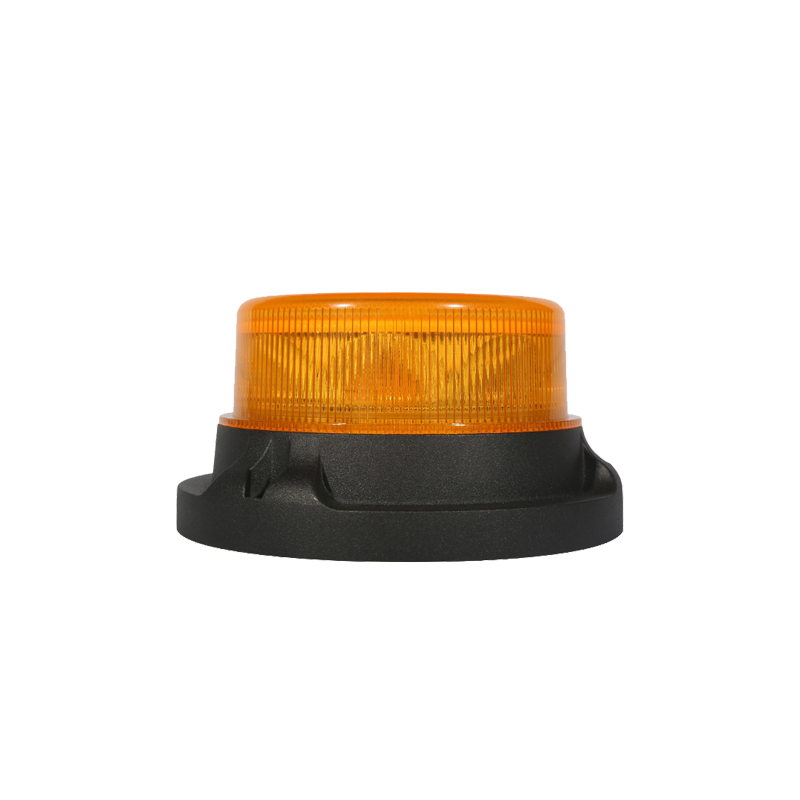

Strobe Beacon Light

  • Model : DF-J-HY16
  • Summarize : Vehicle warning lamps are widely used in municipal maintenance, transportation, engineering machinery and equipment, construction sites, medical and health, fire emergency, school buses, ships, aviation, factories and other vehicles and industry fields, especially in operating environments with poor visibility (rain, fog, and dark climate) and at night, when the visibility is less than 50 meters, it is used to promptly remind the drivers of passing vehicles to pay attention to safety, achieve the warning effect in special situations, and avoid economic losses. Therefore, there are certain technical index requirements for the warning light's electro-optical parameters, frequency, and waterproofing. The National Ministry of Transport and the European Economic Commission (ECE) have implemented a certification system (R65/R10) for warning lights, and the corresponding certification mark (E-mark) needs to be printed on the product.
  • More Info : Online Service

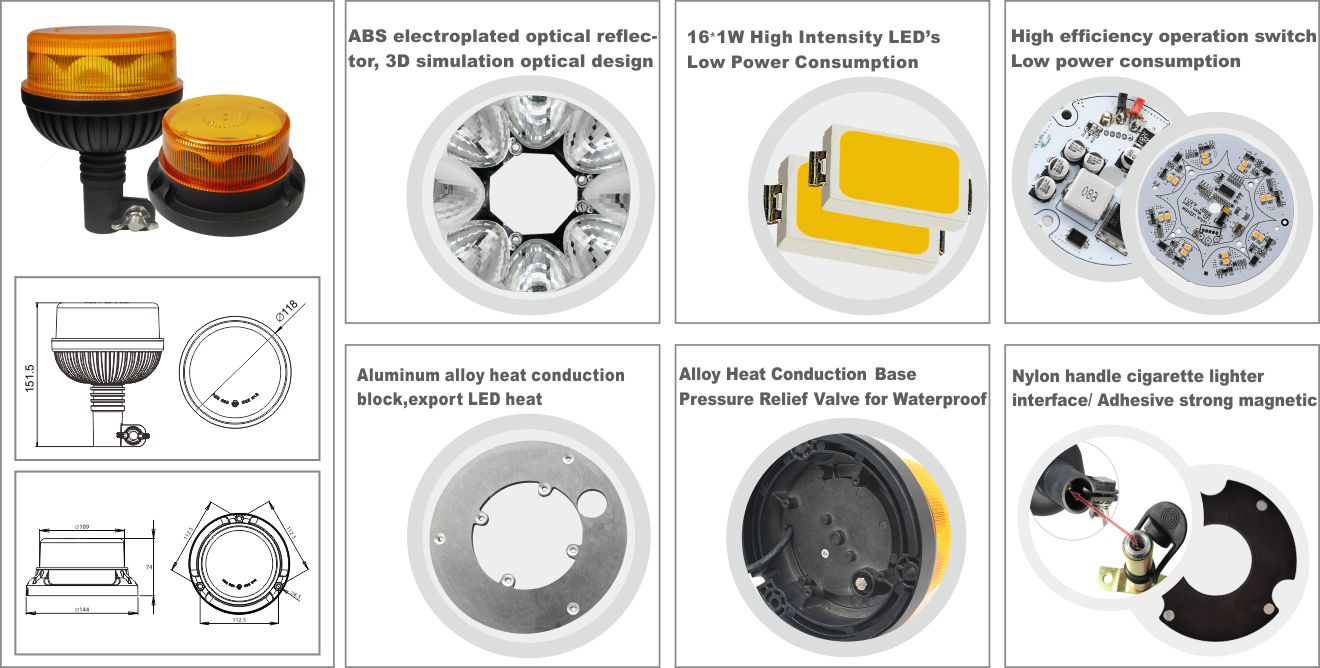

Product Features

  • ECE R65 and SAEJ845 Class1 international standards: 16-watt LED, combined with the mixed wide-angle optical reflector, produces a diffused light intensity greater than 120 cd (0°), serving a role in long-distance safety warning.

  • The thermal characteristic solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the influence of high temperature on the early light decay of the warning light, achieving a warranty period of more than three years.

  • IP69K waterproof grade: The fully sealed and uniformly pressured patented design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high-pressure water flushing, and other mechanical equipment vehicle safety warnings.

  • 6 flashes + 2 rotating light warning mode, equipped with a built-in trigger switch for optional selection and memory storage function. The flashing frequency: 2 Hz ≤ F ≤ 4 Hz, meeting the international standards of ECE R65 and SAEJ845 Class1.

  • The cold-resistant and low-temperature power supply connection line adapts to the snow and ice climate environment and is not easily brittle and broken.

  • The built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design prevent damage to the warning light due to improper use and vehicle pulse voltage.

  • The vehicle warning lights find wide applications in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses, and other vehicle safety warnings.

Product Parameters

IP69K waterproof car warning lamp

ModelDF-J-HY16
Maximum Power Consumption16W
Light Source Type16X1W high brightness LED
Waterproof Grade100% IP69K(100KPa)
Anti-fogging Process100% nitrogen filling
Thermal temperature pressure relief processStainless steel waterproof breathable valve
alarm light coloramber
Materials

Die-cast aluminum alloy base (ADC12) + aluminum alloy heat sink + PC lampshade

inner LensSpecial optical design of mixed wide-angle reflectors
alarm modesix mode (Fast/slow rotating light, single/double/triple/quadruple flashing memory)
Color Temperaturey≤x-0.120
y≥0.390
y≥0.790-0.670x
0-degree illumination intensity(cd/eff)≥160
flash frequncy2 Hz ≤F ≤ 4 Hz
International Quality StandardECE R65/ R10(EMC) /SAE J845 Class 1

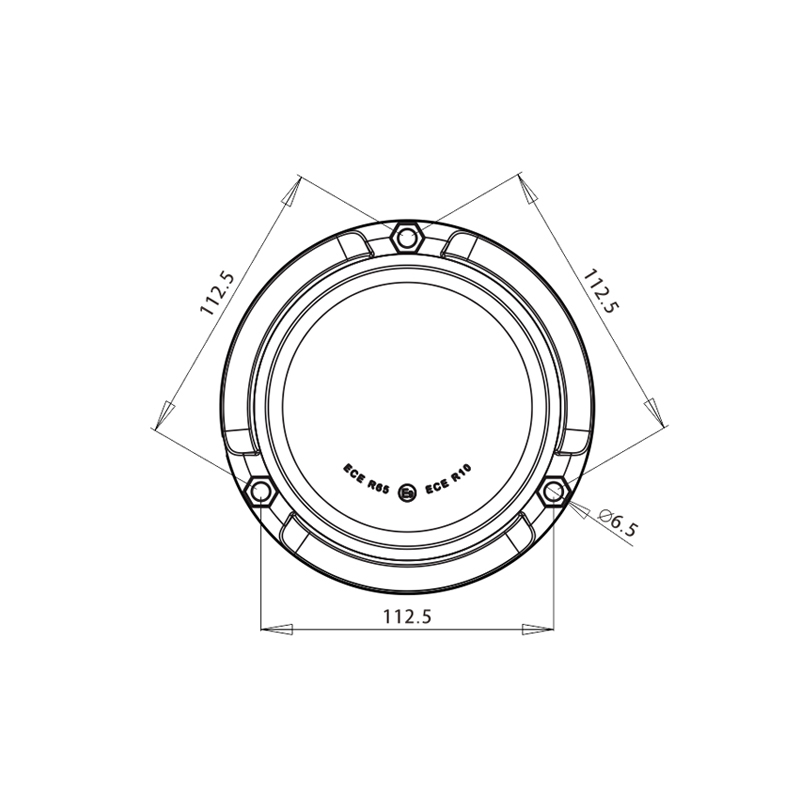

installatioin methodThree-hole screw fixation and magnetic base adsorption type (optional)
Anti-vibration Grade10G
Operating Temperature-40℃ to +65℃
operating voltage rangeDC10-32V
Weight650g

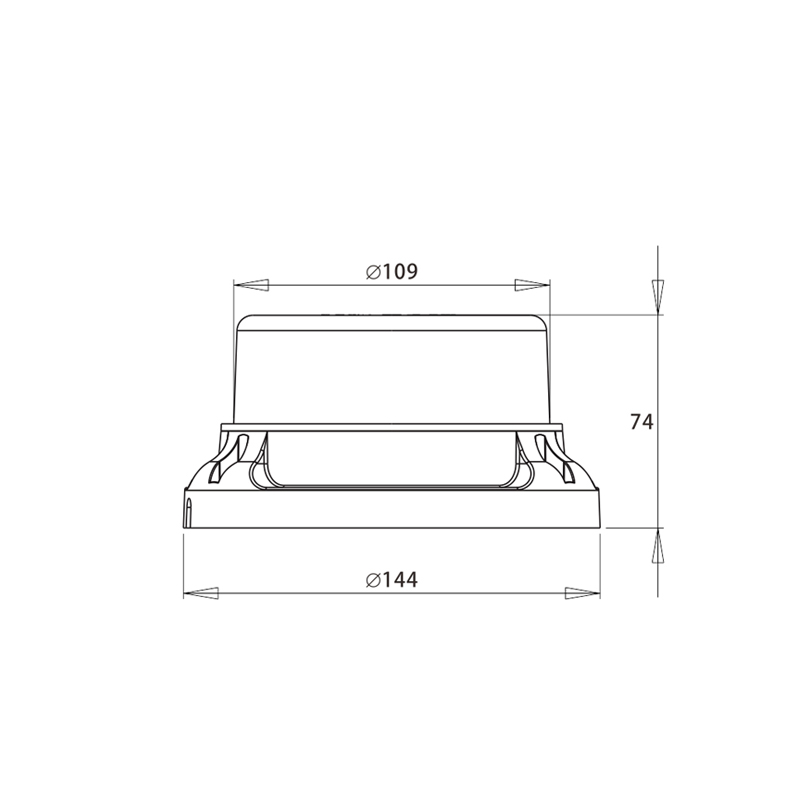

specifaction Size74(H) x144(D) mm

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
