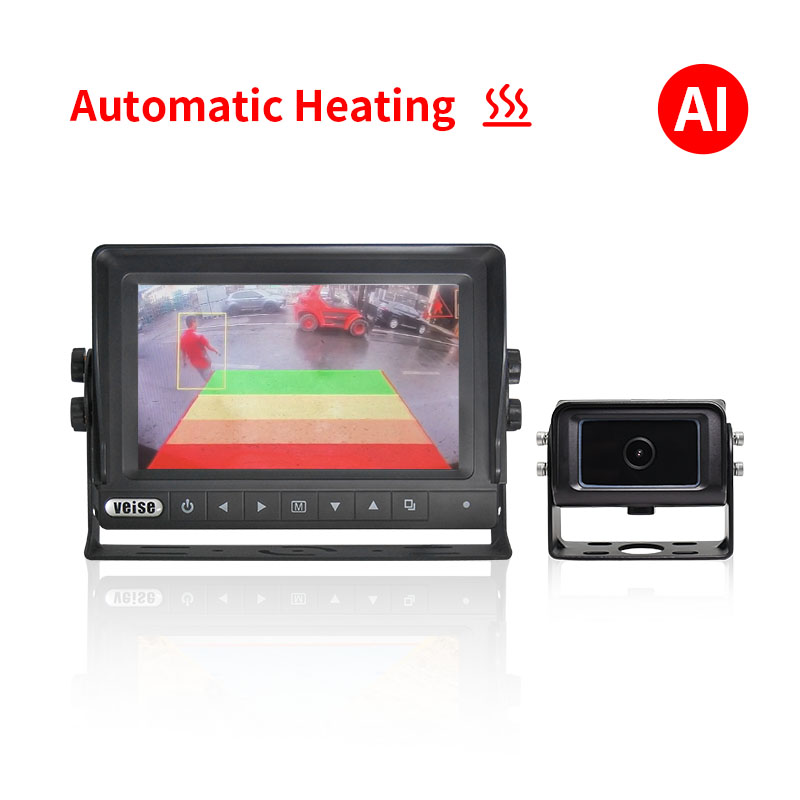

Refrigerated Warehouse Forklift Pedestrian & Vehicle Detecting Camera System

  • Model : HDS-751R122MRAI1
  • Summarize : When the forklift is performing construction operations, the driver has a blind spot to monitor, which presents a significant safety hazard. Especially in the low-temperature and high-humidity environment of cold storage, the forklift camera and display are prone to condensing water, which affects vision. To this end, a rearview monitoring safety designed specifically for the reverse of the cold storage forklift, which automatically identifies the pedestrian target for warning and automatically heats to defog and defrost, is designed to increase the operating efficiency of the driver, eliminate safety hazards, and ensure the enterprise benefits.
  • More Info : Online Service

Features

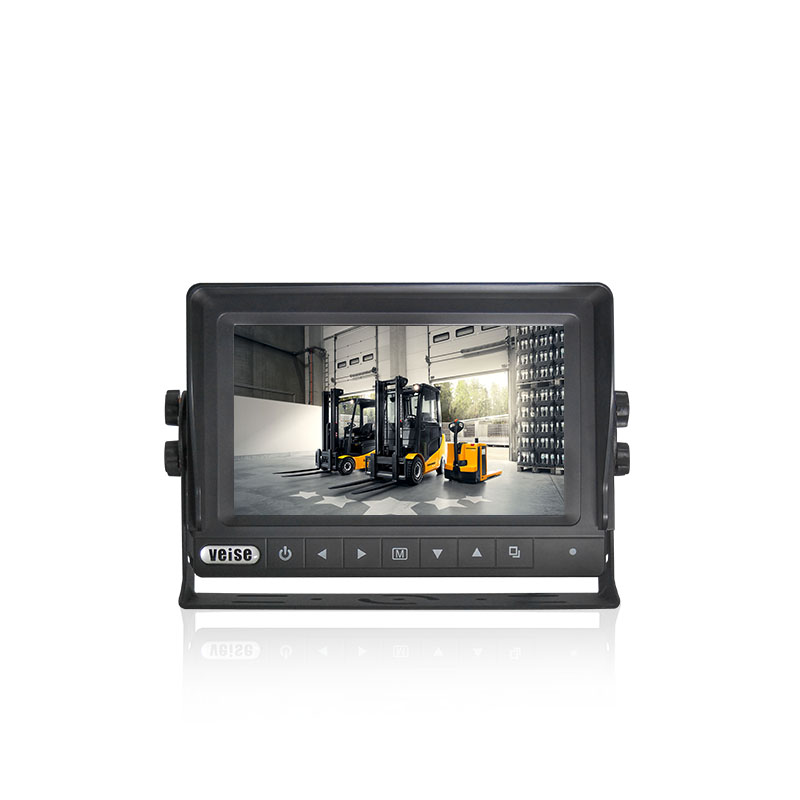

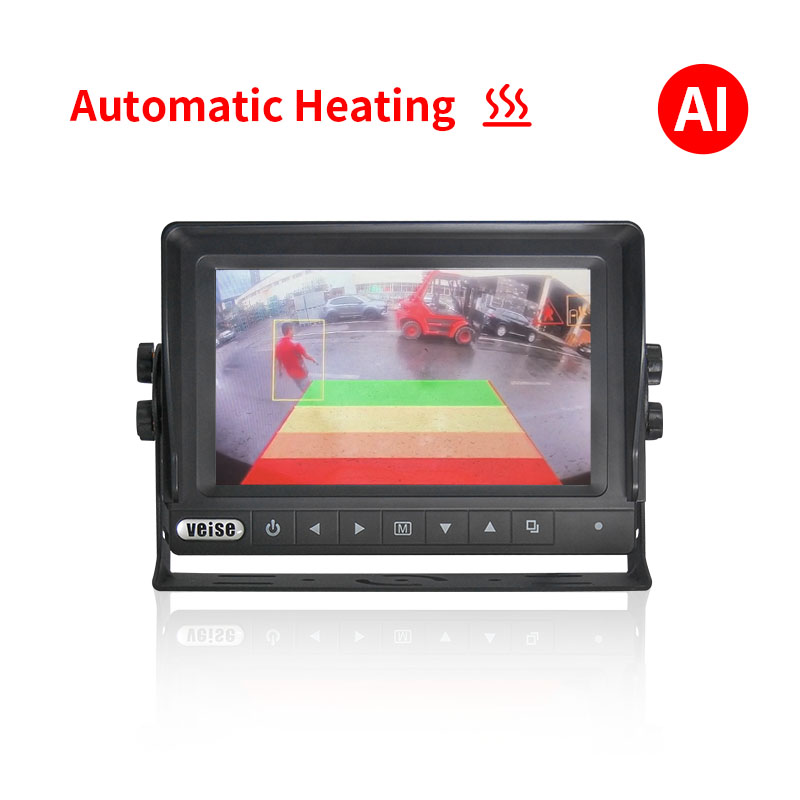

Waterproof Monitor

7-inch HD screen waterproof monitor supports 2-channel Video Input, with a fully sealed pressure-balanced patented design, IP68 Waterproof Grade, and an automatic heater to remove condensing water. Automotive industial grade DSP and OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

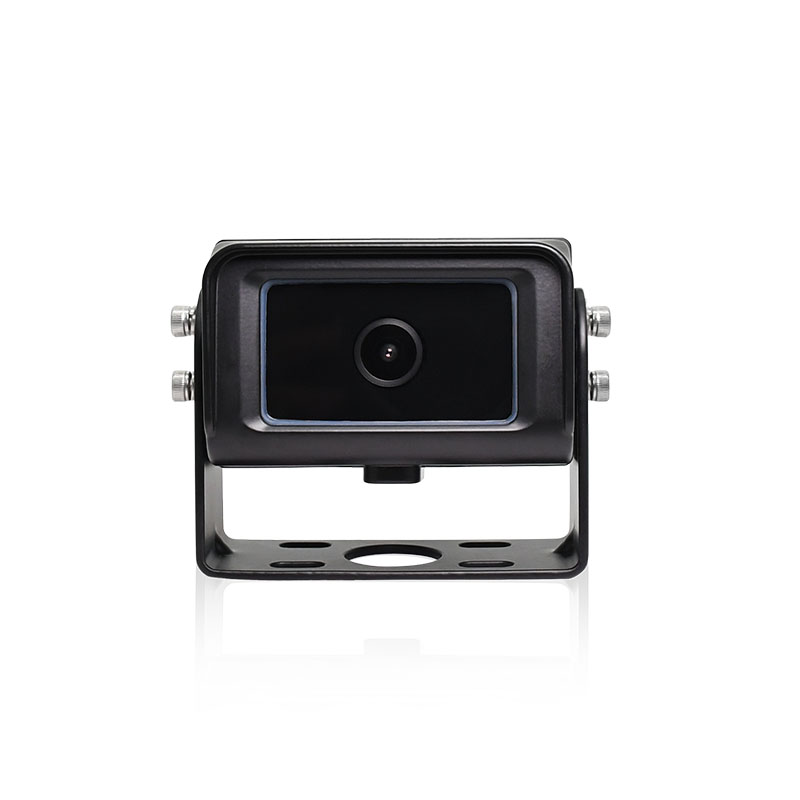

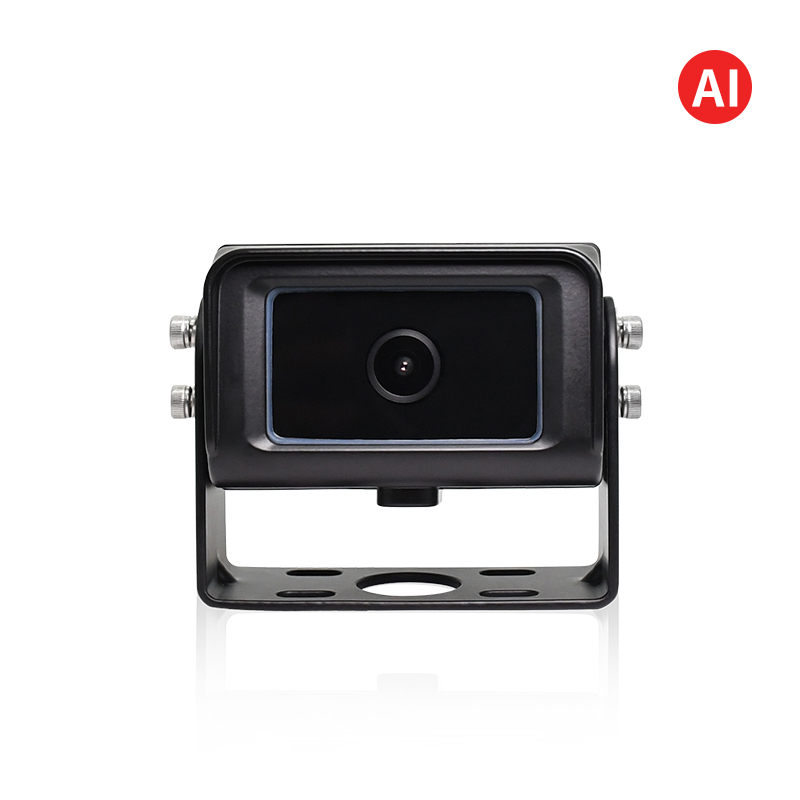

AI Smart Waterproof Camera

The AI camera is automotive industry grade DSP, with built-in and automatic heater to remove condensing water, 130° wide-angle, 2 million HD pixels, IP69K Waterproof Rating, cold-resistant waterproof signal output cable

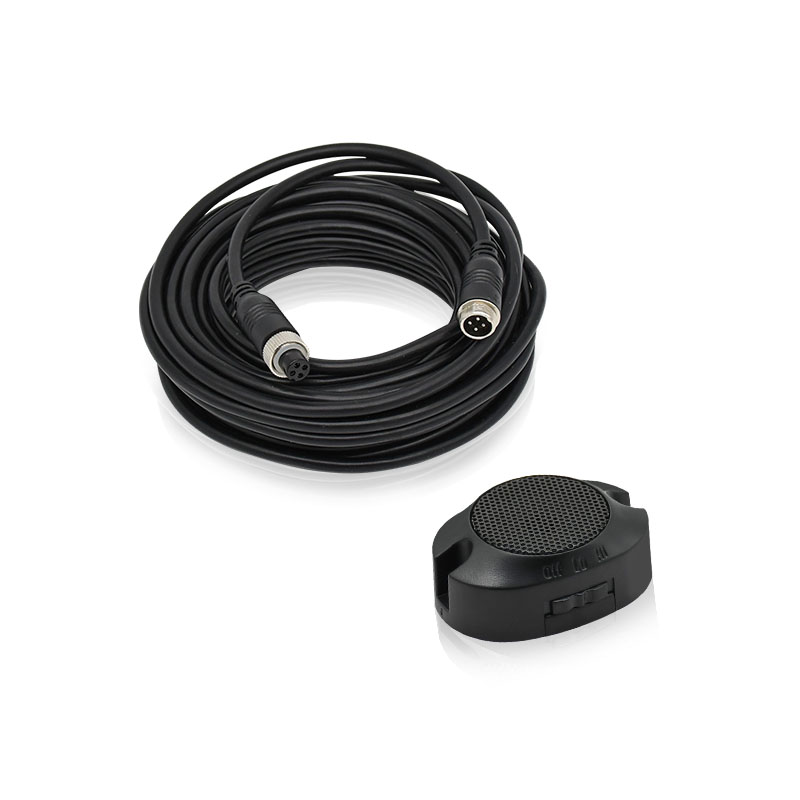

HD Video Cable

4-core bronze avionics header double-shielded connecting cable, with good anti-interference,low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility

Parameter

Low-temperature Heating Waterproof Monitor(MHD-751R)

Color Display Screen7-inch IPS screen
Resolution1024RGB(H) X 600(V)dot
Waterproof RatingIP68
Video Input2-channel Video Input
Display Modesingle-screen
Video Signal InputCVBS /720P /1080P
OSD Menu Functionsupport reversing screen trigger priority, delay,mirror images, Chinese and English
TV SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Contrast800:1
Load Dump ProtectionISO16750-2 standard(24V system Us=174V,Ri=4Ω,td=350ms)
Body Interface2-meter connected line
Operating Temperatureautomatically heats up to  -35°C when the temperature is lower than10°C
Storage Temperature-30℃ to +80℃
Operating VoltageDC11-32V
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Dimension(L x W x T) (220 x 149 x 84mm)
Weight1140g

AI Smart W Camera(CHD-122MAI)

Image Sensor1/2.9 Color Cmos
Effective Pixels1920(H) X1080(V)
Nigh Vision Modestarlight and full-colored
Horizontal Angle100°
Detection Functionpedestrian and vehicle detection warning
Alarming I/Obuzzer
Signal-to-noise Ratio≥48dB(AGC Off)
Video OutputAHD 720P
Shell Materialaluminum alloy
Waterproof GradeIP69K
Operating VoltageDC 12-24V±10%
Operating Temperatureautomatically heats up to +70°C when the temperature is lower than 10°
Storage Temperature- 30°C~+70°C RH95%Max
Anti-vibration GradeGB∕T 2423.56-2018 standard(random 5G vibration)
Connector4pin female aviation connector
Dimension82(W)x73(H)x68(D) mm
