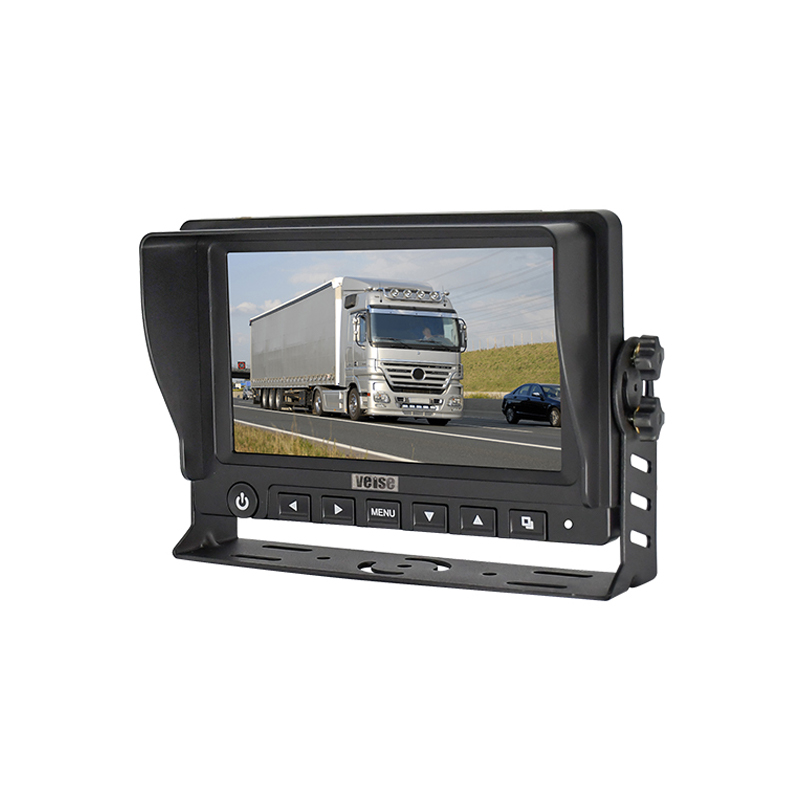

7-inch HD Camera Monitor

  • Model : MHD-761
  • Summarize : Through the high-definition monitor, the driver can observe the operating state of the vehicle more clearly, as well as the changes in the surrounding environment, to better grasp the operating situation of the vehicle and improve construction efficiency. In addition, the car high-definition monitor also has the advantages of simple operation, high resolution, high brightness, high contrast, and wide viewing angle, which can meet the needs of the driver in different scenarios and improve the driving experience and vehicle operating efficiency.
  • More Info : Online Service

Product Features

A 7-inch monitor supports 2 channels of Video Inputs.

The IPS screen has fast response speed, a large viewing angle, and real color.

a Resolution of 1024RGBX600.

automative-grade digital video processor.

OSD manu respectively sets the mirror and normal images of the picture, delays time, and trggers priority function.

High-temperature resistant ABS + PC plastic shell.

Detachable sun hat against solar irradiation.

U-shaped double-sided fastening anti-vibration metal bracket.

600cd/㎡ high brightness.

Design for resisting load dump pulse voltage.

Energy-saving and low power consumption independent power supply design.

DC11~32V wide range Working Voltage.

Built-in polarity reverse connection, LED constant current, load dump pulse voltage suppression protection.

Product Parameters

ModelMHD-761
Color Monitor Screen7-inch IPS screen
Resolution1024RGB(H) X 600(V)dot
Video Input2 channels of Video Input
Display Mode2 channels of single-picture
Video Signal InputCVBS /AHD720P /1080P
OSD Menu Functionrespectively sets the mirror and normal images of the picture, delays the time of reversing, triggers priority, and supports multiple languages
Color StandardPAL/NTSC (AUTO)
Brightness (cd/m2)600
Contrast level800:1
Surge and load dump protectionISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms)
Connector Socket2-meter connected line
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
Anti-vibration RateGB∕T 2423.56-2018 standard (random 5G vibration)

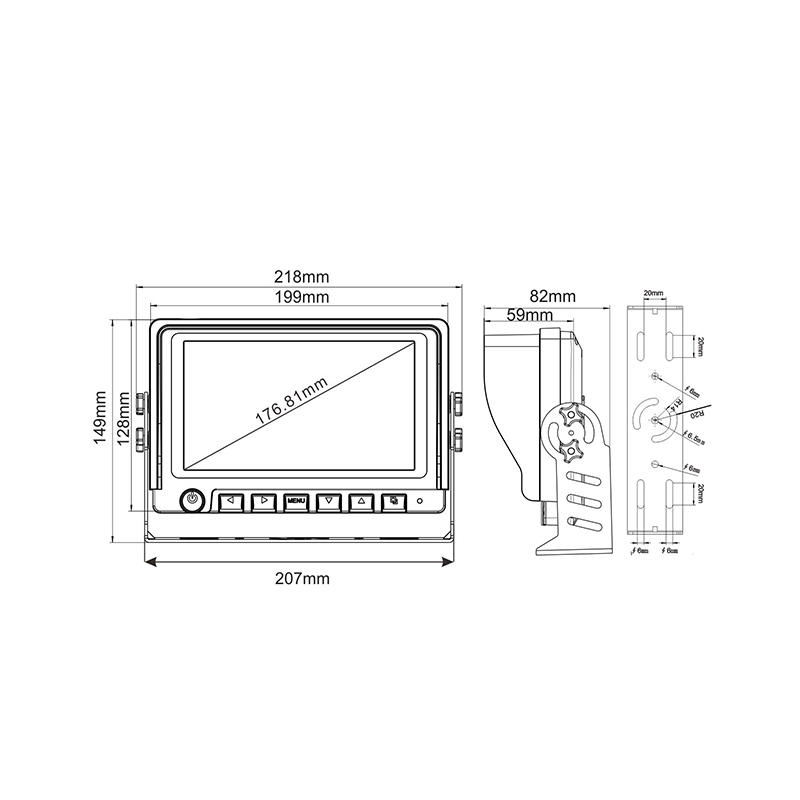

Size(L x W x T) (218 x 149 x 82mm)
Weight800g

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
