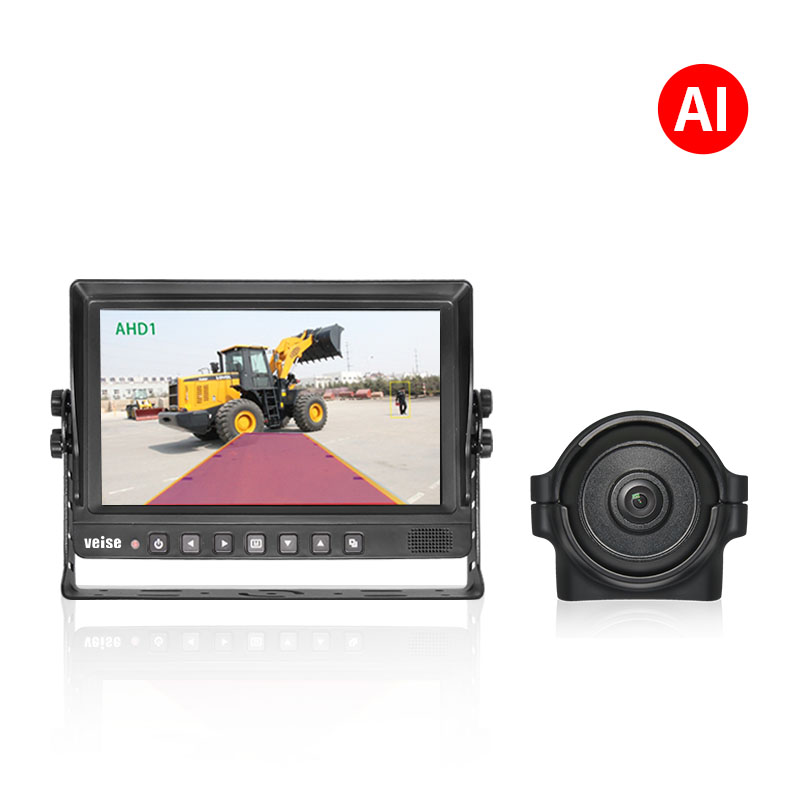

Intelligent Pedestrian & Vehicle Detecting Backup Camera System

  • Model : HDS-96119B1AI1
  • Summarize : Due to the high degree of concentration required for the operation of vehicle mechanical equipment by the driver, in the case of having no time to observe the screen of the on-board rear-view display and without the reverse radar warning, it is extremely prone to produce safety hazards, resulting in economic losses. The AI on-board driving detection and pre-alert system not only eliminates the complex process of reverse radar installation and wiring but also can detect the presence of personnel in the working area in real-time and provide warnings, which enhances the efficiency of vehicle operation and eliminates safety hazards and avoids economic losses.
  • More Info : Online Service

Features

Pedestrian detection warning reversing camera is a specially designed for industrial vehicles, such as forklifts, forklifts and other engineering equipment designed for reversing safety monitoring devices, supporting the vehicle HD display real-time display of high-definition images, while real-time detection of people in the monitoring area of the safety alert warning.

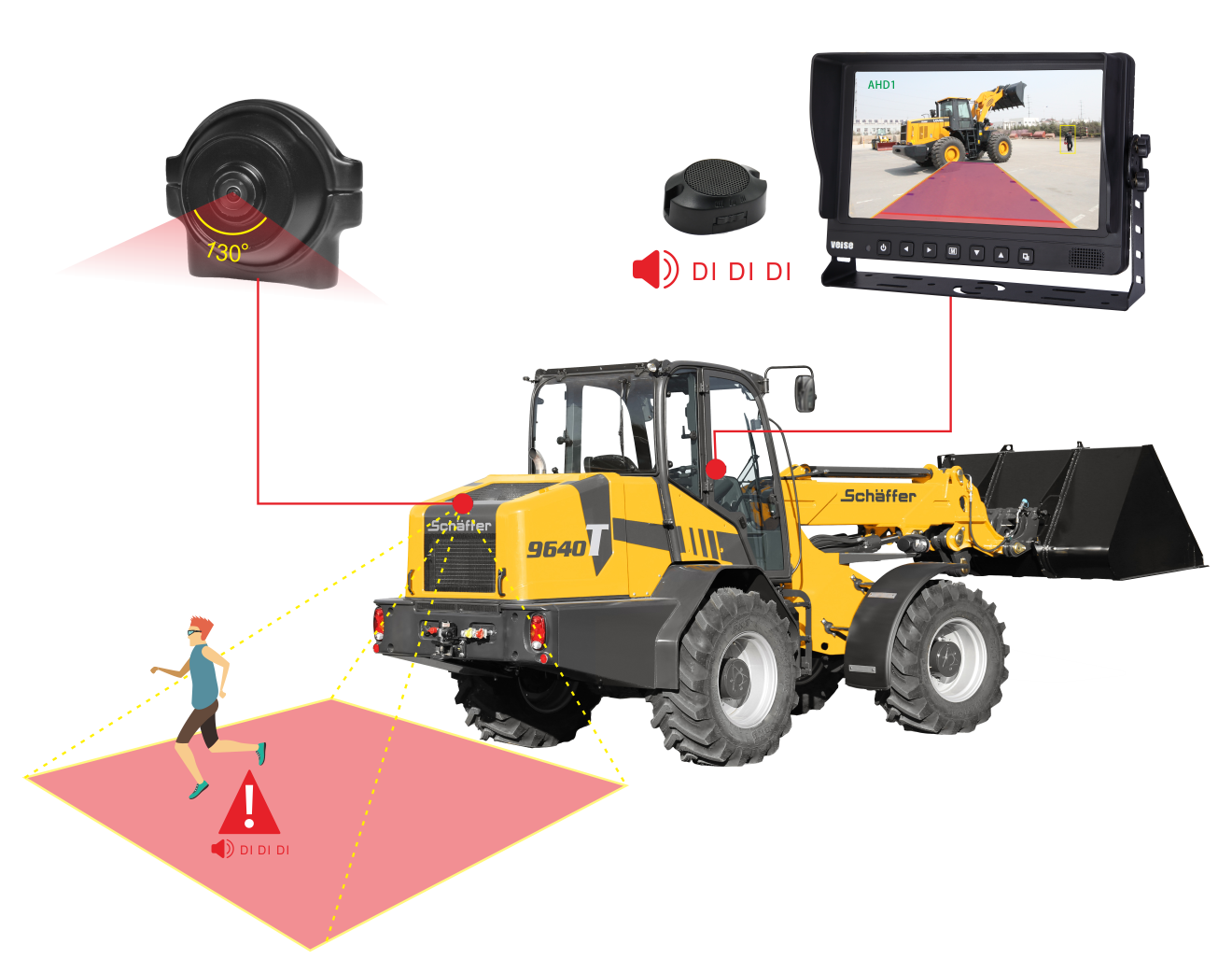

Pedestrian/vehicle detection: when motorized vehicles, non-motorized vehicles, pedestrians close to the vehicle monitoring area system warning safety tips. Replace the radar installation of multiple wiring.

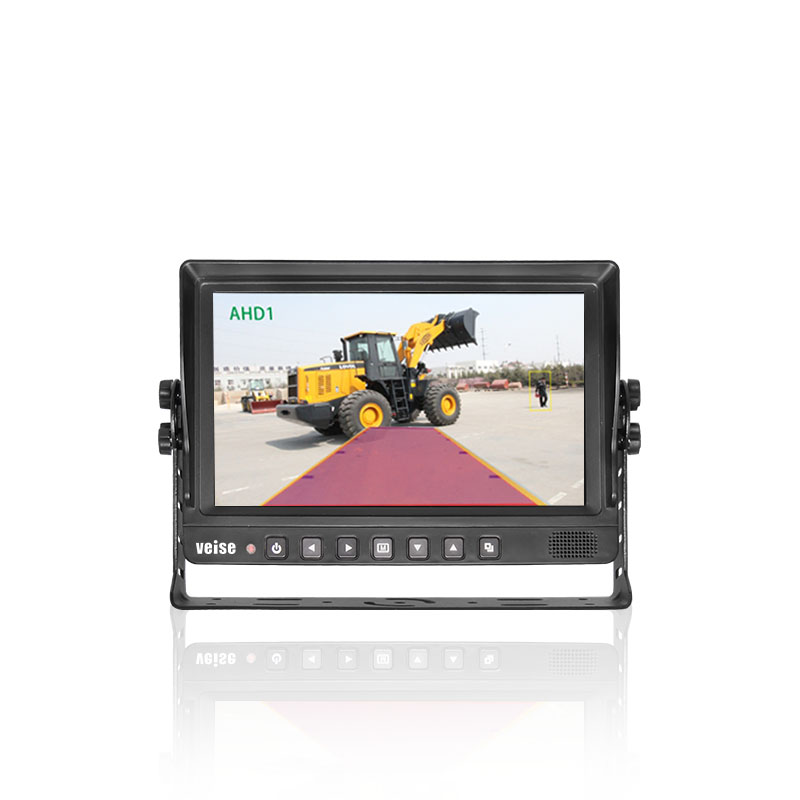

HD Camera Monitor

9-inch IPS screen monitor supports 2-channel HD Video Input.

1024(H) X 600(V)Resolution for high definition images.

ABS material shell, high temperature resistance, anti-vibration.

Automotive industrial grade -40°~85° digital video processor, load-throwing pulse voltage resistant.

The OSD menu sets the mirror/non mirror image of each display separately.

Multiple languages: Chinese, English.

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening and vibration resistance design.

600cd/㎡ high brightness.

Load dump pulse voltage DC24V+174V(350ms)design to protect against damage from vehicle transient pulses.

Low power consumption and independent power supply for energy saving, to ensure the warranty period.

Built-in power polarity reverse connection and LED constant current and constant voltage protection circuit.

DC11~32V wide range operating voltage.

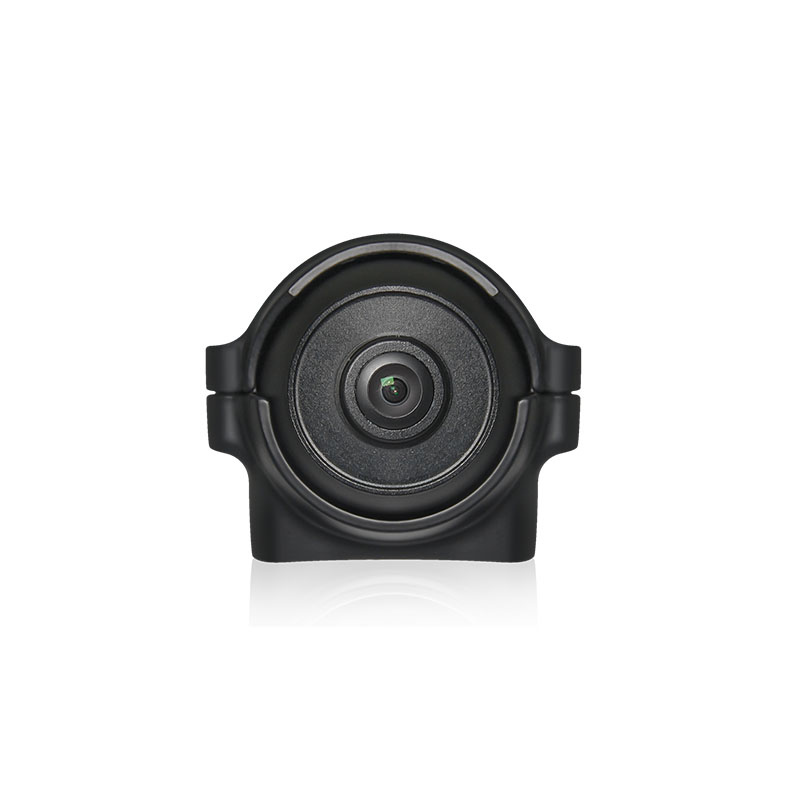

AI Smart Waterproof Camera

AI intelligent camera provides I/O output for pedestrian alarm in the monitored area.

AHD1080P high definition starlight level color image.

1920(H) X 1080(V)high definition

IP69K waterproof rating and 10G anti-vibration, anti-high-pressure water rinsing, applicable to uneven road vibration bumps.

Aluminum alloy shell enhances the heat dissipation function.

Video power cord with low impedance application extension cord without signal weakening, cold and low temperature resistant for cold and freezing environments, fully sealed and waterproof technology processing

Visible window using acrylic glass suitable for vehicle road bump and vibration resistance.

Aviation connection interface increases sealed waterproof process treatment, fastening and vibration resistance, not easy to loose.

Spherical all-round viewing angle installation adjustable.

Low impedance and high flexible cable

Inside and outside injection molded aviation head interface is waterproof, fastening, and vibration resistance.

Low impedance pure copper double-shielded cable line is resistant to electromagnetic radiation and long-distance transmission.

Parameters

HD Camera Monitor (MHD-911)

Color Display Screen9-inch IPS screen
Resolution1024(H) X 600(V)
Video Inputmax. support 2-channel AHD1080P/ 720P /CVBS Video Signal Input
Screen Modesingle-channel switcing
TV SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Operating Temperaure-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating VoltageDC11-32V
Outer Dimension244(W)x179(H)x81(D) mm

AI Smart Waterproof Camera(CHD-19B2AI)

Image Sensor1/2.9 Color Cmos
Effective Pixels1920(H) X 1080(V)
Definition1080P
Visible Angle130°
Night Vision Modestarlight full-colored
Detection FunctionPedestrian and vehicle detection and warning
Alarming I/Oexternal buzzer(with switch, adjustable volume)
Waterproof GradeIP69K
Operating VoltageDC12-24V±10%(powered by the monitor)
Operating Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Dimension74(W) x 64(H) x 56(D) mm

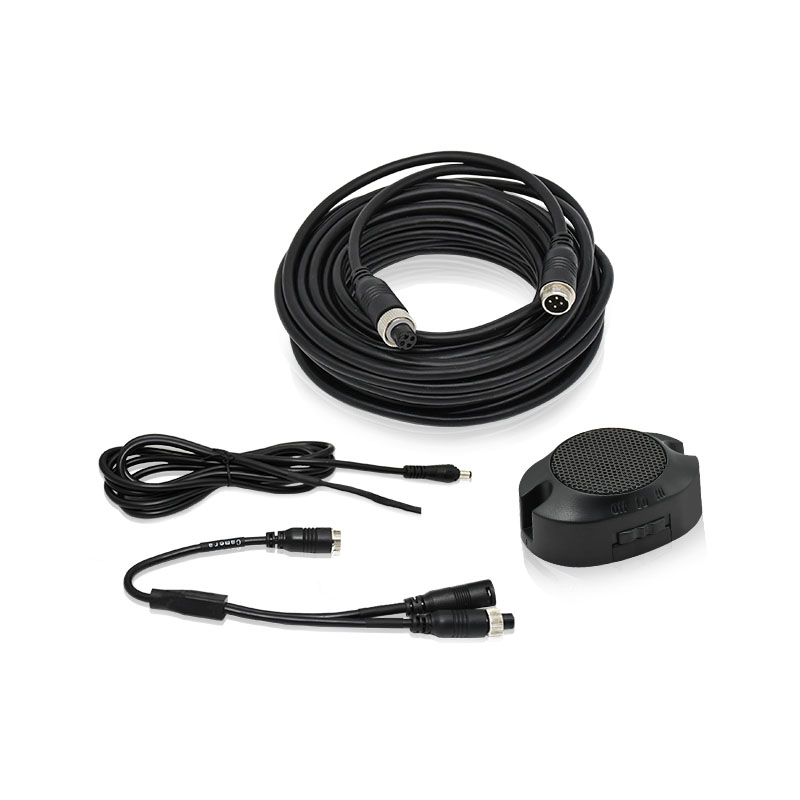

HD Video Cable(XC-HD0004-B-15M-4X)

Interface4pin female aviation connector
length15 meters
