Product Features

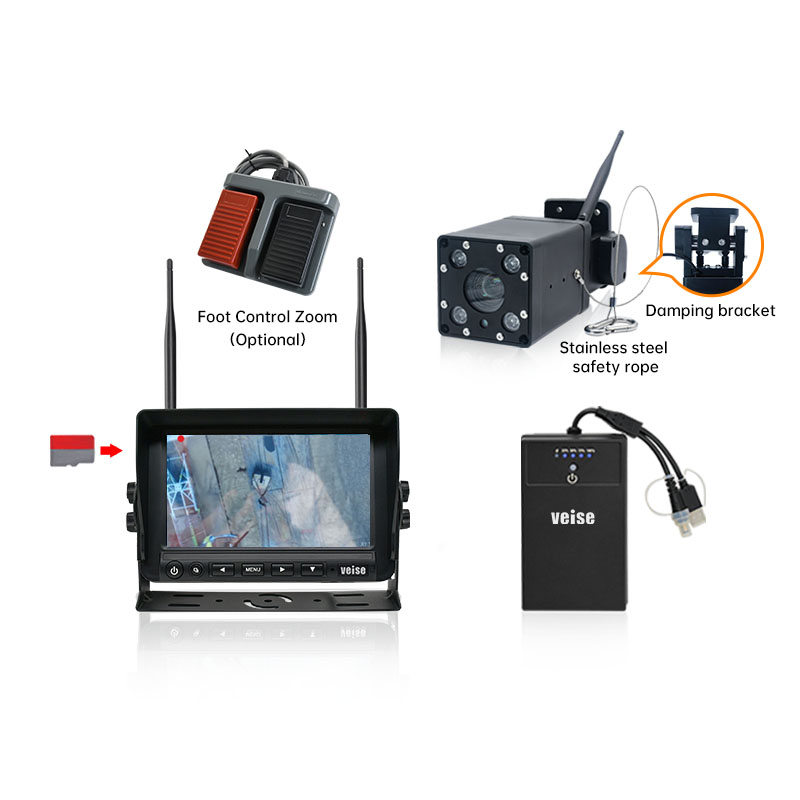

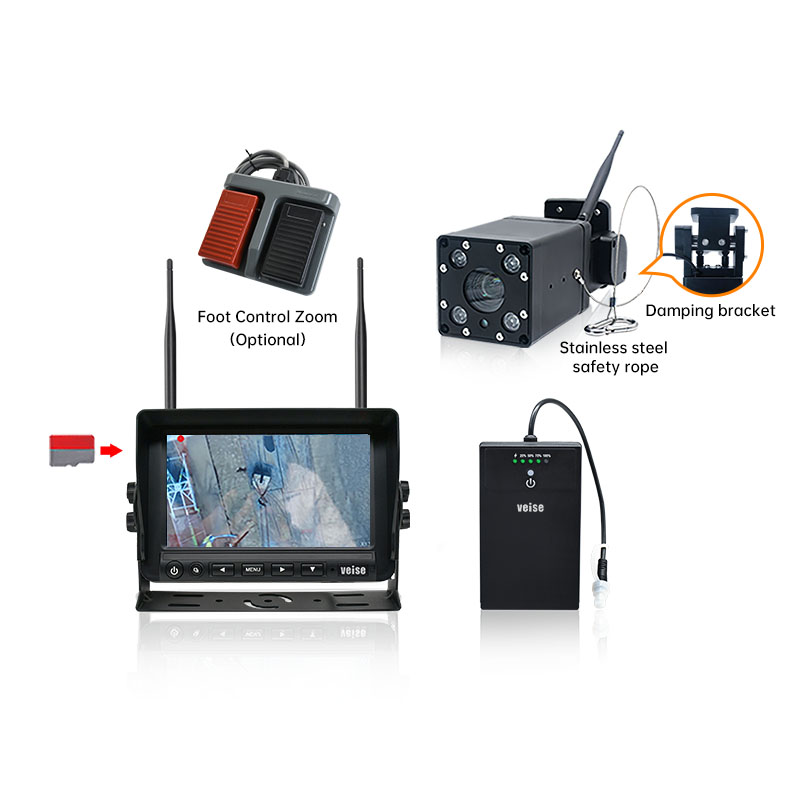

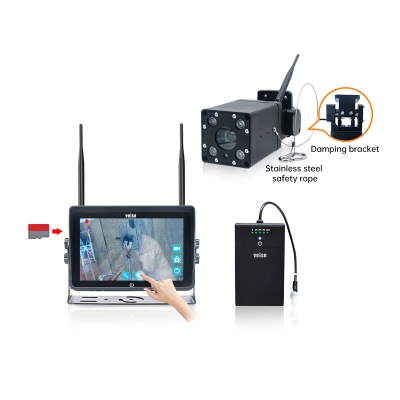

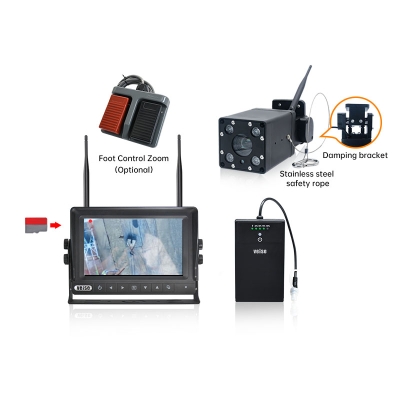

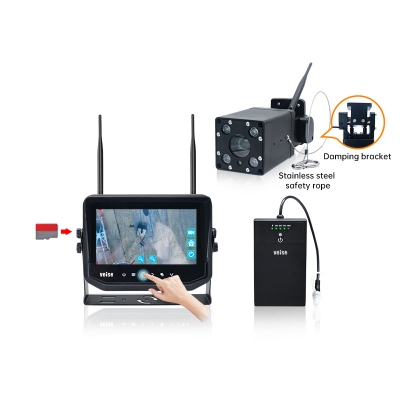

Wireless Zoom Video System Features:
Wireless Control for Easy Operation:
The wireless monitor supports image zooming in and out through buttons, foot pedals, or touch controls on the wireless camera.
Simple operation enables visual tasks, effectively improving work efficiency.
Enhances job safety by reducing operational risks.
Outstanding Performance of Wireless Zoom Camera:
Equipped with 20x optical zoom capability to meet observation needs at various distances.
Features four built-in infrared LED lights to enhance imaging effects in low-light environments.
Comes with an anti-shake gravity damping mount to effectively prevent image shaking caused by wind or high-altitude operations.
Strong stability ensures clear image output in various environments.
These features make the wireless zoom video system play a significant role in a variety of job scenarios, especially in situations requiring remote observation and precise operation.

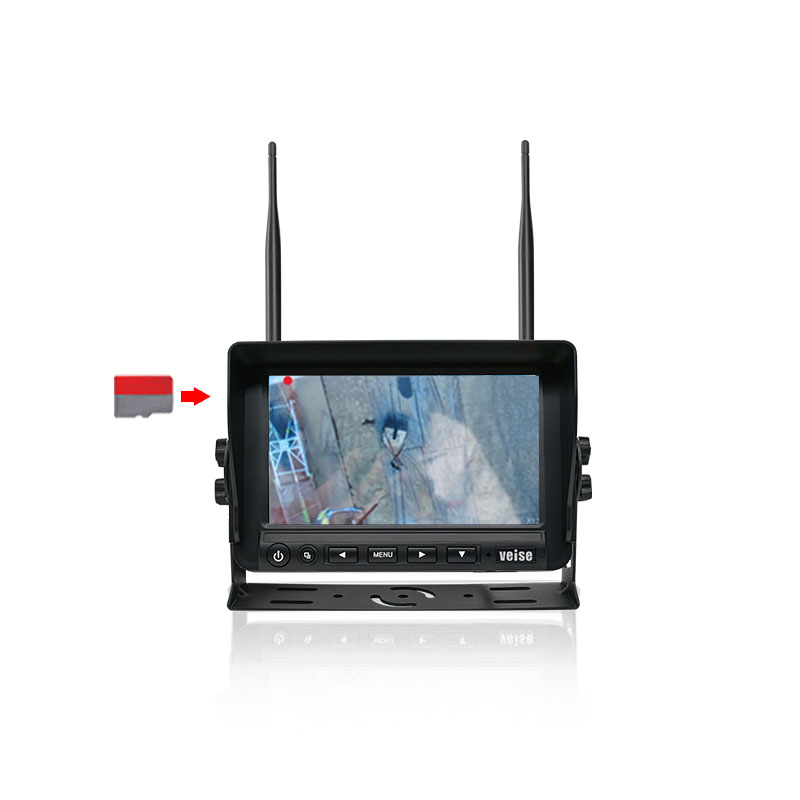

Wireless HD Monitor
7-inch digital screen display with a built-in 2.4GHz wireless receiver, featuring a high resolution of 1024x600 and a high brightness screen of 600cd/㎡.
Multi-frequency hopping coding to prevent frequency interference and a transmission distance of 100 meters in open space.
Automotive-grade industrial DSP, with a graphical OSD menu for separate settings of image mirroring and normal display, reverse parking scale, and priority trigger application functions.
The bracket is made of rust-proof metal material, with a U-shaped + bilateral clamping anti-vibration design.
Wide operating voltage range of DC11~32V, circuit design for load dump pulse voltage, reverse connection protection circuit design, and LED thermal response constant current and constant voltage protection circuit design to avoid damage from improper use, automotive pulse voltage, and to ensure product quality.

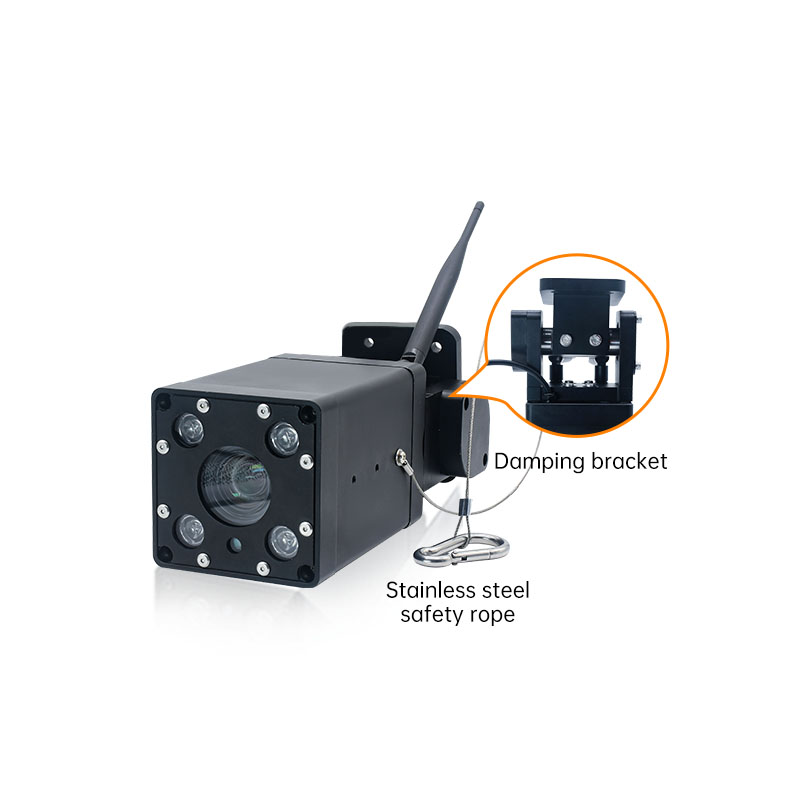

1080P Digital Wireless 20x Zoom Camera

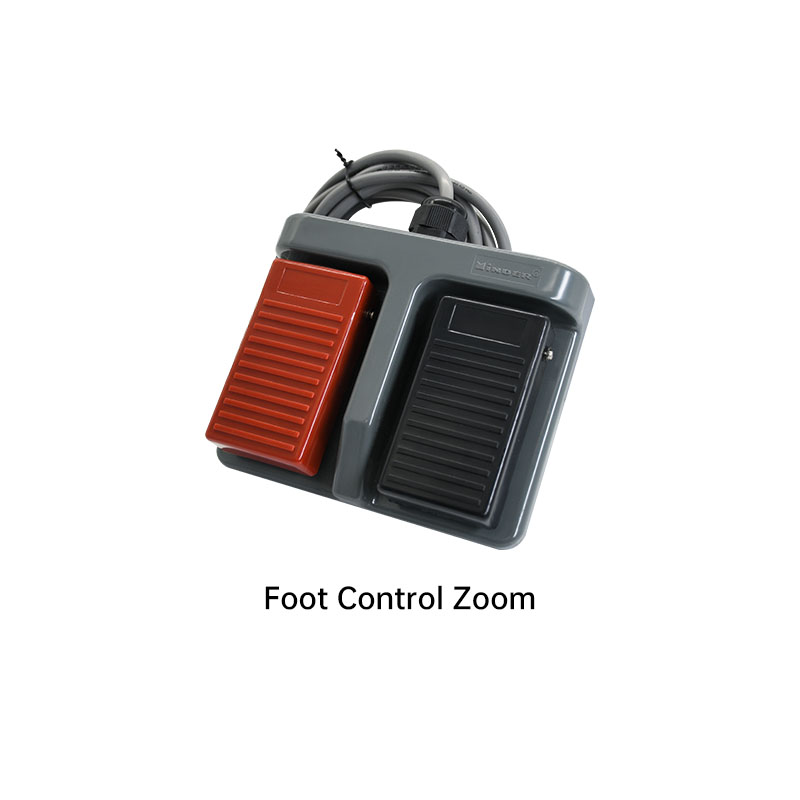

Zoom Function: Optical 20x zoom (can be paired with a foot pedal to control lens zoom), digital image stabilization.
Viewing Range: Viewing distance of 5 - 200 meters, with 4 built-in LED infrared lights. The power of the infrared lights automatically adjusts according to the zoom level, supporting 50-meter HD night vision.
Image Quality: Automotive-grade DSP, one million high-definition pixels, IP69K water resistance rating, mechanically designed vertical bracket, and anti-drop rope feature.

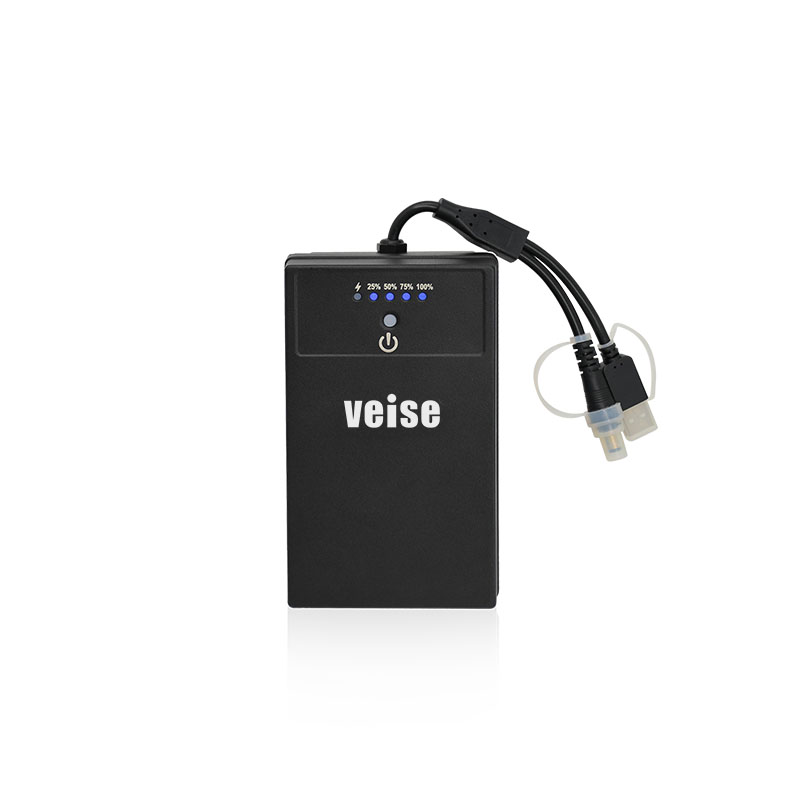

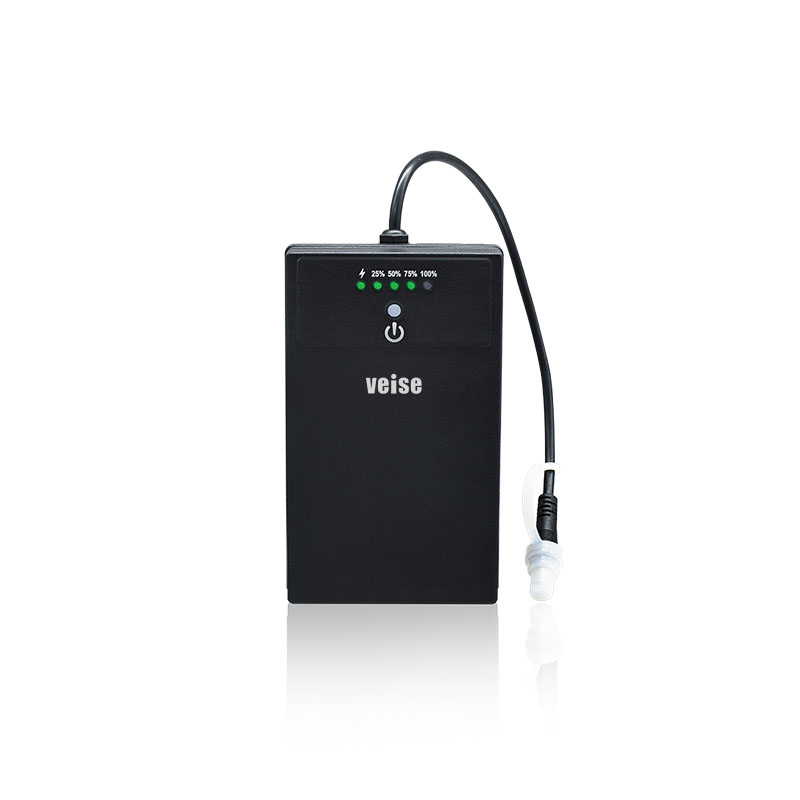

Magnetic All-Aluminum Rechargeable Waterproof Portable Power Bank
Battery Capacity: 8000mAh fast-charging battery, supporting fast-charging protocols.
Design and Waterproofing: Magnetic adsorption design, IP67 waterproof rating, capable of powering the wireless zoom camera for up to 10 hours of use.
Product Parameters
| Model | MWHD-774H |
| Color Screen | 7-inch IPS Screen |
| Wireless Reception | Built-in 2.4G Wireless Receiver |
| Picture Mode | Single Picture / Dual Picture / Triple Picture / Quad Picture |
| Operating Frequency | 2400〜2483.5MHz |
| Reception Sensitivity | ≤-86 dB |
| Reception Distance | Open Area ≤100m |
| Resolution | 1024(H) X 600(V)dot |
| Color System | PAL/NTSC (AUTO) |
| Brightness (cd/m²) | 600 |
| Load Dump | ISO16750-2 Standard (24V System Us=174V, Ri= 4Ω, td=350ms) |
| Vibration Resistance Level | GB∕T 2423.56-2018 Standard (Random 5G Vibration) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC11-32V |
| Dimensions (L x W x T) | (216 x 150 x 80mm) |
| Model | 1080P Digital Wireless 20x Zoom Camera (CWHD-672H-20X) |
| Image Sensor | 1/2.8 Color |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Range | Open space ≤200 meters |
| Resolution | 1080P |
| Effective Pixels | 1920(H) x 1080(V) |
| Optical Zoom | 20x (Can be paired with a foot pedal to control lens zoom) |
| Focal Length | 5.35～96.3mm |
| Aperture | F1.6～F3.5 |
| Horizontal Angle of View | 64.1～3.6 degrees (Wide-angle - Telephoto) |
| Viewing Distance | 5-200 meters |
| Zoom Speed | Approximately 3 seconds (Optical, Wide-angle - Telephoto) |
| Focus Mode | Auto Focus |
| Day/Night Mode | IR-CUT automatic switching (Color in daytime, Black and white at night) |
| Infrared Distance | 50 meters (Built-in 4 high-power infrared lights) |
| Housing Material | Aluminum alloy, with anti-drop wire rope clip design |
| Mounting Bracket | Vertical gravity stainless steel bracket |
| Waterproof Rating | IP69K |
| Operating Voltage | DC12-24V |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Vibration Resistance | 5G (Compliant with GB-T2423056-2006 standard) |
| Dimensions | 220(W) x 90(H) x 90(D) mm |
| Model | Magnetic Rechargeable Portable Power Supply (MP-03B10W1) |
| Battery Type | Lithium Polymer Battery |
| Product Capacity | 30000mAh (3.7V) 111Wh |
| USB Input (Supports Fast Charging) | Universal USB port with protocol fast charging, 12V/1.5A (Full charge takes approximately 10.5 hours) |
| DC Output | DC12V/0.8A (DC5.5/2.1 male connector) |
| Charging Cycle Temperature | 0°C to +40°C |
| Charge/Discharge Cycles | >800 times |
| Discharge Operating Temperature | -10°C to +50°C |
| Anti-Drop Design | Anti-drop wire rope clip design |
| Mounting Method | Magnetic base mounting (Built-in 11 strong magnets, front horizontal pull force >20kg, side pull force >8kg) |
| Waterproof Rating | IP67 |
| Shock Resistance | 5G |
| Dimensions | 148(W) x 88(H) x 45.5(D) mm |

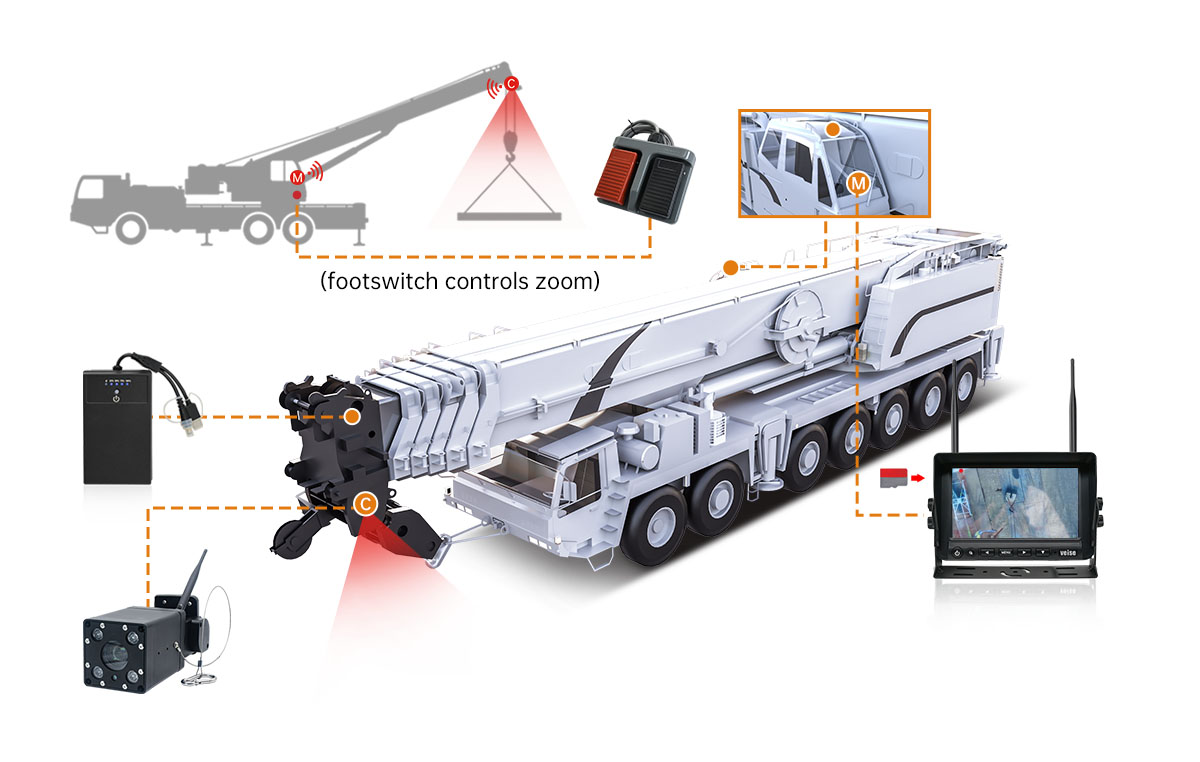

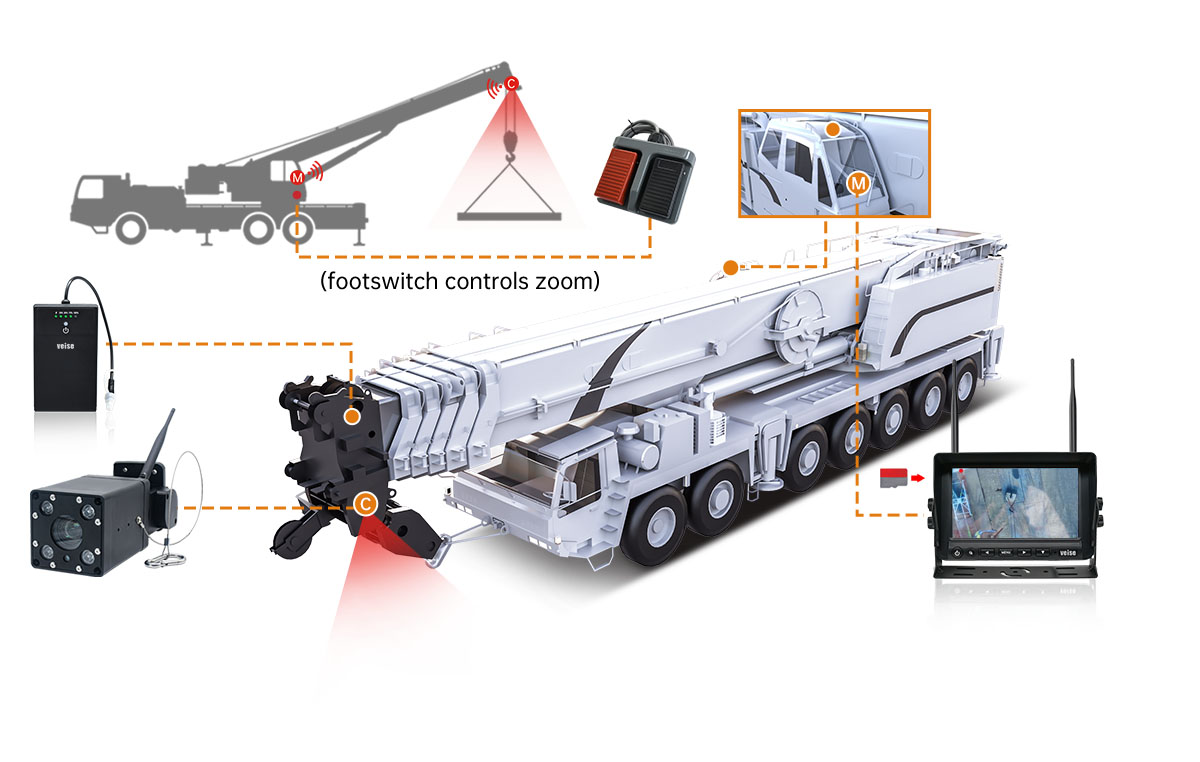

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
