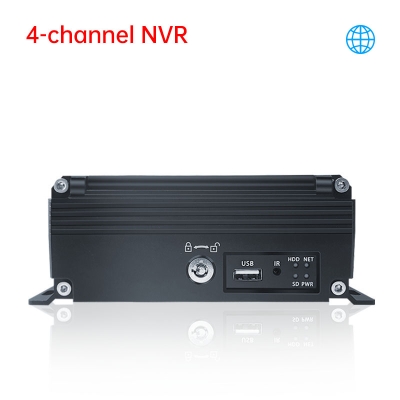

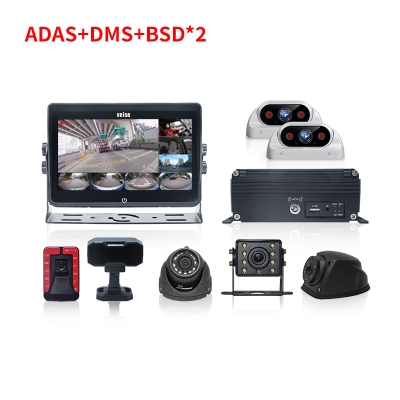

4-channel MDVR Camera System

  • Model : DF-9824-4H-4G

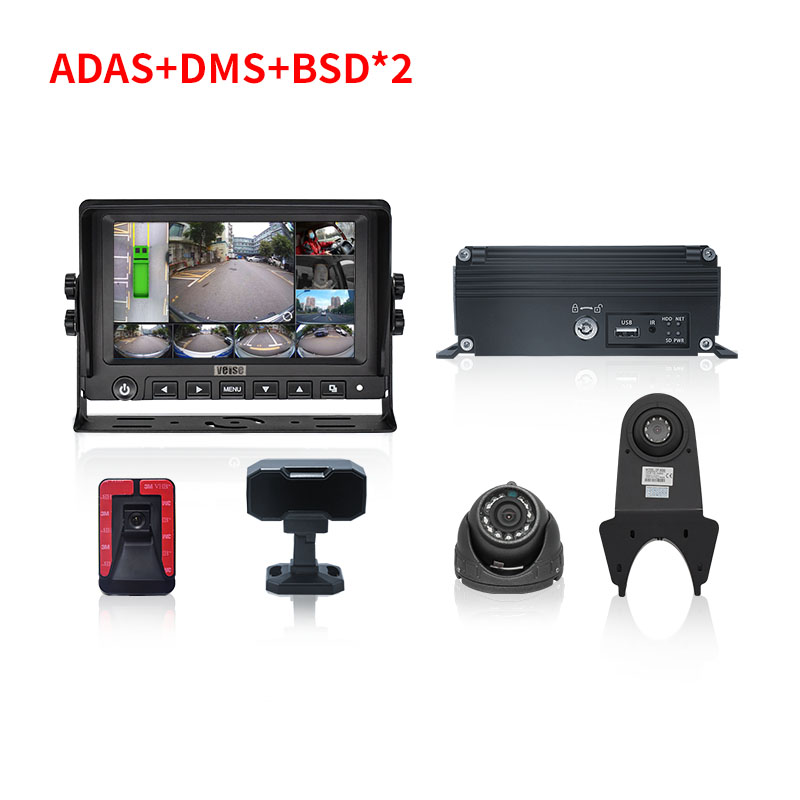

  • Summarize : Vehicle video recorder monitoring system integrates Advanced Driving Assistance System (ADAS), Blind Spot Detection System (BSD), Driver Monitor System (DMS) and 6-channel real-time monitoring. It is widely used in public operation, rail transportation, government law enforcement, shipping, public safety, school buses, intelligent driving and other fields to improve driving safety, strengthen fleet operation management, and realize real-time monitoring inside and outside the vehicle.
  • More Info : Online Service

Product Features

  • MDVR H.264 encoding format: high compression ratio, clear image and low disk space occupation;

  • Advanced Driver Assistance Systems (ADAS): Vehicle collision warning, track departure warning, pedestrian detection, distance detection and warning to enhance driving safety;

  • Blind Spot Detection system (BSD): early warning of other vehicles or obstacles in the driving blind area during vehicle turning and changing lanes to avoid collisions;

  • Driver Monitoring System (DMS): early warning of drivers' identity recognition, fatigue, and dangerous driving behaviors to increase driving safety and effectively manage the fleets;

  • Support HDMl, VGA high-definition video output, AHD1080P output (optional) and one-way CVBs video output;

  • Support different displays, with two displays showing different channel images, one HDMI and one AHD1080P video output in any combination (optional);

  • Supports R/45 Ethernet network connection, RTSP video streaming transmission, and local area network real-time preview;

  • Professional playback analysis software to simultaneously play back GPS/BD trajectory, vehicle driving status, speed, and audio-visual images;

  • Centralized management software supports real-time transmission of vehicle images and alarm information, etc;

  • 7-inch IPS screen HD display monitoring in real-time;

  • HD waterproof camera.

Product Parameters

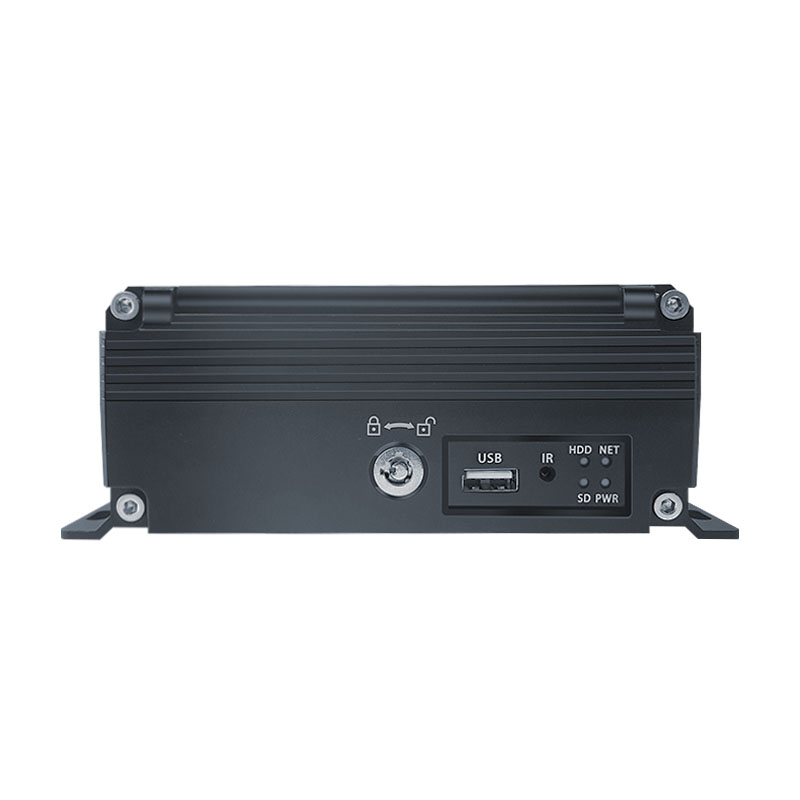

MDVRDF-9824-4H-4G
Operating SystemEmbedded Linux
Menu LanguageSimplified/traditional Chinese, English, Korean, Russian(customizable for other languages)
Video Compression FormatH.264
Password LockTwo-level management of user passwords and administrator passwords.
Video Input4CH 1080P(PAL/NTSC)downward compatibility (supports AHDTVICVBS mixed input display)
4-channel lPC, wifi camera connection, supports backward compatible 4K resolution
Video OutputHDMIx1;VGA x1;AHD output(optional)
CVBS x2(RCA+M12 avionics head1.0Vp-p 75Ω);
Preview Functionsingle-image full-screen view ; 2/4 mutipal viewing option
Video StandardPAL or NTSC
Audio Input4-channel audio input, aviation head interface
Audio Output1-channel audio output
Recording Method

record the sound and video simultaneously

Video Channel1 to 4 channels are optional, each channel has separate audio and video file storage
Video Resolution1080P(1920x1080)720P(1280x720)D1(704x576)
Recording Modeautomatic recording when powered on; alarm recording, etc.
OSDIt can superimpose time, date, channel name, GPS speed, license plate ID and so on.
Storage MediumSD card supports 1TB, hard disk supports 4T
Recording Searchvideo recording data can be searched by recording time
Video Playbacksupport local playback,4-channel simultaneous playback
supports fastforward and slow play at x2,x4, x8 times speed and pause functions
Alarm Input4/6-channel alarm inputs are optional (8-channel are customizable)
Alarm Output2groups of alarm outputs are optional, outputs high level 12V
Other Functionsbuilt-in 1 set of RS232 functional interface, built-in 3G or 4Gcommunication module, built-in WFl module, built-in GPS module.built-in acceleration sensor G-Sensor, built-in hard disk heatingmodule, built-in Al algorithm, such as ADAS/BSD/DMS
PC Terminal Software and websupport vehicle information analysis, real-time video preview, voiceintercom, GPS upload, alarm upload, center command dispatchparameter configuration, remote video playback and other devicemanagement.
Mobile Terminal Softwaresupport real-time video preview, voice intercom, GPS positioning, message notification, etc.

Input Voltage

The input voltage is +8V to +36V. lt is recommended to input avoltage of 12V or above for the camera to work. Do not exceed 36V for a long time to avoid burning the machine.

Power Consumption

No-load < 4.5W, with the camera working < 10W

Output Voltage

ouput voltage 12V(+0.2V), maximum current 3A

ACC Detection

≤9V the car key is turned off and the device is turned off

≥10V the car key is turned on, and the device is turned on

Operating Temperature

-30℃~+70℃

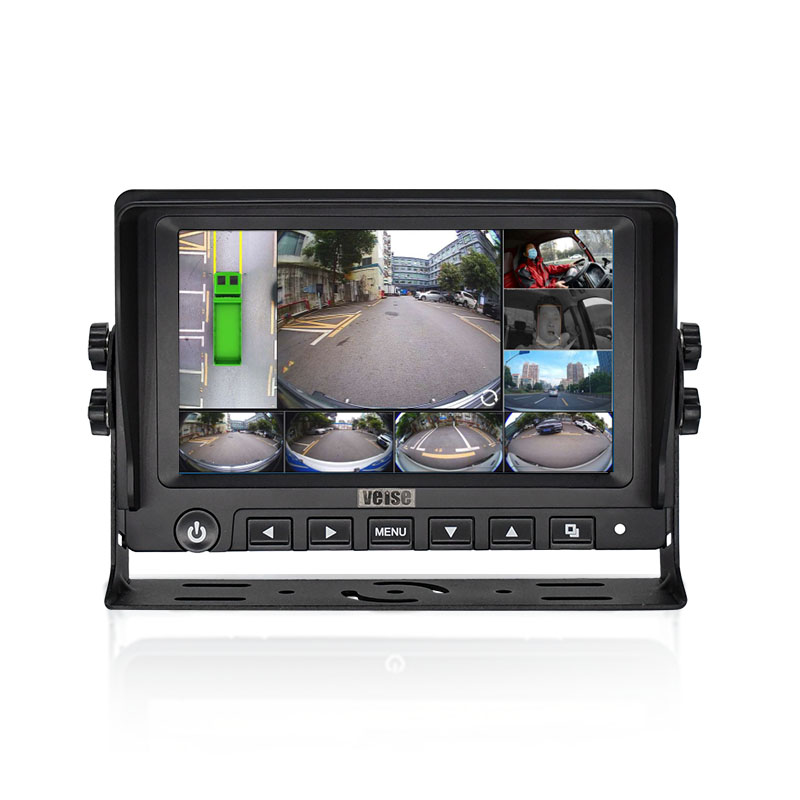

HD Camera MonitorMHD-761
Display Screen7-inch IPS screen
Resolution1024RGB(H) X 600(V)dot
Video Input2-channel video Inputs
Video Signal InputCVBS /AHD720P /1080P
OSD Menu Functionrespectively set the normal and mirror images, delays reversing time, triggers priority and support multiple languages
Anti-vibration GradeGB∕T 2423.56-2018 standard (random 5G vibration)
Size(L x W x T) (218 x 149 x 82mm)
Weight800g

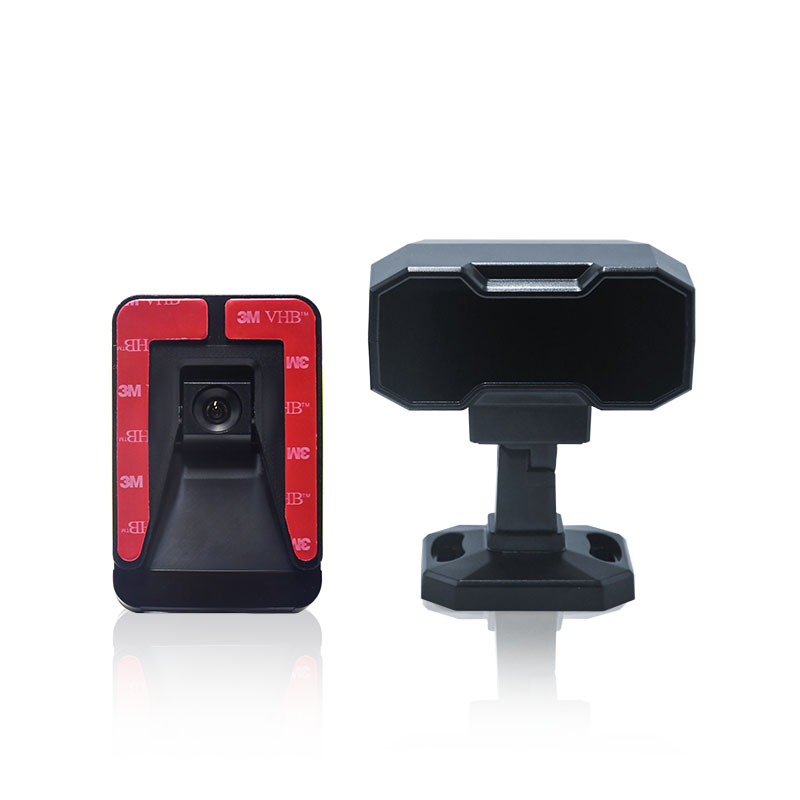

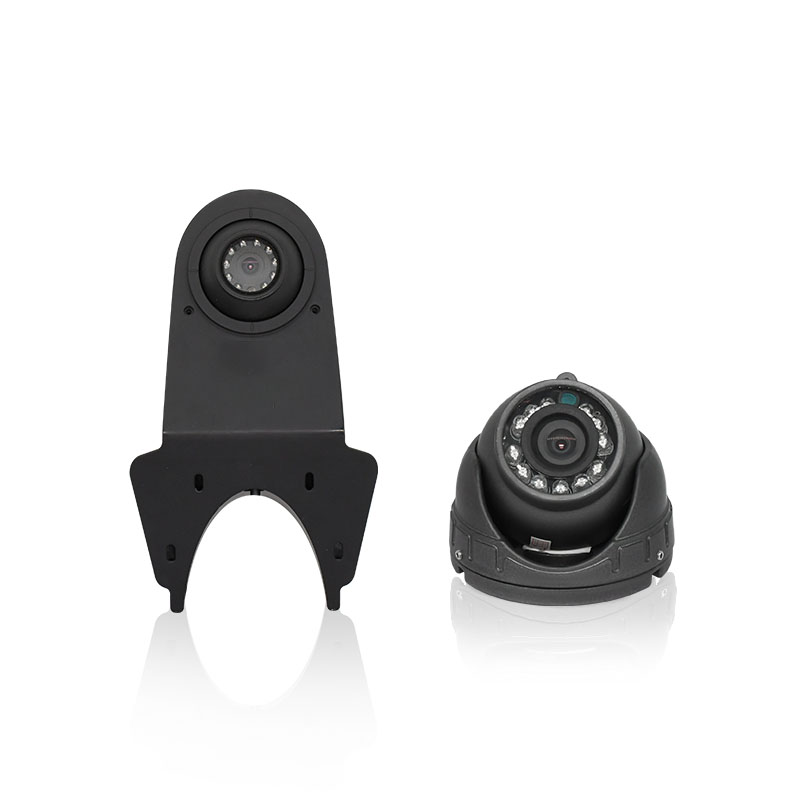

Car CameraCHD-212M/CHD-582M/CHD-DMS2M/CHD-ADAS2M
Effective Pixels1920(H) X 1080(V)
Waterproof GradeIP69K
Infrared Night VisionIR LED
Visible Angle130°

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
