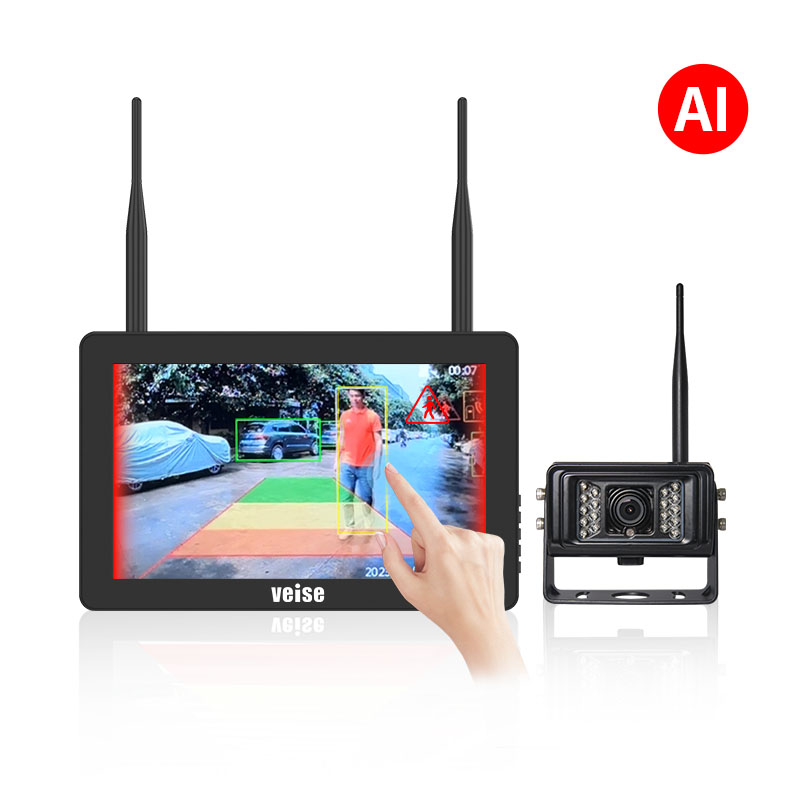

Wireless Intelligent Pedestrian & Vehicle Detecting Camera System

  • Model : HDWS-1012MTP151MLP1-AI
  • Summarize : Although the on-board wireless monitoring system solves the cumbersome wiring problem of traditional monitoring equipment, due to the high degree of concentration required for the operation of vehicle mechanical equipment by the driver, there is no time to observe the screen of the on-board rear-view display, especially in the absence of reverse radar warnings, it is extremely prone to safety hazards, resulting in economic losses. The AI wireless on-board driving detection and pre-alert system not only eliminates the complex installation process of the wired rear-view system and reverse radar wiring, but also can detect the monitoring area and personnel and vehicles in real-time, and provide real-time icon and sound warnings - the BSD function, which enhances the efficiency of vehicle operation and eliminates safety hazards, and avoids economic losses.
  • More Info : Online Service

Product Features

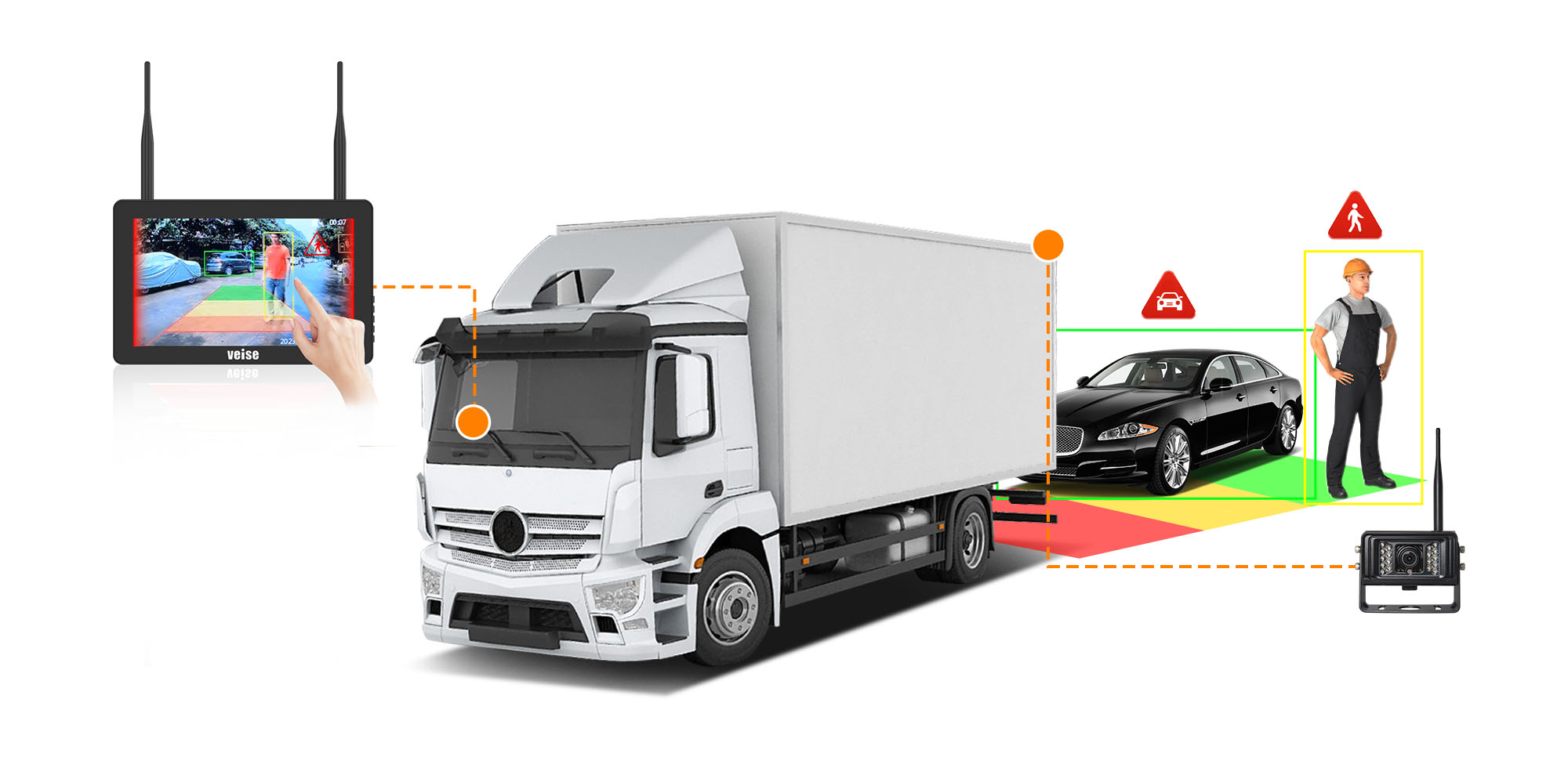

  • AI HD wireless camera automatically monitors pedestrians, vehicle warning, blind spot surveillance (BSD) function.

  • Vehicle-grade DSP, million HD pixels, starlight full color, IP69K waterproof rating, all-weather work.

  • 10.1-inch IPS touch screen wireless monitor, single screen + 2 split screen switching, customized setting screen warning area (up and down, left and right adjustable).

  • Display built-in warning microphone, superimposed three-level warning logo frame, adapt to different application scenarios.

  • Multi-frequency hopping automatic code, anti-frequency interference, open transmission distance of 200 meters.

  • Display wireless synchronization control wireless camera standby, working power supply voltage (power saving mode).

Product Parameters

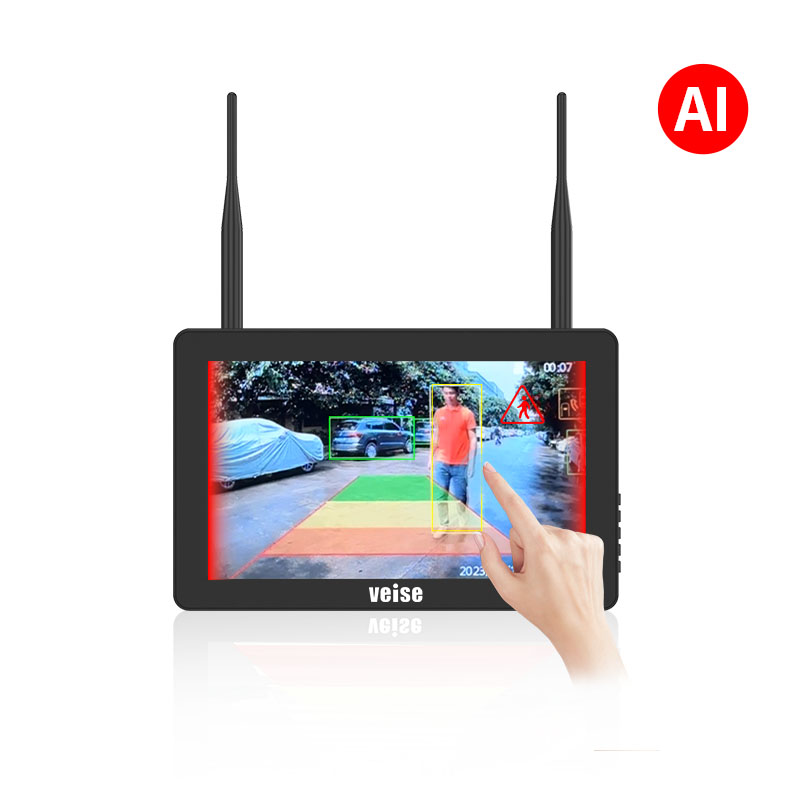

10.1-inch HD Touch screen Wireless Backup Camera Monitor(MWHD-1012MTP-AI)

Color Display Screen10.1-inch IPS HD touchscreen
Wireless Receivingbuilt-in 2.4G wireless receiver
Resolution1024RGB(H) X 600(V)
Visible AngleUp, down, left, right: 85°
Operating Frequency2400~2483.5MHz
Receiving Sensitivity≤86dBm
Transforming Distance≤200 meters in open area
TV SystemPAL/NTSC
Display ModeSupport single/dual screen display
Pedestrian and Vehicle Detectingalarm after pedestrian and  non-motor vehicle approaches the area
Area Warning CalibrationCustomized settings for the warning area
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Operating Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃
Operating VoltageDC8-32V
Dimension 266.5X167.8X36.7（mm）
Installation360° universal base car bracket

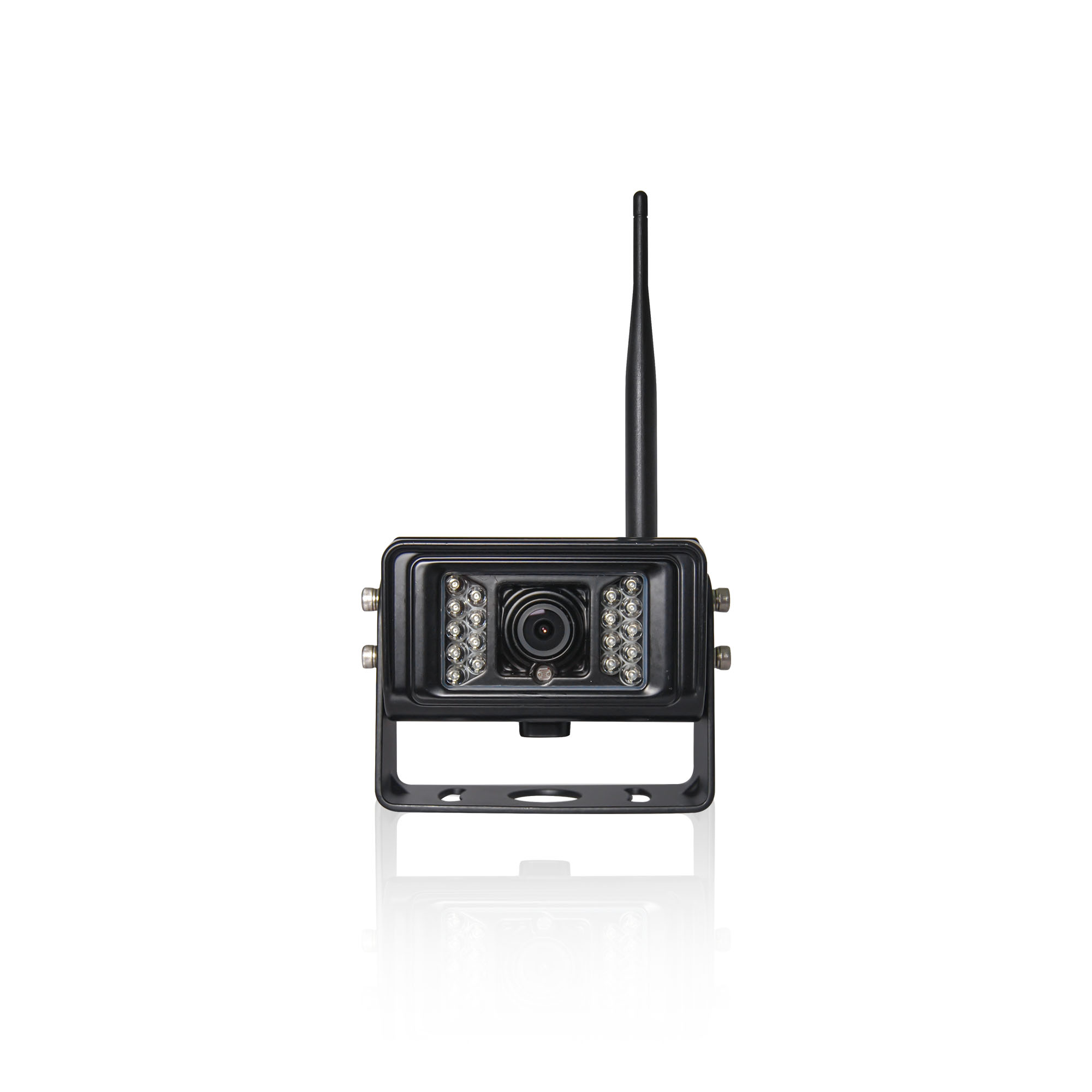

Wireless AI Backup Camera (CWHD-151M-AI)

Effective Pixels1920(H) X1080(V)
Resolution720P
Wireless Transmissionbuilt-in 2.4G wireless transmitter
Transmission Power18dBm
Operating Frequency2400~2483.5MHz
Transmission Distance≤200 meters in open area
Visible Angle130°
Waterproof RatingIP69K
Pedestrian and Vehicle Detectionsupport AI human and car model recognition
Power-saving Functioncan be used with the power box, and the standby current is as low as 10mA
Vibration ratingmeets the standard of  GB/T2423.56-2008
Operating Temperature-20℃~+60℃
Storage Temperature-30℃~+70℃
Operating VoltageDC8-32V
Dimension91.6X75X71（mm）

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
