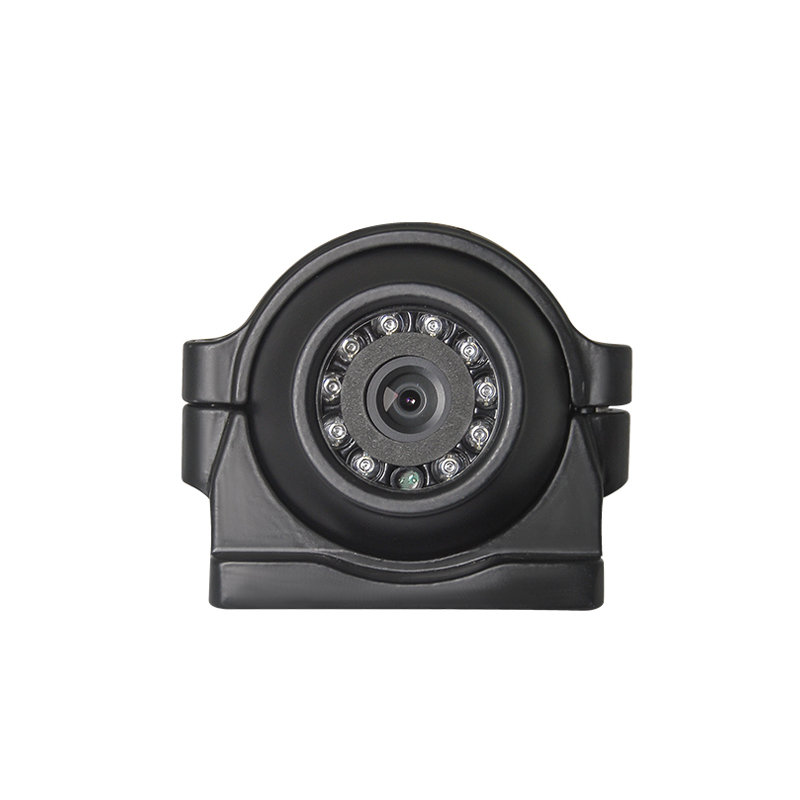

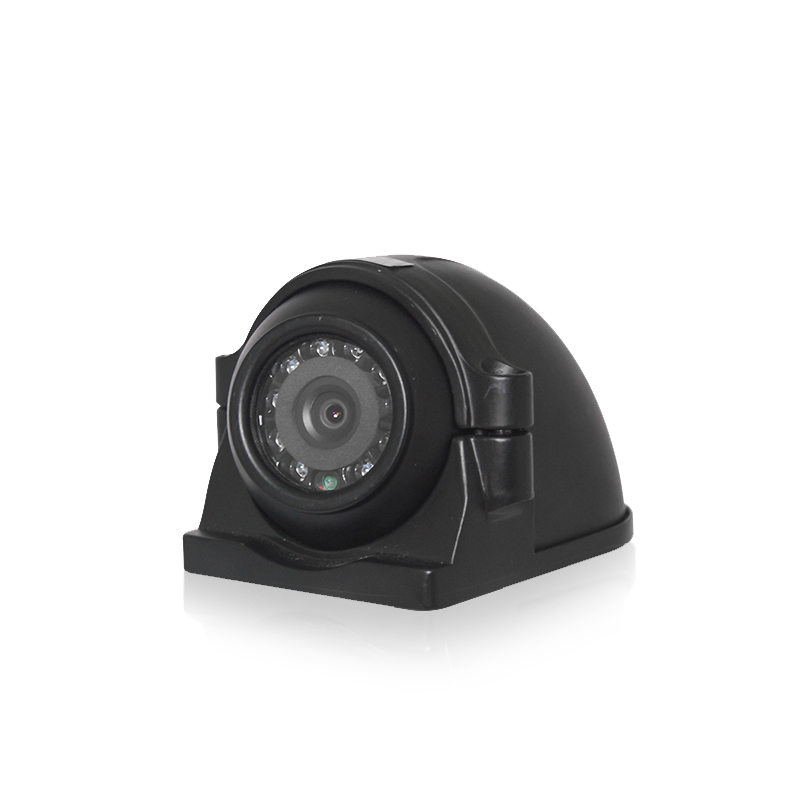

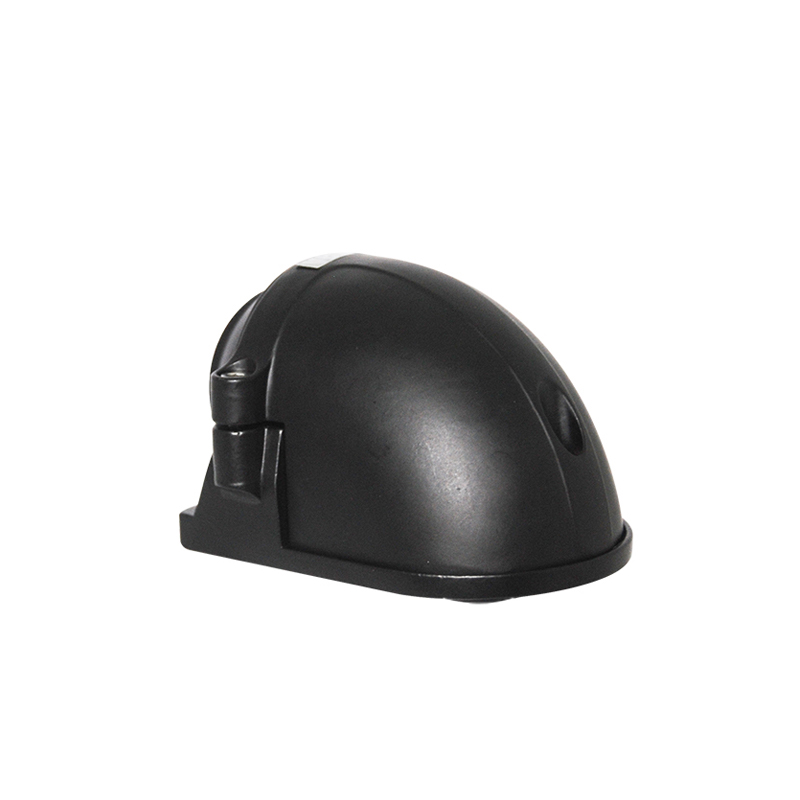

HD Side View Camera

  • Model : CHD-201M/CHD-202M
  • Summarize : The waterproof side view camera has the characteristics such as HD image quality, night vision function and waterproof and dustproof function. Being able to provide high-resolution image quality not only enhances the driver's driving experience, but also helps them more accurately identify road conditions and obstacles, making safer driving decisions. It can work normally under harsh weather conditions, such as rainy days and snowy days. It is equipped with night vision function to enhance the shooting effect at might. This allows the camera to still capture clear images in dimly light, providing drivers with sufficient visual information.
  • More Info : Online Service

Features

HD car camera

Originally imported SONY DSP

2 million HD pixels

Heat dissipation aluminum alloy casing

Nitrogen filling to prevent fogging after vacuuming inside the camera (patented waterproof detection equipment)

Cold resistant and waterproof tail line to adapt to various extreme environments

The sphere structure is suitable for adjustable monitoring angles, making it convenient to install in any position

Parameters

ModelCHD-201MCHD-202M
Effective Pixel1280(H) X 960(V)1920(H) X 1080(V)
Horizontal Definition720P1080P
Visible Angle130°
Infrared Distance8m (10 built-in 850nm infrared light)
Signal-to-noise Ratio≥48dB(AGC Off)
Video InputAHD 720PAHD 1080P
Housing Materialaluminum alloy
Waterproof RatingIP69K
Working VoltageDC 12V±10%
Working Temperature- 20°C~+60°C RH95%Max
Storage Temperature- 30°C~+70°C RH95%Max
Anti-vibration RateGB∕T 2423.56-2018 standard (random 5G vibration)
Interface Spec4 pin aviation female plug

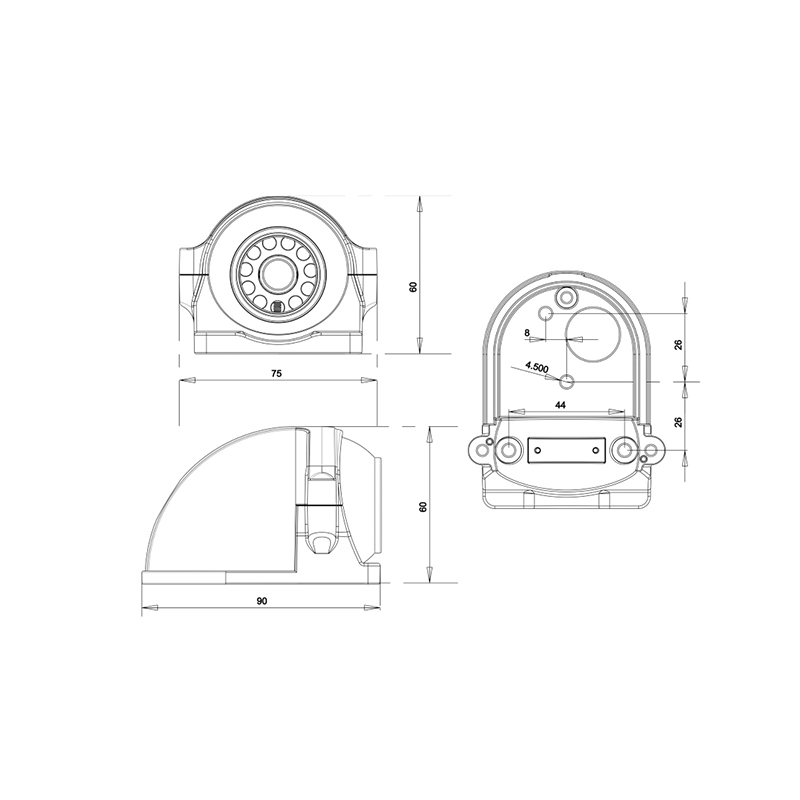

Size75(W) x 60(H) x 90(D) mm

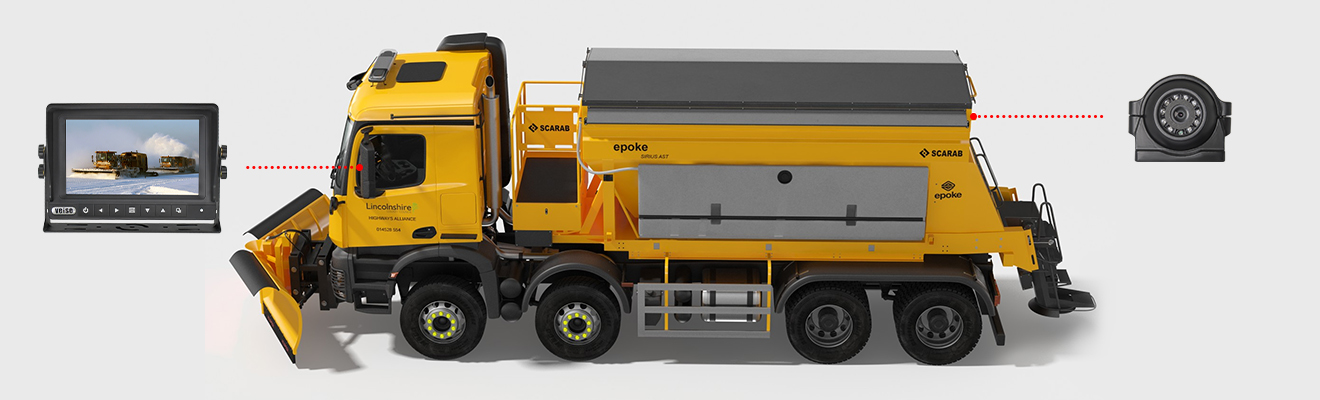

Applications
