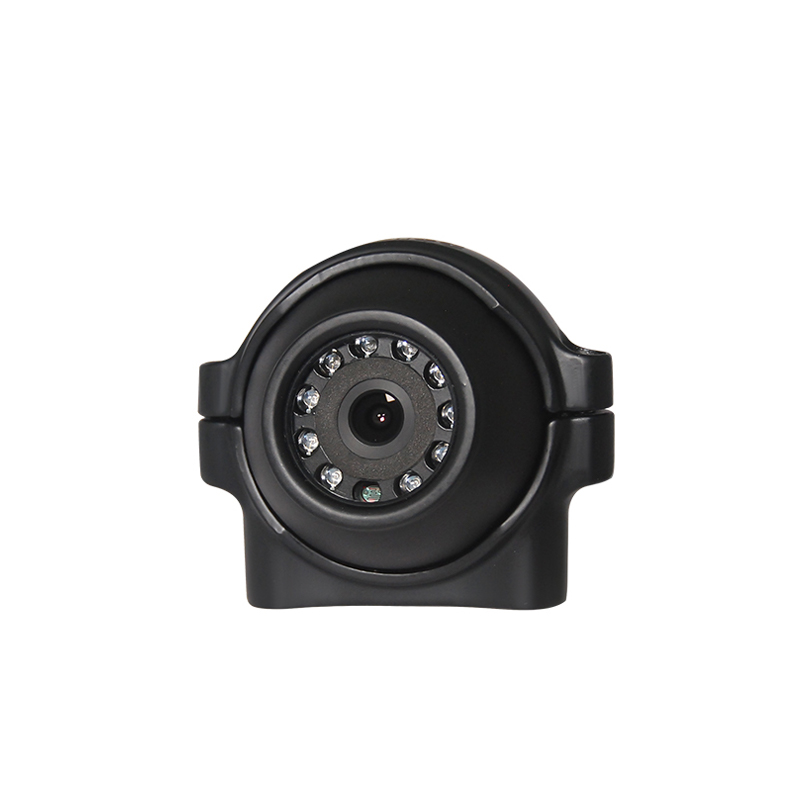

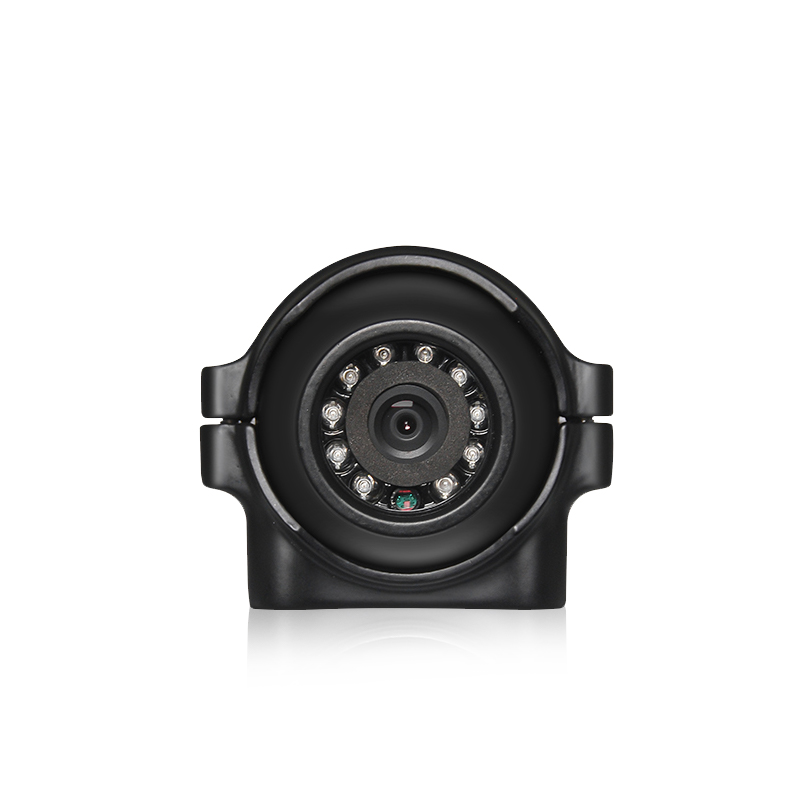

HD Side View RV Camera

  • Model : CHD-191M/CHD-192M
  • Summarize : The waterproof car camera has characteristics such as HD picture quality, night vision function, and waterproof and dustproof. It can provide high-resolution image quality, which not only can enhance the driving experience of the driver but also can help them more accurately identify the road conditions and obstacles, to make safer driving decisions. It can work normally under harsh weather conditions, such as rainy days and snowy days. It is equipped with a night vision function to enhance the night shooting effect. This allows the camera to still capture clear images in dimly lit environments, providing drivers with sufficient visual information.
  • More Info : Online Service


1080P HD images;

Image Effective Pixel: 1920(H) X 1080(V);

Anti-corrosion shell spraying for acid-base environment; Aluminum alloy material enhances heat dissipation performance;

10 pcs of 850nM infrared LED lights provide safe night vision supplementary lighting;

Nitrogen filling to prevent fogging after vacuuming inside the camera;

Fully sealed cameras with IP69K waterproof grade for all-weather environment;The low impedance of video power cables ensure normal signals. Cold resistance characteristics ensures the cameras work perfectly under extremly low-temperature weather and frozen environments. The cameras are processed with fully sealed waterproof processing technology;

The visible window adopts acrylic glass, which is suitable for the vehicle's road bumps and vibration;

Fully sealed waterproof aviation interface is tightly fastened and not easily loosened;

130-degree super-wide visible angle;

The sphere structure is suitable for adjustable monitoring angles, making it convenient to install in any position;

DC12V working voltage.


Effective Pixel1280(H) X 960(V)1920(H) X 1080(V)
Horizontal Definition720P1080P
Visible Angle130°
Infrared Distance8m (10 built-in 850nm infrared lights)
Signal-to-noise Ratio≥48dB(AGC Off)
Video InputAHD 720PAHD 1080P
Housing Materialaluminum alloy
Waterproof RatingIP69K
Working VoltageDC 12V±10%
Working Temperature- 20°C~+60°C RH95%Max
Storage Temperature- 30°C~+70°C RH95%Max
Anti-vibration Rate5G ( meets GB-T2423056-2006 standard)

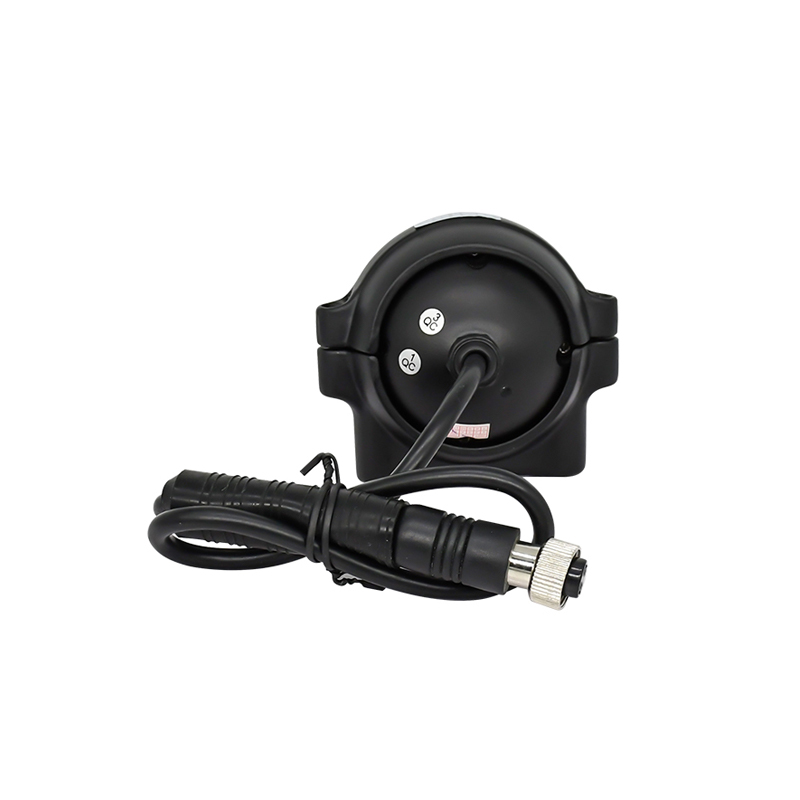

Interface Spec4 pin aviation female plug

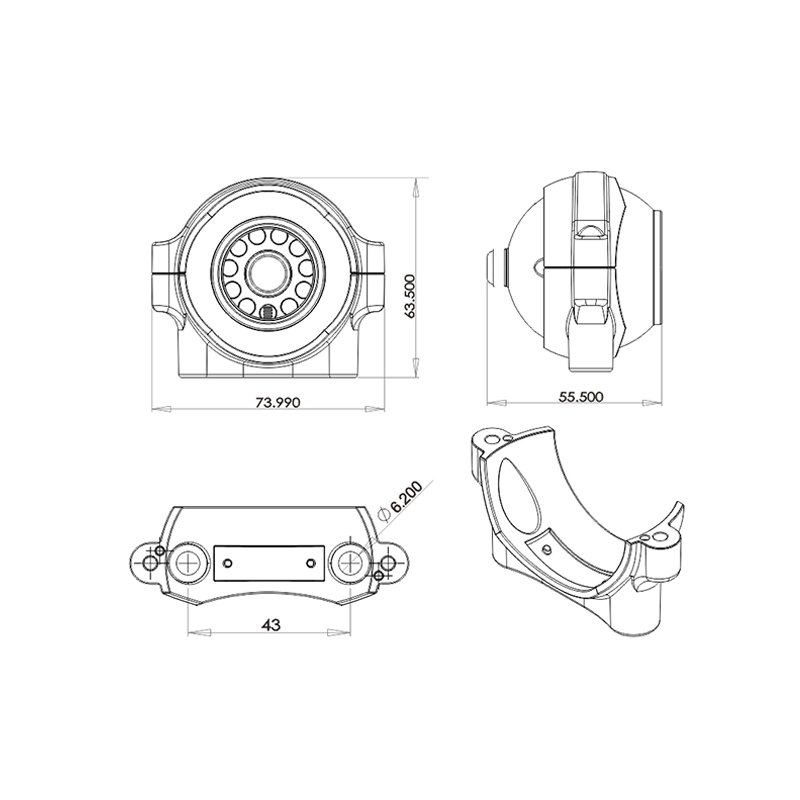

Size74(W) x 64(H) x 56(D) mm
