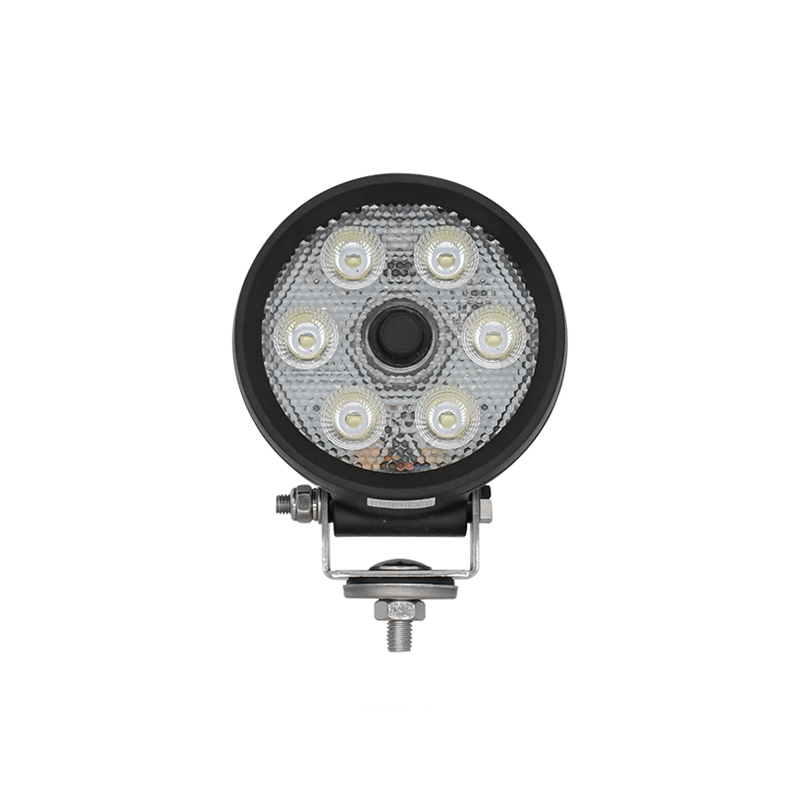

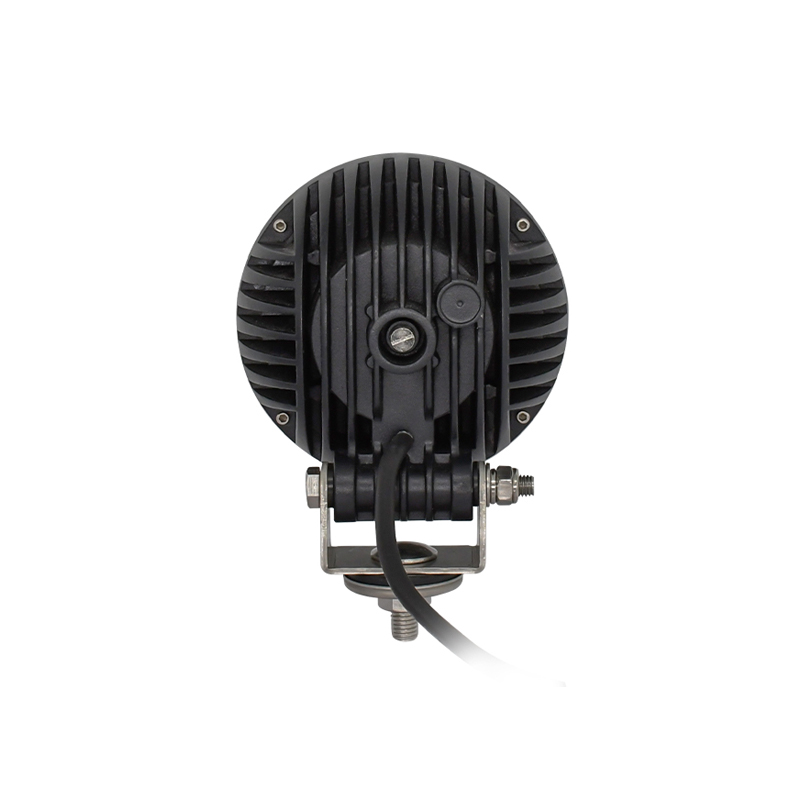

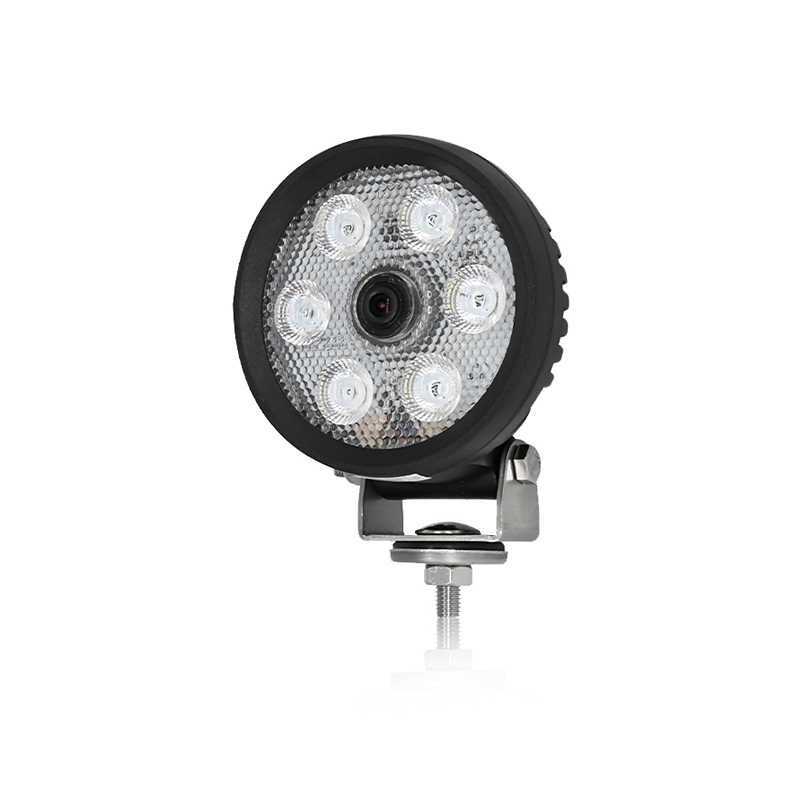

Work Light Backup Camera

  • Model : CHD-262M
  • Summarize : At night or in low light conditions, the work lamp camera can provide the necessary lighting to improve the driver's line of sight and visual clarity. At the same time, the camera can capture the situation of the road ahead, helping the driver to detect obstacles, pedestrians and other vehicles in real time, thus increasing the safety of night driving.
  • More Info : Online Service


The work light camera is a one-piece solution consisting of a 720P high-definition camera and an 18W work light, which solves the safety hazard caused by the insufficient infrared light of the monitoring camera during the night operation of the original equipment vehicles.

Effective Pixel of 1080P HD camera: 1920(H) X 1080(V);

Anti-corrosion shell spraying; Aluminum alloy material enhances heat dissipation performance;

18W high brightness LED light with ultra strong night vision for supplementary lighting;

Nitrogen filling to prevent fogging after vacuuming inside the camera;

Full sealed pressure constant patented design ensures the reliability of waterproof sealing for all-in-one machines;(the machine's temperature and pressure change proportionally)

Fully sealed cameras with IP69K waterproof grade for all-weather environment;

LEDs and cameras will not affected by temperature with electronic thermal management controlling circuit changes;

The ABS reflector material is not easily deformed and the Fresnel optical design enhances the illumination distance;

Polymethyl methacrylate Lens ensures the proper angle of illumination;

1100lm luminous flux meets the requirements of illumination distance and angle;

10G anti-vibration level adapts vehicle road bumps and vibrations;

130-degree super-wide visible angle.

The low impedance of video power cables ensure normal signals. Cold resistance characteristics ensures the cameras work perfectly under extremly low-temperature weather and frozen environments. The cameras are processed with fully sealed waterproof processing technology .

Fully sealed waterproof aviation interface is tightly fastened and not easily loosened;

DC11-32V wide working voltage


Image Sensor1/2.8 Color Sony 307
Effective Pixel1920(H) X 1080(V)
Horizontal Definitiaon1080P
Viewing Angle130°
LED Power Rate18W(6pcsx3w CREE)
Luminous Flux1100lm
Video InputAHD 1080P
MaterialDie-cast aluminum alloy casing + special Fresnel optical design
Thermal temperature pressure relief processStainless steel waterproof breathable valve
Temperature Control FunctionBuilt-in constant temperature control circuit design
Waterproof RateIP69K
Working Voltagecamera DC 12V / work light DC10-32V
Working Temperature- 20°C~+60°C RH95%Max
Storage Temperature- 30°C~+70°C RH95%Max
Anti-vibration Rate10G ( meets GB-T2423056-2006 standard)

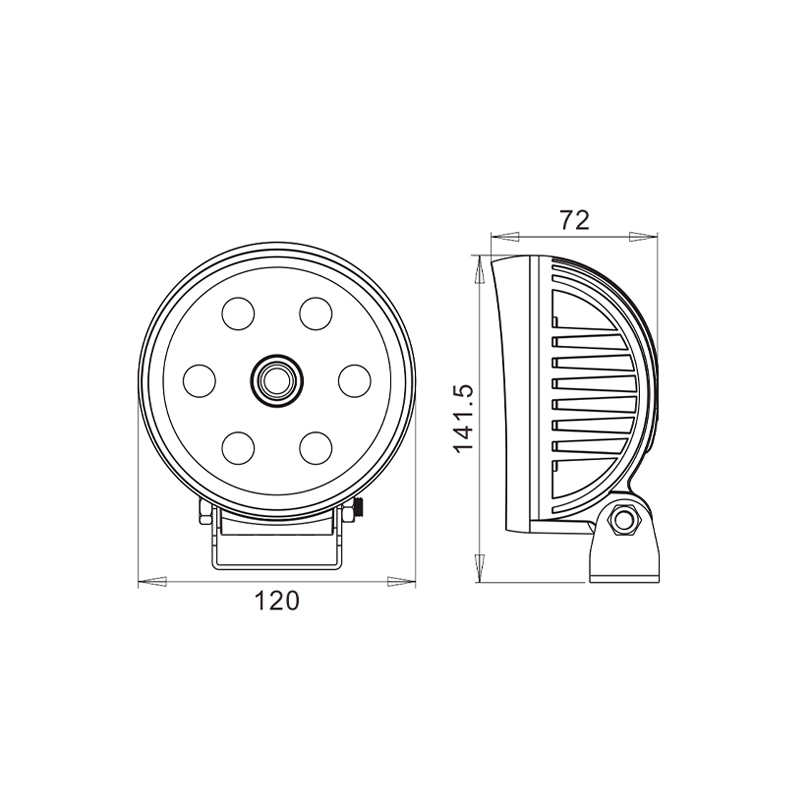

Size72(W) x 141.54(H) x 120(D) mm
