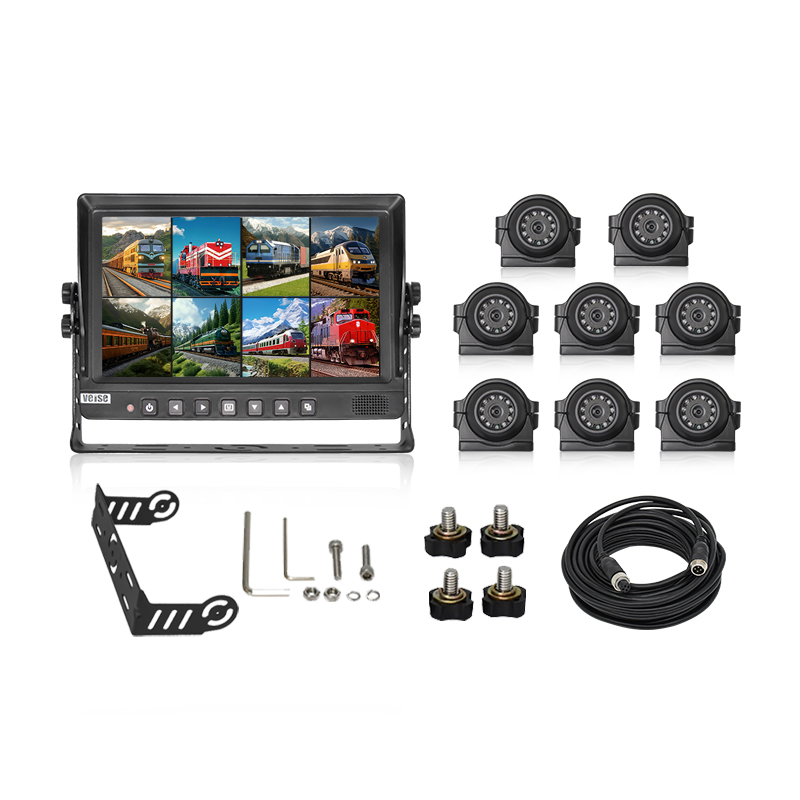

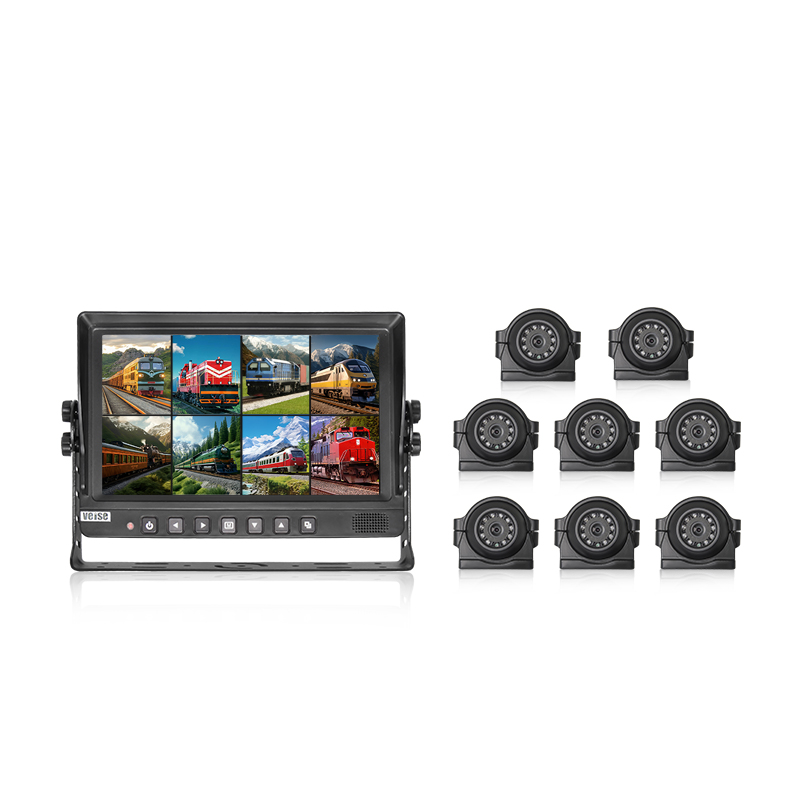

9-inch 8-channel 1080P HD Backup Camera System

  • Model : HDS-918D202M8

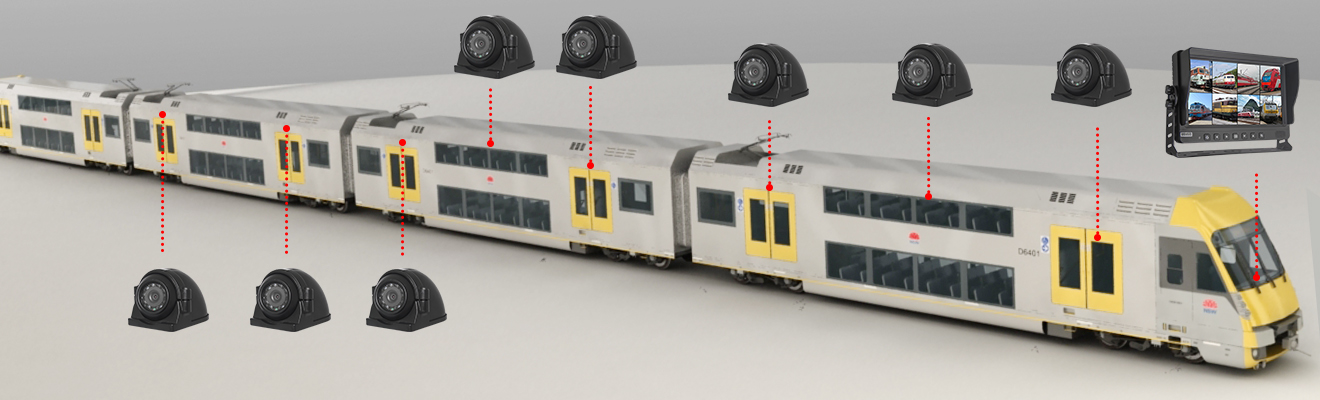

  • Summarize : This system uses eight high-definition cameras positioned at key locations around the front, rear, left, and right of the vehicle to achieve 360-degree monitoring. With the display's eight-way split-screen function, the driver can view real-time footage from all eight directions, comprehensively monitoring the vehicle's surroundings. The display supports built-in storage, allowing continuous recording of surveillance videos, providing reliable driving records for the driver. Video files are automatically saved, making it convenient for subsequent viewing and analysis, effectively preventing collisions and scrapes.
  • More Info : Online Service

Features

9-inch HD IPS screen monitor supports 8 Video Inputs, automative-grade DSP, OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

AHD camera automative-grade DSP, 2 million HD pixels,  IP69K waterproof rating, IR LED night vision function, cold-resistant waterproof signal output cable.

4-core bronze avionics header double-shielded connecting cable, with good anti-interference,low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility.

Parameters

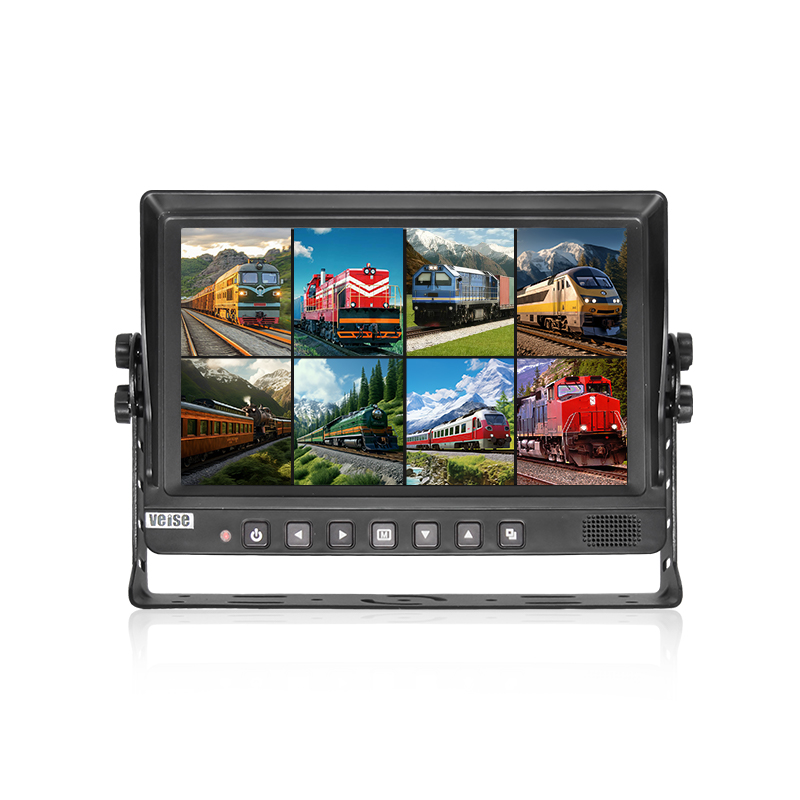

HD Camera Monitor (MHD-918D)

Color Display Screen9-inch IPS screen
Resolution1024(H) X 600(V)dot
Video Input8CH 1080P/960P/720P/CVBS signal mixed input
Picture ModeSingle, dual, triple and quad screen display
TV SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load dumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
Dimension(L x W x T) (255 x 179 x 81mm)

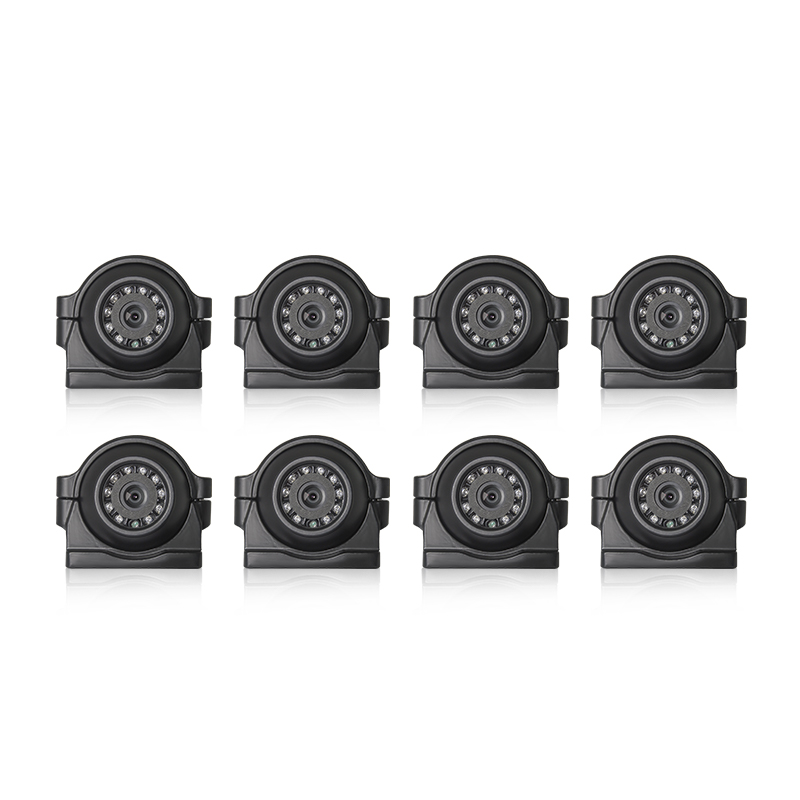

HD waterproof camera (CHD-202M)

Image Sensor1/2.8 Color Sony
Effective Pixel1920(H) X 1080(V)
Definition1080P
Visible Angle130°
Infrared Distance15 meters (built-in 10pcs of 850nm infrared lights)
Waterproof RatingIP69K
Working VoltageDC12V±10%(be powered by the monitor)
Working Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Dimension76(W) x 77(H) x 66(D) mm

HD video signal cable (XC-HD0004-B-15M)

Interface4 pin aviation connector (male-female)
length15 meters
