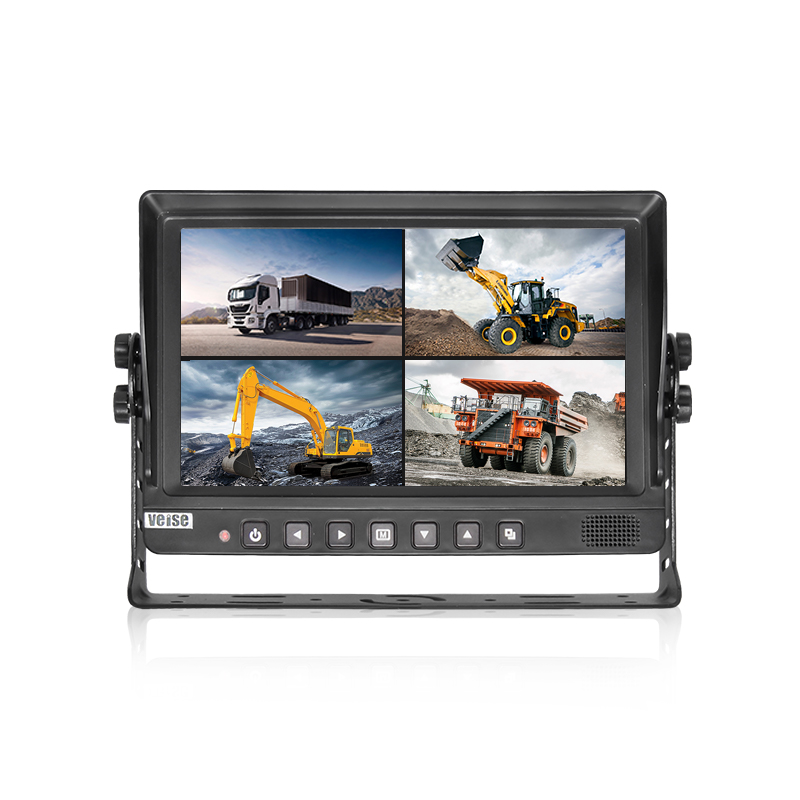

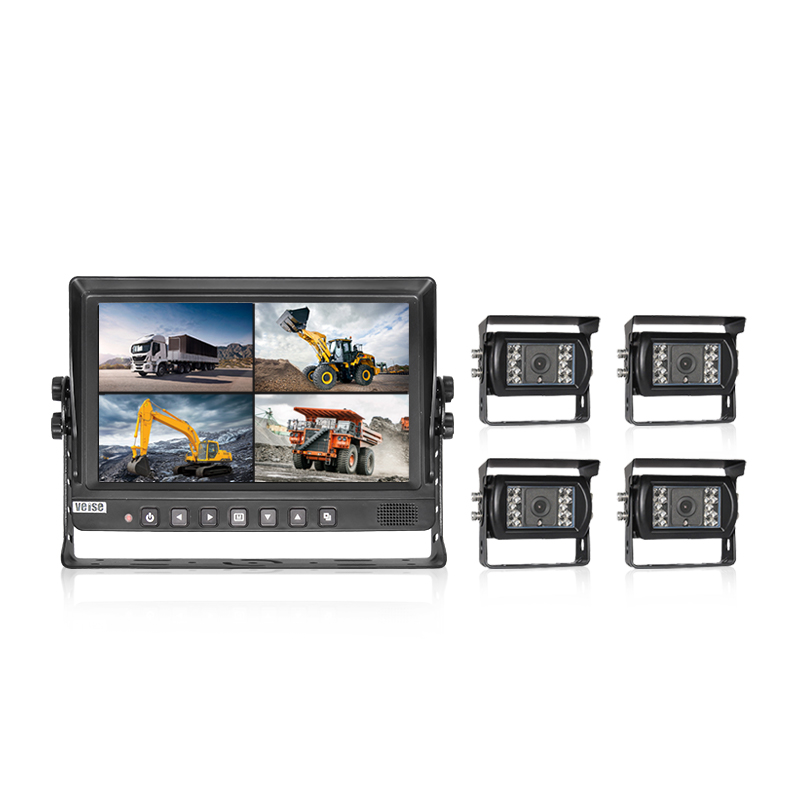

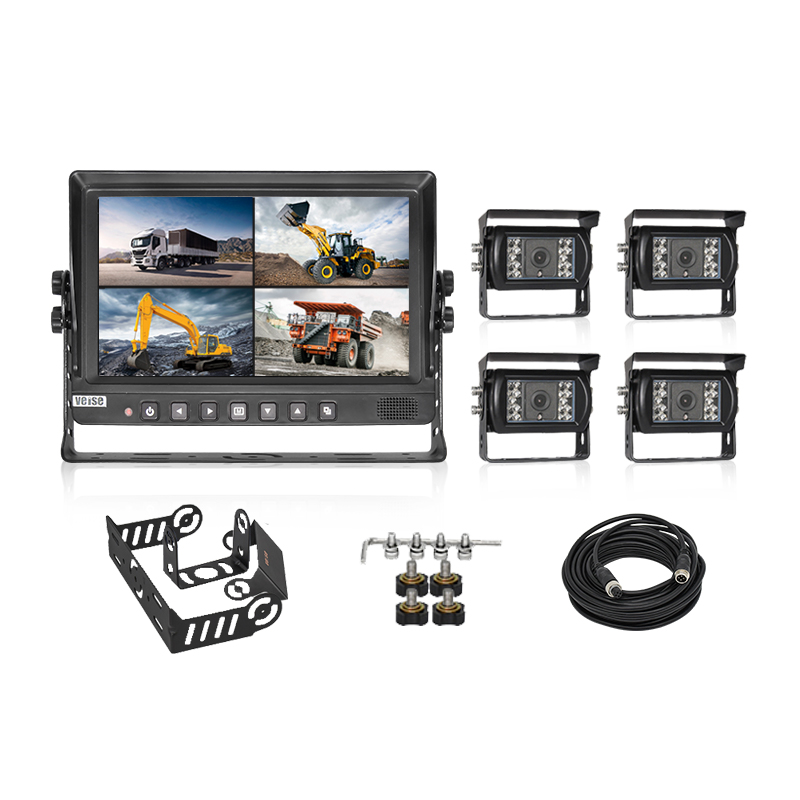

9-inch 4-channel 1080P Quad Monitor Reverse Camera System

  • Model : HDS-914S102M4

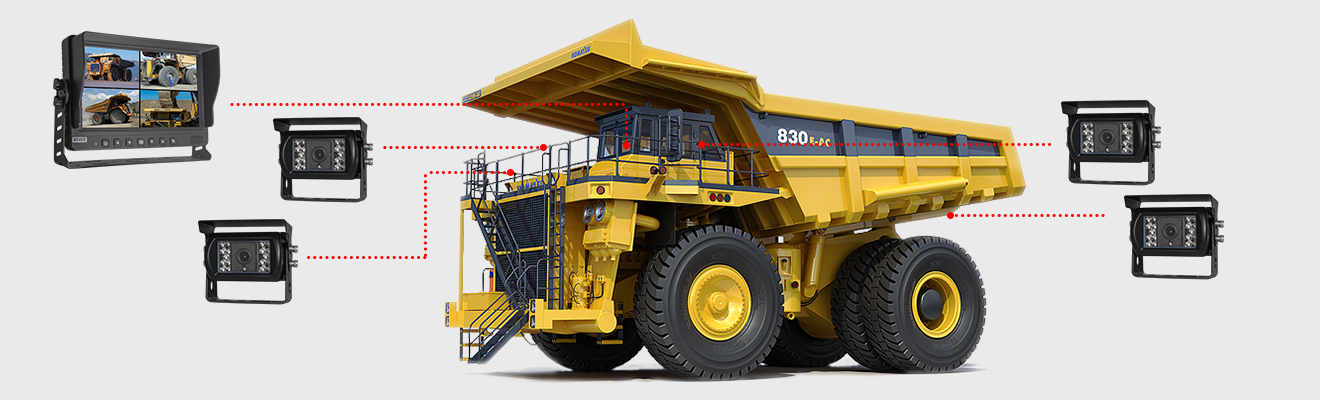

  • Summarize : Cameras are positioned at key locations around the front, rear, left, and right of the vehicle to achieve 360-degree monitoring. With the display showing a split-screen view, the driver can comprehensively monitor the surroundings of the vehicle, effectively preventing collisions and scrapes.
  • More Info : Online Service

Features

9-inch HD IPS screen monitor supports 4 Video Inputs, automative-grade DSP, OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

AHD camera automative-grade DSP, 2 million HD pixels,  IP69K waterproof rating, IR LED night vision function, cold-resistant waterproof signal output cable.

4pin bronze avionics header double-shielded connecting cable, with good anti-interference,low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility.

Parameters

HD Camera Monitor (MHD-914S)

Color Display screen 9-inch IPS screen
Resolution 1024(H) X 600(V)dot
Video Input Max. support 4CH AHD1080P/960P/720P/CVBS signal mixed input
Picture Mode Single, dual, triple and quad screen display
TV systemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Vibration rating5G ( meeting GB-T2423056-2006 standard)
Working Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Working Voltage DC11-32V
Dimension (L x W x T) (255 x 179 x 81mm)

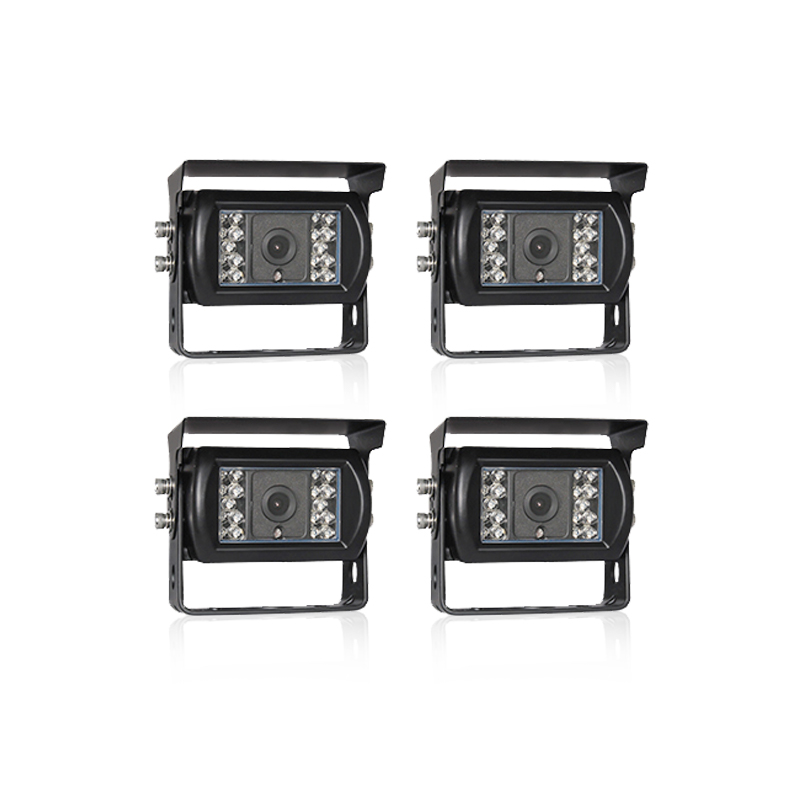

HD Reverse Camera  (CHD-102M)

Image Sensor 1/2.8 Color Sony
Effective Pixel 1920(H) X 1080(V)
Definition1080P
Disible Angle 130°
Infrared Distance 15 meters (built-in 850nm infrared lights)
Waterproof Rating IP69K
Working Voltage DC12V±10% (be powered by the monitor)
Working Temperature -20℃ to +60℃
Storage Temperature -30℃ to +70℃
Vibration rating5G (meets GB-T2423056-2006 standard )
Dimension 76(W) x 77(H) x 66(D) mm

HD video signal cable (XC-HD0004-B-15M)

Interface 4 pin aviation connector (male-female)
length15 meters
