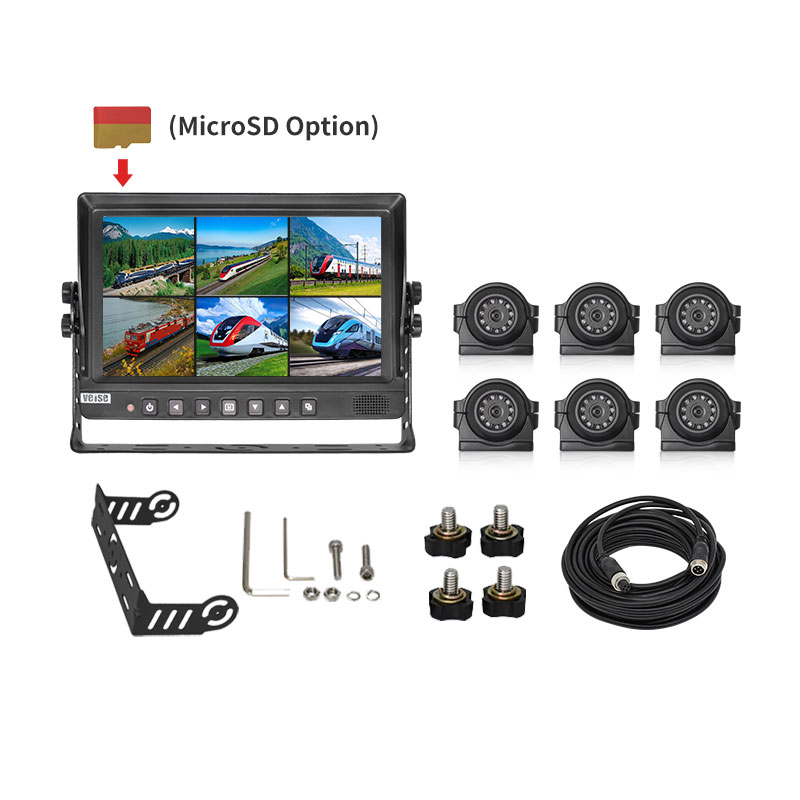

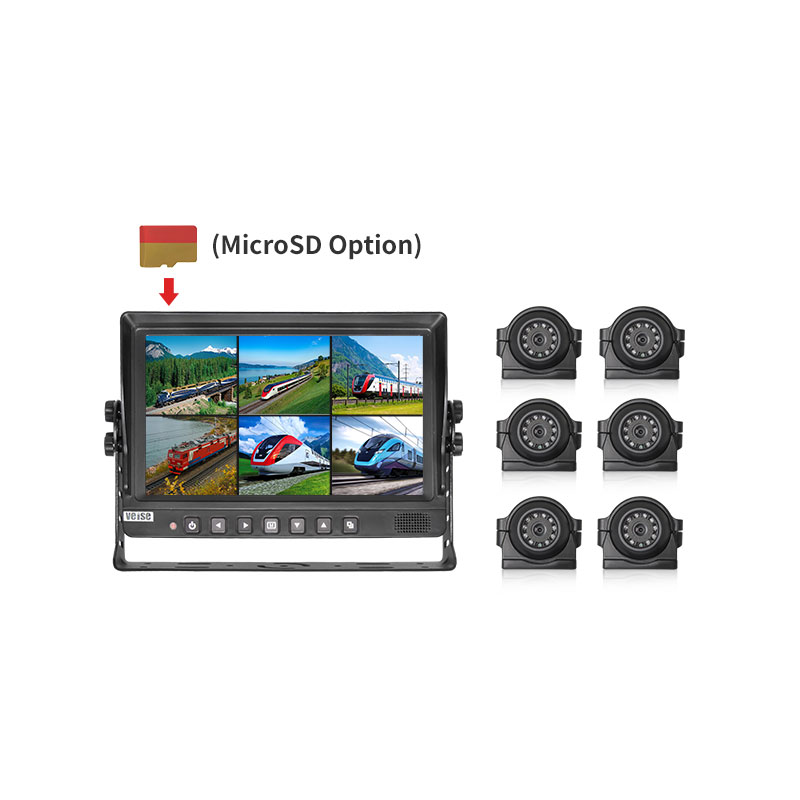

Product Features
The 9-inch high-definition IPS Monitor supports 6-channel video input and features automotive-grade DSP and OSD menus for setting mirrored and normal images, reversing guidelines, and trigger priority applications.
With a wide operating voltage range of DC 8~32V, it includes independent power output, load dump pulse voltage protection, external power polarity reverse protection, and LED constant current and constant voltage protection to prevent improper use and ensure product longevity.
The AHD camera, with automotive-grade DSP, offers 2-megapixel high-definition resolution, IP69K waterproof rating, IR LED night vision capability, and cold-resistant waterproof signal output cables.
The 4-core phosphor bronze aviation connector features dual-shielded connecting cables for excellent interference resistance, low impedance, minimal signal transmission loss, and double injection molded aviation head and tail wires for superior tensile and bending extension durability.
Product Parameters

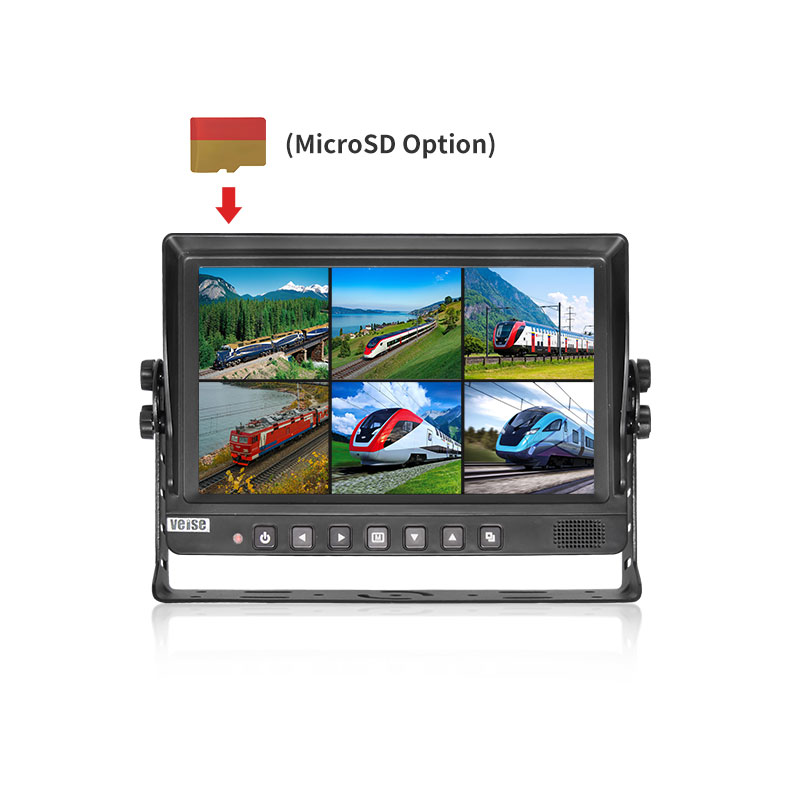

HD Camera Monitor (MHD-916D) |
| Color Monitor Screen | 9-inch IPS screen |
| Resolution | 1024(H) X 600(V)dot |
| Video Input | 6CH 1080P/960P/720P/CVBS signal mixed input |
| Storage capacity | External SD card (supports up to 256G) |
| Screen Mode | Single-screen, dual-screen, triple-screen, quad-screen, six-screen |
| TV System | PAL/NTSC (AUTO) |
| Brightness (cd/m2) | 600 |
| Load dump | ISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms) |
| Vibration rating | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Working Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Working Voltage | DC11-32V |
| Dimension | (L x W x T) (255 x 179 x 81mm) |

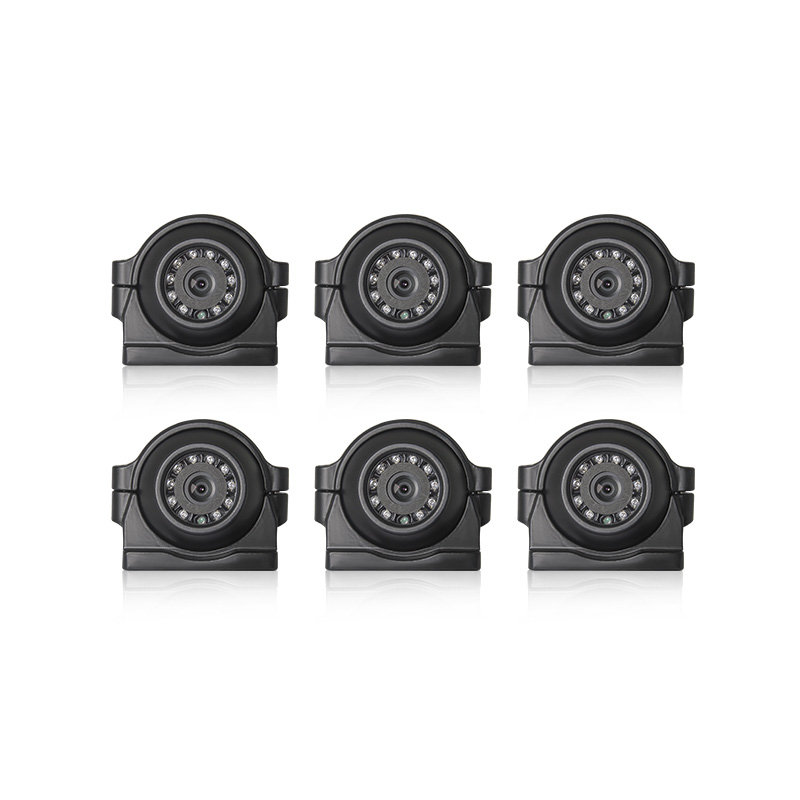

HD waterproof camera (CHD-202M) |
| Image Sensor | 1/2.8 Color Sony |
| Effective Pixel | 1920(H) X 1080(V) |
| Definition | 1080P |
| Visible Angle | 130° |
| Infrared Distance | 15 meters (built-in 10pcs of 850nm infrared lights) |
| Waterproof Rating | IP69K |
| Working Voltage | DC12V±10%（be powered by the monitor） |
| Working Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +70℃ |
| Vibration rating | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Dimension | 76(W) x 77(H) x 66(D) mm |
HD video signal cable (XC-HD0004-B-15M) |
| Interface | 4 pin aviation connector (male-female) |
| length | 15 meters |

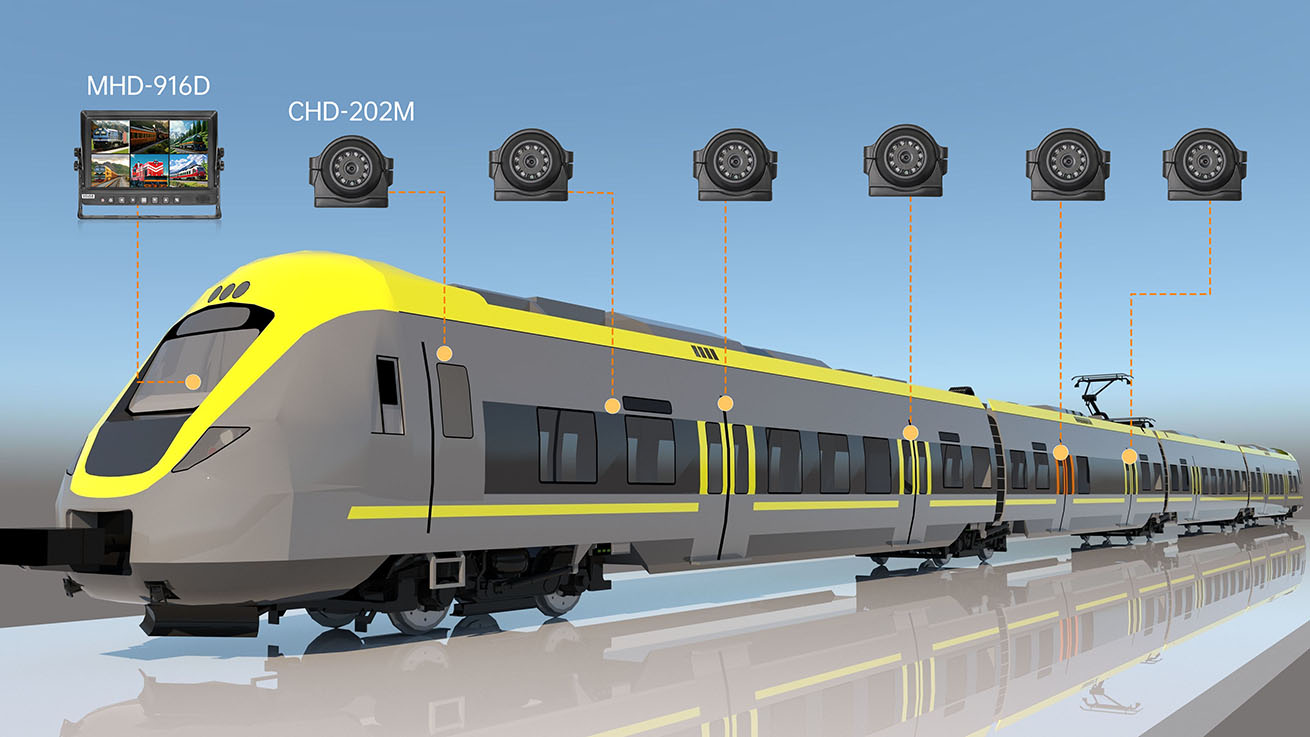

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
