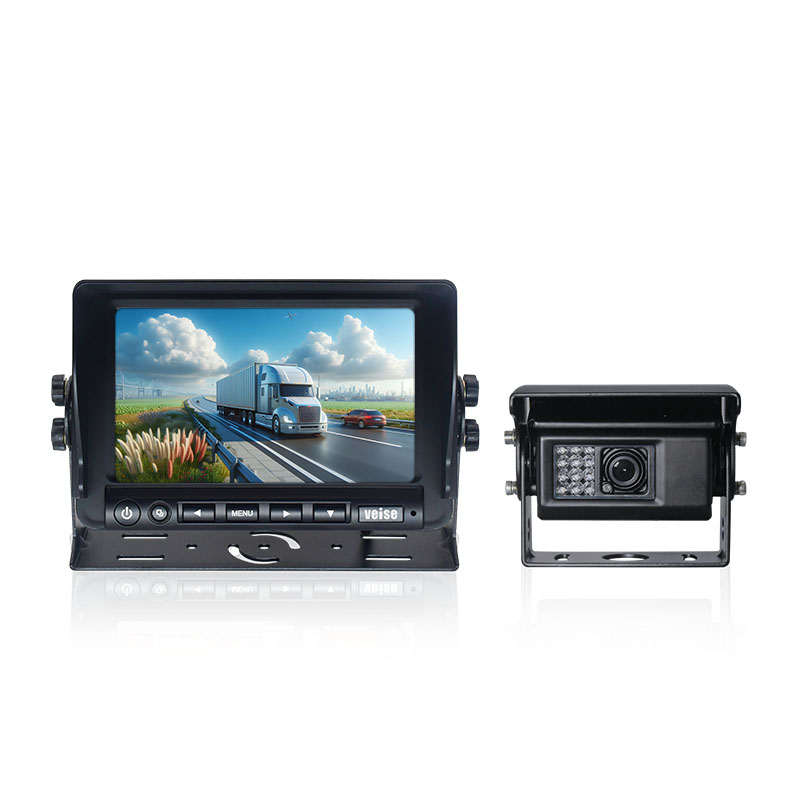

Auto Shutter Backup Camera System

  • Model : HDS-771T142M1
  • Summarize : The product is a 1080P HD camera with an effective pixel resolution of 1920(H) x 1080(V), featuring an innovative drive structure to ensure the effectiveness and durability of the dust cover. Its aluminum alloy housing is corrosion-resistant, suitable for acidic and alkaline environments, and enhances heat dissipation. Night vision functionality is provided by 12 pieces of 850nm infrared LED lights, while the fully sealed vacuum design prevents fogging and offers an IP69K waterproof rating, making it suitable for all-weather use. The low-resistance video power line extends signal reach and is resistant to cold temperatures. The acrylic glass window and aviation-grade connection interface enhance vibration resistance and waterproofing. With a 130-degree ultra-wide viewing angle, a unique support design increases anti-vibration performance, while the automatic heating feature and smart image switching technology enhance the overall user experience.
  • More Info : Online Service

Product Features

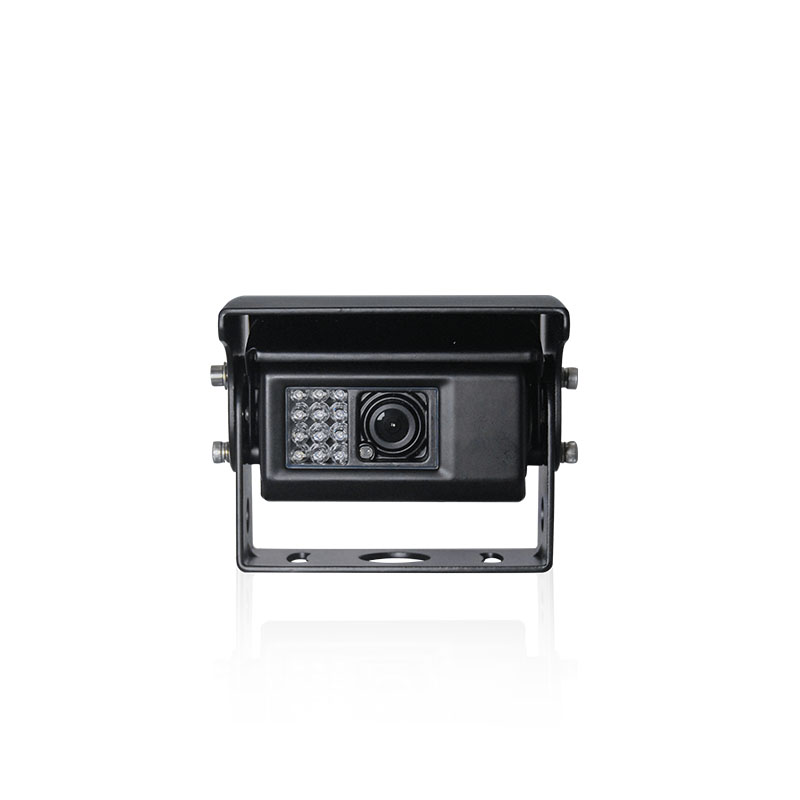

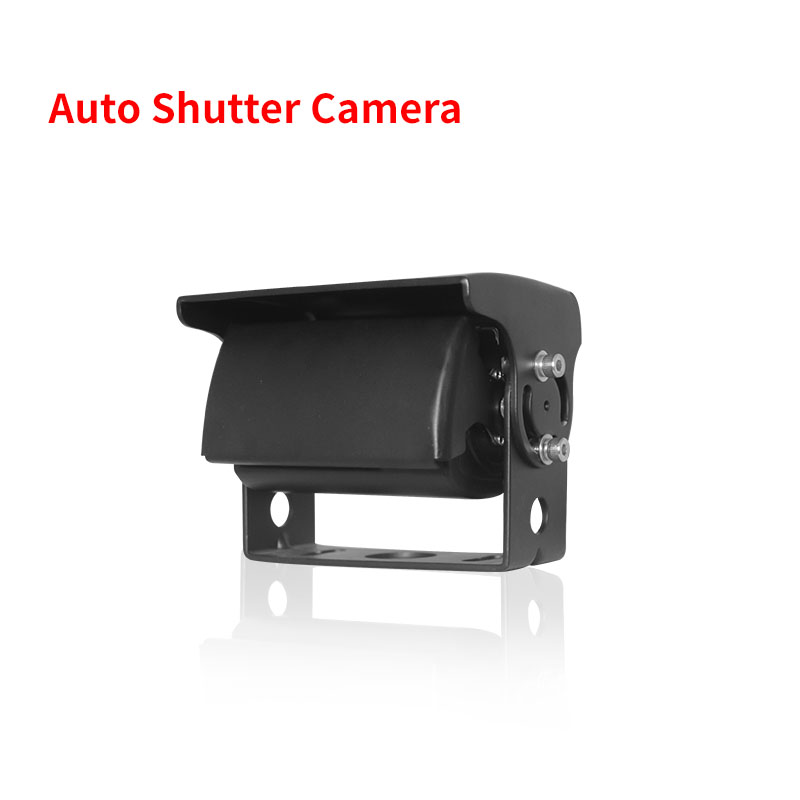

1080P HD Auto Shutter Backup Camera

New aluminum alloy transmission structure ensures the effectiveness and frequency of driving dust cover.

12 pieces of 850nM infrared LED lights provide safe night vision supplementary lighting.

Fully sealed cameras with IP69K waterproof grade for all-weather environment.

Automatic heating and atomization function; (Automatically turns on heating when the operating temperature of the camera is below 10 ℃)

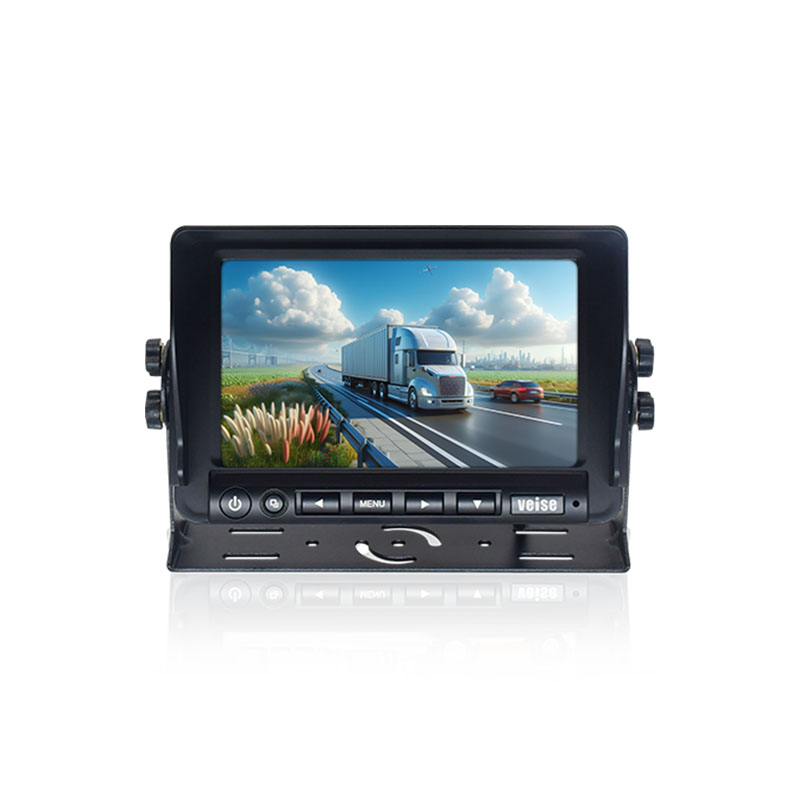

7-Inch HD Dual-Image Monitor

The 7-inchmonitor supports 2 channels of Video Inputs and dual-image Screen segmentation Screen.

The IPS screen has fast response speed, large viewing angle, and true color, with a Resolution of 1024RGBX600.

OSD menu respectively sets the mirror and normal images of each picture, delays time and performs the double trigger priority application function.

600cd/㎡ high brightness for clear images.

Load dump pulse voltage DC24V + 174V (350ms)design protects against damage to car transient pulses.

The independent power supply adopts energy-saving, low power consumption, and low-temperature circuit stable design.

DC11~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection. LED thermal response constant current and constant voltage protection for service life circuit design.

Video Power Connection Cable

4-core phosphor bronze aviation head with dual shielding.

Excellent anti-interference performance, low impedance, minimal signal transmission attenuation.

Aviation head with dual molded end, excellent tensile and swing extension properties.

Product Parameters

HD Camera Monitor (MHD-771)

Color Monitor Screen7-Inch IPS Screen
Resolution1024(H) X 600(V)Dot
Video InputMax. Support 2CH AHD1080P/ 720P /CVBS Video Signals
Picture ModeSingle Channel Switching
TV SystemPAL/NTSC (AUTO)
Brightness 600 (Cd/㎡)
Load DumpISO16750-2 Standard (24V System Us=174V,Ri= 4Ω,Td=350ms)
Vibration RatingGB∕T 2423.56-2018 Standard (Random 5G Vibration)
Working Temperature-20℃ To +70℃
Storage Temperature-30℃ To +80℃
Working VoltageDC11-32V
Dimension(L X W X T) (216 X 150 X 80mm)

HD Auto Shutter Backup Camera( CHD-142M)

Effective Pixel1920(H) X 1080(V)
Definition1080P
Visible Angle130°
Infrared Distance15 Meters (Buit-In 12pcs 850nm Infrared Lights)
Waterproof RatingIP69K
Working VoltageDC12V±10%(Be Powered By The Monitor)
Working Temperature-20℃ To +60℃
Storage Temperature-30℃ To +70℃
Vibration RatingGB∕T 2423.56-2018 Standard (Random 5G Vibraion)
Dimension94(W) X 83(H) X 78(D) Mm

HD Video Signal Cable (XC-HD0004-B-15M)

Interface4 Pin Aviation Connector (Male-Female)
Length15 Meters

Product Applications


*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
