1080P Rear View Camera System

  • Model : HDS-771112M1

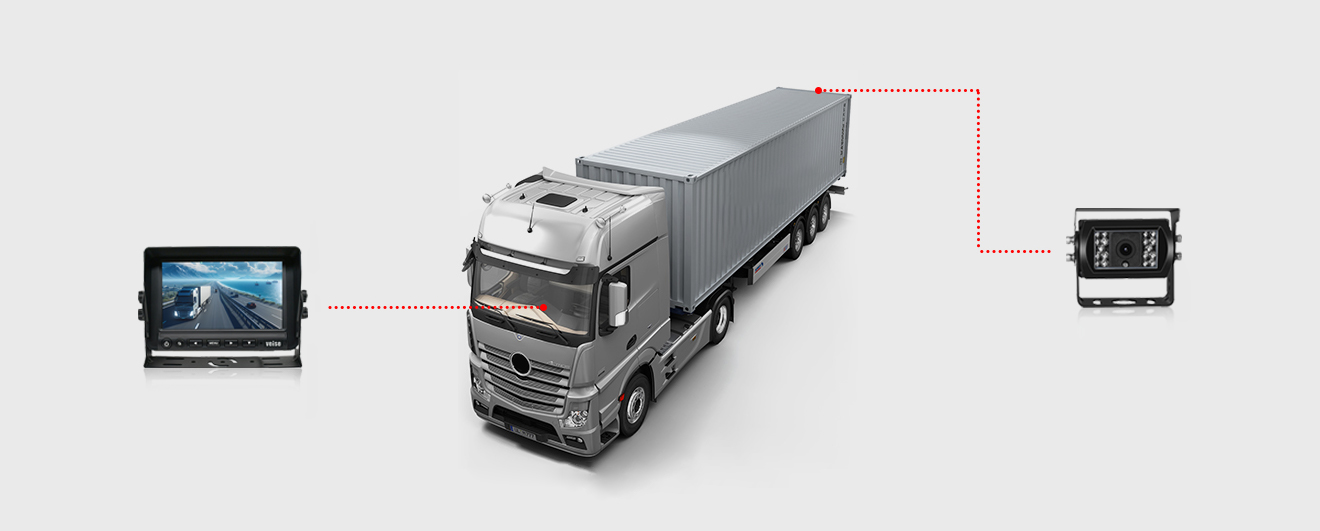

  • Summarize : Utilizes the backup camera to capture the real-time image of the rear of the vehicle and displays it on the camera display. It provides drivers with a more intuitive and clear vision when reversing, thus effectively avoiding the safety hazards brought about by the rear blind spot and improving the safety of reversing.
  • More Info : Online Service

Features

7-inch HD IPS screen monitor, support 4 screen split display, automative-grade DSP and OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of operating voltage, independent power supply output, throw load pulse voltage protection, external power supply polarity reverse protection, LED constant current and voltage protection.

AHD camera car specification DSP, 2 million HD pixels, IP69K waterproof rating, IR LED night vision function, cold-resistant waterproof signal output cable.

4-core bronze avionics header double-shielded connecting cable, with good anti-interference, low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility.

Parameters

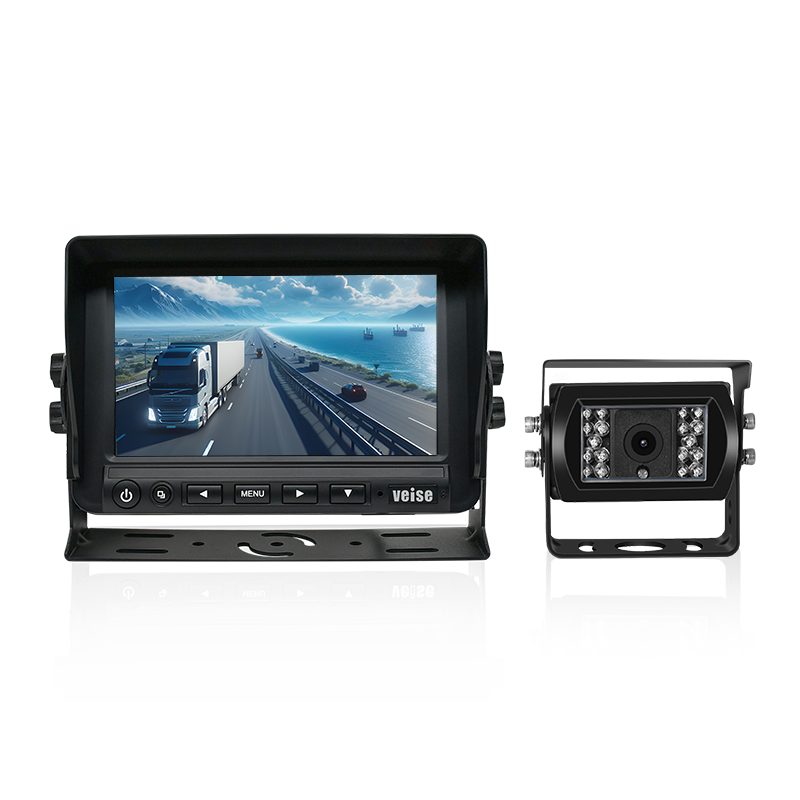

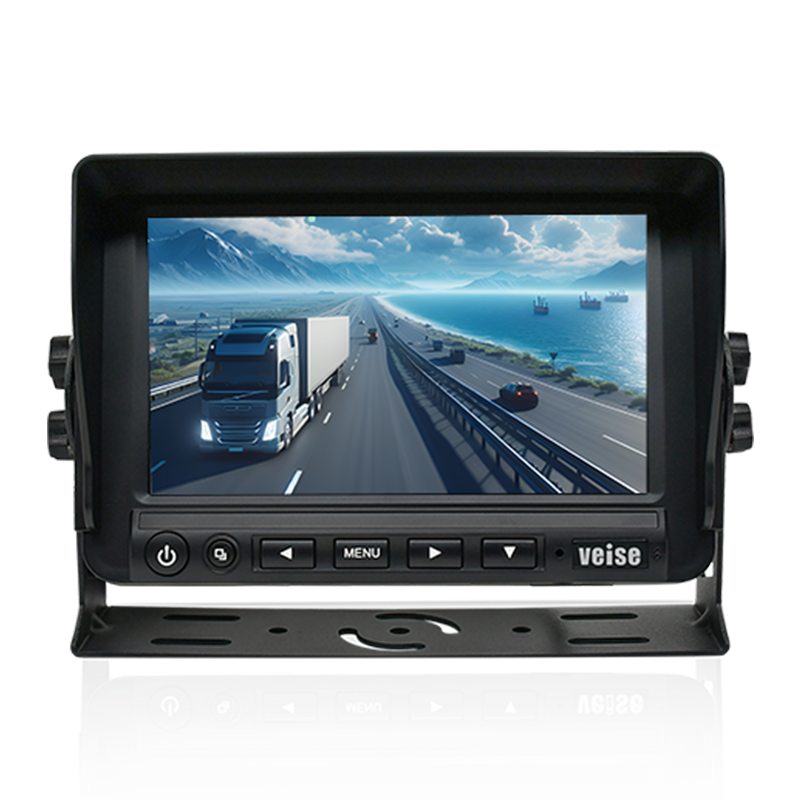

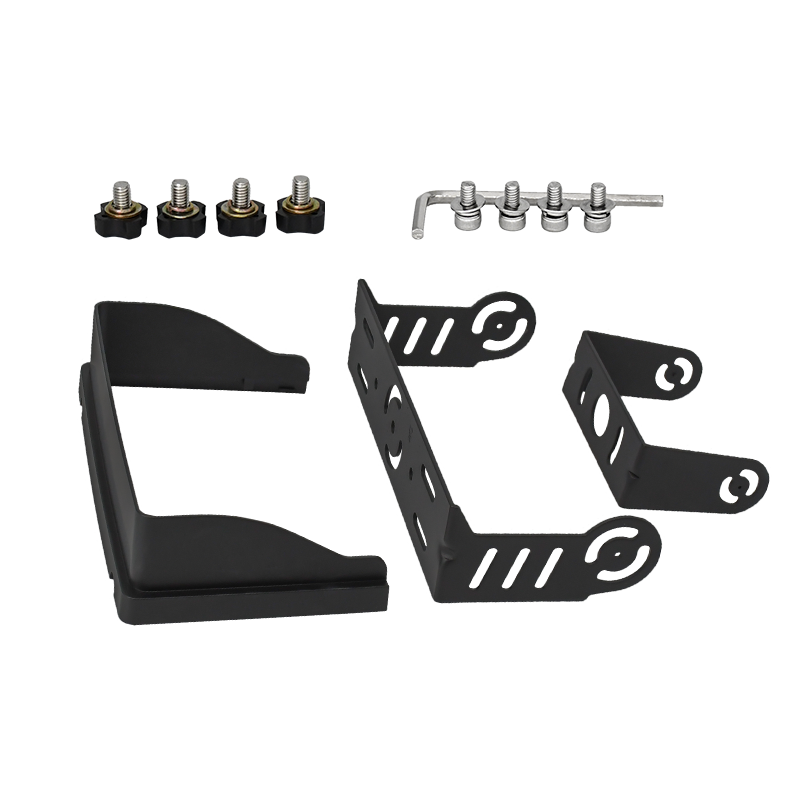

HD Camera Monitor (MHD-771)

Color Display Screen7-inch IPS screen
Resolution1024(H) X 600(V)dot
Video InputMax. support 2CH AHD1080P/ 720P /CVBS video signals
Picture ModeSingle channel switching
TV systemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Vibration RatingGB∕T 2423.56-2018 standard (random 5G vibration)
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
Dimension(L x W x T) (216 x 150 x 80mm)

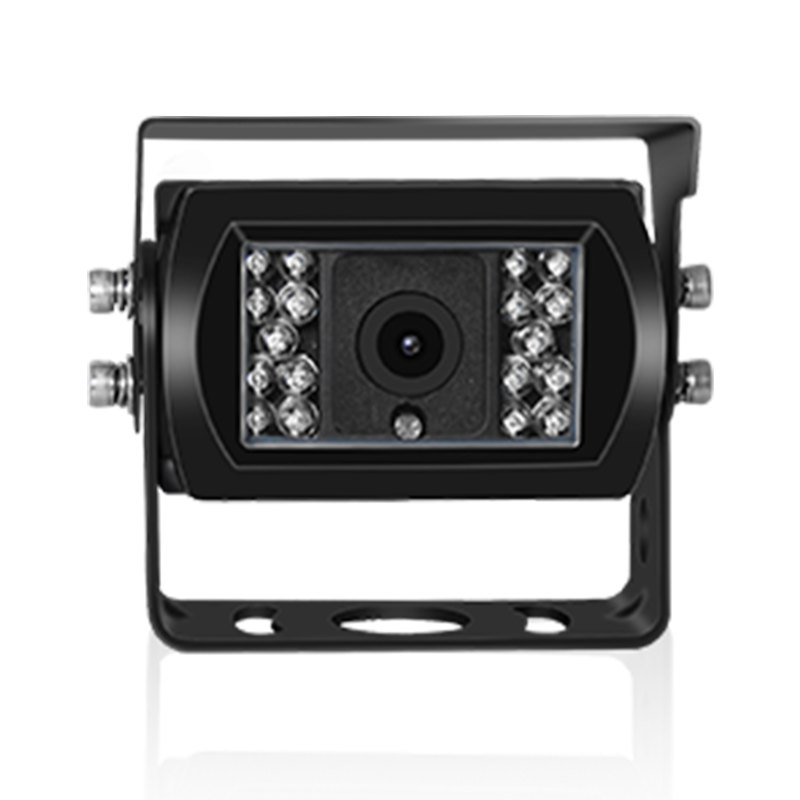

HD Rear View Camera(CHD-102Z)

Effective Pixel1920(H) X 1080(V)
Definition1080P
Visible Angle130°
Infrared Distance15 meters (Buit-in 6 850nm infrared lights)
Waterproof RatingIP69K
Working VoltageDC12V±10%(be powered by the monitor)
Working Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibraion)
Dimension76(W) x 77(H) x 66(D) mm

HD video signal cable (XC-HD0004-B-15M)

interface4 pin aviation connector (male-female)
length15 meters
