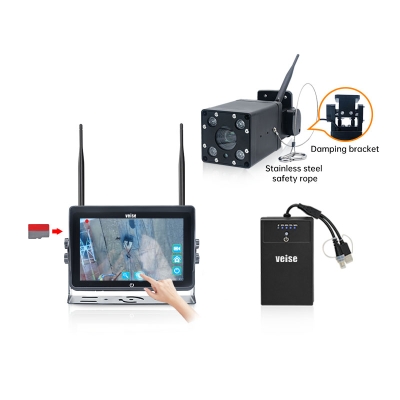

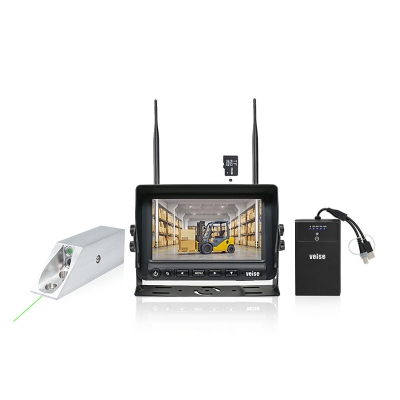

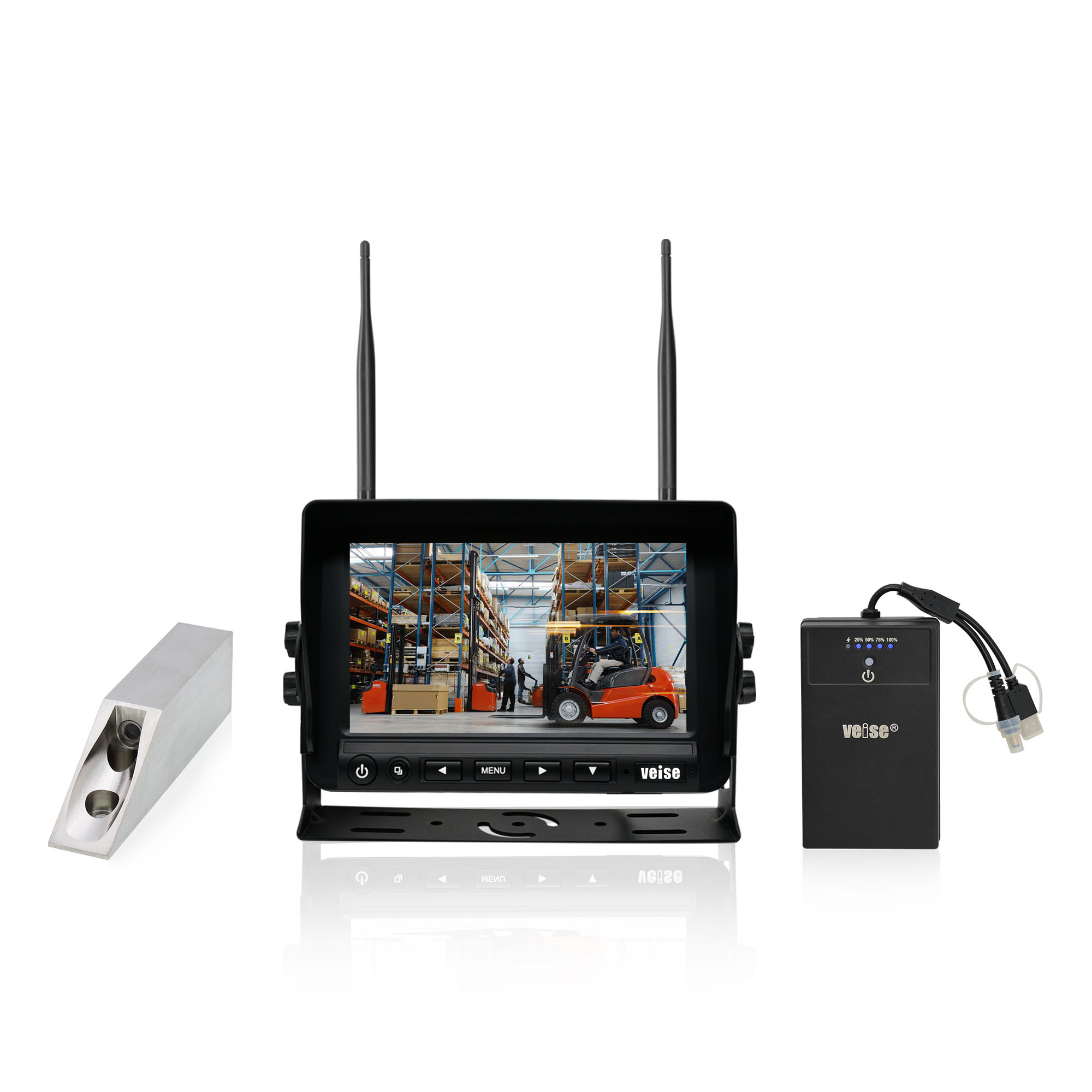

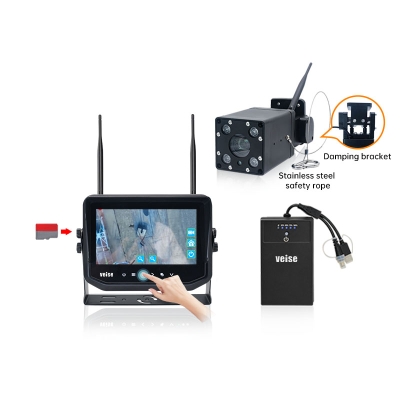

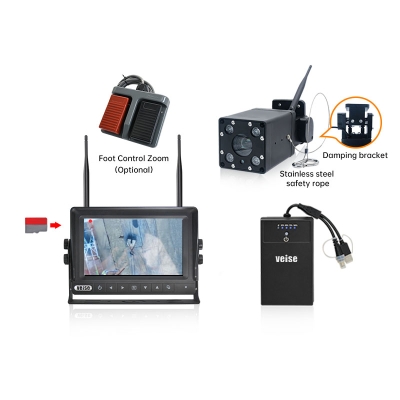

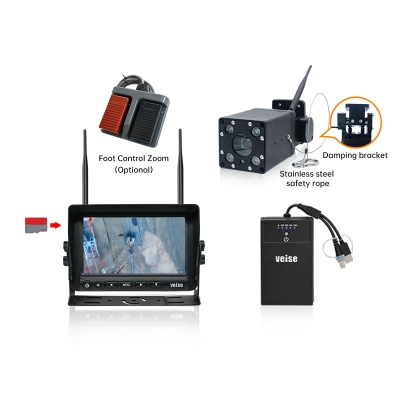

Forklift Wireless Reversing Camera System

  • Model : HDWS-774H232M1-03B10W1
  • Summarize : When the forklift is forking and transporting objects, it blocks the driver's line of sight, and there are safety blind zones in the front and rear line of sight, which pose a safety hazard to the personnel and equipment in the area, and the accuracy of precisely stacking the goods in high positions is highly difficult. The forklift wireless camera monitoring system helps the operating driver observe the front and rear of the vehicle in real-time through the display image screen, reducing the blind zone of the line of sight, while also increasing the efficiency of stacking the goods.
  • More Info : Online Service

Features

Wireless HD Camera Monitor

7-inch digital screen monitor built-in 2.4GHz wireless receiver,1024x600 high Resolution and 600cd/㎡ high-brightness screen.

Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 100 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening anti-vibration design.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period

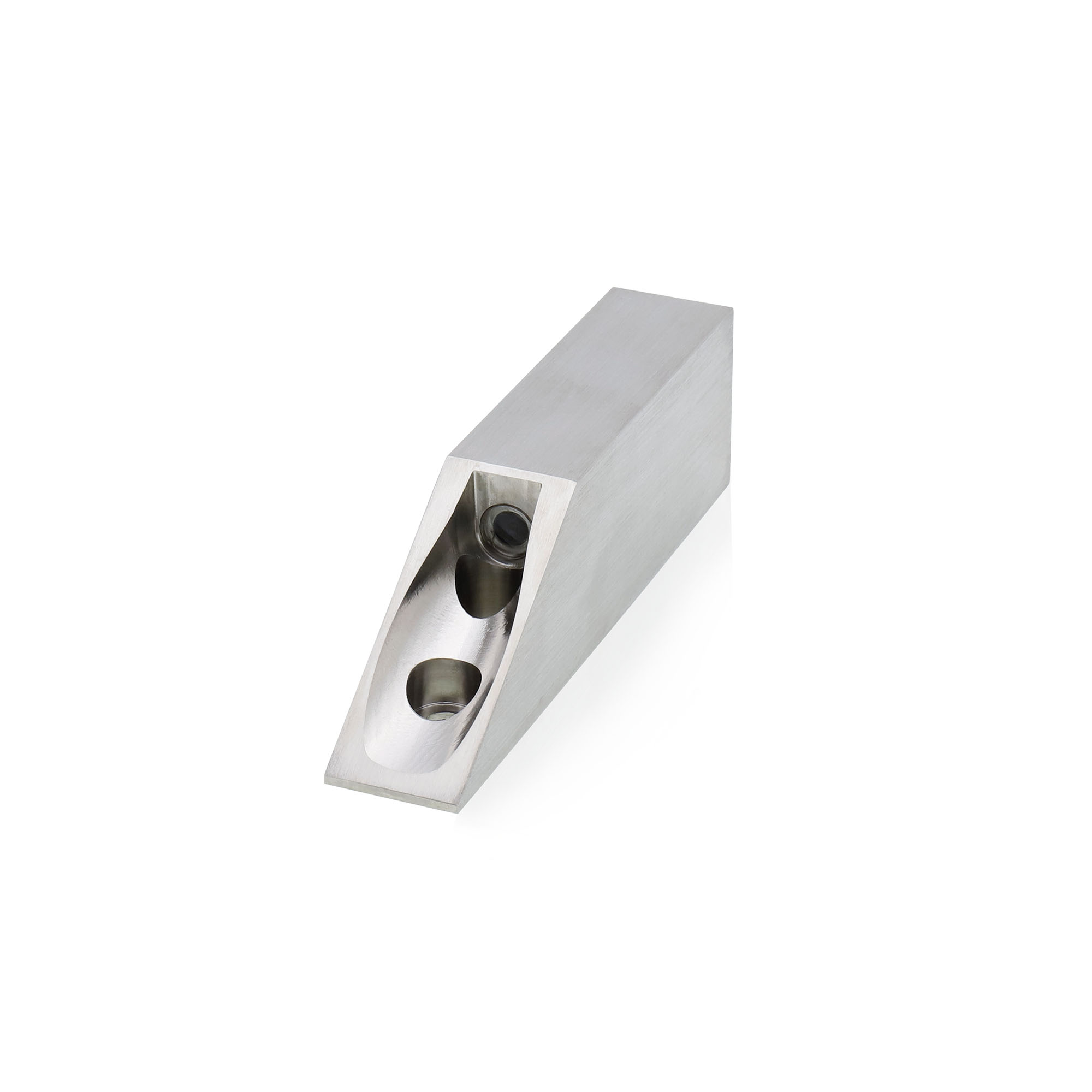

Wireless HD Reversing Camera

1080P 2.4GHz wireless camera, automotive-grade DSP, and millions of high-definition pixels.

Stainless steel anti-collision enclosure, with a Waterproof Rating of IP69K.

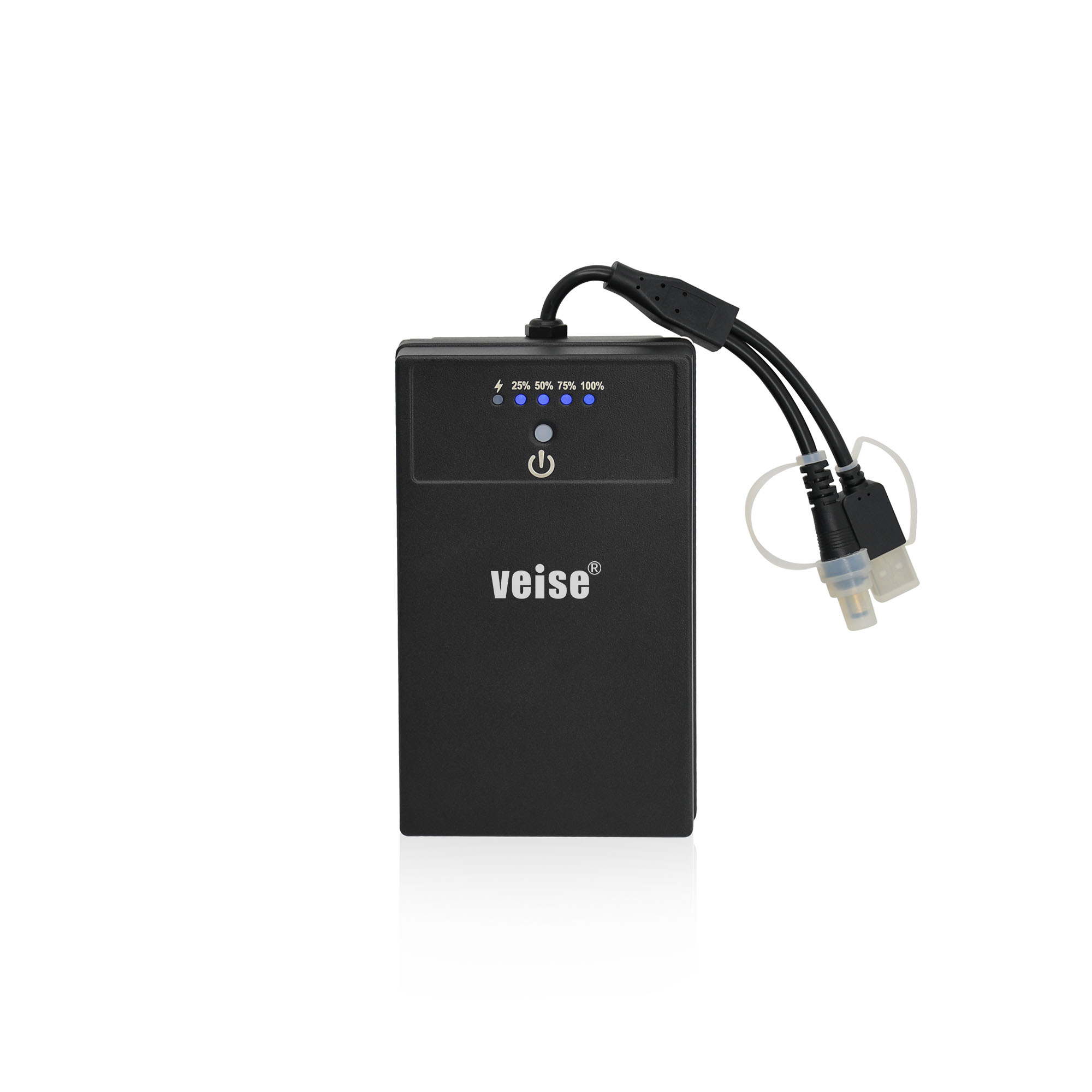

Mobile Rechardeble Power Supply

Rechargeable mobile power supply, built-in short circuit reverse connection protection circuit and overcharge and over-discharge protection circuit design.

Constant current constant voltage circuit design to extend the service life.

Adopt magnetic suction type installation design, which can be installed at any vehicle position.

Waterproof Rating IP67.

Parameter

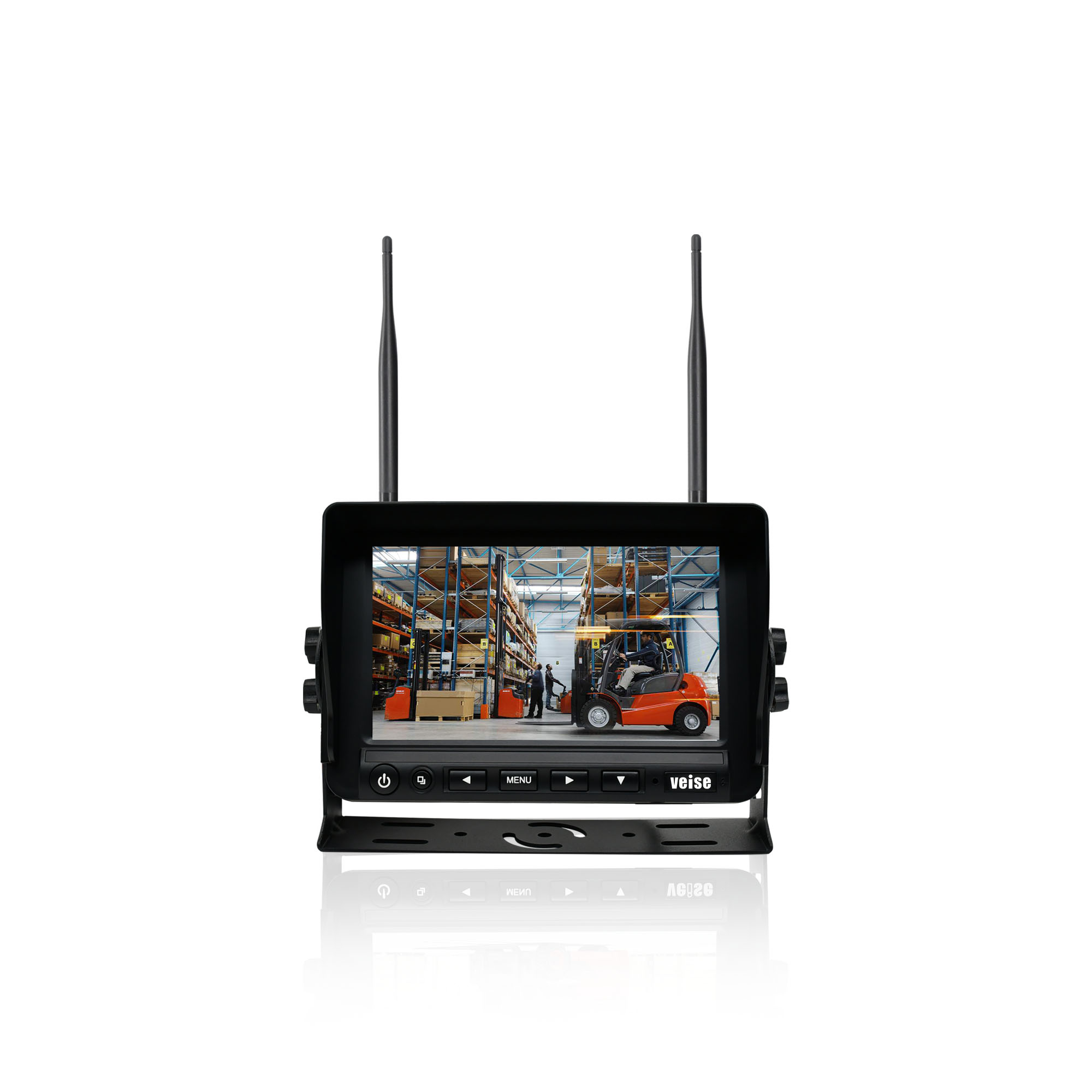

Wireless HD Camera Monitor (MWHD-774H)

Display screen 7-inch IPS screen
Wireless Reveivingbuilt-in 2.4G wireless reveiver
Screen Modesingle-picture/double-picture/three-picture/four-picture
Operating Frequency2400〜2483.5MHZ
Receiving Sensitivity≤-86 dB
Receiving DistanceOpen area≤100 meters
Multiple frequency point automatic frequency hopping channel code matching selection.80
Resolution1024(H) X 600(V)dot
Color SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard(24V system Us=174V,Ri= 4Ω,td=350ms)
Anti-vibration GradeGB∕T 2423.56-2018 standard(random 5G vibration)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating TemperatureDC8-32V
Outer Dimension(L x W x T) (216 x 150 x 80mm)

Wireless HD Reversing Camera (CWHD-232M)

Image Sensor1/3.7 Color DSP
Wireless Transmissionbuilt-in 2.4G digital wireless transmitter
Trasmission Frequency18dBm
Transmission Distanceopen area≤100 meters
Resolution1080P
Effective Pixels1920(H) X 1080(V)
Visible Angle52°
Housing Material304 stainless steel, anti-collision design
Waterproof GradeIP69K
Operating VoltageDC12V
Operating Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Anti-vibration GradeGB∕T 2423.56-2018 standard(random 5G vibration)
Size132.5 mm X 37mm X 24.5mm

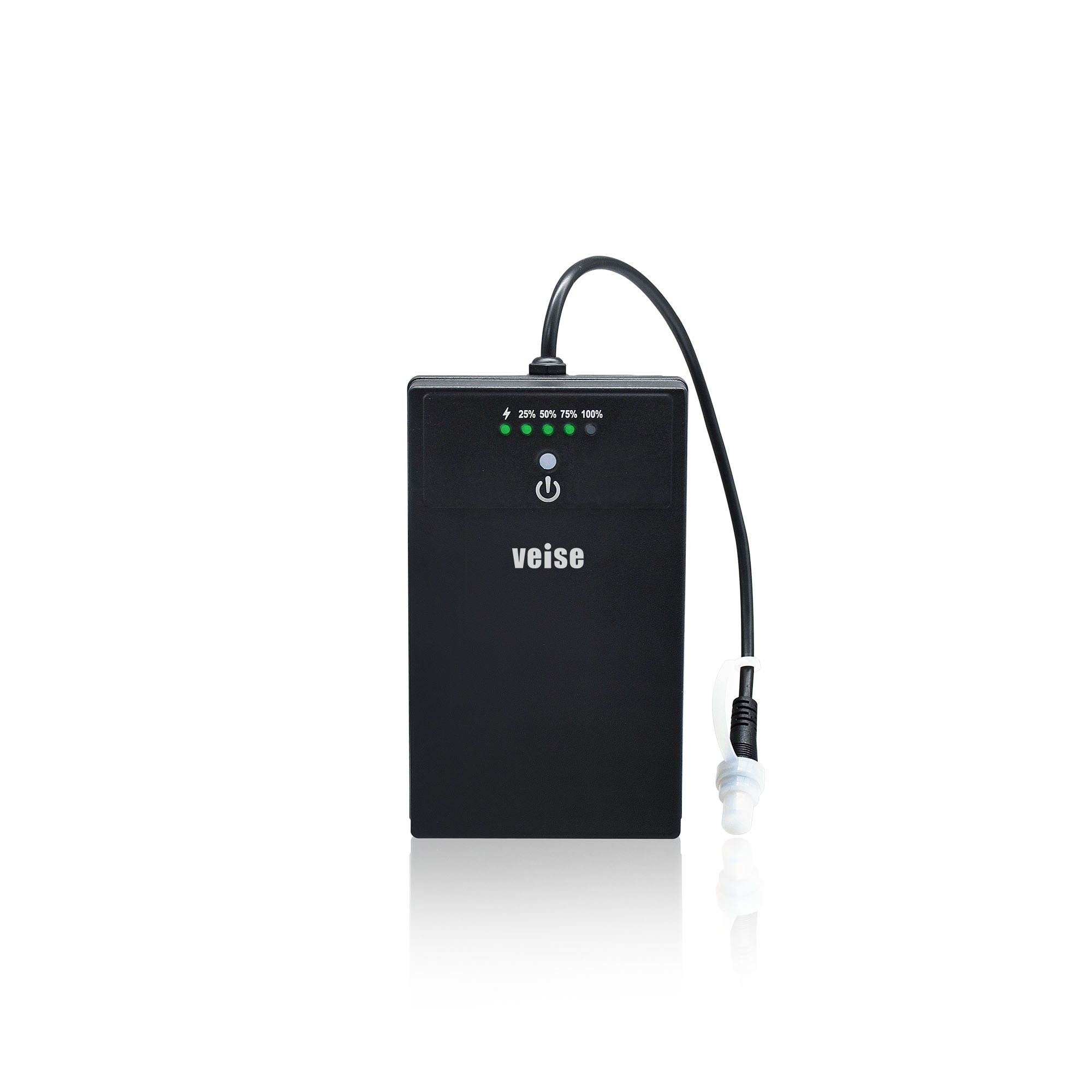

Mobile Chargable Power Supply(MP-03B10W1)

Cell Typelithium-ion polymer battery
Cell Capacity111Wh /30000mAh
Rated Capacity
7500mAh/(12V 0.5A)
USB input(support fast charging)5V=15W,9V/12V =18W
DC Output12V(0.8A)-9.6W)Max
Waterproof GradeIP67
Charging Environment Temperature0℃~+50℃
Discharge Operating Temperature-20℃~+55℃
Storage Temperature-40℃~+60℃
Size148(W) x 88(H) x 46.5(D) mm

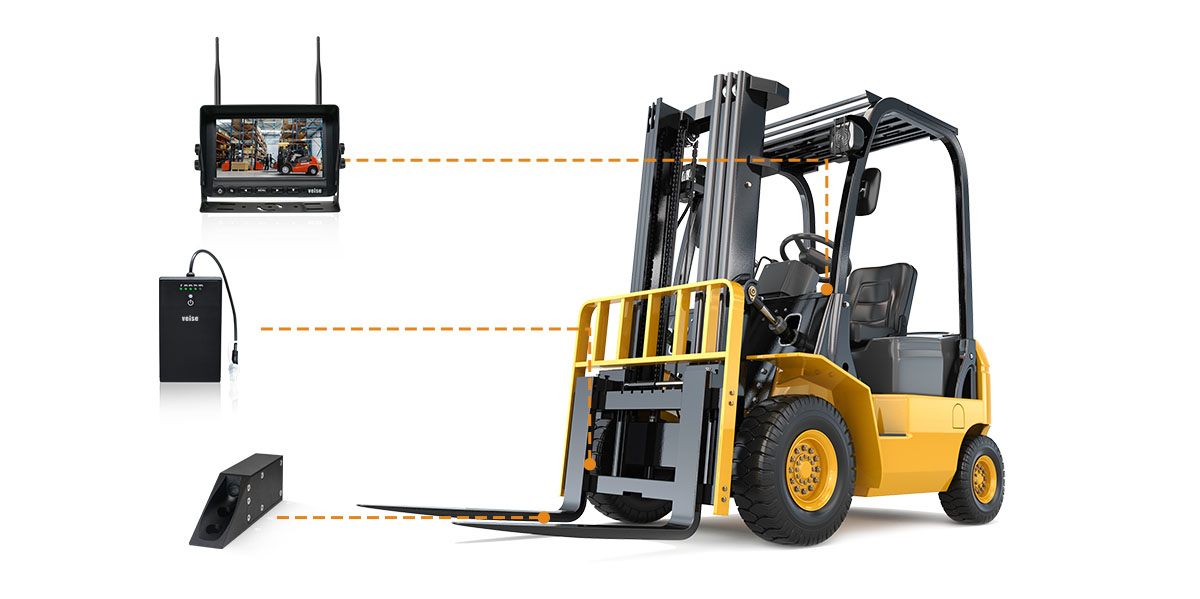

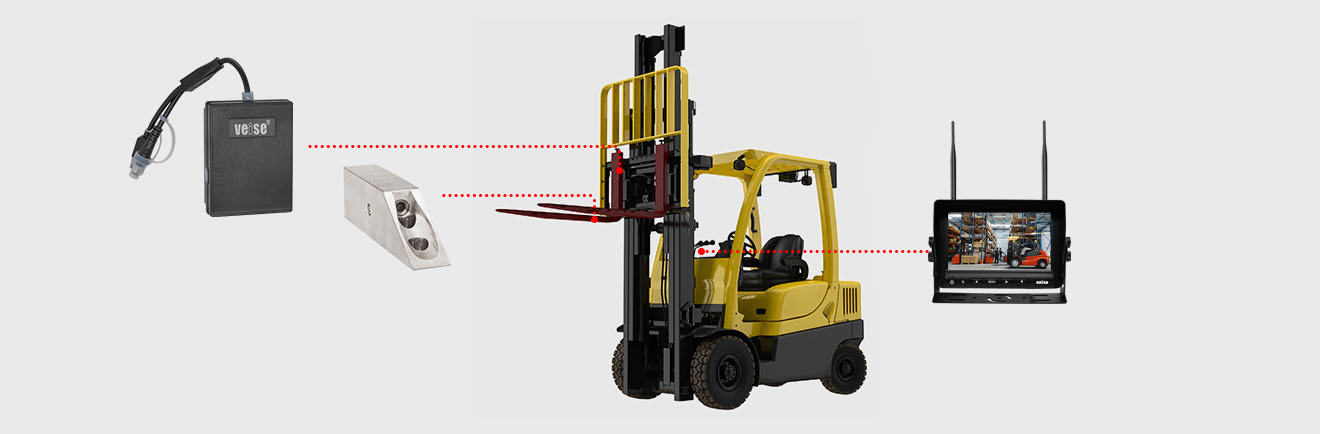

Applications

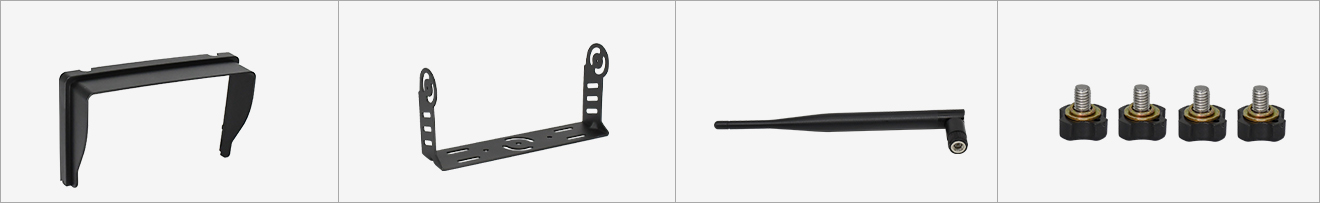

Accessories
