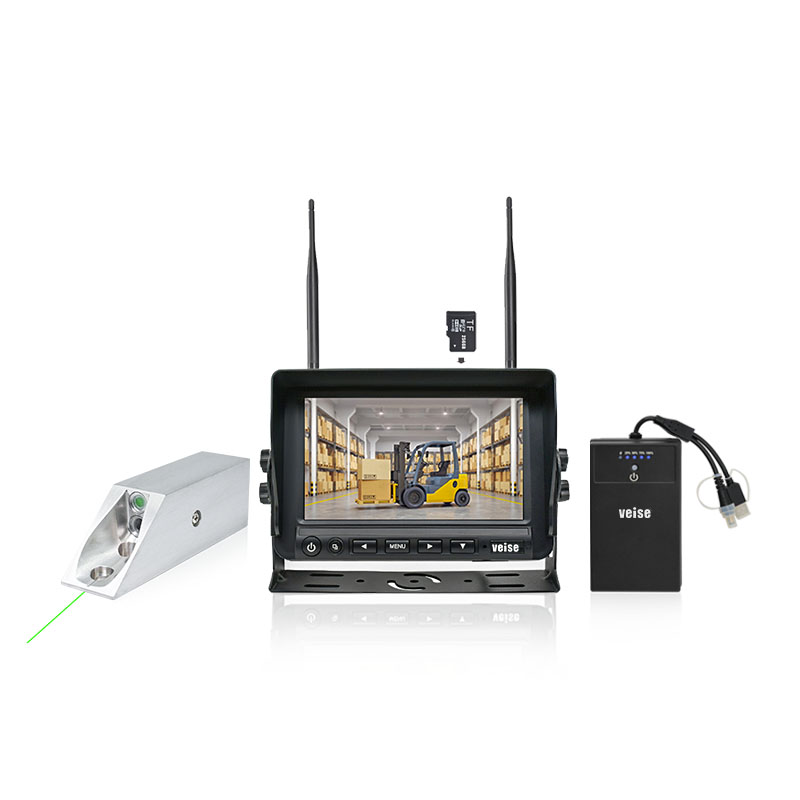

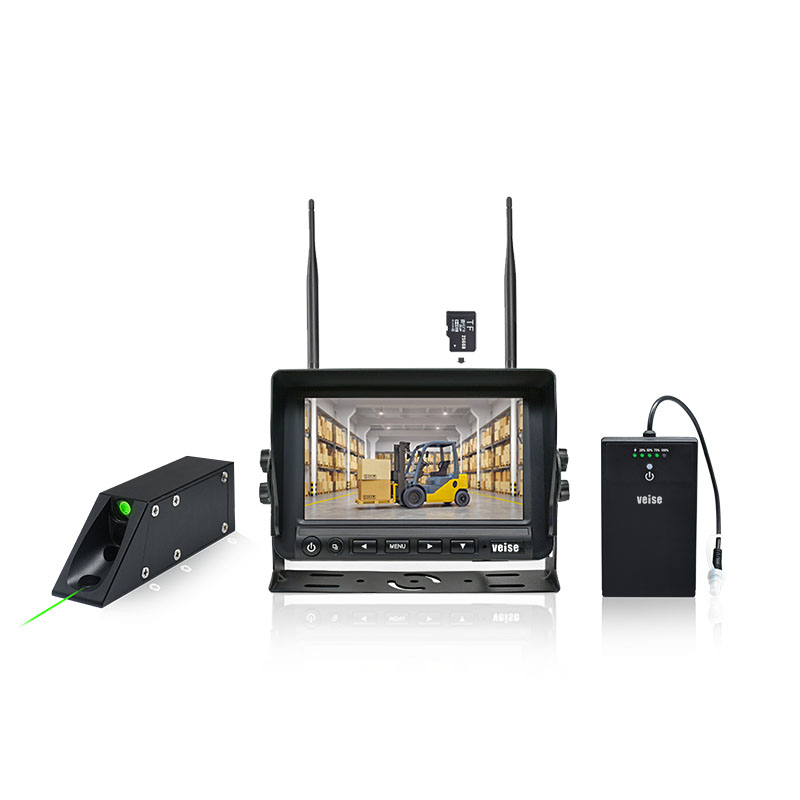

Wireless Forklift Camera System

  • Model : HDWS-774HD23A2M1-03B10W1
  • Summarize : Forklift trucks block the driver's line of sight when forking objects, and there are blind spots in the front and back lines of sight, which pose a safety hazard to people and equipment in the area, and it is difficult to pile up goods with high positioning accuracy. The wireless camera monitoring system of the forklift truck is helpful for the operator to observe the front and rear of the vehicle in real-time through the display image, reducing the blind area of sight and improving the efficiency of stacking goods. 30000mAH high-power mobile power supply has a long working time.
  • More Info : Online Service

Product Features

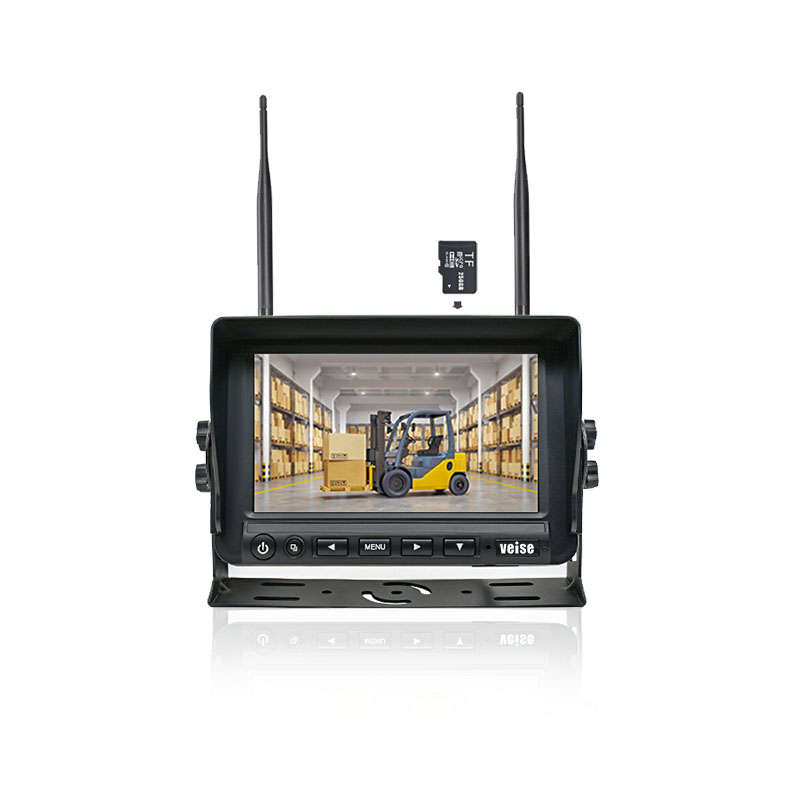

Wireless HD Camera Monitor

7-inch digital screen monitor built-in 2.4GHz wireless receiver, 1024x600 high Resolution and 600cd/㎡ .

Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 200 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening anti-vibration design.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period.

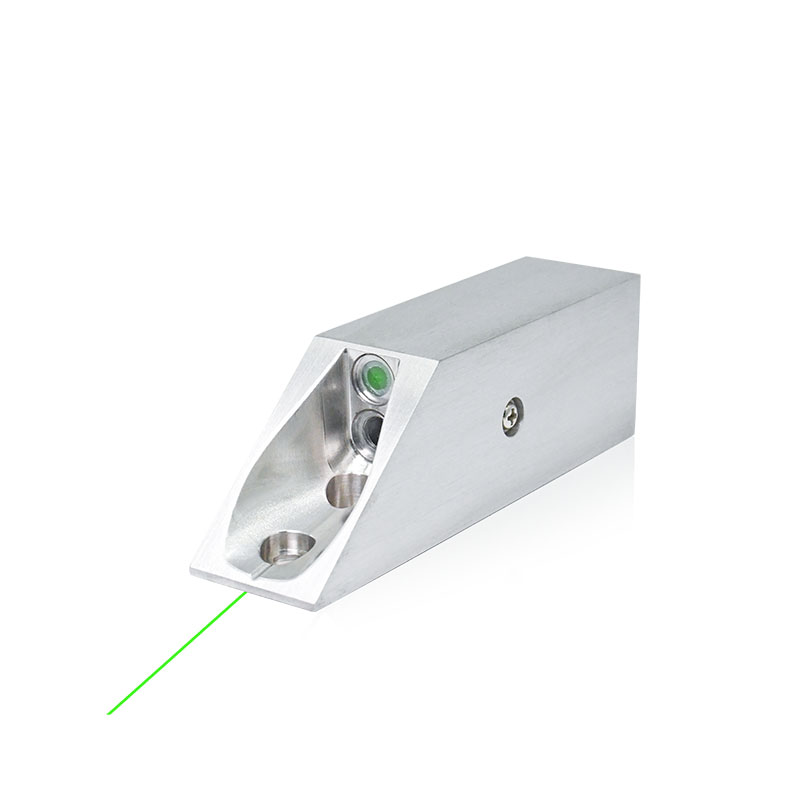

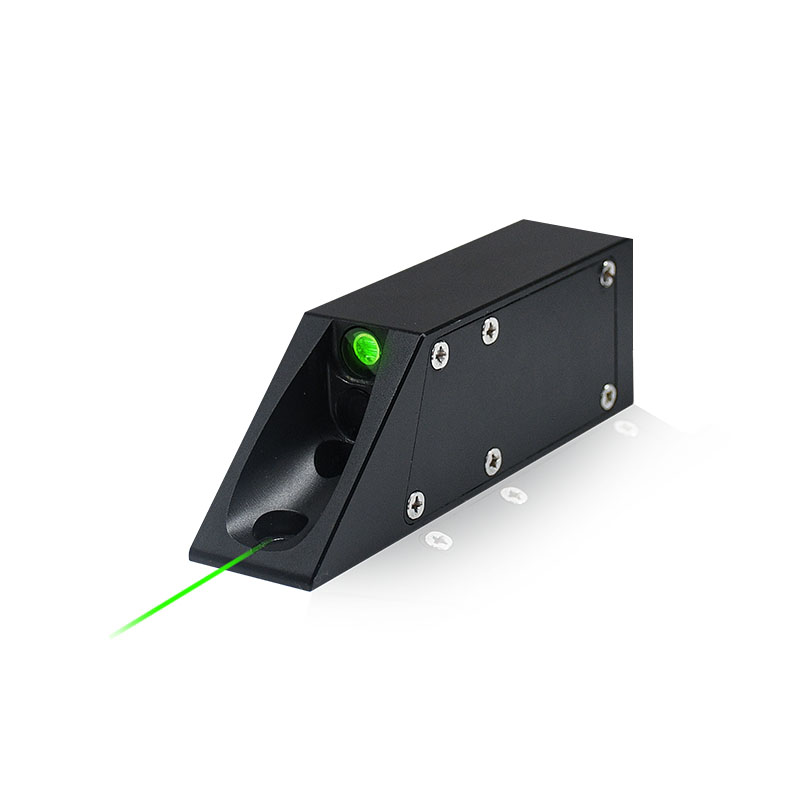

Wireless HD Car Waterproof Camera

1080P 2.4GHz wireless camera, automotive grade DSP, millions of HD pixels.

Stainless steel anti-collision machine shell, with built-in green one-character laser positioning line,  IP69K Waterproof Grade.

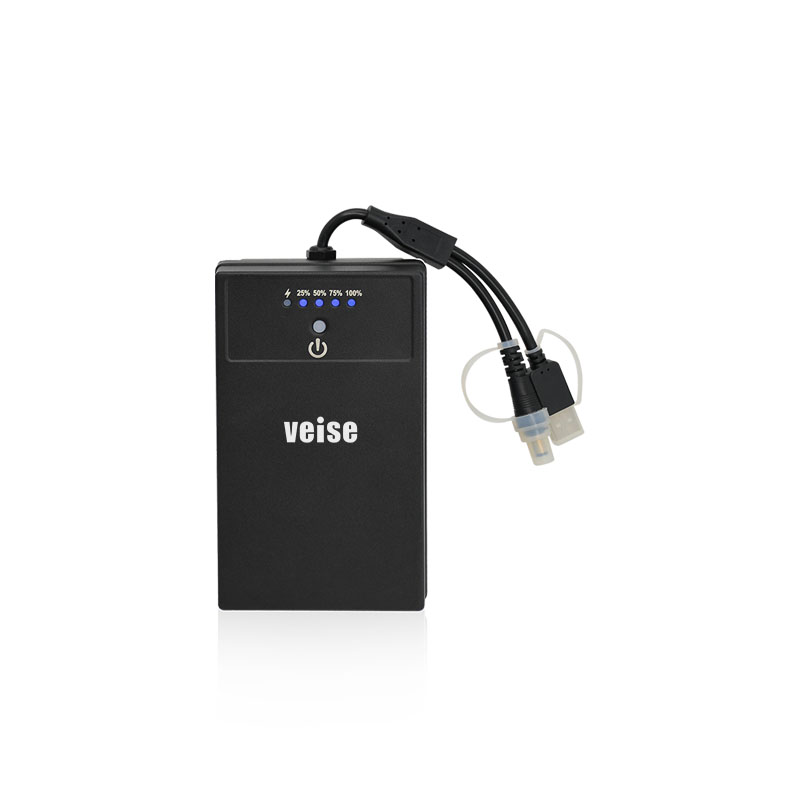

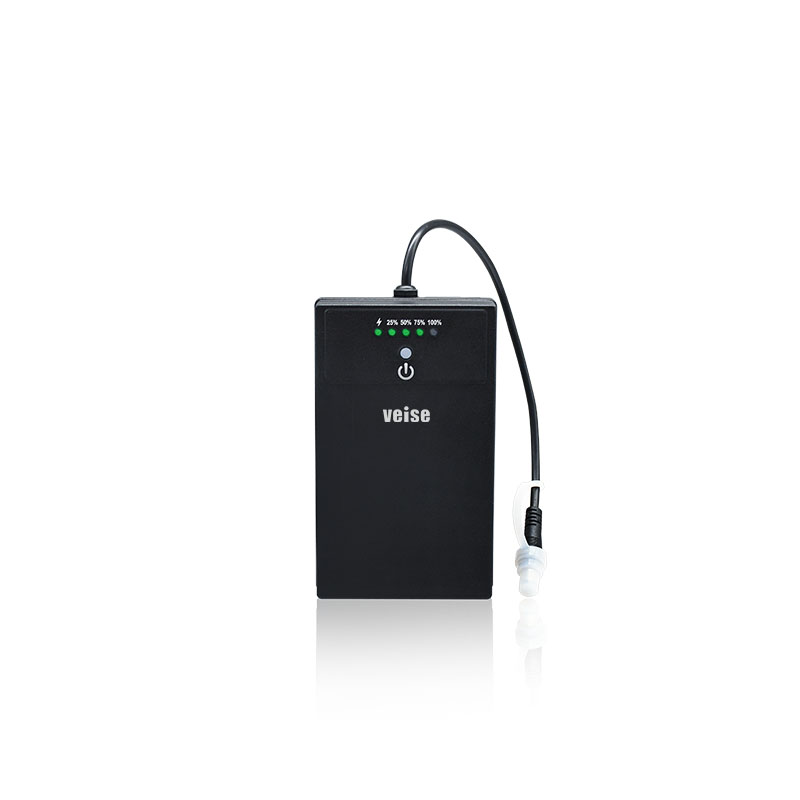

Mobile Rechardeble Power Supply

Rechargeable mobile power supply, with built-in short-circuit reverse-connection protection circuit and overcharge and over-discharge protection circuit design.

Constant current and constant voltage circuit design, to extend the service life.

Adopting magnetic suction installation design, which can be installed at any vehicle position.

IP67 Waterproof Grade.

Product Parameters

Wireless HDC Monitor (MWHD-774HD)

Screen 7-inch IPS screen
Wireless Reveivingbuilt-in 4 channels of 2.4G wireless reveiver
Picture Modesingle picture/double pictures/three pictures/four pictures
Operating Frequency 2400〜2483.5MHZ
Recording Function maximally support 256GB TF card
Recording FileAVI format
Receiving Sensitivity≤-86 dB
Receiving Distanceopen space≤100 meters
Multiple frequency point automatic frequency hopping channel code 80
Resolution1024(H) X 600(V)dot
Color SystemPAL/NTSC (AUTO)
Brightness(cd/m2)600
Load DumpISO16750-2 standard(24V systemUs=174V,Ri= 4Ω,td=350ms)
Anti-vibration Grade5G ( meets GB-T2423056-2006 standard)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating VoltageDC8-32V
Outer Dimension(L x W x T) (216 x 150 x 80mm)

HD Wireless Built-in Camera (CWHD-23A2M)

Imga Sensor 1/2.9 Color CMOS
Wireless Transmission built-in 2.4G digital wireless transmitter
Transmit Power18dBm
Transmit Distanceopen space≤100 meters
Resolution1080P
Effective Pixels1920(H) X1080(V)
Visible Angle52°
Shell Material304 stainless, anti-collision design
Laser Positioning Green slotted laser
Waterproof GradeIP69K
Operating Voltage DC12V
Operating Temperature -20℃ to +60℃
Storage Temperature -30℃ to +70℃
Anti-vibration Grade5G ( meets GB-T2423056-2006 standard )
Outer Dimension116(W) x 37(H) x 30(D) mm

Mobile Rechargeable Power Supply (MP-03B10W1)

Cell Typelithium-ion polymers
Cell Capacity111Wh /30000mAh
Rated Capacity7500mAh/(12V 0.5A)
USB Input (support fast charging)5V=15W,9V/12V =18W
DC Output12V(0.8A)-9.6W)Max
Waterproof GradeIP67
Charging Environment Temperature 0℃~+50℃
Discharge Operating Temperature-20℃~+55℃
Storage Temperature-40℃~+60℃
Outer Dimension148(W) x 88(H) x 46.5(D) mm

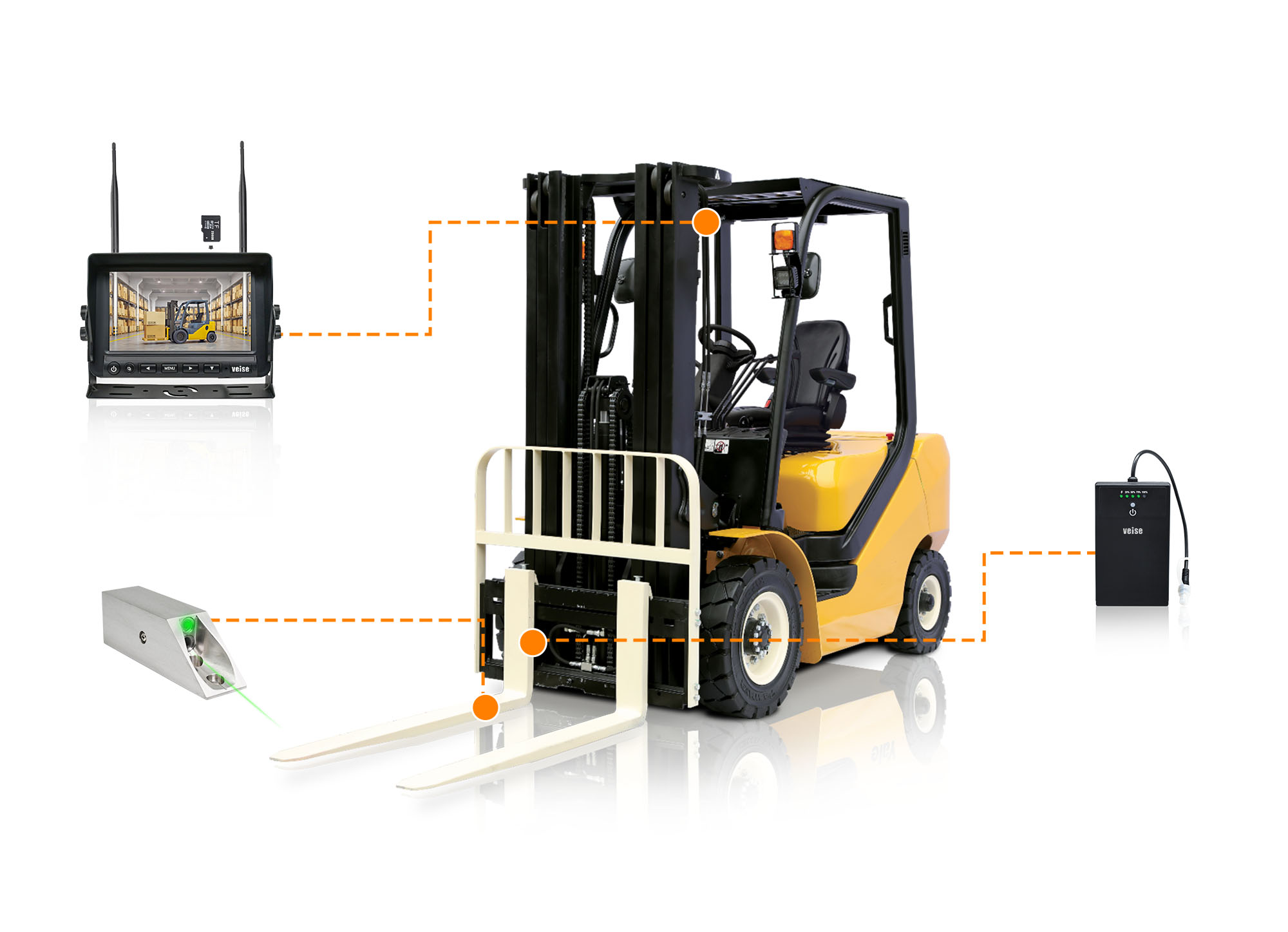

Product Applications
