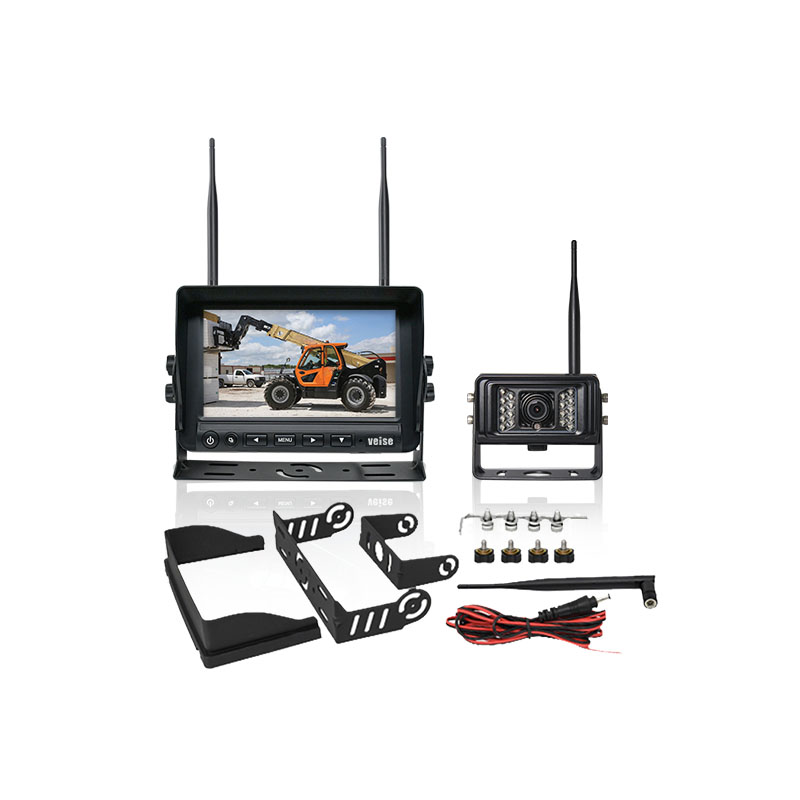

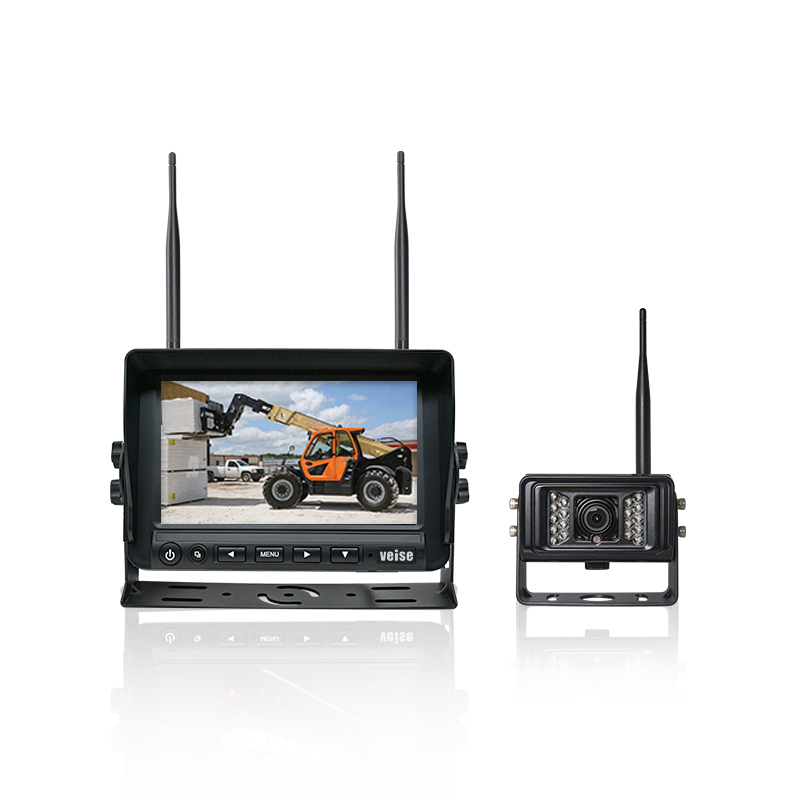

HD Wireless Rear View Camera System

  • Model : HDWS-774H152M1
  • Summarize : Wireless monitoring system uses radio waves to transmit video, audio, control, and other signals. It chooses to install a wireless video monitoring system quickly when it is impossible and inconvenient to construct wiring. The car wireless monitoring system is especially suitable for operating forklift trucks, cranes, building tower cranes, port container gantry cranes, and mobile monitoring requirements such as home and urban public security.
  • More Info : Online Service

Features

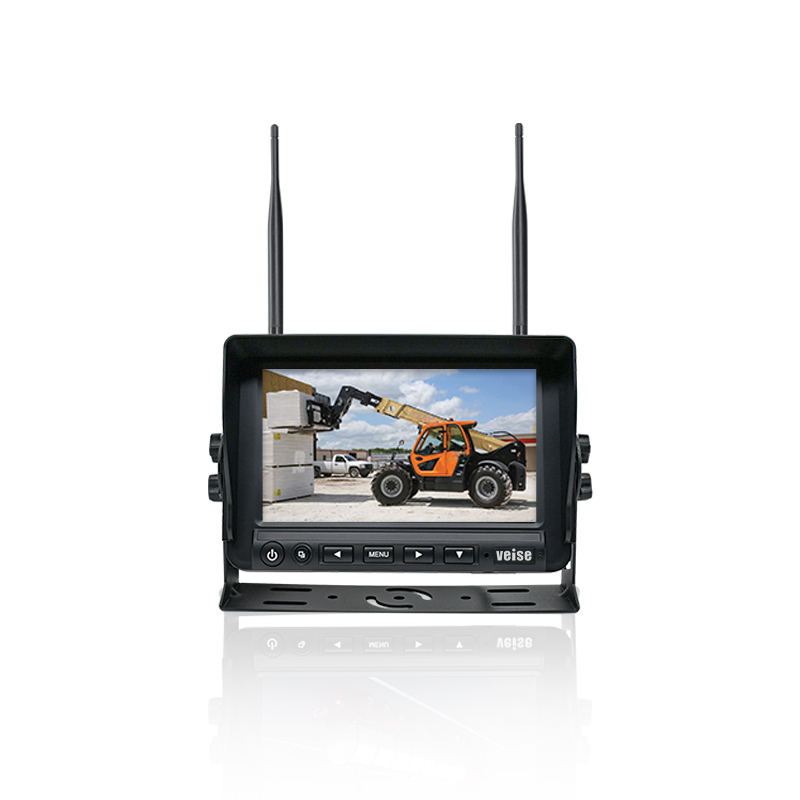

Wireless HD Camera Monitor

7-inch digital screen monitor built-in 2.4GHz wireless receiver, 1024x600 high Resolution and 600cd/㎡

Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 200 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

Front plastic and rear aluminum all-sealed pressure balanced patented waterproof structure design, Waterproof Rating IP68.

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening anti-vibration design.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period.

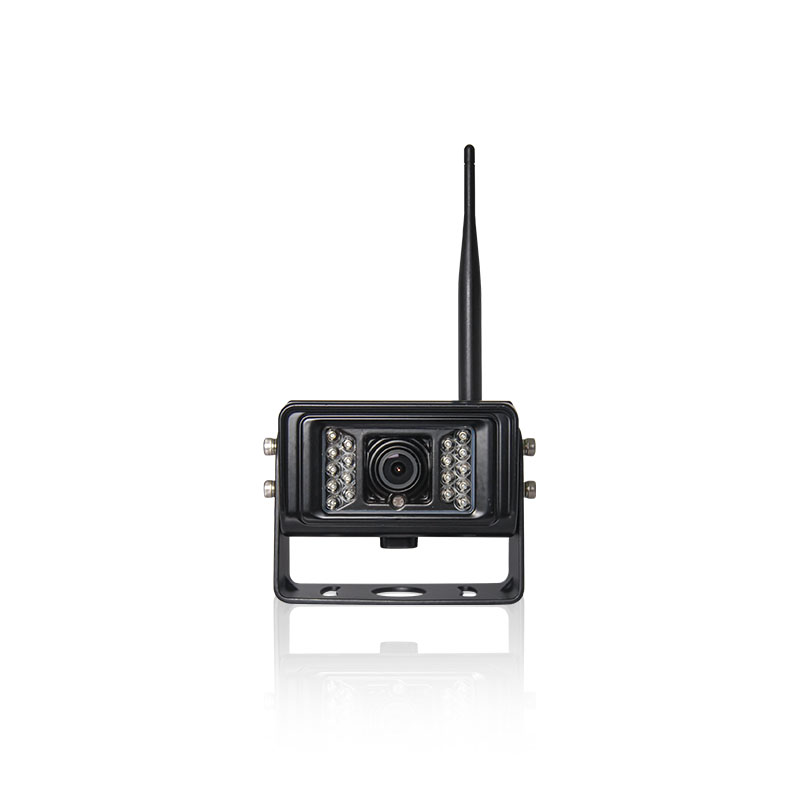

Wireless HD Rear View Camera

1080P 2.4GHz wireless camera, automotive-grade DSP,millions of high-definition pixels, IP69K Waterproof Rating, IR LED night vision function.

Parameter

Wireless HD Camera Monitor (MWHD-774H)

Display screen7-inch IPS screen
Wireless receivingbuilt-in 2.4G wireless receiver
Picture modesingle picture switching+2 segmentation
Operating frequency2400〜2483.5MHZ
Receiving sensitivity≤-86 dB
Receiving distanceopen space≤200 meters
Multiple frequency point automatic frequency hopping channel code80
Resolution1024(H) X 600(V)dot
Color systemPAL/NTSC (AUTO)
Brightness(cd/m2)600
Load dumpISO16750-2 standard(24V system Us=174V,Ri= 4Ω,td=350ms)
Anti-vibration RateGB∕T 2423.56-2018 standard(random5G vibration)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating voltageDC8-32V
Outer dimension(L x W x T) (218 x 150 x 54mm)

Wireless HD Rear View Camera(CWHD-152M)

Image Sensor1/3.7 Color DSP
Wireless transmissionbuilt-in 2.4G digital wireless transmitter
Transmit frequency18dBm
Transmit distanceopen space≤200 meters
Resolution1080P
Effective Pixels1920(H) X1080(V)
Visible angle130°
Infrared distance10 meters
Shell Materialaluminum alloy
Waterproof GradeIP69K
Operating voltageDC8-32V
Operating Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Anti-vibration GradeGB∕T 2423.56-2018 standard (random 5G vibration)
Outer dimension106(W) x 75(H) x 70.4(D) mm

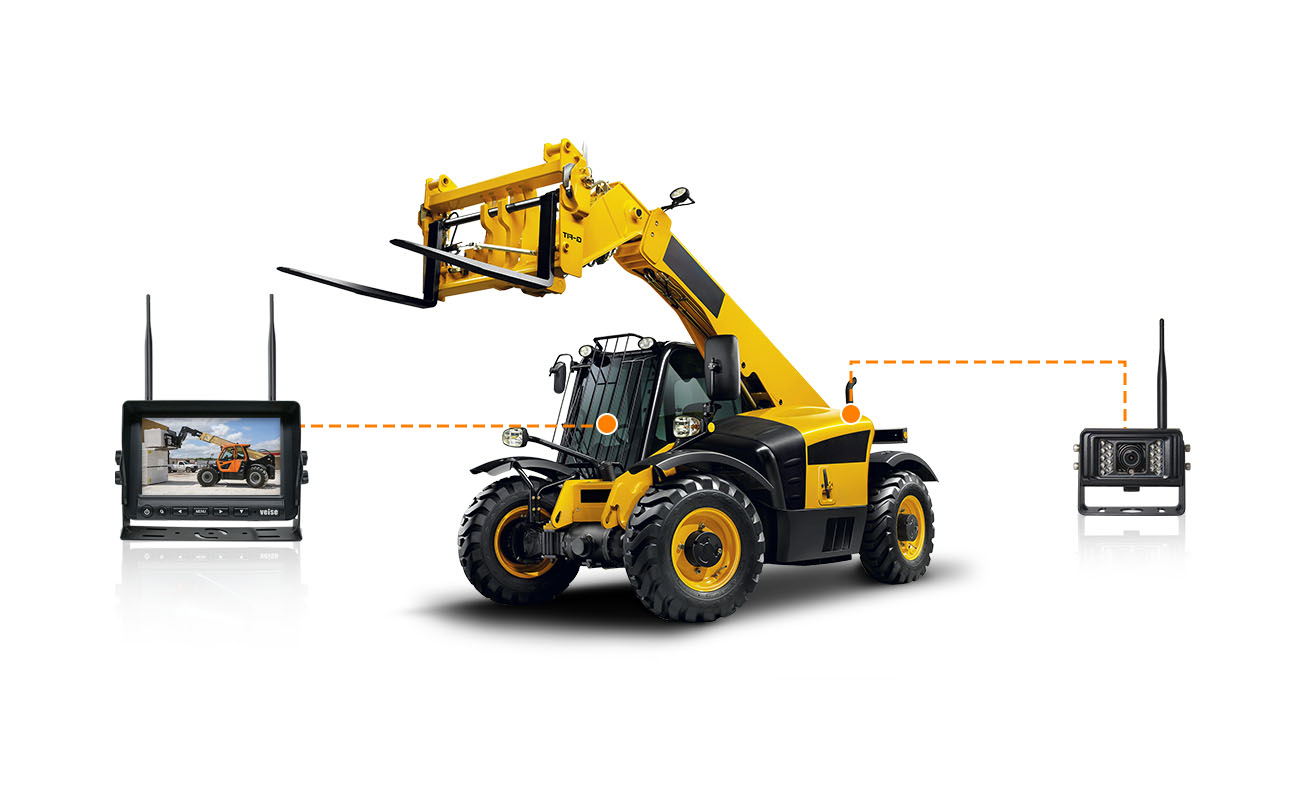

Applications

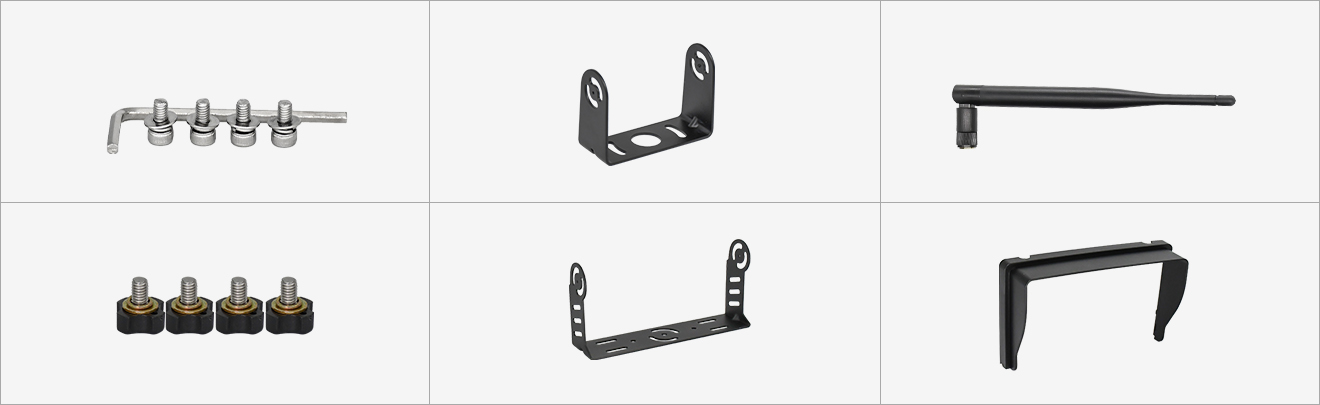

Accessories
