Product Features

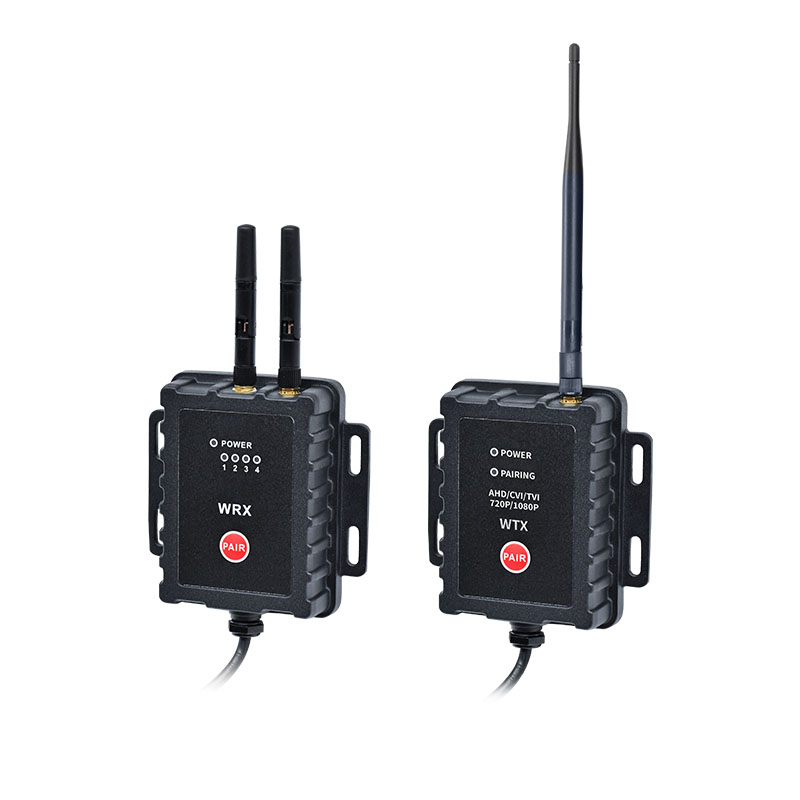

This is a 1080P wireless RX receiver that uses 2.4G wireless digital point-to-point transmission. It operates in the frequency range of 2400-2483.5MHz with a transmission power of 18dB, and can achieve a transmission distance of up to 200 meters in open areas. It must be used with a 1080P wireless camera, supporting inputs from 4 such cameras, and outputs AHD 720P signals, compatible with PAL (25FPS) and NTSC (30FPS) standards.
It works with a DC10-32V voltage supply and has a total power consumption of ≤3W. It can withstand operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +70℃. Additionally, it features an IP69K waterproof rating and 5G vibration resistance rating. Its dimensions are 106mm×105mm×27.5mm, it uses screw mounting, and weighs 700g.
Product Parameters

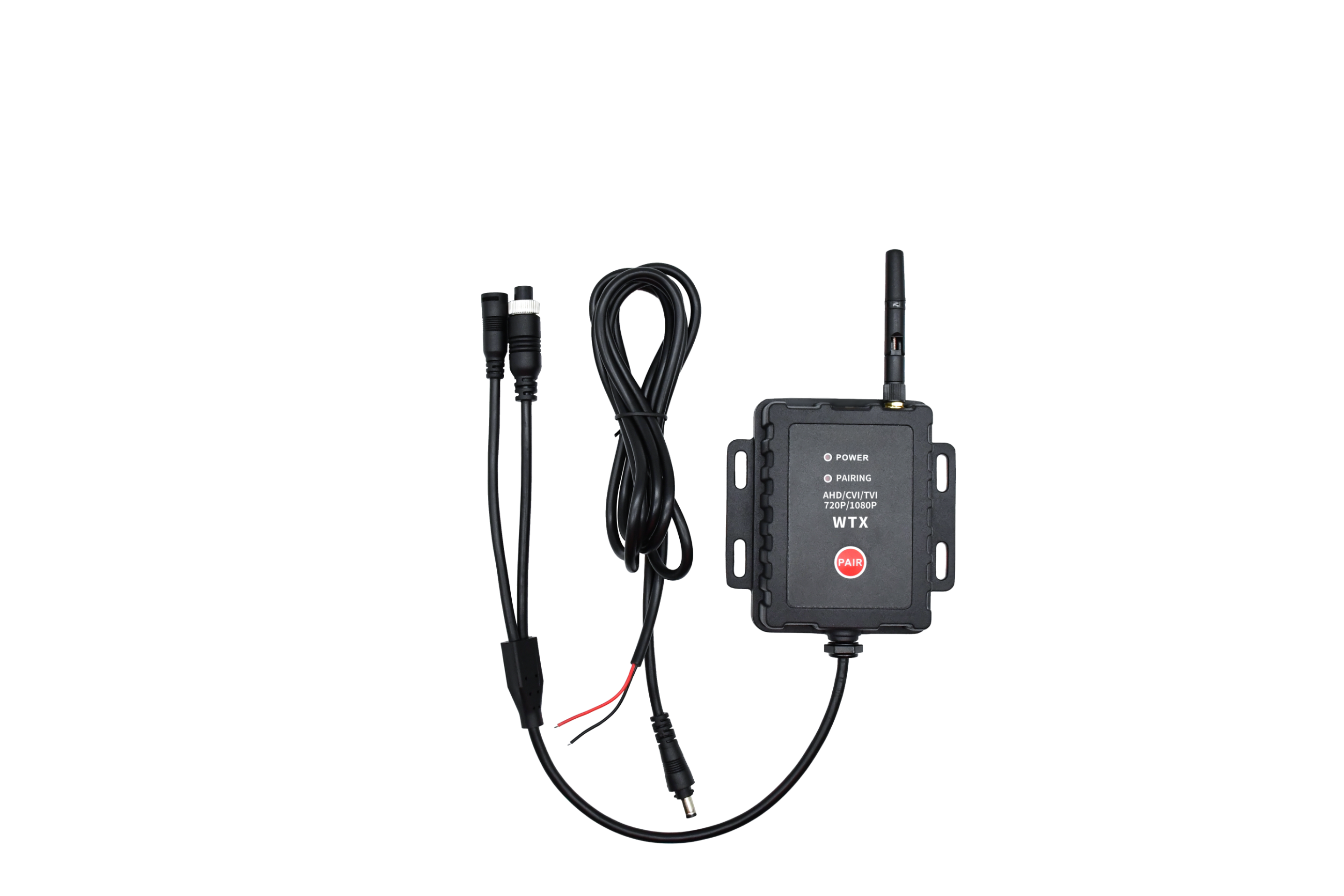

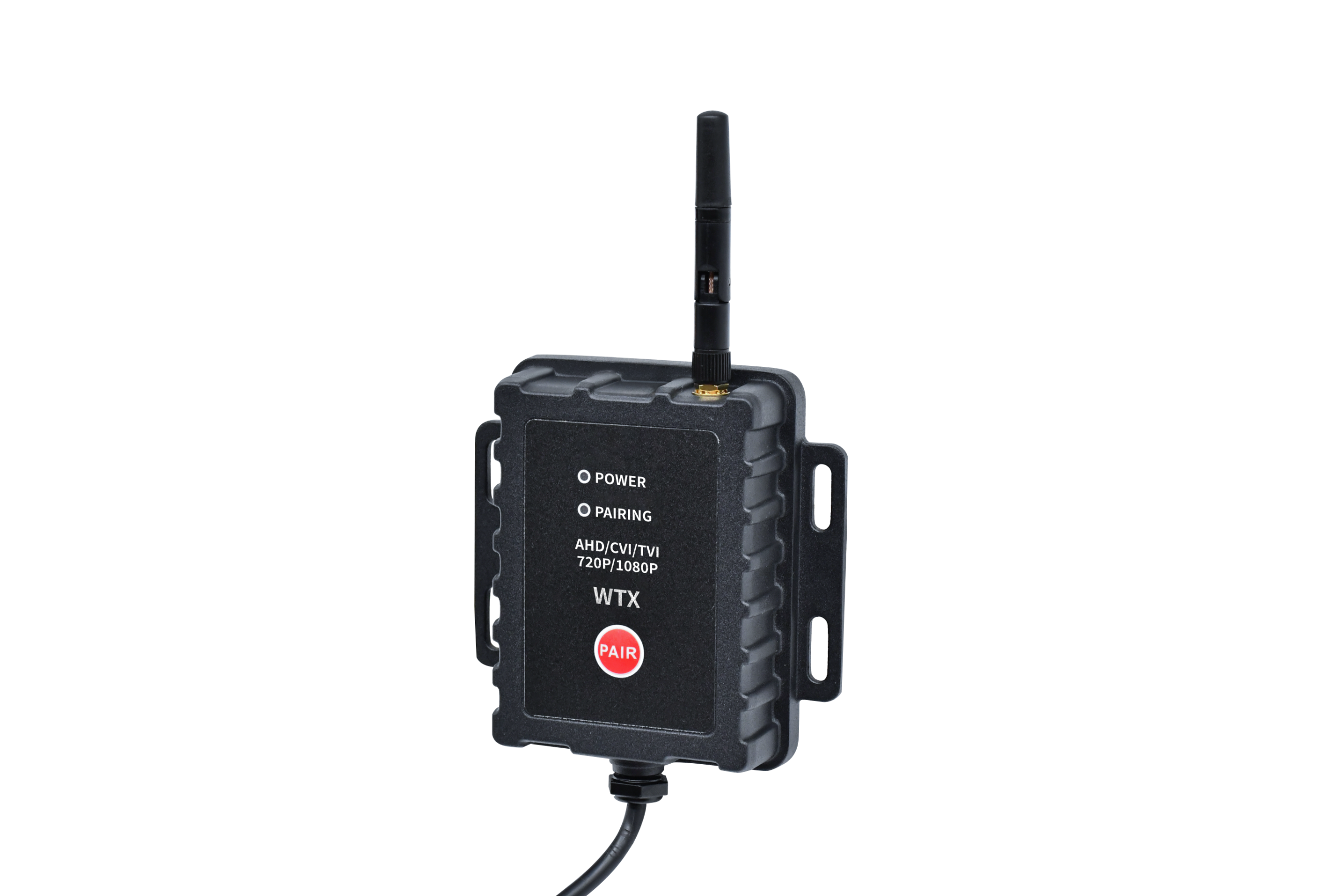

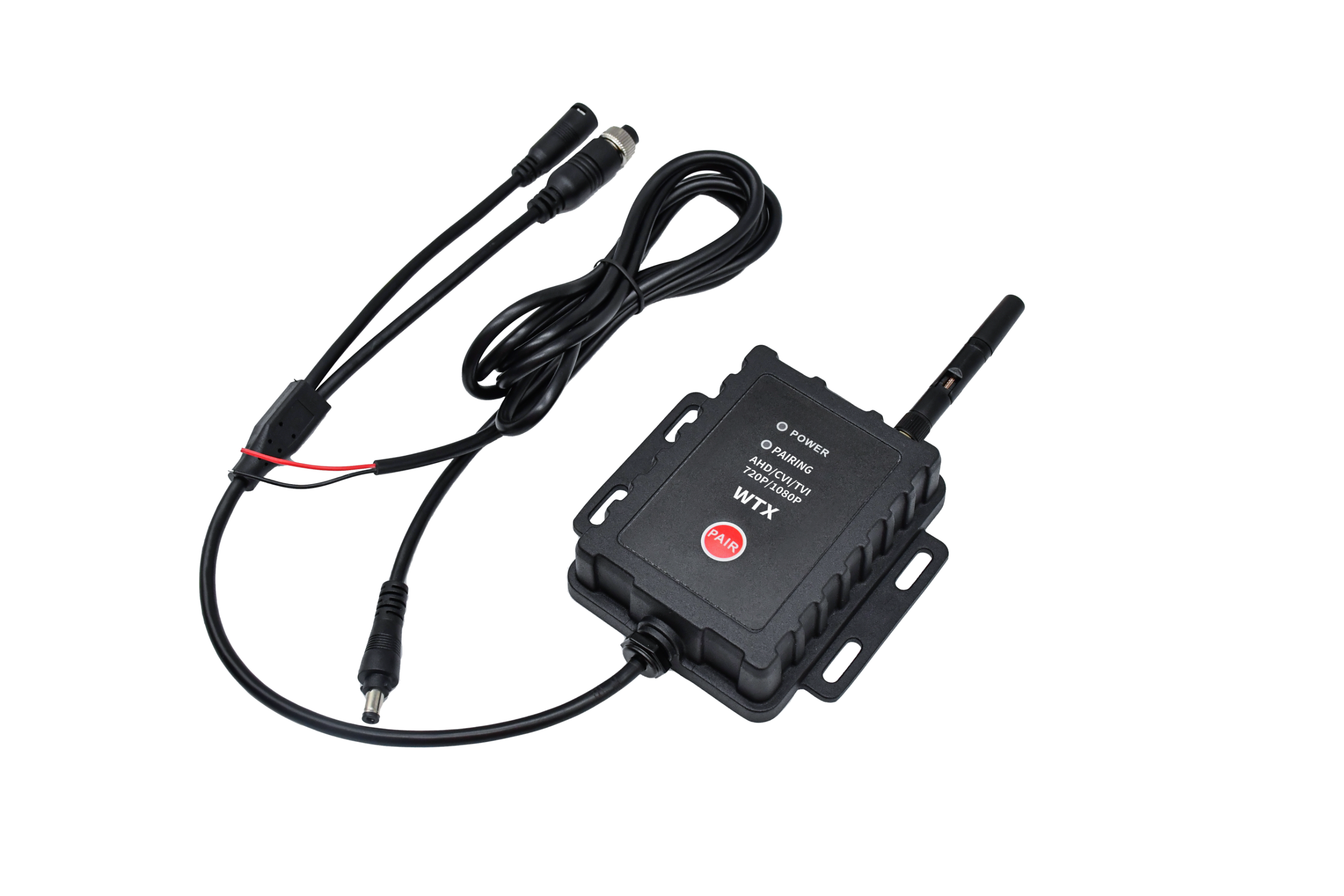

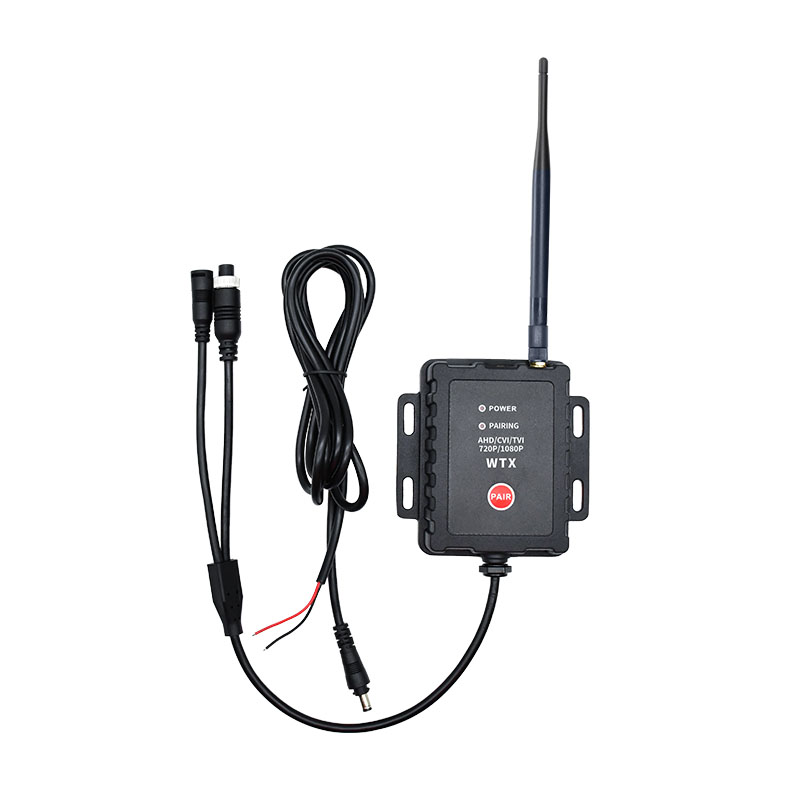

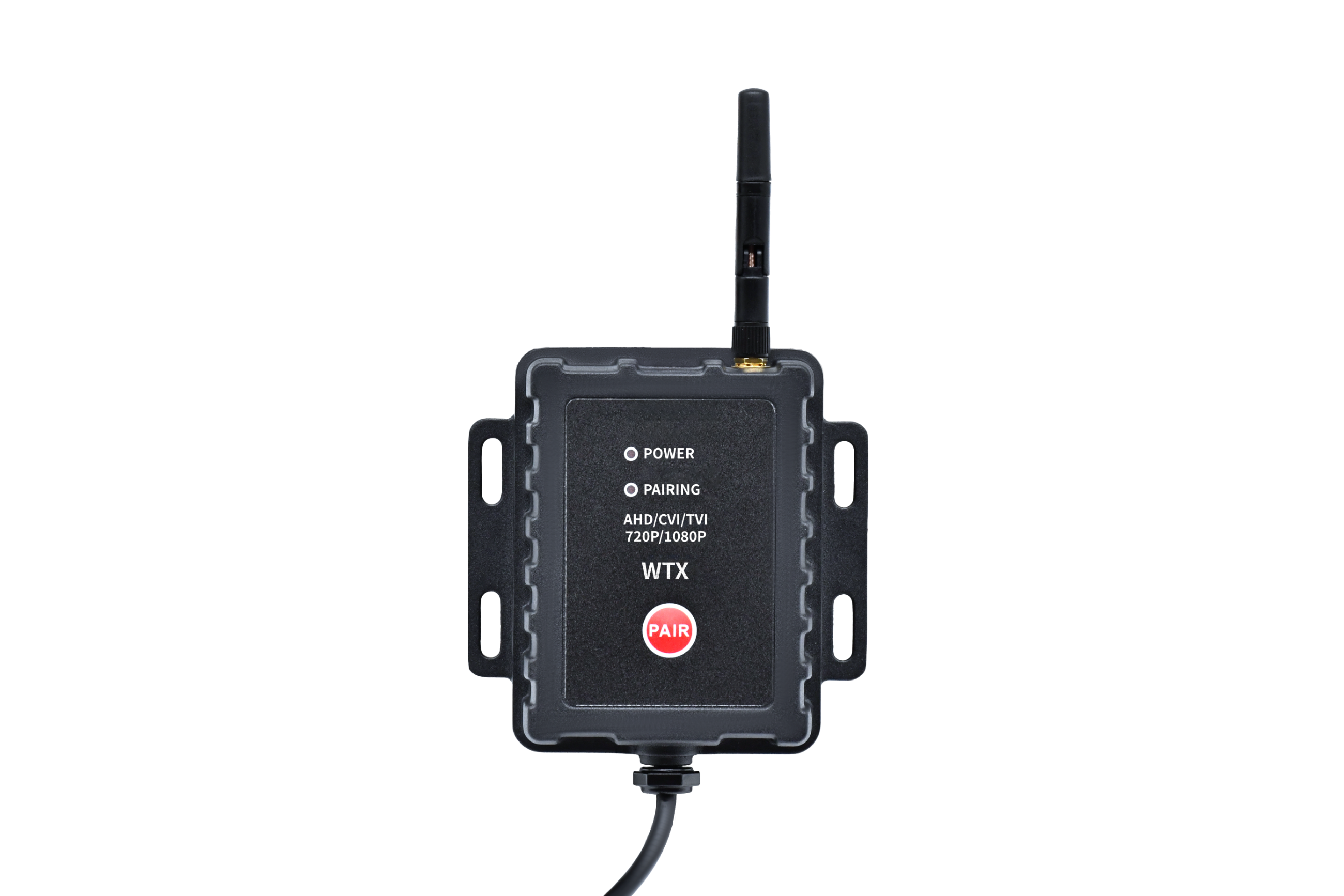

| 1080P Wireless TX Transmitter Specifications | Details |
|---|
| Wireless Connection Method | 2.4G wireless digital point-to-point reception |
| Operating Frequency | 2400-2483.5MHz |
| Transmission Power | 18dB |
| Transmission Distance | 200 meters in open area |
| AHD Signal Input | AHD/720P/1080P |
| System Standard | 25FPS PAL / 30FPS NTSC |
| Operating Voltage | DC10-32V |
| Operating Temperature | -20℃ - +70℃ |
| Storage Temperature | -30℃ - +70℃ |
| Total Power Consumption | ≤3W |
| Waterproof Rating | IP69K |
| Vibration Resistance Rating | 5G |
| Dimensions | 106mm×105mm×27.5mm |
| Installation Method | Screw mounting |
| Weight | 700G |

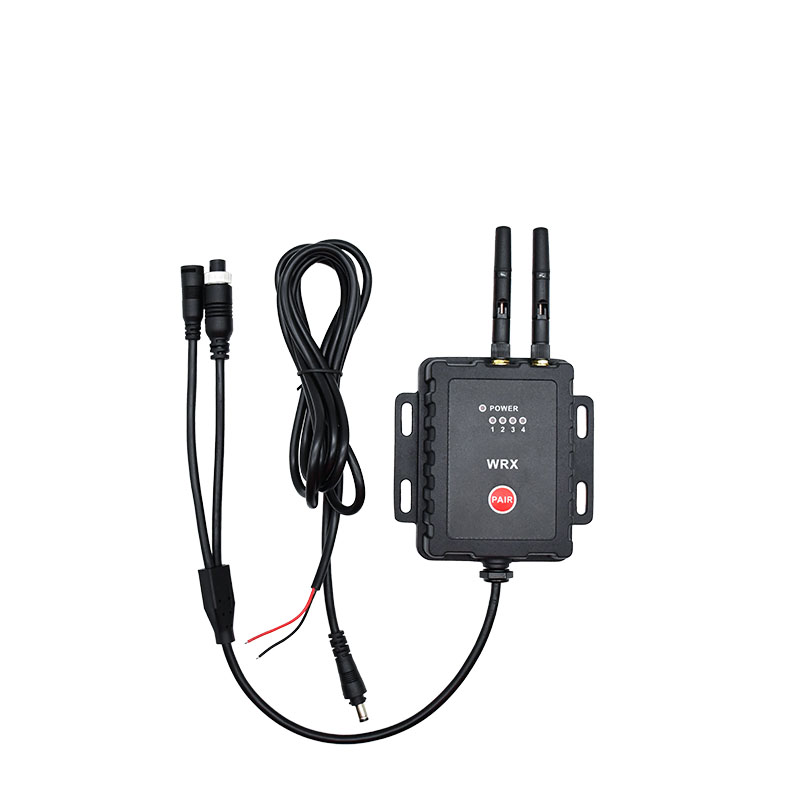

| 1080P Wireless RX Receiver Specifications | Details |
|---|
| Wireless Connection Method | 2.4G wireless digital point-to-point reception |
| Operating Frequency | 2400-2483.5MHz |
| Transmission Power | 18dB |
| Transmission Distance | 200 meters in open area |
| Compatible Device | Used with 1080P wireless camera |
| Signal Output | AHD signal output (720P) |
| System Standard | PAL 25FPS / NTSC 30FPS |
| Input Channels | Supports 4 channels of wireless camera input |
| Operating Voltage | DC10-32V |
| Operating Temperature | -20℃ - +70℃ |
| Storage Temperature | -30℃ - +70℃ |
| Total Power Consumption | ≤3W |
| Waterproof Rating | IP69K |
| Vibration Resistance Rating | 5G |
| Dimensions | 106mm×105mm×27.5mm |
| Installation Method | Screw mounting |
| Weight | 700G |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
