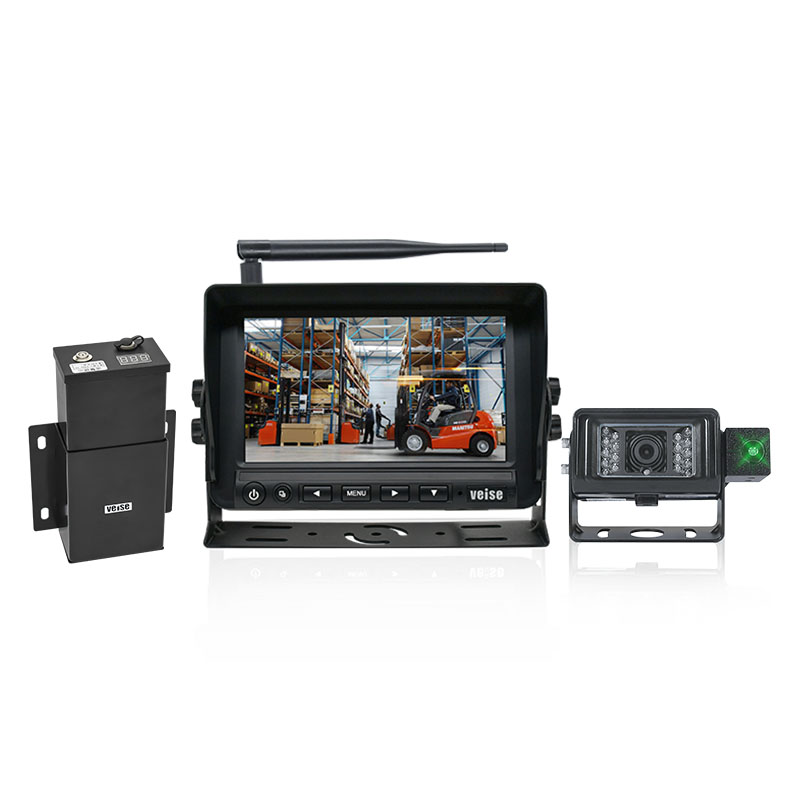

Forklift Wireless Reverse Camera System

  • Model : HDWS-774HDW152M1-1280A
  • Summarize : Forklift trucks block the driver's line of sight when forking objects, and there are blind spots in the front and back lines of sight, which pose a safety hazard to people and equipment in the area, and it is difficult to pile up goods with high positioning accuracy. The wireless camera monitoring system of forklift trucks is helpful for the operator to observe the front and rear of the vehicle in real-time through the display image, reducing the blind area of sight and improving the efficiency of stacking goods. 8000mAH mobile power supply has a long working time.
  • More Info : Online Service

Product Features

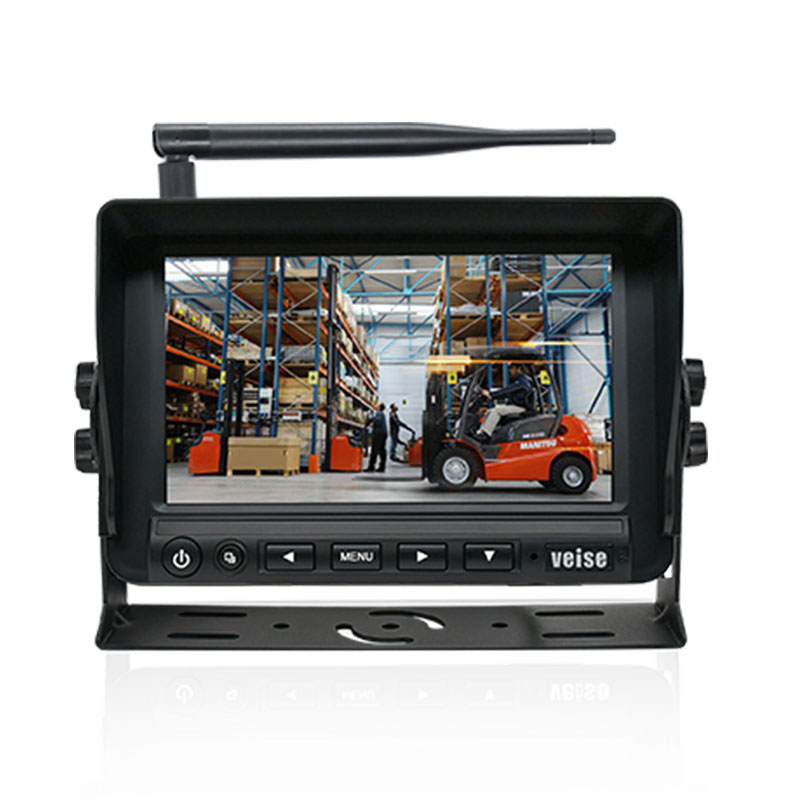

Wireless HD Camera Monitor

7-inch digital screen monitor built-in 2.4GHz wireless receiver ,1024x600 high definition and 600cd/㎡ high brightness screen.

Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 200 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening anti-vibration design.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period.

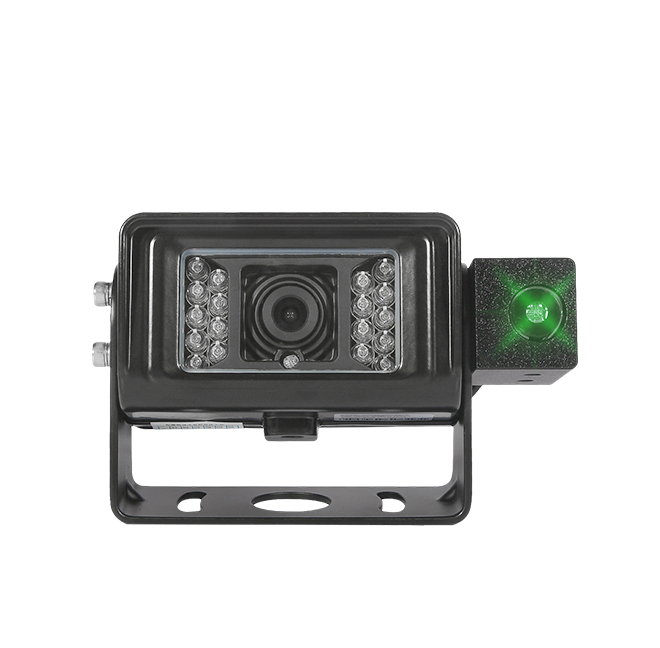

Wireless HD Waterproof Backup Camera

1080P 2.4GHz wireless camera, automotive-grade DSP, millions-of HD pixels.

built-in cross laser positioning line, Waterproof Grade IP69K.

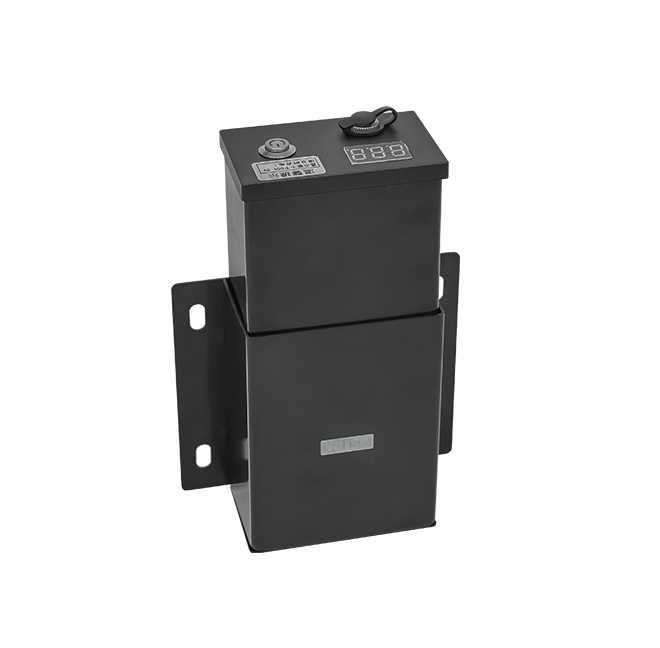

Mobile Rechargeable Power Supply

All-aluminum alloy rechargeable waterproof mobile power supply, 8000mAH lithium polymer battery core, built-in short circuit protection, overcharge and overdischarge protection circuit design, constant current and constant voltage circuit design, Waterproof Grade IP67, extending service life.

Product Parameters

Wireless HD Camera Monitor (MWHD-774H)

Screen  7-inch IPS screen
Wireless receptionBuilt-in 2.4G wireless receiver
Picture modeSingle picture/double picture
Operating Frequency 2400〜2483.5MHZ
Receiving Frequency≤-86 dB
Receiving DistanceUp to 200m Clear Line of Sight
Code selection of multi-frequency point automatic frequency hopping channel80
Resolution1024(H) X 600(V)dot
Color SystemPAL/NTSC (AUTO)
Brightenss(cd/m2)600
Load DumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Ani-vibration GradeGB∕T 2423.56-2018 standard (random5G vibraion)
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Operating Voltage DC8-32V
Outer Dimension(L x W x T) (216 x 150 x 80mm)

Wireless HD Waterproof Camera(CWHD-DW152M)

Image Sensor 1/3.7 Color CMOS
Wireless Transmissionbuilt-in 2.4G digital wireless transmitter
Transmit Power18dBm
Transmit Distance Up to 200m Clear Line of Sight
Resolution 1080P
Effective Pixels1920(H) X 1080(V)
Visible Angle 130°
Laser Positioning Cross-green laser line
Shell Material aluminium alloy
Waterproof Grade IP69K
Operating Voltage DC8-32V
Operating Temperature -20℃ to +60℃
Storage Temperature -30℃ to +70℃
Anti-vibration GradeGB∕T 2423.56-2018 standard(random 5G vibration)
Shell Dimension106(W) x 75(H) x 70.4(D) mm
Mobile Rechargeable Power Supply (DF-DC-1280A)
Cell Type Polymer
Product Capacity 8000maH(11.1V) 88.8Wh
USB input (support fast charging )12.6V(3A)
DC Output 12V(2A) (about 30 hours with camera)
Waterproof GradeIP65
Charging Circular Temperature 0°~+40°
Discharge Operating Temperature -20°~+60°
Size 136.5(W) x 120(H) x 49(D) mm

Product Applications
