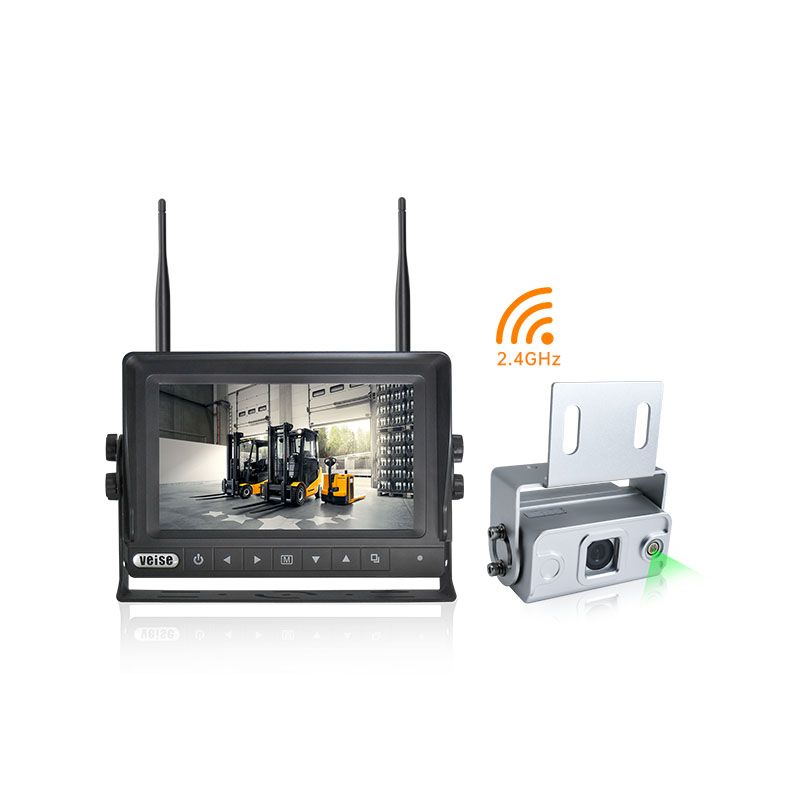

2.4G wireless dual-antenna transmission: Adopting advanced point-to-point transmission technology, with long transmission distance and strong anti-interference ability;
Transmission distance: 200 meters (in open areas without obstacles and on flat ground);
Image delay: Millisecond-level delay, which is 130ms (under good signal conditions);

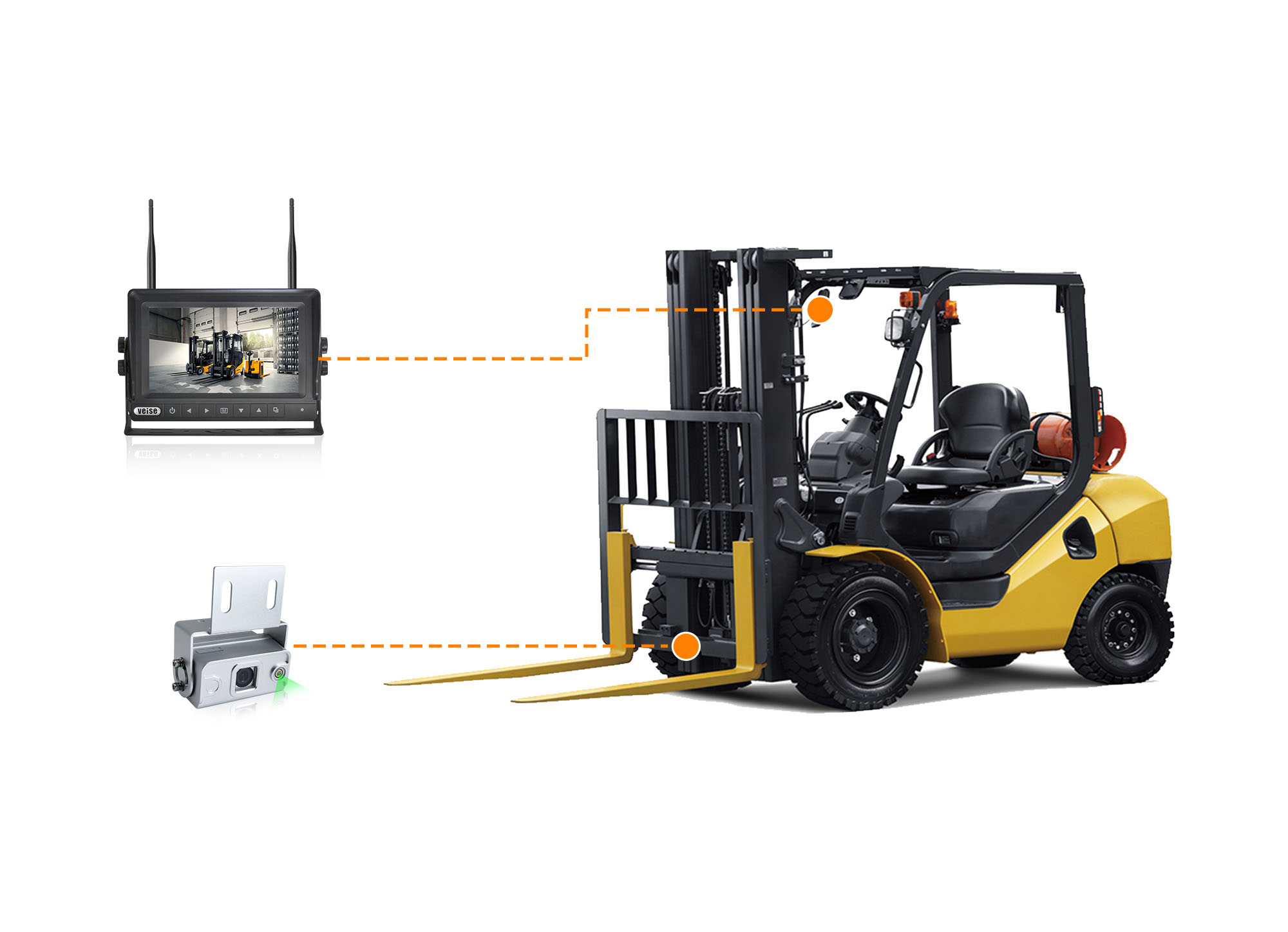

Installation features: Wireless camera, wire-free, easy to install;
Overall performance: Excellent performance, clear image quality and good color reproduction.
| Category | Parameter |
|---|---|

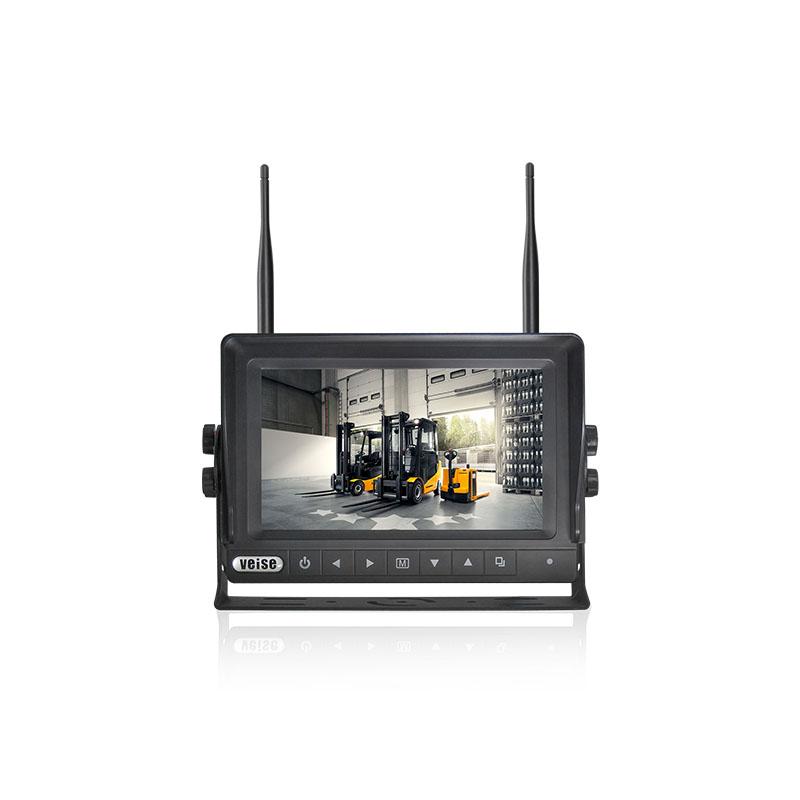

| Display Type | Color HD Monitor |
| Screen Size | 7-inch IPS Screen |
| Operating Frequency Range | 2400 ~ 2483.5 MHz |
| Receiver Sensitivity | ≤ -86 dBm (1 MHz QPSK MD 300 RE) |
| Resolution | 1024 (H) × 600 (V) |
| Viewing Angle | Left/Right: 85°/85°, Up/Down: 85°/85° |
| Contrast Ratio | 800:1 |
| Brightness | 600 cd/m² |
| Response Time | 25 ms |
| Load Dump | DC 12+87V / 400ms |
| Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Input Power | DC 8V ~ 32V (Max 5W) |
| Dimensions (with bracket) | 207 mm × 149.5 mm × 85 mm |

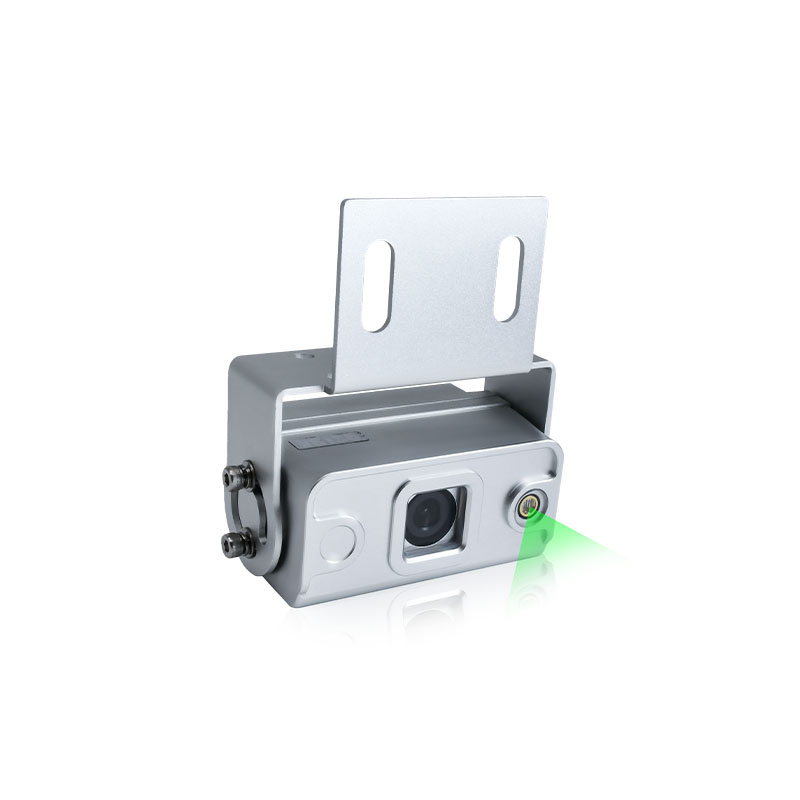

| Camera Type | 1080P Digital Wireless Forklift Camera |
| Transmit Power | 18 dBm |
| Image Sensor | 1/2.9" Color CMOS |
| Camera Resolution | 1920 (H) × 1080 (V) |
| Video Format | 1080P |
| Minimum Illumination | 0.1 LUX (650 type) |
| Horizontal Angle | 80° |
| Laser Positioning | Green Line Laser (520 nm) |
| Material & Protection Rating | Aluminum Alloy, IP69K |
| Vibration Resistance | 5G (Compliant with GB/T 2423.56-2023) |
| Power Supply Voltage | DC 12V - 24V |
| Camera Dimensions | 88.5 mm × 52.5 mm × 108 mm (excluding cable) |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
