2.4G wireless dual-antenna transmission: Adopting advanced point-to-point transmission technology, with long transmission distance and strong anti-interference ability;
Transmission distance: 150 meters (in open areas without obstacles and on flat ground);
Image delay: Millisecond-level delay, which is 130ms (under good signal conditions);
Installation features: Wireless camera, wire-free, easy to install;
Overall performance: Excellent performance, clear image quality and good color reproduction.

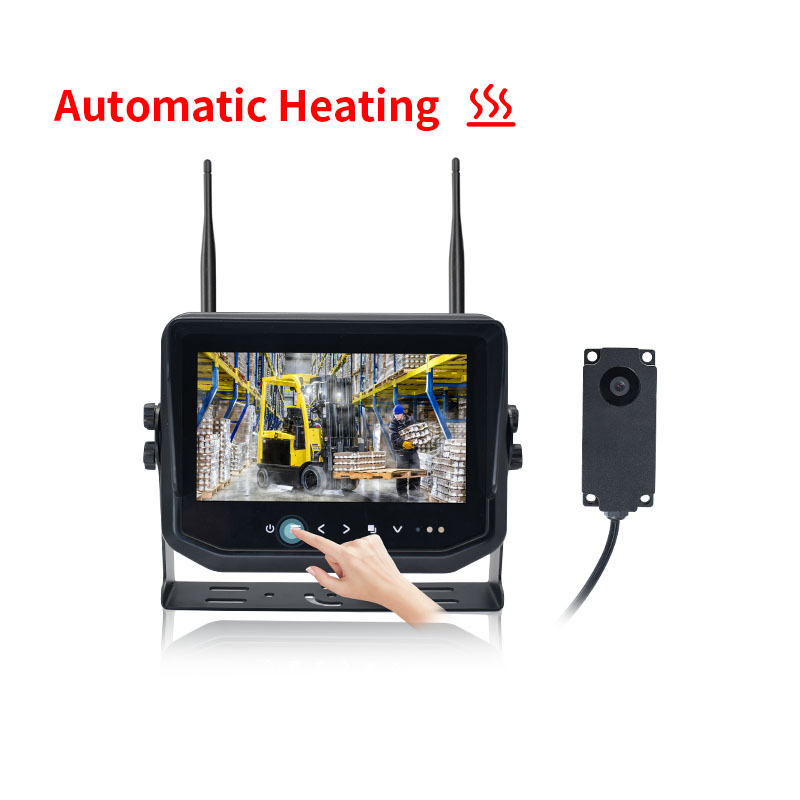

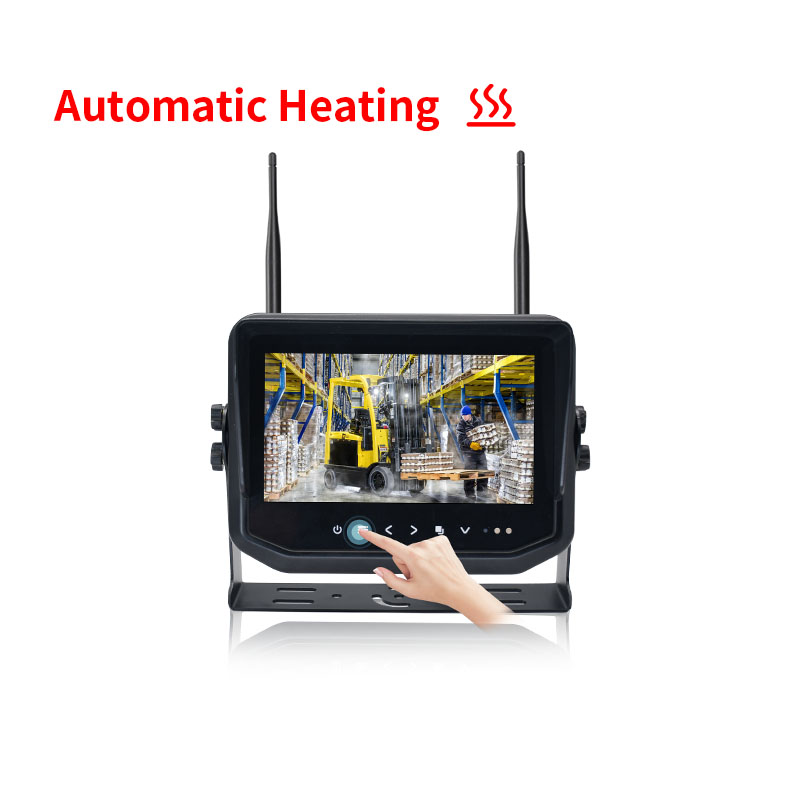

| Model | MWHD-7184HRD |
| LCD Screen | ETFT070IPS50P1024X600 |
| Color System | PAL / NTSC |
| Display Resolution | 1024RGB(H) × 600(V) |
| Viewable Area | 153.2(H) × 86.9(V) mm |
| Brightness | 400 cd/m² |
| Contrast Ratio | 700:1 |
| Viewing Angle | L/R: 85°/85°, U/D: 85°/85° |
| LED Current | 8.7V / 220mA |
| Power Consumption | 5W |
| Operating Voltage | DC 8V ~ 32V |
| Operating Temperature | -30℃ ~ +70℃ (with heating) |
| Storage Temperature | -30℃ ~ +80℃ |
| Receiver Sensitivity | ≤ -89 dBm |
| Operating Frequency | 2400 ~ 2483.5 MHz |
| Load Dump | DC 12V + 174V, Td = 350ms |
| Recording Memory Card | Supports up to 256GB (optional) |
| Open Transmission Range | 200 meters |
| Protection Rating | IP68 |

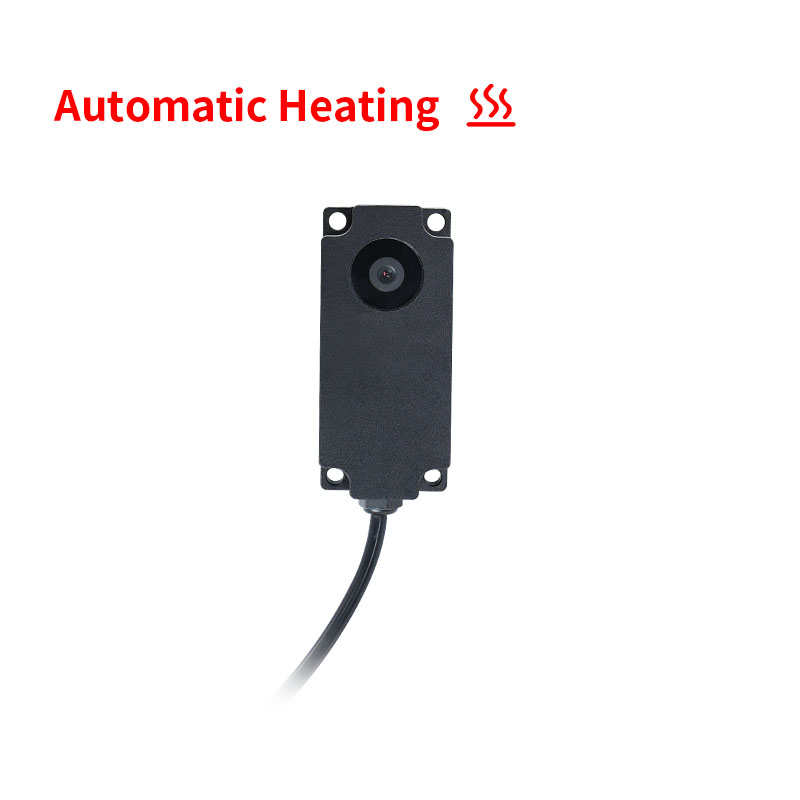

| Model | CWHD-23E2MR |
| Camera Type | 1080P Digital Wireless Forklift Camera |
| Transmit Power | 18 dBm |
| Image Sensor | 1/2.9" Color CMOS |
| Resolution | 1920(H) × 1080(V) |
| Video Quality | 1080P |
| Heating Function | With heating, activates when internal temperature ≤5℃ |
| Minimum Illumination | 0.1 LUX |
| Viewing Angle | 72° (3.8mm lens / 650 type) |
| Interface Type | DC female connector |
| Housing Material & Rating | Aluminum alloy, IP69K |
| Shock Resistance | 5G |
| Input Power Supply | DC 12V - 24V |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Dimensions (L × W × T) | 93 mm × 39 mm × 22 mm (excluding cable) |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
