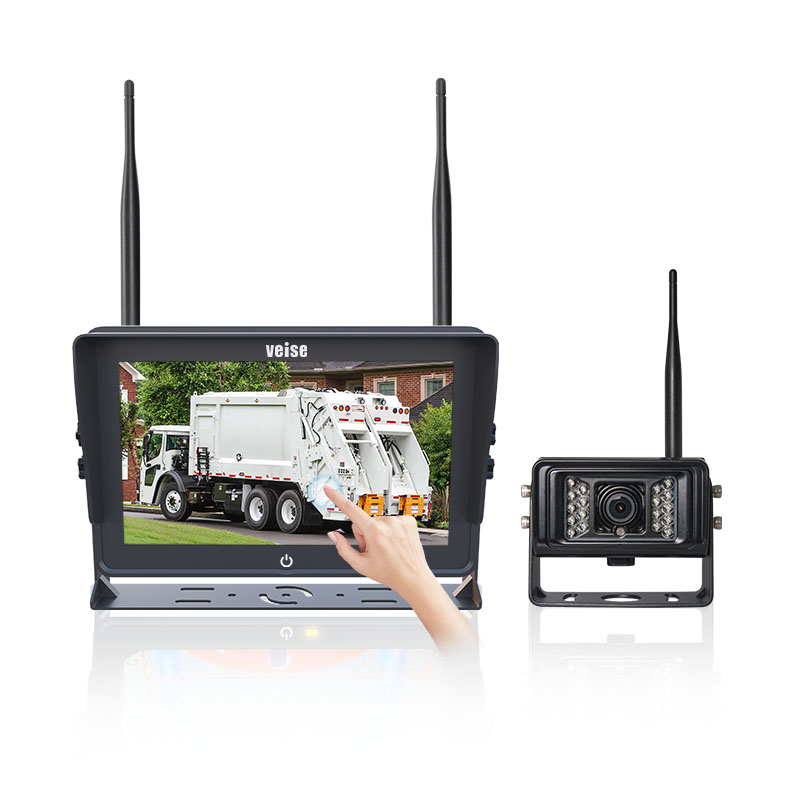

10.1-inch touch screen wireless backup camera system

  • Model : HDWS-1034H152M1
  • Summarize : The wireless vehicle backup camera system consists of a 10.1-inch touchscreen vehicle monitor and a wireless HD waterproof camera for various vehicles and mechanical equipment. The monitor is equipped with high-definition picture quality, sensitive touch operation, wide voltage adaptation (DC 11V-32V) and multiple display modes (dual-screen, triple-screen, quad-screen, etc.), and it also supports up to 512GB TF card storage and automatic video overlay function. The system also features anti-vibration design, reverse auxiliary line, mirror image adjustment, etc. to ensure stable operation. The wireless camera supports 1080P HD resolution with IP69K waterproofing and IR LED night vision, capable of providing clear images in various harsh environments. The overall system design focuses on safety, ease of use and reliability, adapting to long-time high-load use and meeting the safety monitoring needs of vehicle owners and operators.
  • More Info : Online Service

Product Features

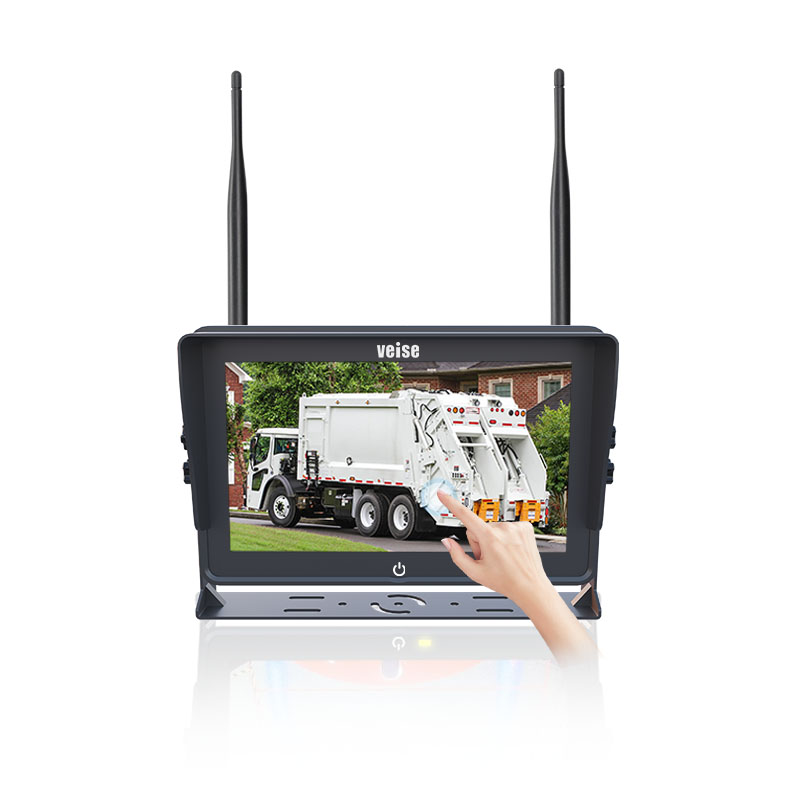

10.1-inch Touchscreen Monitor

  • Screen: 10.1-inch LCD screen with a resolution of 1024x600, providing clear and sharp visuals.

  • Housing: Made from aluminum alloy, ensuring structural stability and effective heat dissipation.

  • Operation: Supports touchscreen functionality, offering quick and responsive operation.

  • Storage: External TF card storage for video recording, supporting up to 512GB. Recording files are automatically overwritten.

  • Voltage Compatibility: Wide voltage input range of DC 11V-32V, suitable for various vehicles and machinery.

  • Safety Design: Features an internal reverse polarity protection circuit to prevent equipment damage from incorrect connections.

  • Backlight Design: Built-in constant voltage and current protection circuit to extend the lifespan of the display.

  • Multilingual Support: OSD (On-Screen Display) menu available in 10 languages.

  • Multi-view Display: Supports dual, triple, and quadruple screen displays, as well as Picture-in-Picture mode.

  • Picture Adjustment: Each channel can be independently adjusted for horizontal mirroring, supporting upside-down installation and 180° screen rotation.

  • Parking Assistance: Supports parking guide lines for individual channels, with a switchable auxiliary line feature.

  • Vibration Resistance: Compact design meets GB/T 2423.56-2018 standards for vibration resistance.

Wireless HD Waterproof Camera

  • 1080P 2.4GHz Wireless Camera: Equipped with car-grade DSP, high-definition megapixels, IP69K waterproof rating, and IR LED night vision capabilities.

Product Parameters

ModelMWHD-1034HTP
Screen10.1-inch IPS high-definition digital screen
Wireless ReceiverBuilt-in 2.4G wireless receiver
Operating Frequency2400 ~ 2483.5 MHz
Receiving Sensitivity≤ -86 dB
Receiving DistanceUp to 200m Clear Line of Sight
Resolution1024 × (RGB) × 600
Viewing Angle (LR/UD)L/R: 85/85, U/D: 85/85
Contrast Ratio800:1
LED Backlight Brightness600 cd/㎡
Response Time25 ms
Video SystemPAL/NTSC (AUTO)
Video Recording FormatAVI
Recording Storage Card TypeTF card (max. support 512GB)
Recording Resolution1080P/720P/480P
Video Signal InputSupports 1080P/720P/CVBS signal
Load DumpISO 16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)
Vibration Resistance LevelGB/T 2423.56-2018 standard (random 5G vibration)
Operating Temperature-20°C to +70°C
Storage Temperature-30°C to +80°C
Input PowerDC 11-32V
Dimensions (LxWxT)265 x 168 x 37 mm (without mount)
ModelCWHD-152M
Image Sensor1/3.7 Color CMOS
Wireless TransmissionBuilt-in 2.4G digital wireless transmitter
Transmission Power18 dBm
Transmission DistanceUp to 200m Clear Line of Sight
Resolution1080P
Effective Pixels1920 (H) x 1080 (V)
Viewing Angle130°
Infrared Distance15 meters
Housing MaterialAluminum alloy
Waterproof RatingIP69K
Operating VoltageDC 8-32V
Operating Temperature-20°C to +60°C
Storage Temperature-30°C to +70°C
Vibration Resistance LevelGB/T 2423.56-2018 standard (random 5G vibration)
Dimensions (W x H x D)106 x 75 x 70.4 mm

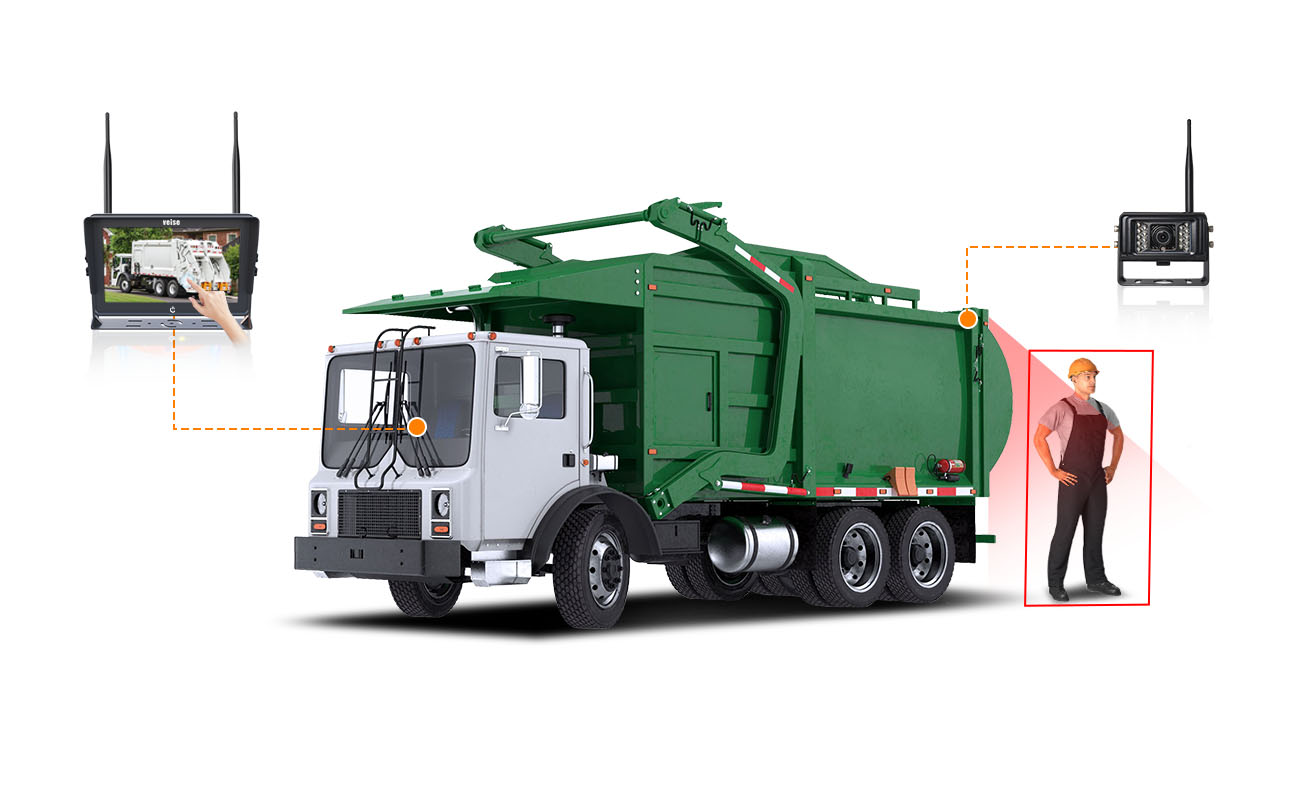

Product Applications
