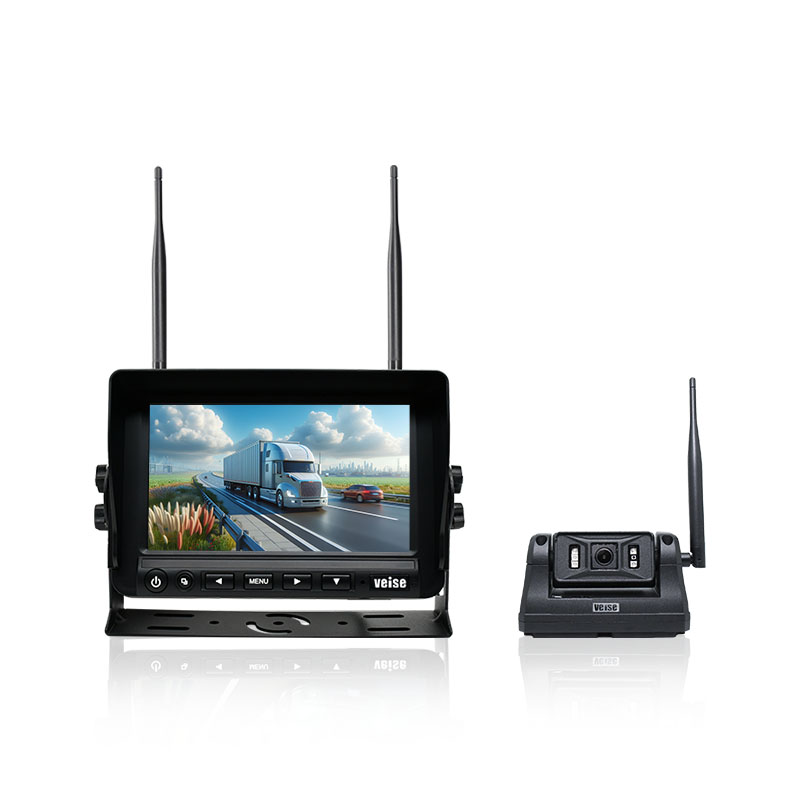

Wireless Magnetic Camera System

  • Model : HDWS-774H362M1

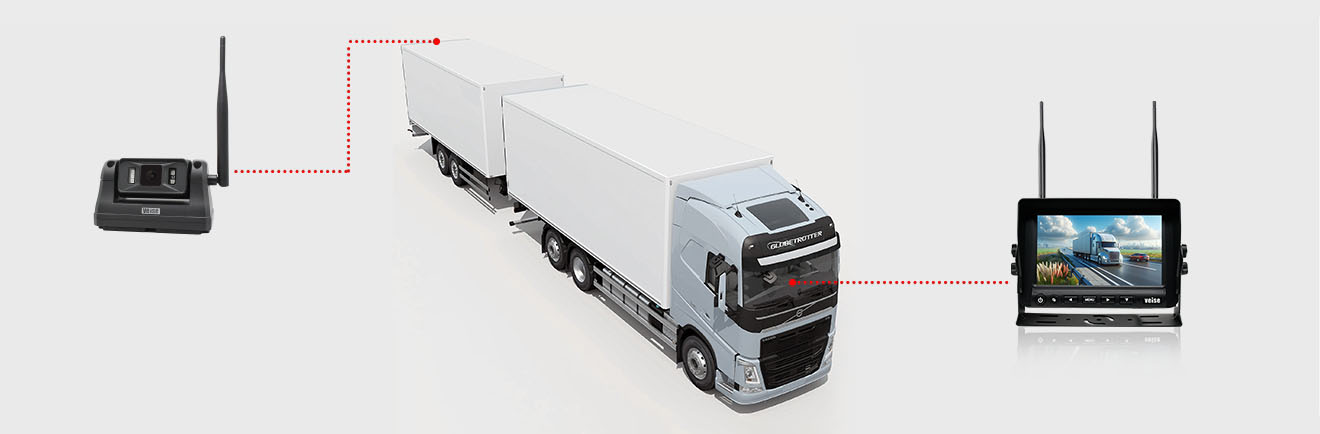

  • Summarize : Wireless monitoring system uses radio waves to transmit video, audio, control and other signals, and chooses to install wireless video monitoring system quickly when it is impossible and inconvenient to construct wiring. Car wireless monitoring system is especially suitable for operating forklift trucks, cranes, building tower cranes, port container gantry cranes and mobile monitoring requirements such as home and urban public security. Magnets absorb the built-in power supply of car cameras, which can quickly move and install machinery, equipment, vehicles and activity places.
  • More Info : Online Service

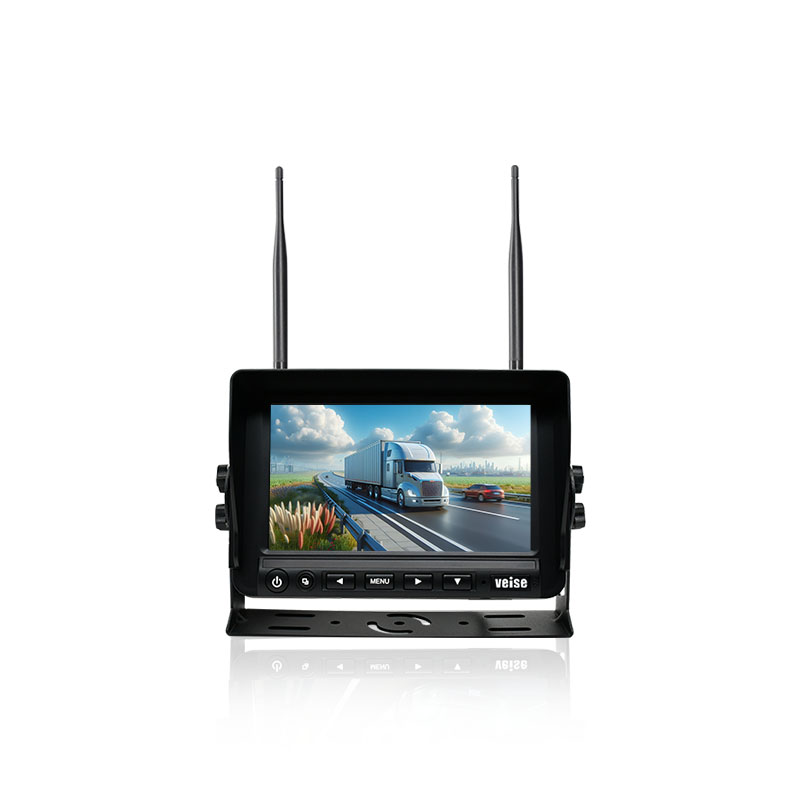

Wireless HD Camera Monitor

7-inch digital screen monitor has a built-in 2.4GHz wireless receiver, 1024x600 high Resolution and 600cd/㎡ high brightness screen.

Multi-frequency point frequency hopping code, anti-channeling interference, open transmission distance of 100 meters.

Automotive industry grade DSP, graphic OSD menu sets the functions of image mirror and normal image, reversing scale, and triggering priority application respectively.

The bracket is made of rust-proof metal, and the U-shaped+bilateral fastening anti-vibration design.

Wide Working Voltage DC8~32V, load dump pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current and constant voltage protection circuit design to avoid improper use, automobile pulse voltage damage and guarantee of shelf life.

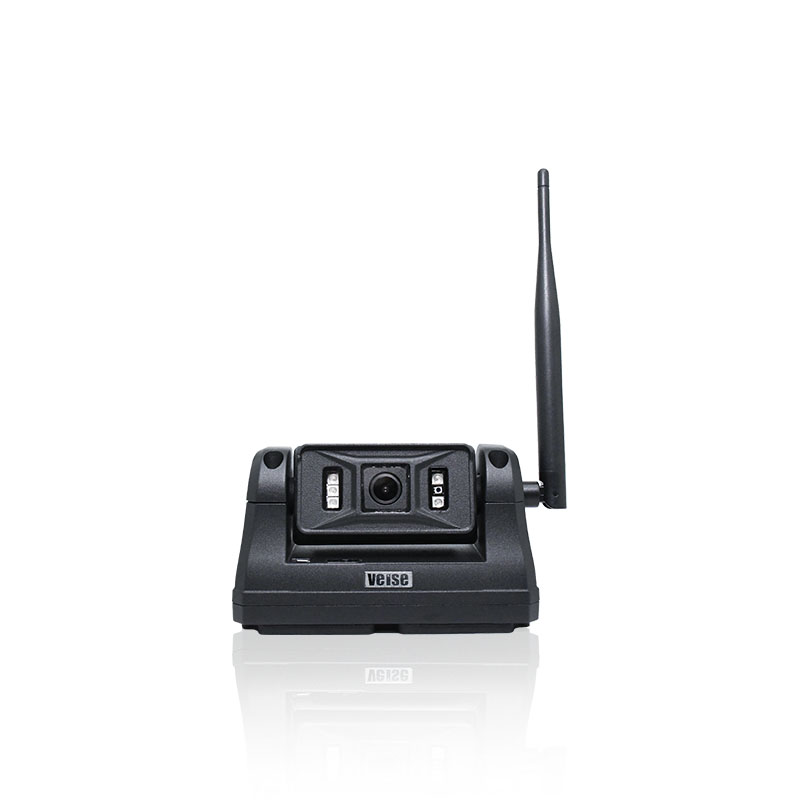

Wireless HD Biult-in Bettery Camera

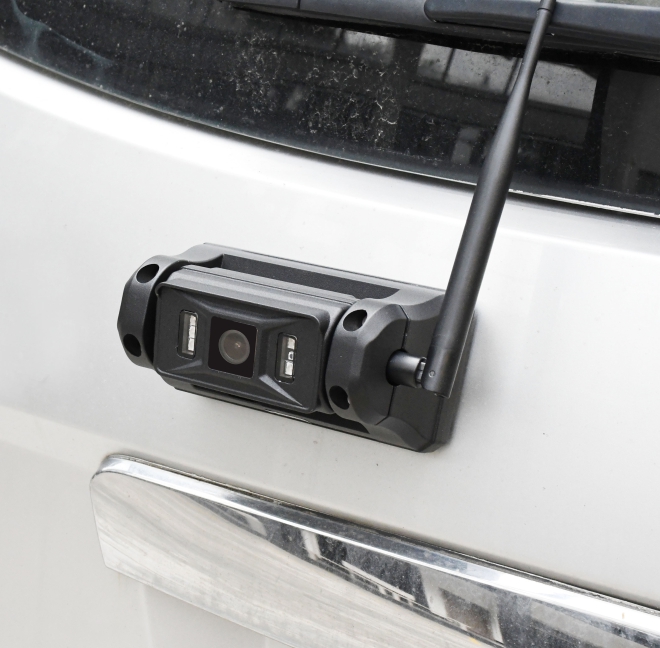

1080P 2.4GHz wireless camera, built-in 8000mAH fast-charging battery, magnet adsorption automotive grade millions of HD pixels, IP69K Waterproof Grade,IR LED night vision function.


Wireless HD Camera Monitor (MWHD-774H)

Display screen 7-inch IPS screen
Wireless Receivingbuilt-in 2.4G wireless reveiver
Picture Mode1/2/3/4 picture mode
Operating Frequency2400〜2483.5MHZ
Receving Sensitivity≤-86 dB
Receving Distanceopen distance≤200 meters
Code selection of multi-frequency point automatic frequency hopping channel80
Resolution1024(H) X 600(V)dot
Color SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard(24V system Us=174V,Ri= 4Ω,td=350ms)
Anti-vibration Grade5G ( meets GB-T2423056-2006 standard)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating VoltageDC8-32V
Outer Size(L x W x T) (218 x 150 x 54mm)

Wireless HD Biult-in Bettery Camera(CWHD-362M)

Image Sensor1/2.9 Color DSP
Wireless Transmissionbuil-in 2.4G digital wireless transmitter
Transmission Power18dBm
Transmission Distanceopen distance≤200 meters
Effective Pixels1280(H) X 960(V)
Visible Angle130°
Infrared Distance5 meters
Housing Materialaluminum alloy
Waterproof GradeIP69K
Cell Typelithium polymers battery
Product Capacity8000maH(3.7v) 29.6Wh
Interface InputType-C waterproof interface(with QC2.0 fast-charging agreement)12V/1.5A
Electricity Displayfast-charging indicating light and 25%-50%-75%-100% electricity indicating light
Battery Switchtouch-switch
Charging circular Temperature0℃~+40℃
Charging and Discharging Times>800 times
Discharging Timeabout 20 hours
Installment wayInstall with the silica gel magnetic-suction base.
Operating Temperature-10℃ to +60℃
Storage Temperature-20℃ to +70℃
Anti-vibration GradeGB∕T 2423.56-2018 standard(random 5G vibration)

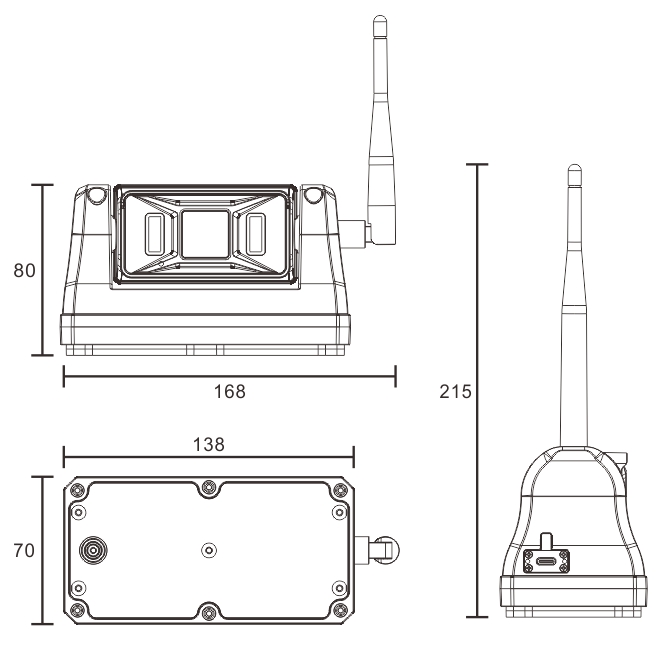

Outer Size138(W) x 80(H) x 70(D) mm(without antenna)
