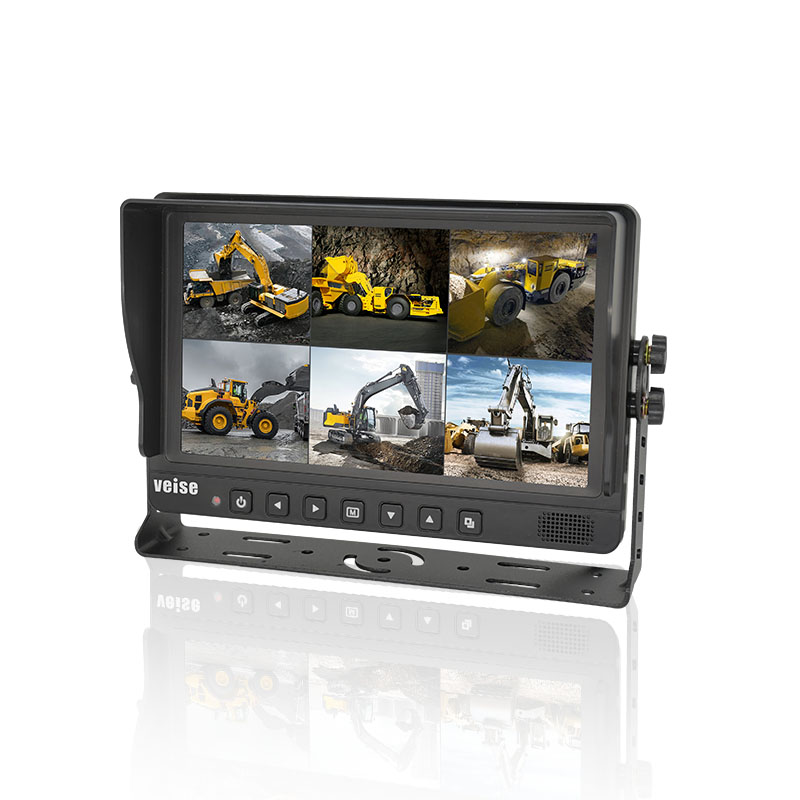

9-inch HD 6-channel DVR monitor

  • Model : MHD-916D
  • Summarize : With the 9-inch 6-screen HD DVR monitor, the driver can observe the vehicle's operating status and the surrounding environment more clearly, thereby better understanding the vehicle's condition and improving construction efficiency. Additionally, the in-vehicle HD monitor features easy operation, high resolution, high brightness, high contrast, and a wide viewing angle, which can meet the driver's needs in different scenarios, enhancing the driving experience and vehicle operational efficiency. The built-in storage function ensures that monitoring videos are completely preserved, making it convenient for subsequent review and analysis.
  • More Info : Online Service

Product Features

9-inch HD IPS screen monitor supports 6 channels of Video Input.

1024RGBX600 high Resolution.

Built-in DVR and support 256G SD storage card.

Automative-grade, -40°~85° digital video processor.

Supports 1080P/960P/720P/CVBS signal input.

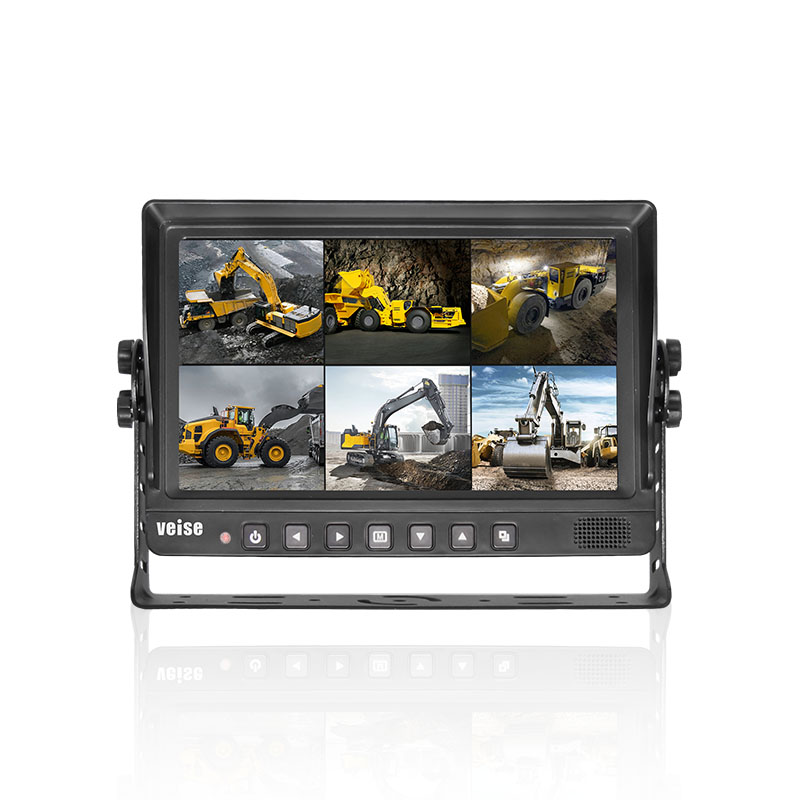

Supports 1/2/3/4/5/6 multi-picture mode display.

OSD menu respectively sets the mirror and normal images of the picture, time delaying and the double-trigger priority application function.

Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.

600cd/㎡ high brightness for clear images.

Load dump pulse voltage DC24V + 174V (350ms) is designed to protect against damage of on-board transient pulses.

DC11~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection, and LED thermal response constant current and constant voltage protection for service life circuit design.

Product Parameters

ModelMHD-916D
Color Display Screen9-inch IPS screen
Resolution1024RGB(H) X 600(V)dot
Video Input6 channels of Video Signal Input (1080P/960P/720P/CVB signal input mixedly)
Display ModeSingle-screen, double-screen, triple-screen, quad-screen, five-screen, six-screen
Video Signal InputCVBS /720P /1080P/960P
storage capacityexternal SD card (maximally supports 256G）
OSD Menu FunctionSupport the functions such as single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. Menu language: Chinese / English (optional).
color standadPAL/NTSC (AUTO)
Brightness (cd/m2)600
Contrast level800：1
surge and load dump protectionISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms）
Connector Socket18 pole S-terminal
Working Temperature-20℃ to +70℃
storage temperatre-30℃ to +80℃
Working VoltageDC11-32V
Anti-vibration RateGB∕T 2423.56-2018 standard (random 5G vibration)

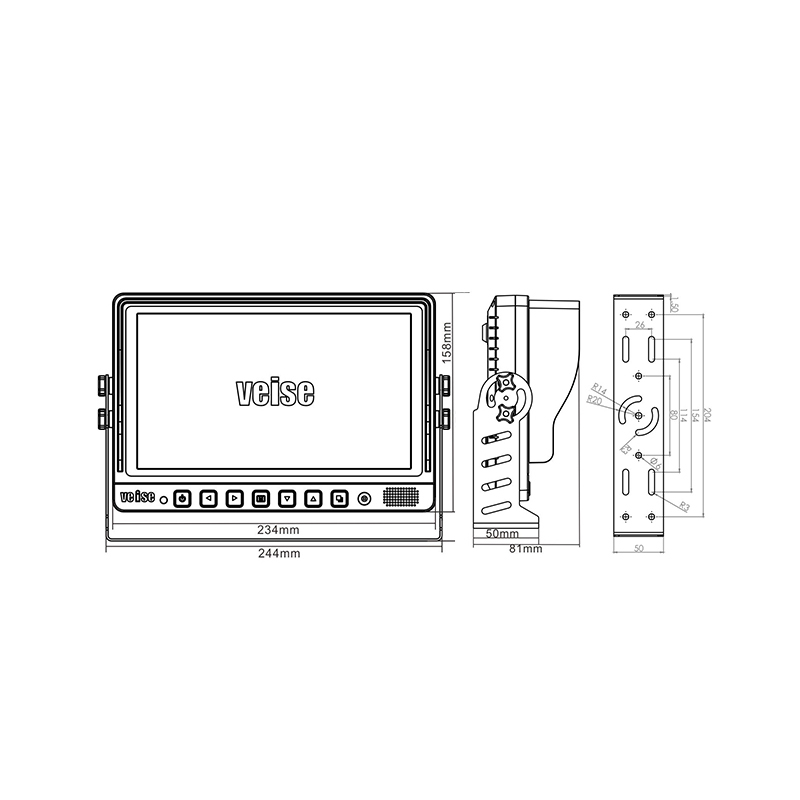

SizeLxWxT(244 X 179 X 81)mm
Weight1140g

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
