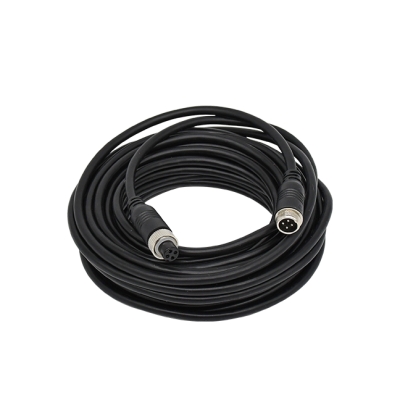

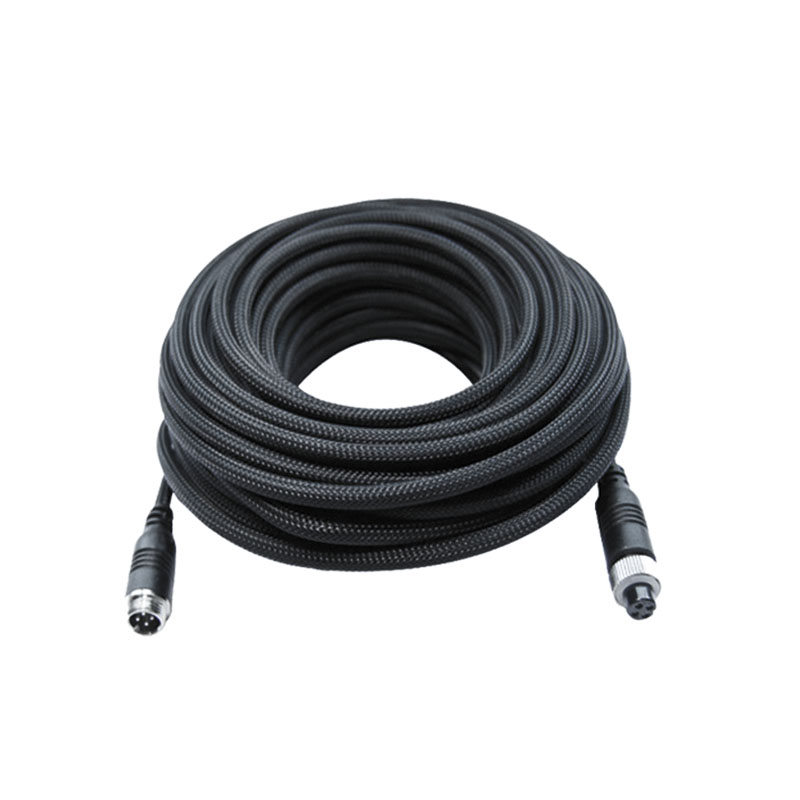

PET sleeve power video cable

  • Model : XC-0004-B-5/10/20/30M-PET
  • Summarize : The power video cable includes video signal lines, audio signal lines, power lines, and ground wires. It is widely used in the security monitoring of automobiles, high-speed rail, aviation, shipping, power, and other fields. It usually uses environmentally friendly insulating PVC materials as the outer sheath, which has good waterproof performance and high-temperature resistance. The cable is woven with PET protective sleeves and is tensile, wear-resistant, and flame-retardant.
  • More Info : Online Service


Low-impedance oxygen-free pure copper inner core, with excellent conductivity.

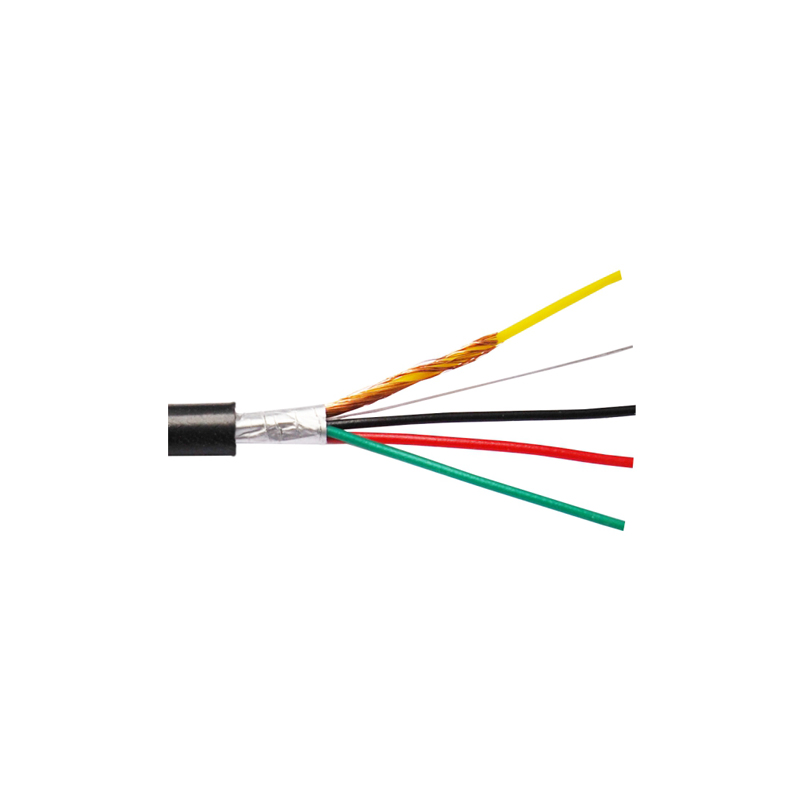

Video signal wrapped and shielded, with anti-interference.

Environmentally friendly insulating PVC + PET Materials are used as the outer sheath, with good waterproof performance, high temperature resistance, tensile and wear resistance.

The 4-core phosphor bronze aerospace connector plug tail wire adopts internal and external double injection molding, which is sturdy and durable and resistant to swing and tensile force.


Flame retardant grade: UL 94 VO

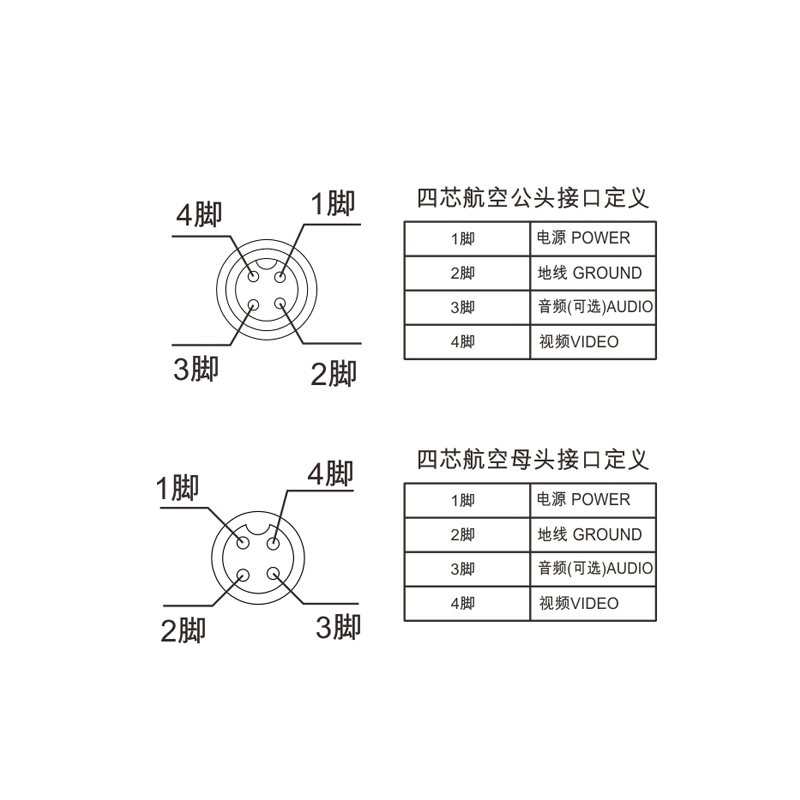

4-pin female header connects to 4-pin aerospace male header

Length: 10 meters * φ5 (15M / 20M / 30M optional)

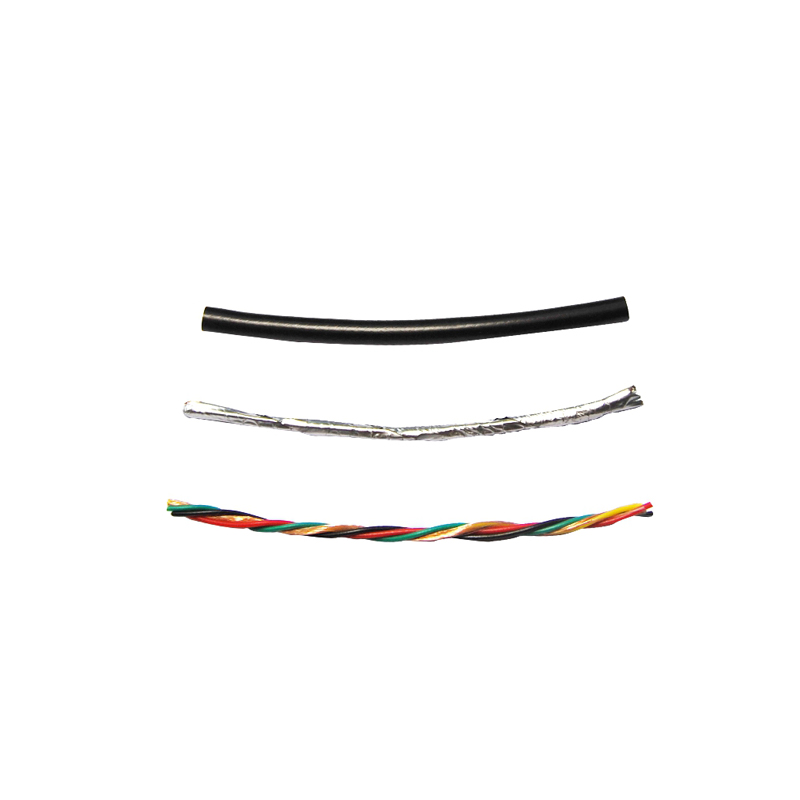

The internal power ground wire is a 24# single wire, and the audio line is a 26# single wire

The internal video line should be a single-strand braided shielded line or RG-179-75 braided coaxial line.

Ambient temperature: -20 ℃ to + 80 ℃

Cable internal resistance: positive and negative wires ≤ 2 Ω, audio ≤ 3 Ω, video ≤ 3 Ω
