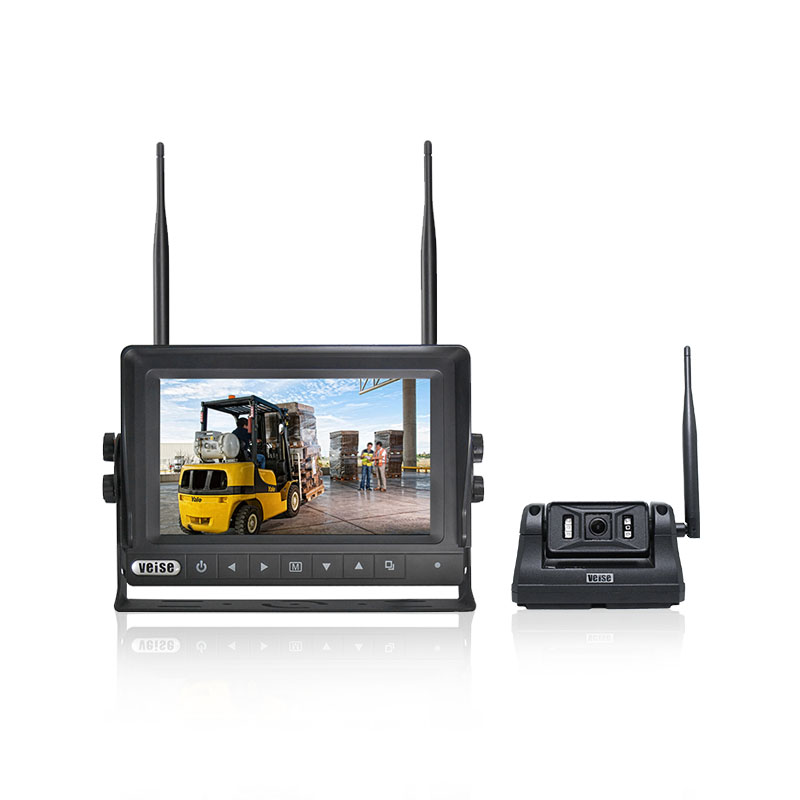

Wireless Waterproof Monitor Camera System

  • Model : HDWS-754H362M1

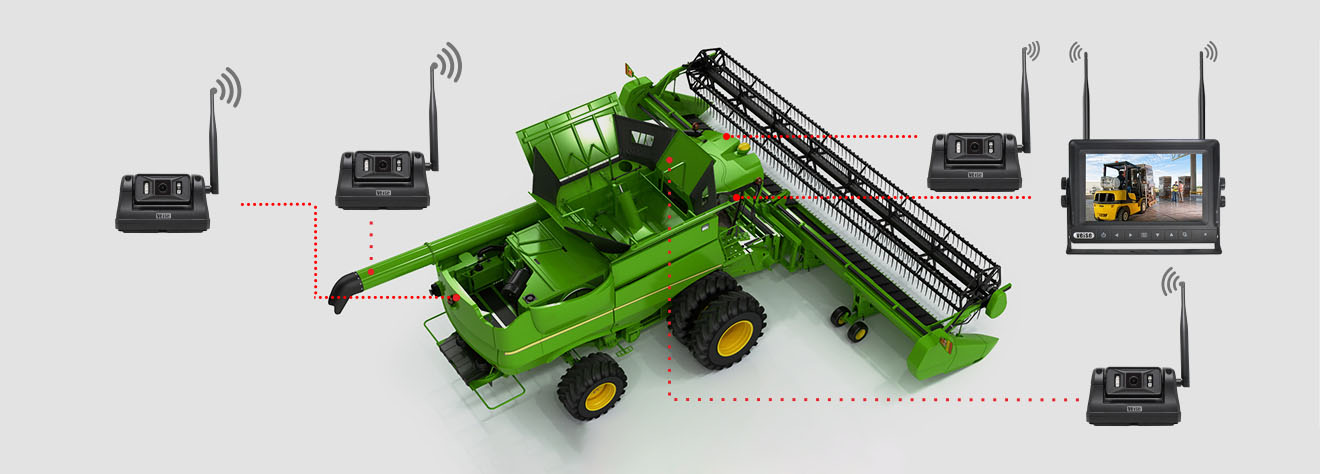

  • Summarize : Wireless monitoring systems use radio waves to transmit video, audio, control, and other signals, and choose to quickly install wireless video monitoring systems in cases where it is not possible or inconvenient to carry out construction wiring. The vehicle-mounted wireless monitoring system is particularly suitable for mobile monitoring requirements such as forklifts, cranes, construction tower cranes, and port-type container gantry cranes that require operation with stretching, as well as household and urban public security. The magnet-adsorbed vehicle-mounted camera is built with a lithium battery, and the waterproof display is suitable for mechanical equipment vehicles and activity places in outdoor high-humidity and large-dust environments, which is convenient for mobile and quick installation.
  • More Info : Online Service

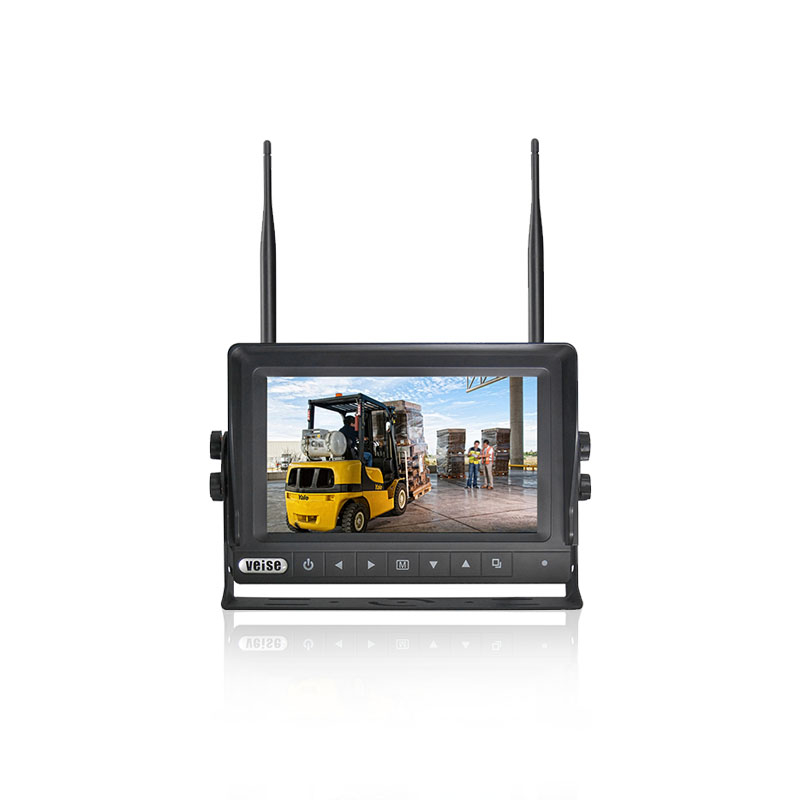

Wireless HD Camera Monitor

7-inch digital screen monitor built-in 2.4GHz wireless receiver, 1024x600 high Resolution and 600cd/㎡ high-brightness screen.

Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 200 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

Front plastic and rear aluminum all-sealed pressure balanced patented waterproof structure design, Waterproof Rating IP68.

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening anti-vibration design.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period

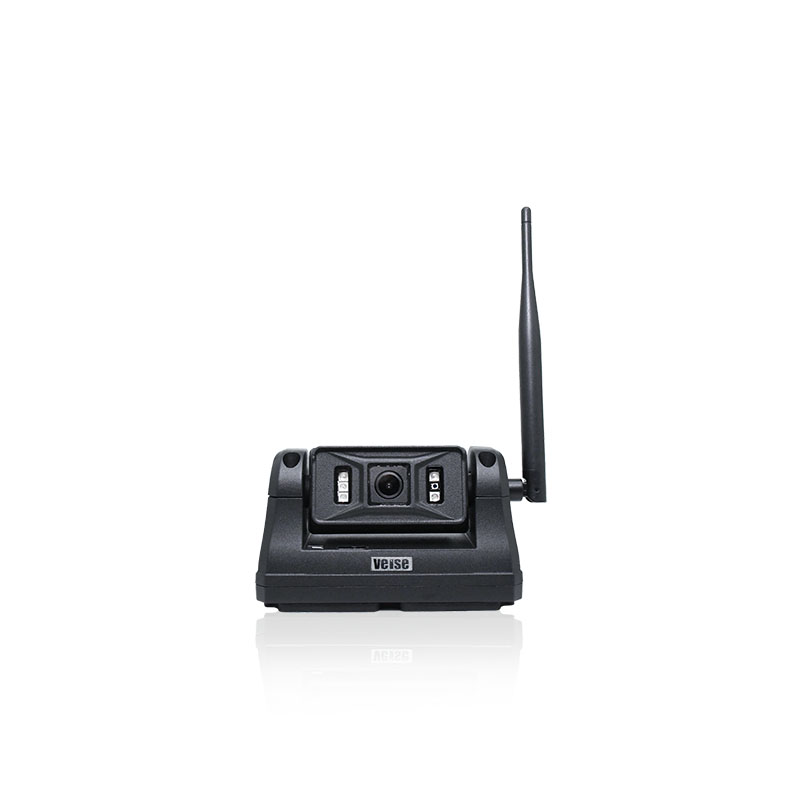

Wireless HD Backup Waterproof Camera

2.4GHz wireless mobile camera

Magnet adsorption installation, built-in 8000mAH fast charging lithium battery, vehicle specification DSP, millions of high-definition pixels, IP69K Waterproof Rating, IR LED night vision function.


Waterproof Wireless HD Camera Monitor (MWHD-754H)

Display screen 7-inch IPS screen
Wireless Reveivingbuilt-in 2.4G wireless reveiver
Picture Mode1/2/3/4 picture mode
Operating Frequency2400〜2483.5MHZ
Receiving Sensitivity≤-86 dB
Receiving DistanceOpen area≤200 meter
Multiple frequency point automatic frequency hopping channel code matching selection80
Resolution1024(H) X 600(V)dot
Color SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load Dump ISO16750-2 standard(24V system Us=174V,Ri= 4Ω,td=350ms)
Prevention GradeIP68
Anti-vibration Grade5GB∕T 2423.56-2018 standard( random 5G vibration)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating VoltageDC8-32V
Outer Dimension (L x W x T) (218 x 150 x 54mm)

Wireless HD Built-in Battery Camera(CWHD-362M)

Image Sensor 1/2.9 Color DSP
Wireless Transmission built-in 2.4G digital wireless transmitter
Trasmission Frequency18dBm
Transmission Distanceopen≤200 meters
Effective Pixels1280(H) X 960(V)
Visible Angle 130°
Infrared Distance5 meters
Housing Materialaluminum alloy
Waterproof GradeIP69K
Cell Typelithium polymer battery
Product Capacity8000maH(3.7v) 29.6Wh
Interface InputType-C waterproof interface(with QC2.0 fast charging agreement)12V/1.5A
Electricity Displayfast charging light and25%-50%-75%-100% electricity light
Battery switchtouch switch
Charging Circular Temmperature0℃~+40℃
Charge and Discharge Times>800 times
Discharging timeabout 20 hours
Installment WayInstall with the silica gel magnetic-suction base.
Operating Temperature-10℃ to +60℃
Storage Temperature-20℃ to +70℃
Anti-vibration Grade5G ( meets GB-T2423056-2006 standard)

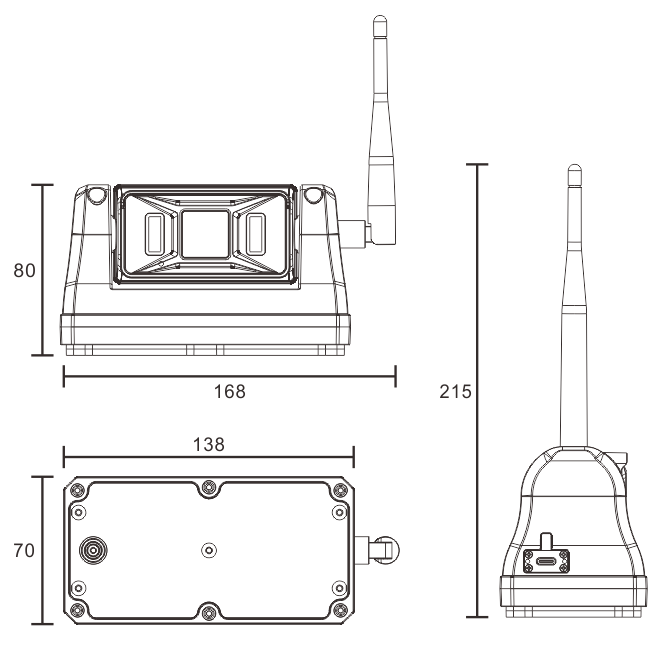

Size138(W) x 80(H) x 70(D) mm(without antenna)
