Wireless Observation Camera System

  • Model : DF-8275TXN-766RX4

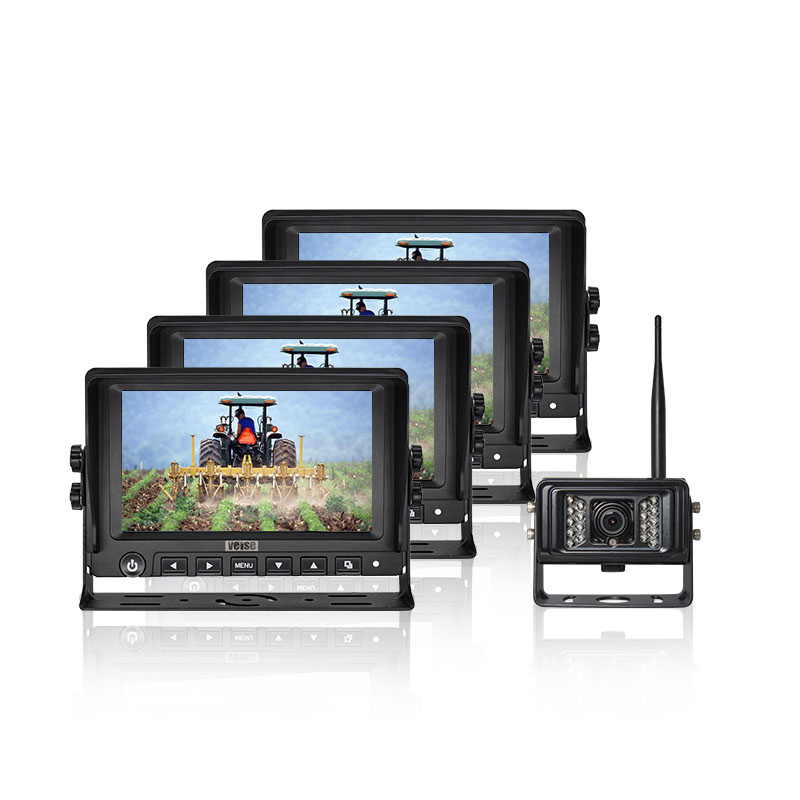

  • Summarize : Large-scale agricultural harvesting requires coordination between large harvesters and other transport vehicles, and harvester drivers need to observe the progress of crop canning in transport vehicles. Therefore, a wireless camera is needed to be installed in the harvester output port to monitor the transport carriage, to provide images for the harvester and the transport driver, and observe the progress of crop canning in the transport carriage. This camera 1+4 display wireless monitoring system can meet the requirements of up to four monitoring points. It can also be conveniently applied to mine cars, medical teaching, and other needs.
  • More Info : Online Service

Features

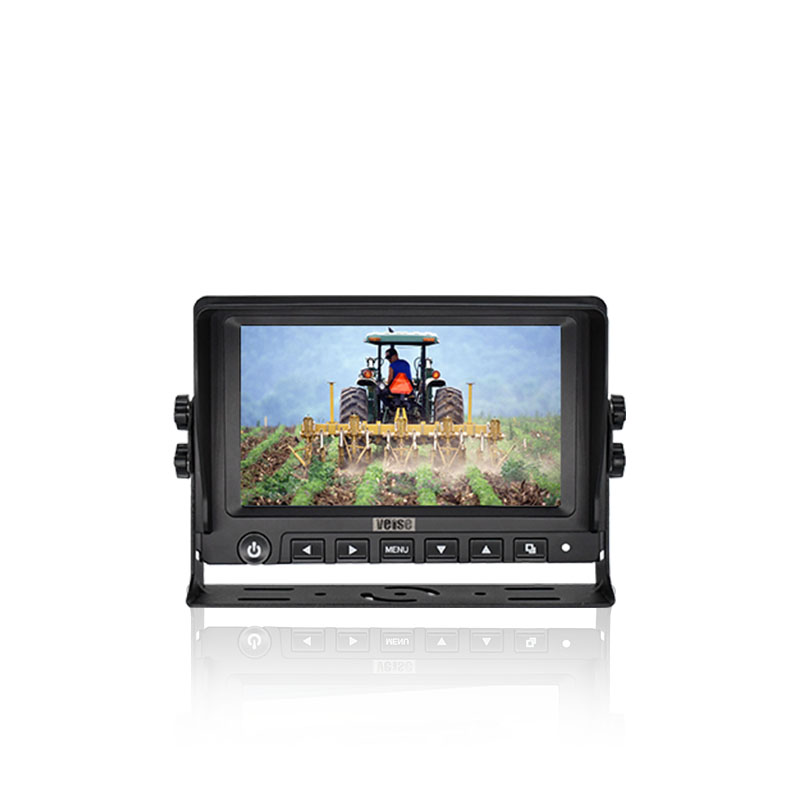

Wireless Monitor

7-inch monitor has a built-in 2.4GHz wireless video receiver, and the multi-frequency point frequency hopping automatic code is anti-jamming and has an open transmission distance of 50 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, and guarantee of warranty period

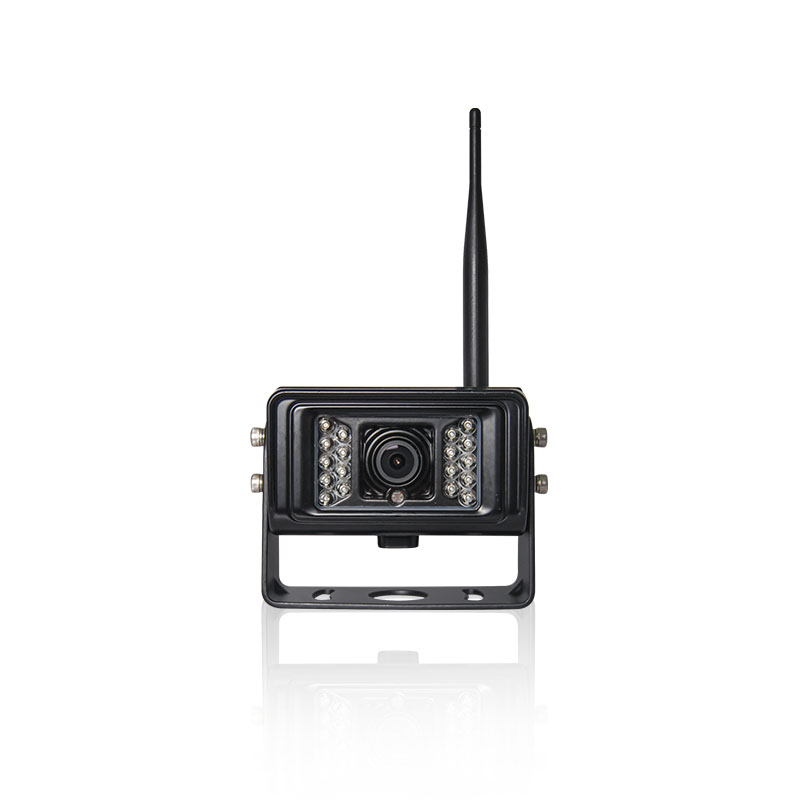

2.4GHz Wireless Observation Camera

A single wireless camera transmits the same monitoring picture to four wireless monitors at the same time. Automotive industry grade DSP, IP69K Waterproof Grade, and the built-in IR-CUT filter can correct the color cast during the day and improve the brightness at night.

Parameter

Wireless Monitor (SP-766RX) * 2 * 3 * 4（optional ）
Display screen 7-inch liquid crystal screen
Wireless Receiver 2.4G digital
Picture Modesingle picture
Operating Frequency 2400〜2483.5MHZ
Receiving Sensitivity≤-86 dB
Receiving Distanceopen space≤50 meters
Resolution800(H) X 480(V)dot
Color System PAL/NTSC (AUTO)
Brightness400 cd/m²
Load DumpISO16750-2 standard （24V system Us=174V,Ri= 4Ω,td=350ms）
Anti-vibration Grade5G ( meets GB-T2423056-2006 standard ）
Operating Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Operating Voltage DC8-32V

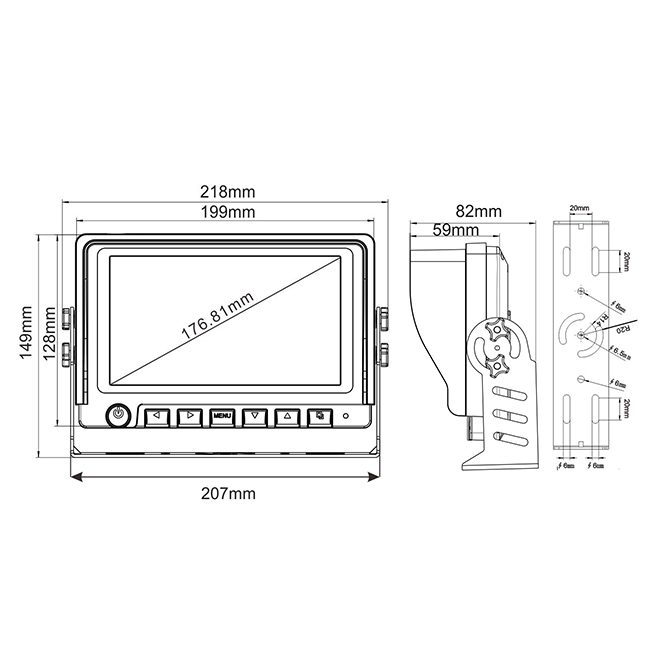

Outer Dimension(L x W x T) (218 x 149 x 82mm)

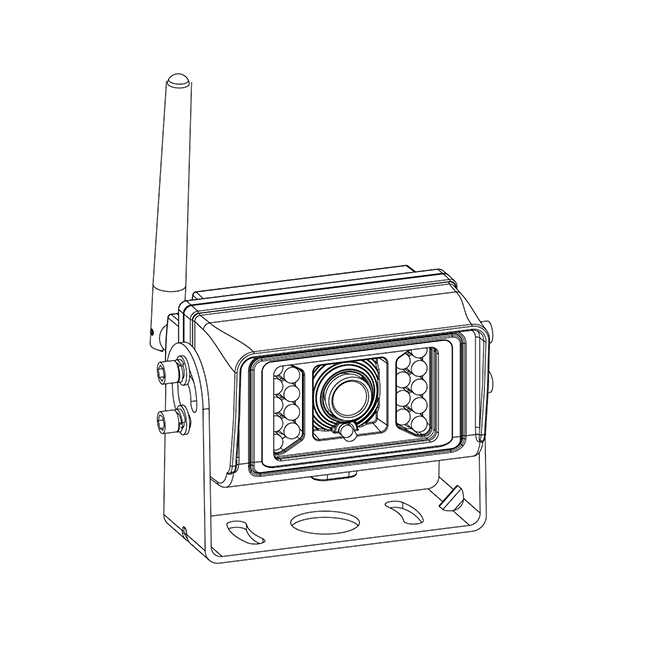

Wireless Observation Camera (DF-8275TX-SFS)
Image Sensor 1/3.7-inch colored sensor
Wireless Transmitter 2.4G digital
Transmit Power 18dBm
Transmit Distance open space ≤50 meters
Resolution600 line
Effective Pixels960(H) X 480(V) pixel
Visible Horizontal Angle130°
Infrared Distance15 meters
Waterproof GradeIP69K
Operating VoltageDC8-32V
Operating Temperature -20℃ to +60℃
Storage Temperature-30℃ to +70℃
Anti-vibration Grade5G (meets GB-T2423056-2006 standard）
Outer Dimension106(W) x 75(H) x 70.4(D) millimeter
