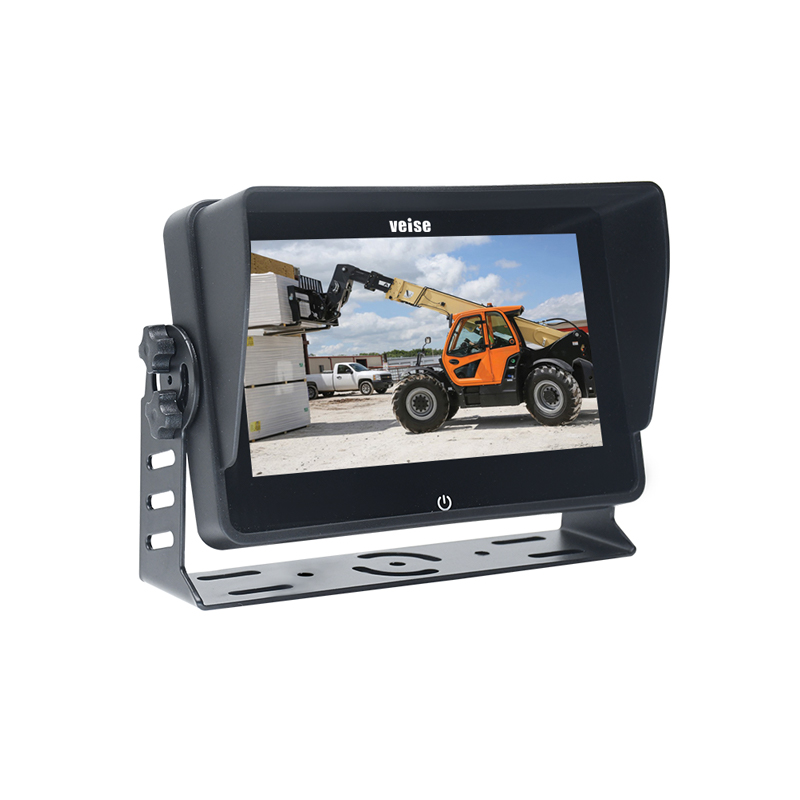

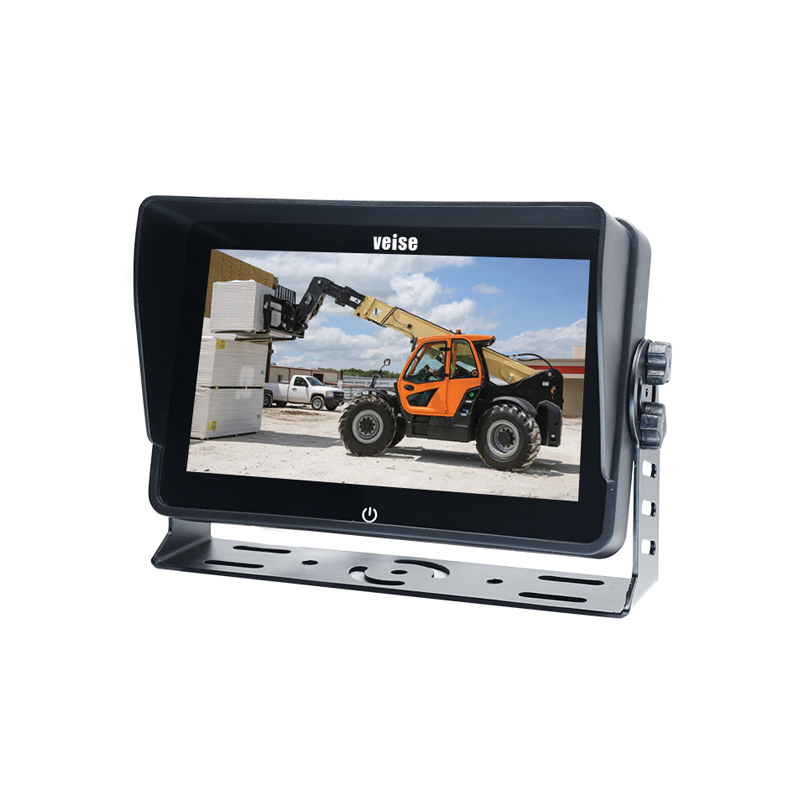

7-inch HD Touch Quad Monitor

Model : MHD-7154M
Summarize : Through the high-definition monitor, the driver can observe the operating status of the vehicle more clearly, as well as the changes in the surrounding environment, to better grasp the operating situation of the vehicle and improve construction efficiency. The high-definition touchscreen technology also allows users to operate through gestures, which increases the flexibility of use. In addition, the monitor also has the advantages of simple operation, high resolution, high brightness, high contrast, and wide viewing angle, which can meet the needs of the driver in different scenarios and improve the driving experience and vehicle operating efficiency.
More Info : Online Service

Product Description

Product Features

7-inch HD screen monitor supports 4 channels (1080P/960P/720P/CVBS) of signal mixed input.

1024RGBX600 high Resolution and 600cd/㎡ high brightness of clear images.

Automative-grade digital video processor.

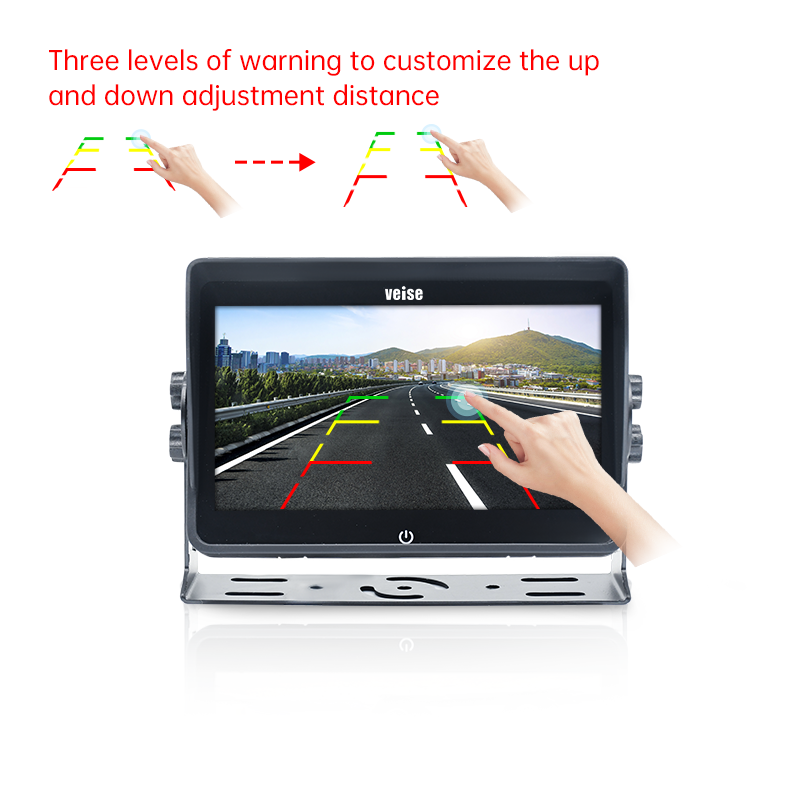

Support 4-picture display/graphical OSD menu supports single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, etc.

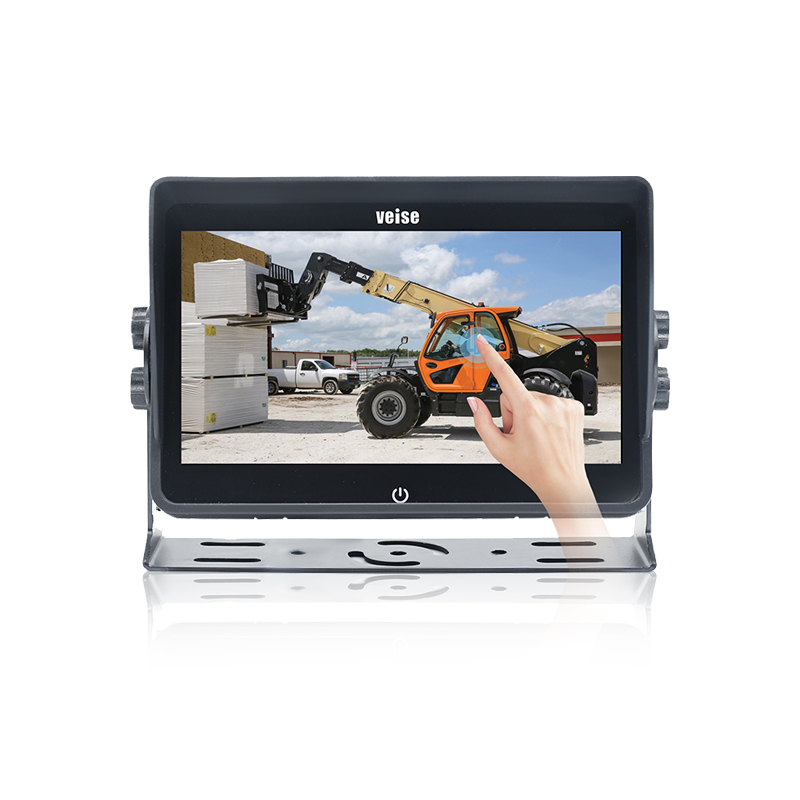

Touch function: Supports finger direct touch operation, which greatly enhances the interactive flexibility between users and the monitor.

Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.

Removable sun hat to prevent the influence of solar sunlight irradiation on the display screen effect.

The buttons are made with high-precision laser carving white characters, which are beautiful, clear, and easily visible.

The bracket uses rust-proof metal Material, with U-shaped + double-sided fastening and anti-vibration design.

Load dump pulse voltage DC24V + 174V (350ms) is designed to protect against damage of on-board transient pulses.

Built-in under-voltage and high-voltage protection circuits/DC12~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection, LED constant current and constant voltage protection service life circuit design.

Product Parameters

Model	MHD-7154M
Color Monitor Screen	7-inch IPS touchscreen
Resolution	1024RGB(H) X 600(V)dot
Video Input	4 channels (1080P/960P/720P/CVBS) of signal mixed input, can be used in the mixed way.
Display mode	4-Screen
OSD Menu Function	Support functions single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. Menu language: Chinese / English (optional).
Color Standard	PAL/NTSC (AUTO)
Brightness	600cd/m2
Contrast level	800：1
Surge and load dump protection	DC24+174V(Td350mS) 5pulses
Connector Socket	18-core S terminal
Working Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Anti-vibration Rate	GB∕T 2423.56-2018 standard (random 5G vibration)
Working Voltage	DC11-32V
Weight	1140g

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
