Product Features

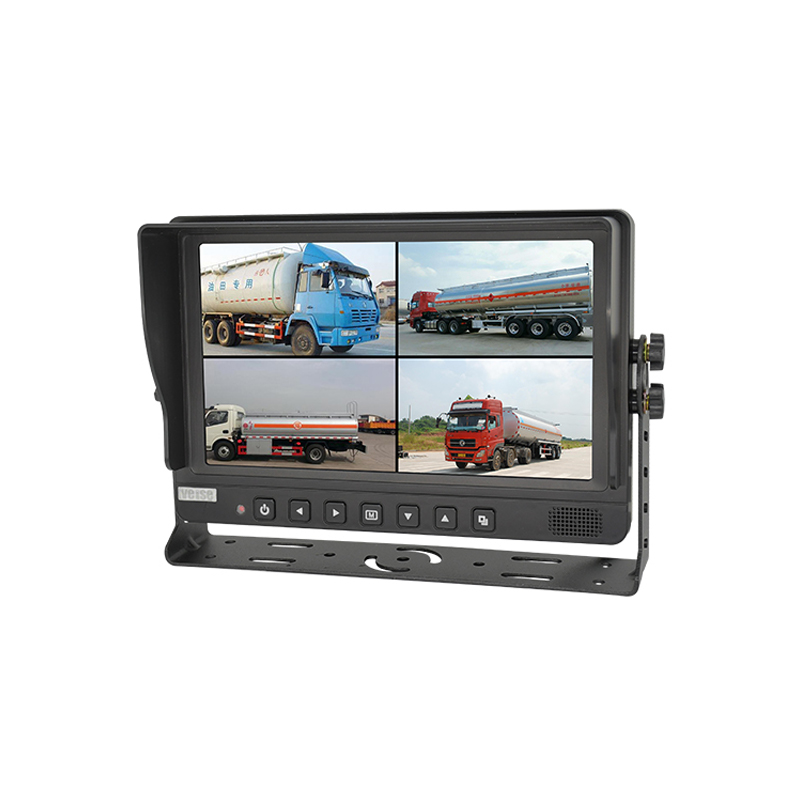

9-inch HD IPS screen monitor supporting 4 channels of Video Input.
1024RGBX600 high-definition.
built-in DVRand support 512G SD storage card.
automative-grade -40°~85° digital video processor.
support 1080P/960P/720P/CVBS signal input.

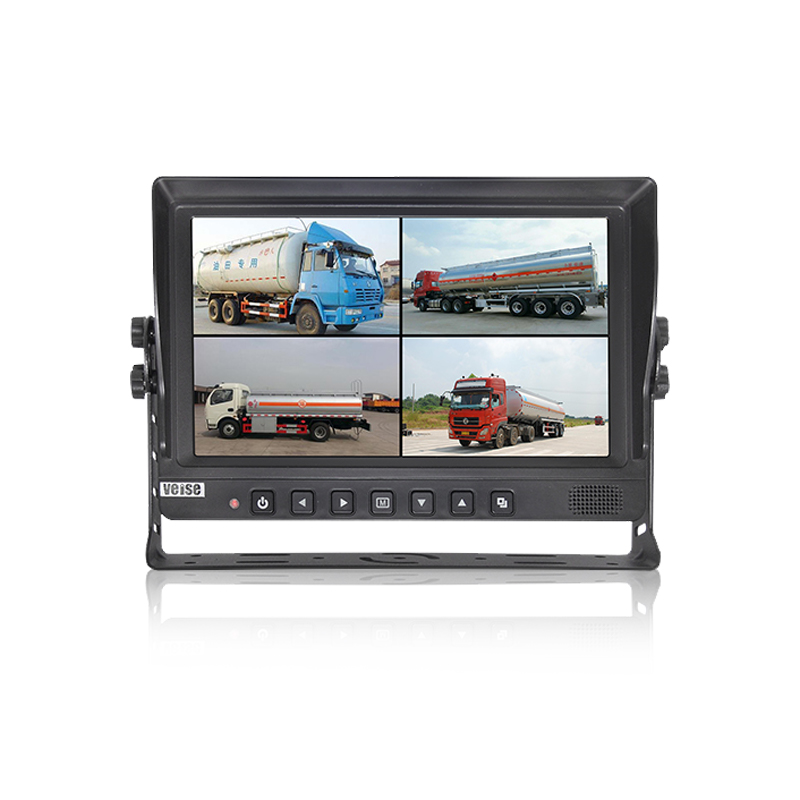

support single picture, double pictures, triple pictures, and quadruple pictures multi-mode display.
OSD menu respectively sets the mirror and normal images of each displyed picture, time delaying, and the double-trigger priority application function.
Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.
600cd/㎡ high brightness for clear images.
Load dump pulse voltage DC24V + 174V (350ms) designed to protect against damage of car transient pulses.
DC11~32V wide range Working Voltage.
Built-in external power supply polarity reverse connection protection. LED thermal response constant current and constant voltage protection for service life circuit design.
Product Parameters
| Model | MHD-914D |
| Color Display Screen | 9-inch IPS screen |
| Resolution | 1024RGB(H) X 600(V)dot |
| Video Input | 4 channels of Video Signal Input(1080P/960P/720P/CVB signal mixedly input |
| dispplay mode | single picture, double pictures, triple pictures, and quadruple pictures |
| Video Signal Input | CVBS /720P /1080P/960P |
| storage capacity | external SD card (maximally supports 512G） |
| OSD Menu Function | Support the functions such as single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. Menu language: Chinese / English (optional). |
| Color Standard | PAL/NTSC (AUTO) |
| Brightness (cd/m2) | 600 |
| Contrast level | 800：1 |
| surge and load dump protection | ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms） |
| Connector Socket | 18-core S terminal |
| Working Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Working Voltage | DC11-32V |
| Anti-vibration Rate | GB∕T 2423.56-2018 standard (random 5G vibration) |

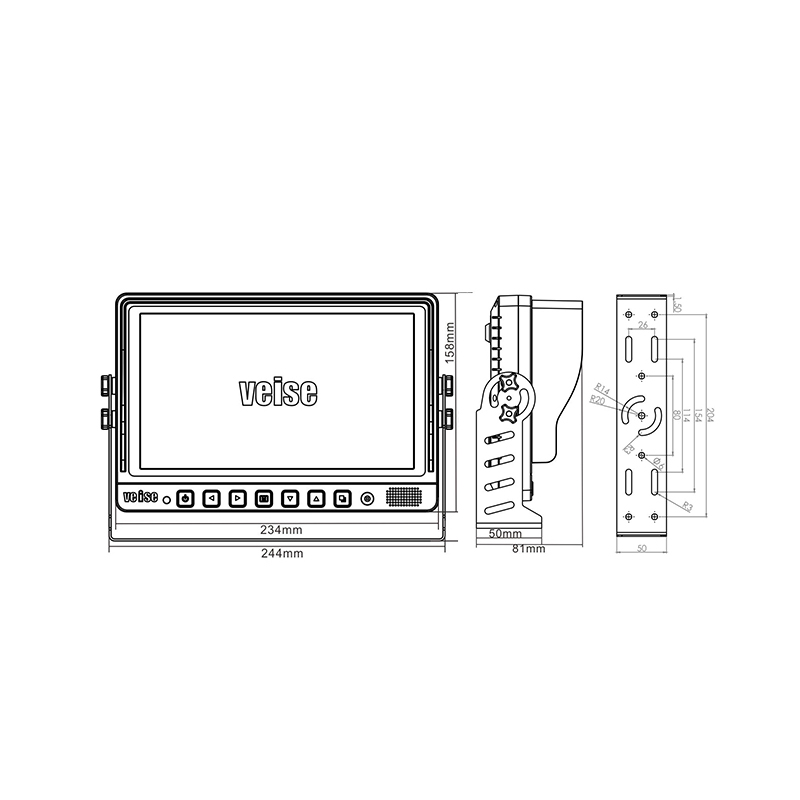

| Size | LxWxT(244 X 179 X 81)mm |
| Weight | 1140g |

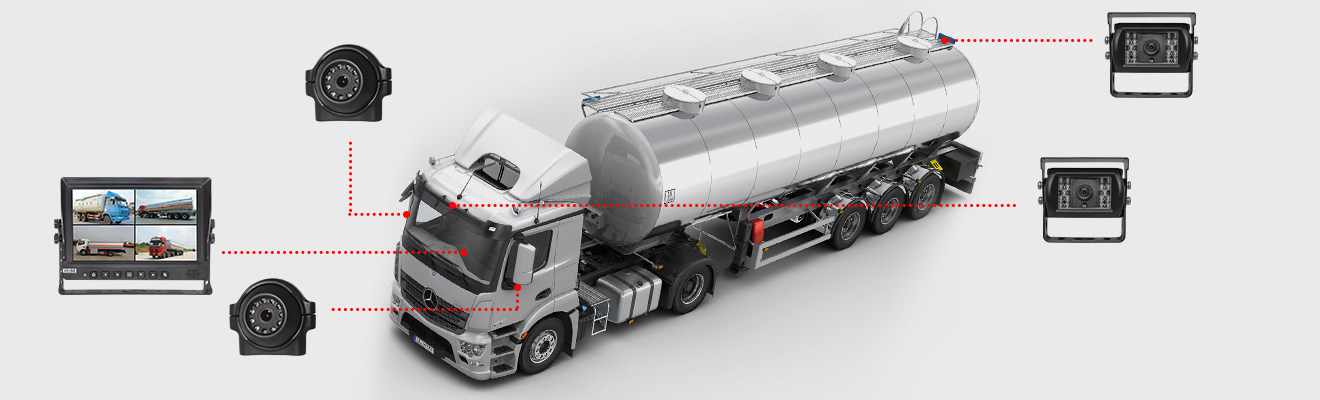

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
