10.1-inch 4-channel 1080P Backup Camera System

  • Model : HDS-1024D192M4

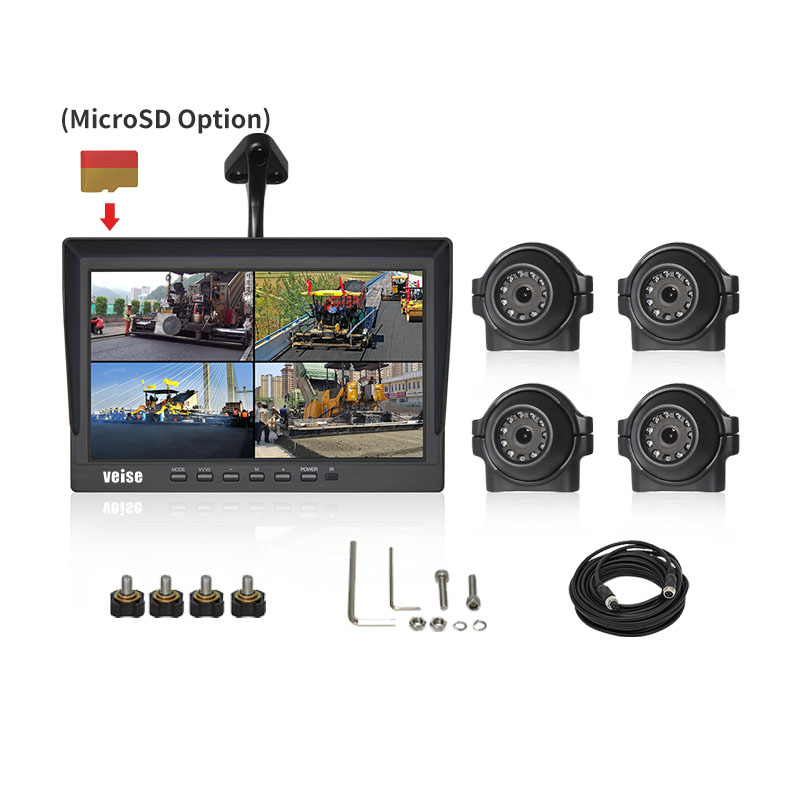

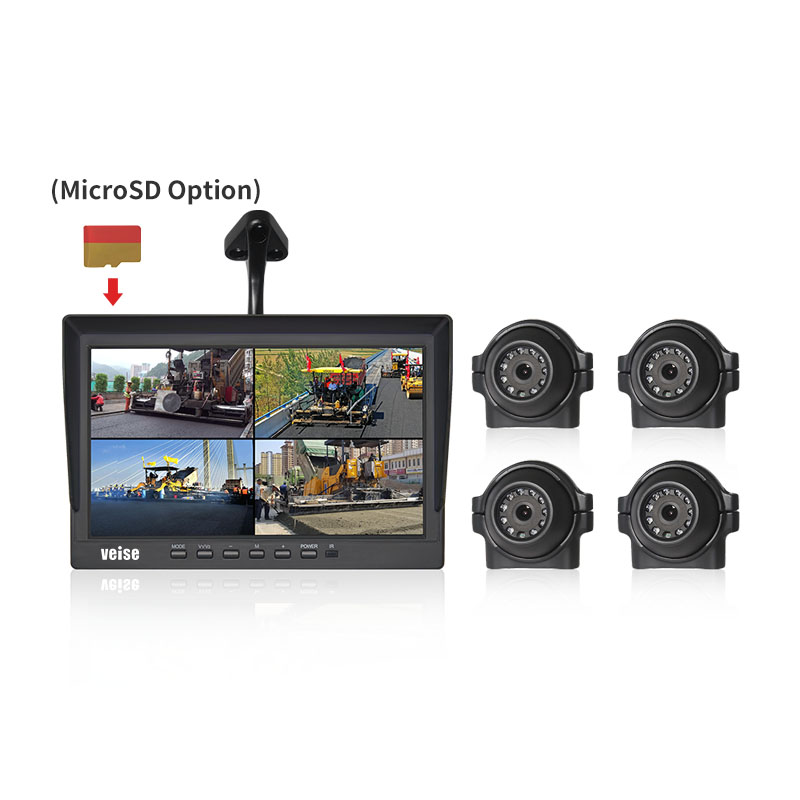

  • Summarize : This system uses four high-definition cameras placed at critical positions around the vehicle (front, rear, left, and right) to achieve 360-degree monitoring without blind spots. With the monitor's quad-split display feature, the driver can view the surveillance footage from all four directions in real-time, fully understanding the surroundings of the vehicle. The monitor supports built-in storage, enabling continuous recording of the surveillance videos, providing the driver with reliable driving records. The video files are automatically saved, making it convenient for later viewing and analysis, effectively preventing collisions and scrapes.
  • More Info : Online Service

Features

10.1-inch HD IPS screen monitor supports 4 Video Inputs, automative-grade DSP, OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

AHD camera automative-grade DSP, 2 million HD pixels,  IP69K waterproof rating, IR LED night vision function, cold-resistant waterproof signal output cable.

4-core bronze avionics header double-shielded connecting cable, with good anti-interference,low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility.

Parameters

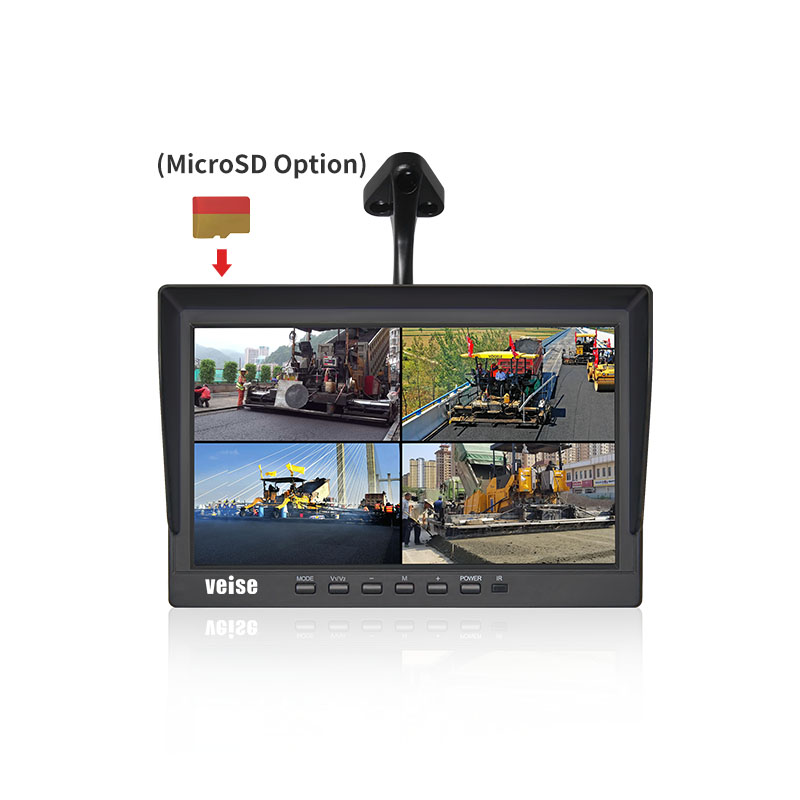

HD Camera Monitor (MHD-1024D)

Color Display Screen10.1-inch IPS screen
Resolution 1024(H) X 600(V)dot
Video InputMax. support 4CH AHD1080P/ 720P /CVBS video signal input
Picture ModeSingle, dual, triple and quad screen display
StorageMax. support 512GB SD card
TV SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Working Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Working Voltage DC11-32V
Dimension (L x W x T) (199 x 128 x 28mm)

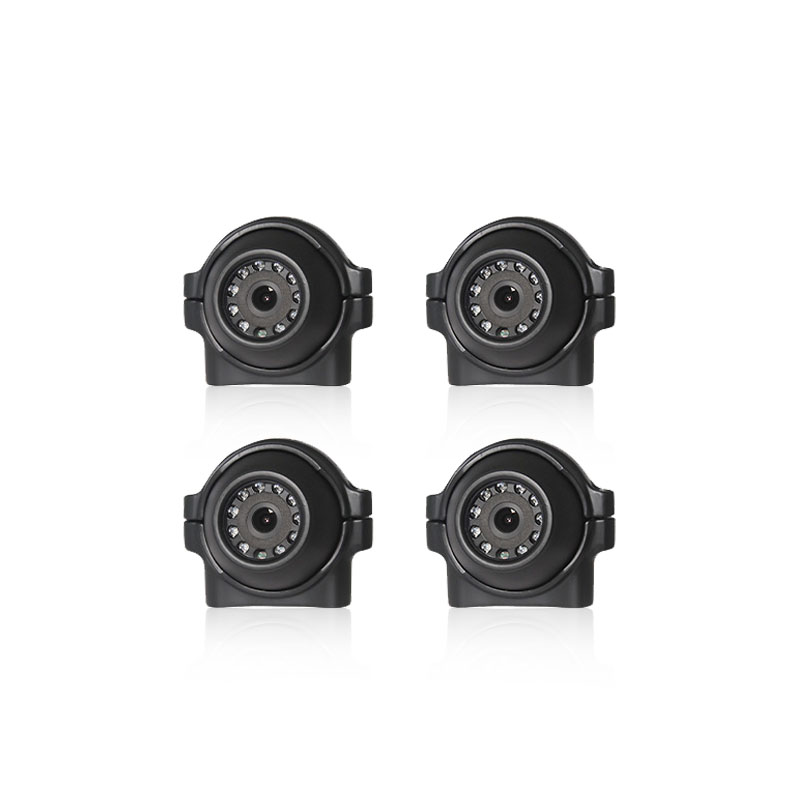

HD waterproof camera (CHD-192M)

Image Sensor 1/2.8 Color Sony
Effective Pixel 1920(H) X 1080(V)
Definition 1080P
Visible Angle 130°
Infrared Distance 5 meters (with built-in 6* 850nm infrared lights )
Waterproof Rating IP69K
Working Voltage DC12V±10%(be powered by the monitor )
Working Temperature -20℃ to +60℃
Storage Temperature -30℃ to +70℃
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Dimension 70.5(W) x 118.5(H) x 76(D) mm

HD video signal cable (XC-HD0004-B-15M)

Interface 4 pin aviation connector (male-female)
length15 meters
