7-inch HD Dual-image Monitor

  • Model : MHD-771/MHD-772S
  • Summarize : Through the high-definition monitor, the driver can observe the operating state of the vehicle more clearly, as well as the changes in the surrounding environment, to better grasp the operating situation of the vehicle and improve construction efficiency. In addition, the car high-definition monitor also has the advantages of simple operation, high resolution, high brightness, high contrast, and wide viewing angle, which can meet the needs of the driver in different scenarios and improve the driving experience and vehicle operating efficiency.
  • More Info : Online Service

Product Features

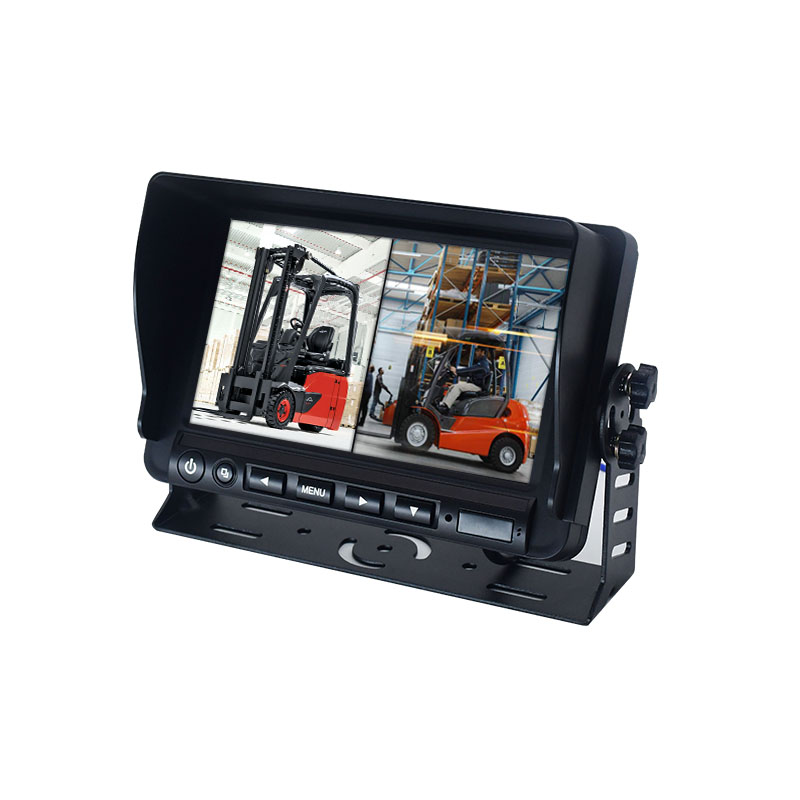

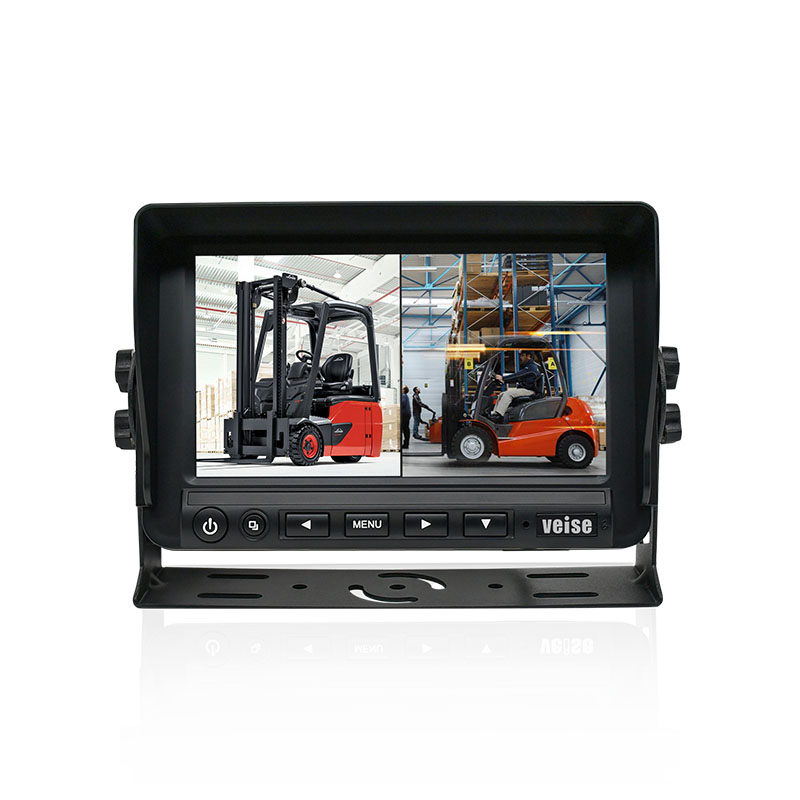

The 7-inch  monitor supports 2 channels of Video Inputs and dual-image display segmentation display

The IPS screen has fast response speed, large viewing angle, and true color, with a Resolution of 1024RGBX600.

OSD menu respectively sets the mirror and normal images of each picture, delays time and performs the double trigger priority application function.

Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.

Removable sun hat to prevent the influence of solar sunlight irradiation on the display screen effect.

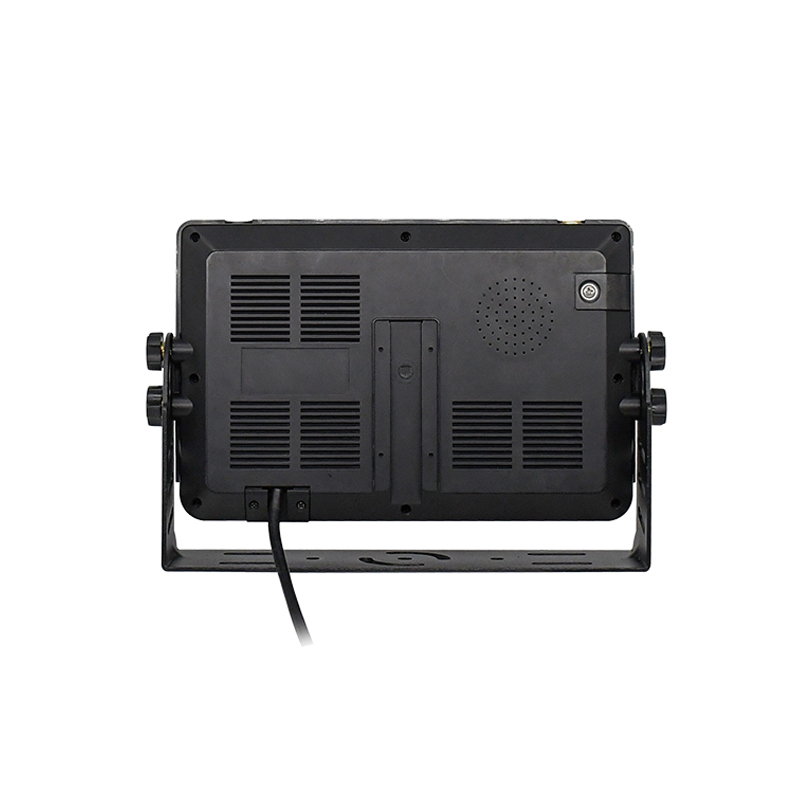

The bracket uses rust-proof metal Material, with U-shaped + double-sided fastening and anti-vibration design.

600cd/㎡ high brightness for clear images.

Load dump pulse voltage DC24V + 174V (350ms)design protects against damage to car transient pulses.

The independent power supply adopts energy-saving, low power consumption, and low-temperature circuit stable design.

DC11~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection. LED thermal response constant current and constant voltage protection for service life circuit design.

Product Parameters

ModelMHD-771MHD-772S
Colored display screen7-inch IPS screen
Resolution1024RGB(H) X 600(V)dot
Video Input2 channels of Video Input
Display Modesingle picturesingle-picture+2 segmented pictures
Video Signal InputCVBS /AHD720P /1080P
OSD Menu Functionrespectively sets positive image and mirror image, delays the time of reversing, triggers priority, and supports multiple languages.
Color StandardPAL/NTSC (AUTO)
Brightness (cd/m2)600
Contrast800:1
Surge and load dump protectionISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms)
Connector Socket2-meter connected line
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
Anti-vibration RateGB∕T 2423.56-2018 standard (random 5G vibration)

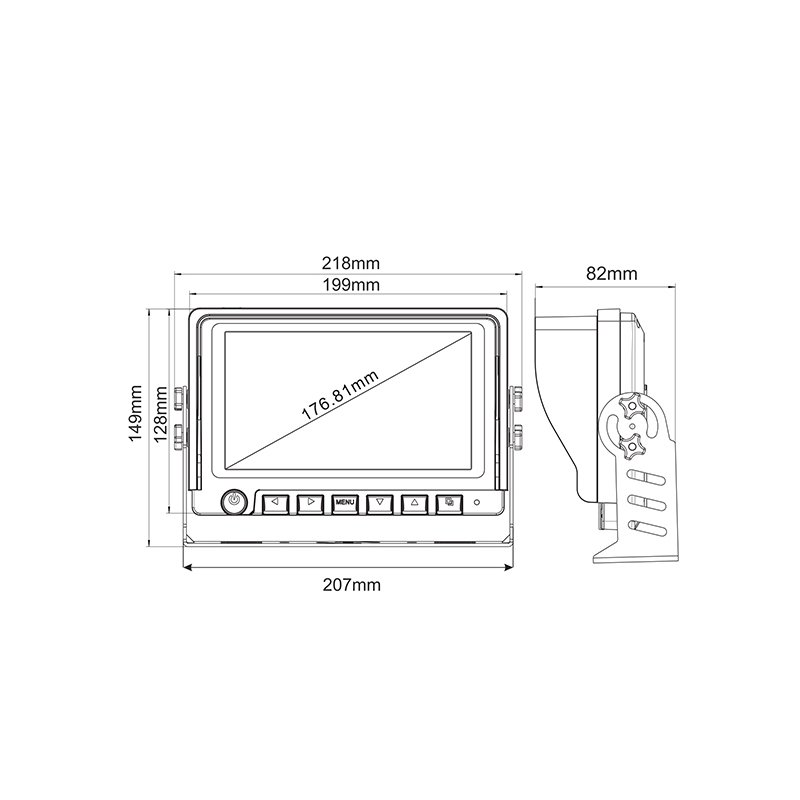

Size(L x W x T) (216 x 150 x 85mm)
Weight800g

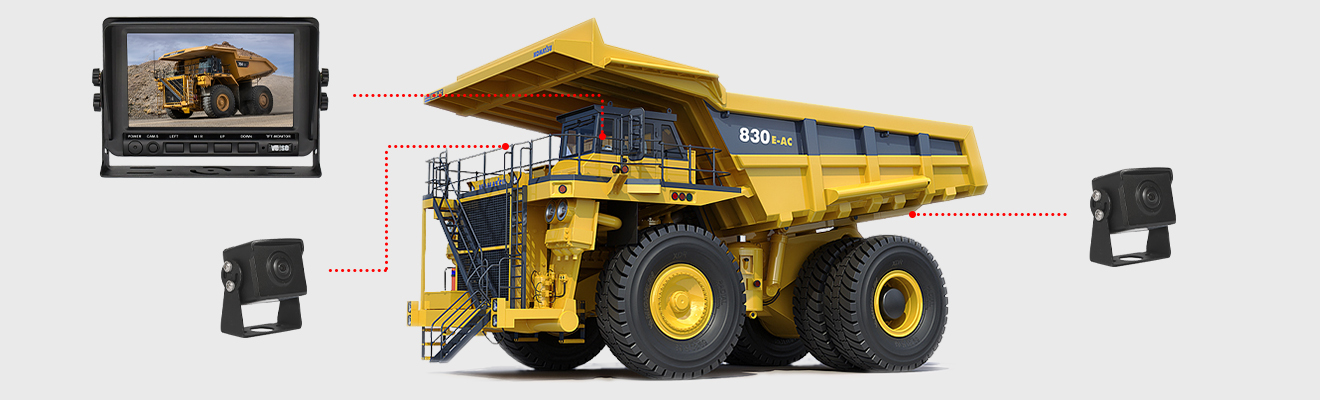

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
