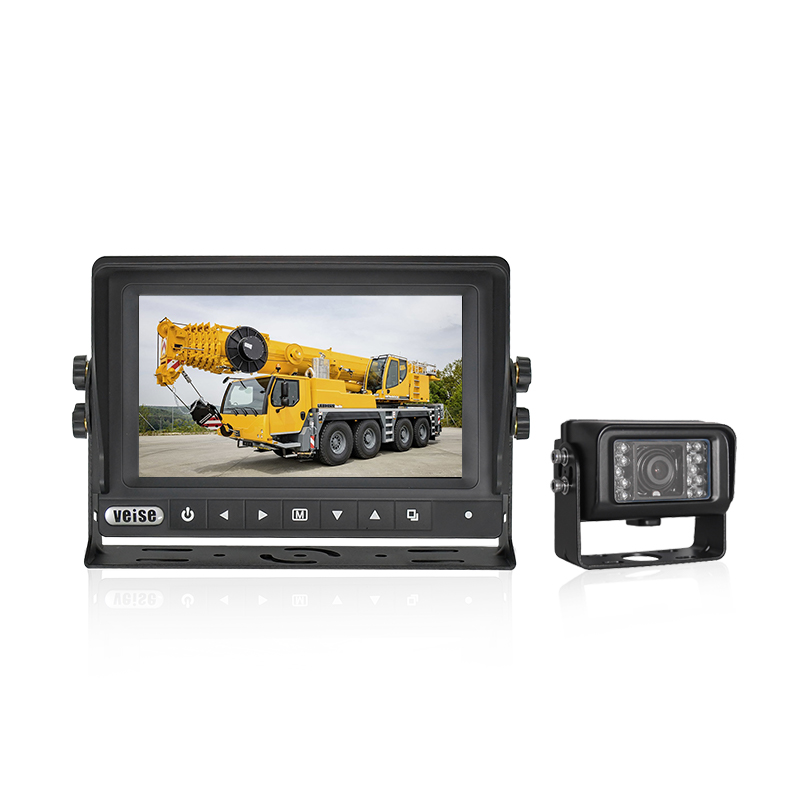

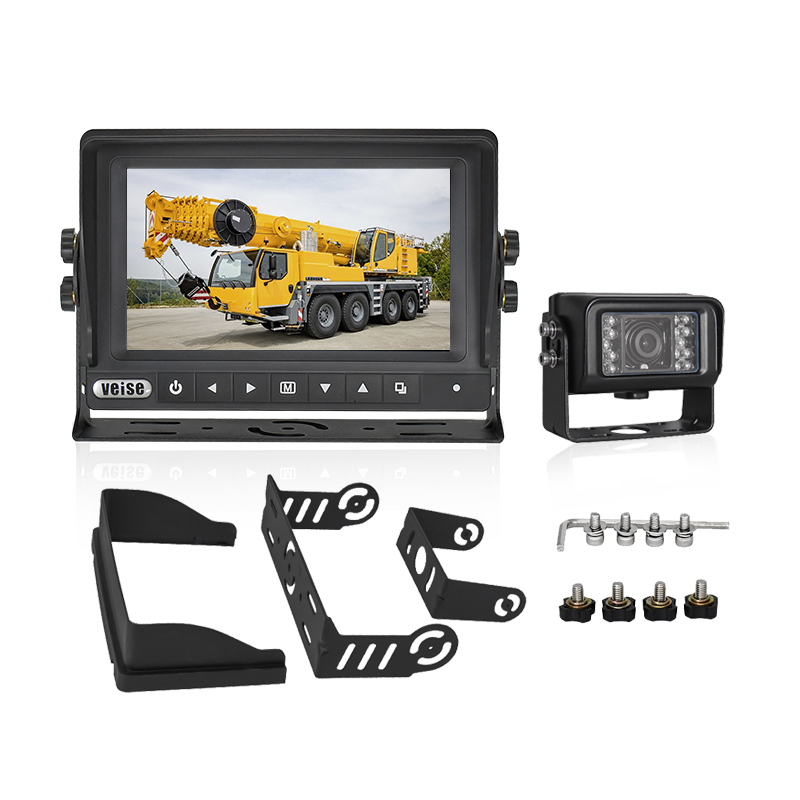

1080P Waterproof Monitor Backup Camera System

  • Model : HDS-751122M1
  • Summarize : Utilizes the backup camera to capture the real-time image of the rear of the vehicle and displays it on the camera display. It provides drivers with a more intuitive and clear vision when reversing, thus effectively avoiding the safety hazards brought about by the rear blind spot and improving the safety of reversing.
  • More Info : Online Service

Features

7-inch HD IPS screen waterproof moniter automotive-grade DSP,  OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

AHD camera automative-grade DSP, 2 million HD pixels,  IP69K waterproof rating, IR LED night vision function, cold-resistant waterproof signal output cable.

4-core bronze avionics header double-shielded connecting cable, with good anti-interference,low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility

Parameters

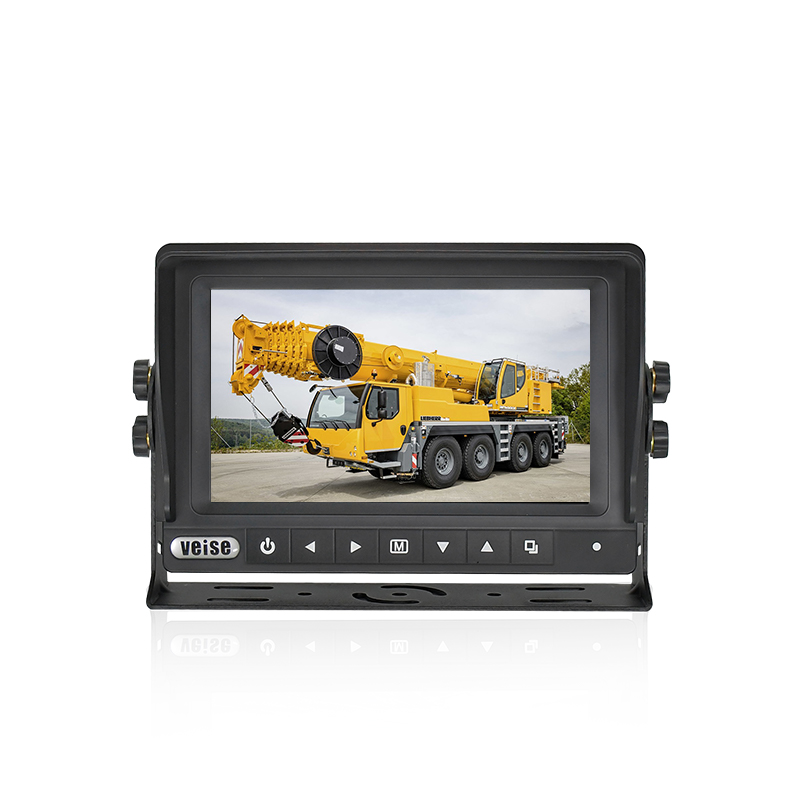

Waterproof HD LCD Car Monitor (MHD-751)

Color Display Screen7-inch IPS screen
Resolution 1024(H) X 600(V)dot
Video Input Max. support 2CH AHD1080P/ 720P /CVBS Video Signal Inputs
TV SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard(24V system Us=174V,Ri= 4Ω,td=350ms)
Waterproof RatingIP68
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Working Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃
Working Voltage DC11-32V
Dimension(L x W x T) (218 x 150 x 54mm)

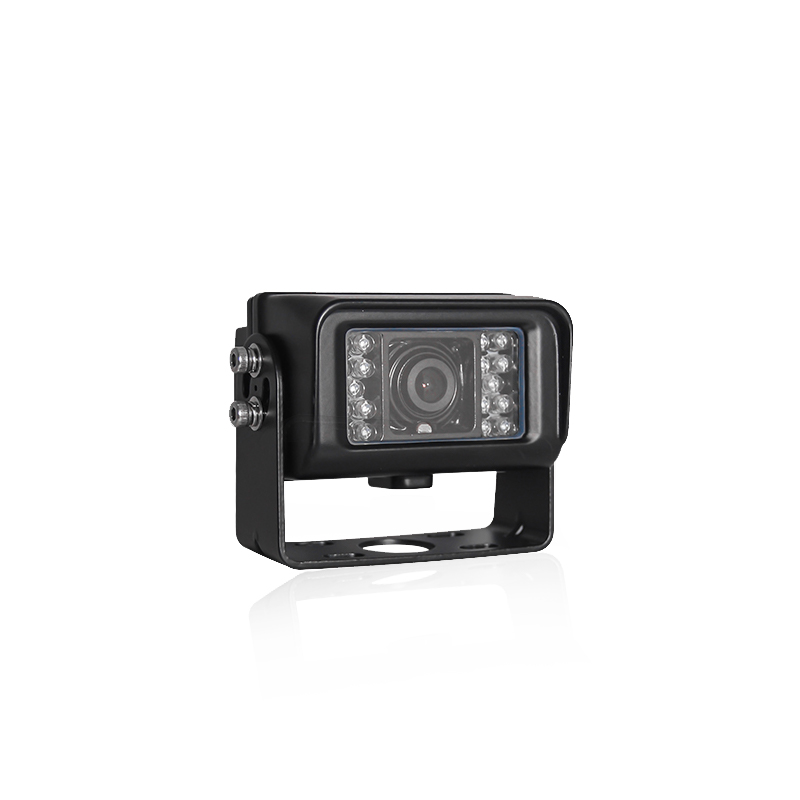

HD Car Waterproof Camera (CHD-122M)

Image Sensor 1/2.8 Color Sony
Effective Pixel1920(H) X 1080(V)
Definition 1080P
Visible Angle 130°
Infrared Distance 15meters (18 built-in 850nm infrared lights)
Waterproof RatingIP69K
Working Voltage DC12V±10% (be powered by the monitor )
Working Temperature -20℃ to +60℃
Storage Temperature -30℃ to +70℃
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Dimension 82(W) x 73(H) x 68(D) mm

HD video signal cable (XC-HD0004-B-15M)

interface 4 pin aviation connector (male-female)
length15 meters
