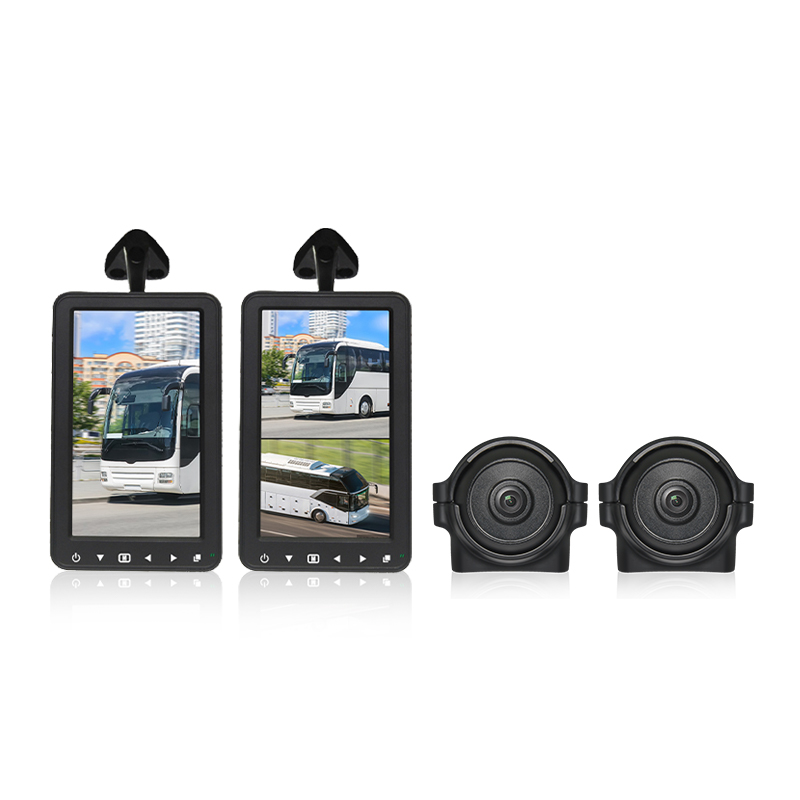

Rear-view Mirror Monitor Camera System

  • Model : HDS-V78219B1S2

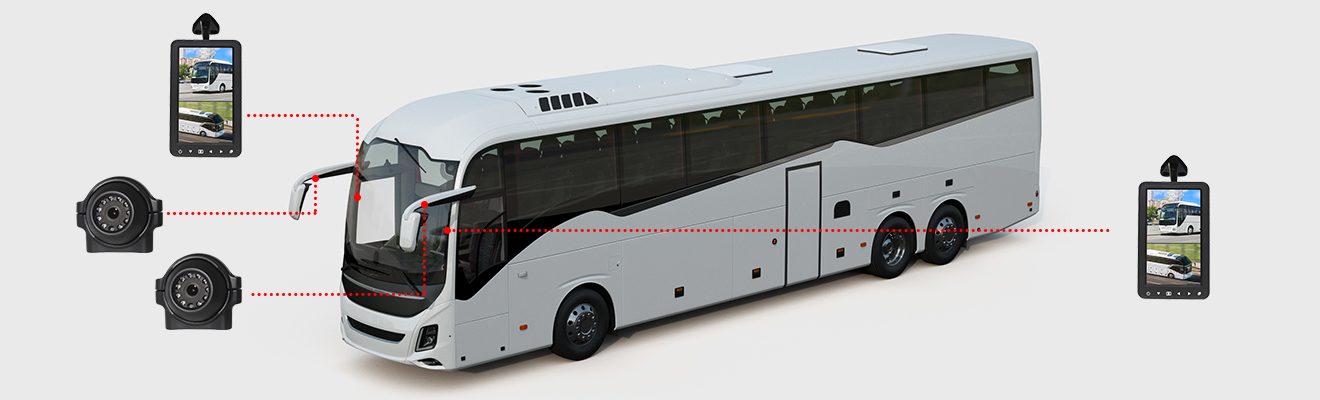

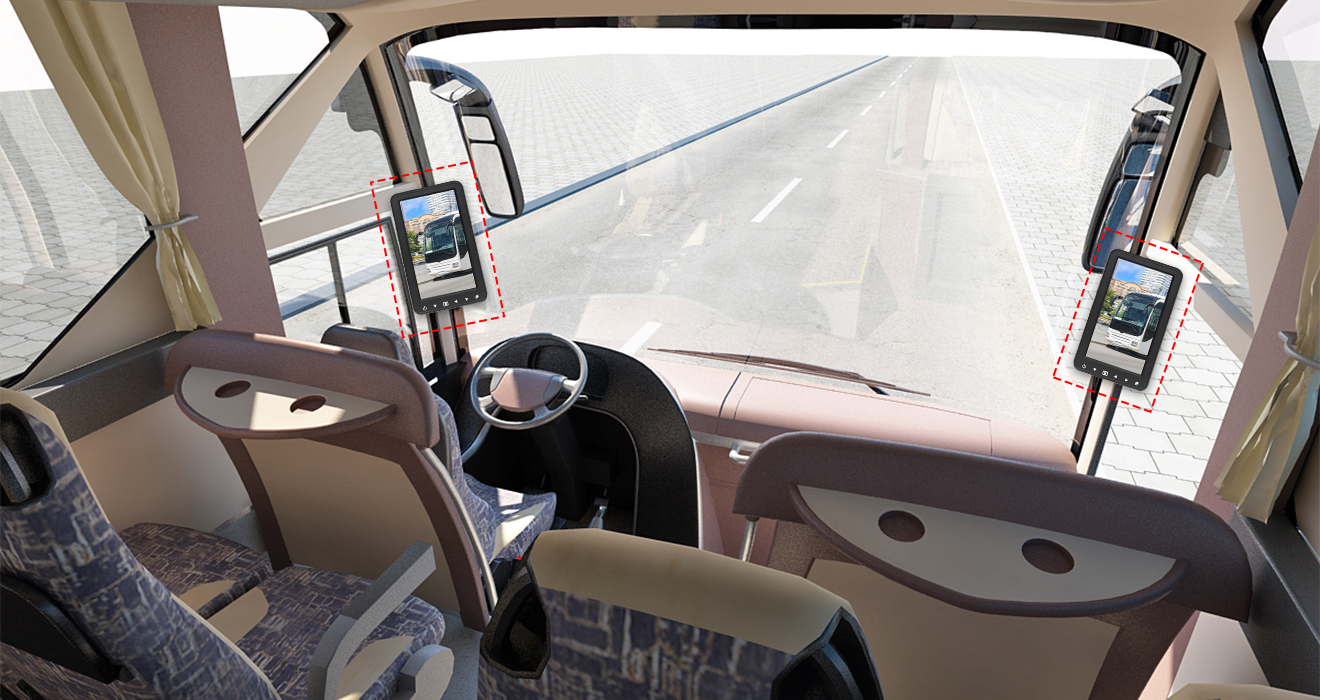

  • Summarize : Cameras are placed in the left and right positions of the vehicle to achieve left and right side monitoring of the vehicle, through the monitor single channel switching +2 split display, the driver can fully grasp the dynamics around the vehicle, effectively preventing collision and scraping accidents.
  • More Info : Online Service

Features

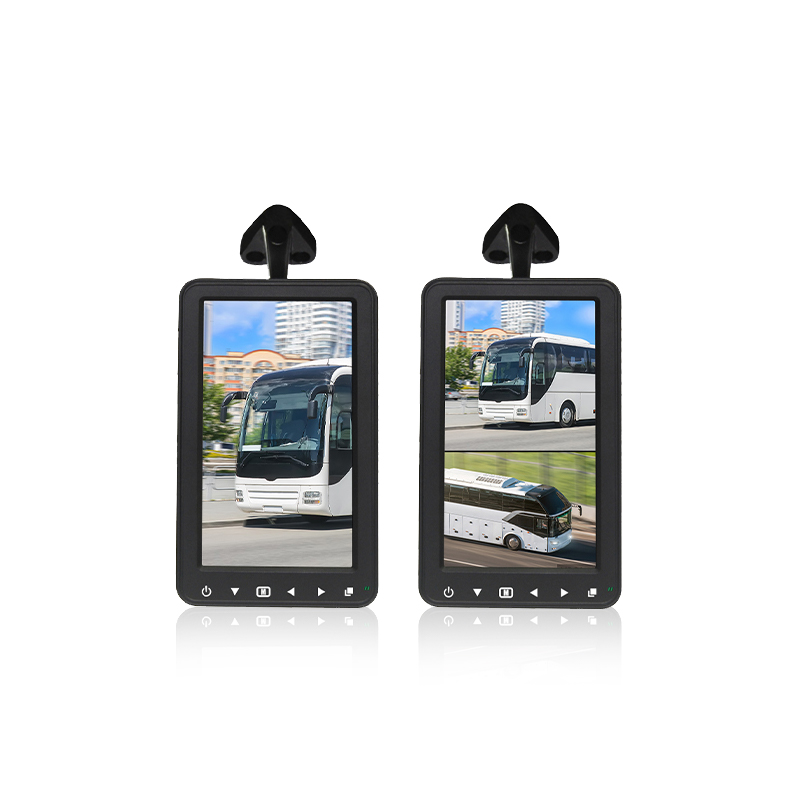

7-inch HD IPS screen monitor suppors split screen display, automative-grade DSP, OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

160° AHD camera automative-grade DSP, 720P HD pixel, IP69K Waterproof Rating, IR LED night vision function,  cold-resistant waterproof signal output cable.

4-core bronze avionics header double-shielded connecting cable, with good anti-interference,low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility.

Parameters

HD Camera Monitor (MHD-782)

Color Display Screen7-inch IPS screen
Resolution1024(H) X 600(V)dot
Video InputMax. support 2CH AHD1080P /720P/CVBS Video Signal Inputs
Picture Modesingle screen +split screen display
TV SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load dumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
Dimension(L x W x T) (193 x 118 x 35mm)

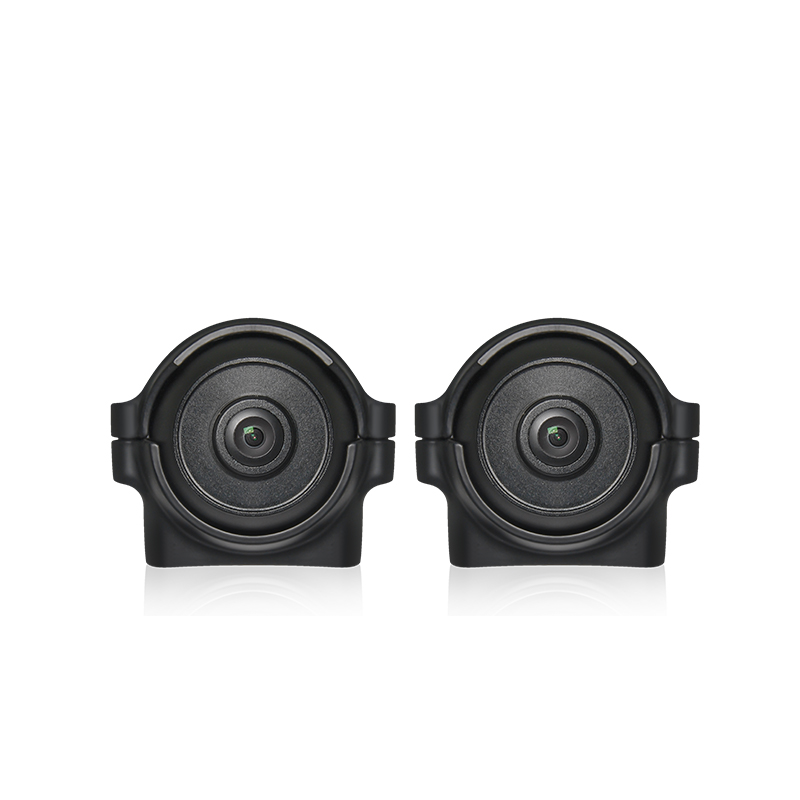

HD waterproof camera (CHD-19B1S)

Image Sensor1/2.8 Color Sony
Effective Pixel1280(H) X 720(V)
Definition720P
Visible Angle165°
Night Modefull-color starlight night vision
Waterproof RatingIP69K
Working VoltageDC12V±10%(powered by monitor)
Working Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Vibration ratingGB∕T 2423.56-2018 standard (random 5G vibration)
Dimension74(W) x 64(H) x 56(D) mm

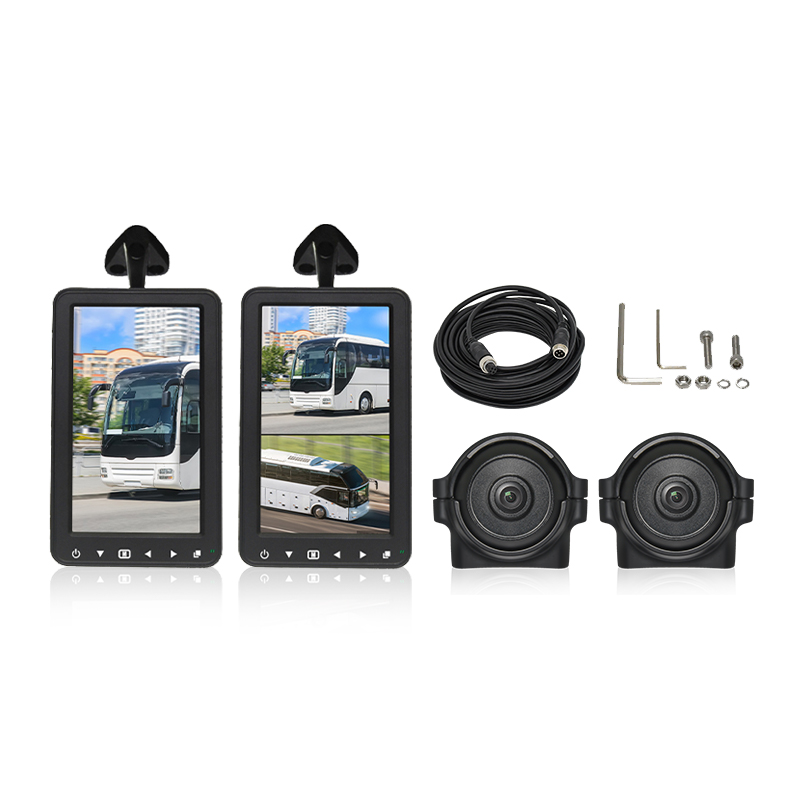

HD video signal cable (XC-HD0004-B-15M)

Interface4 pin aviation connector (male-female)
length15 meters
