Waterproof Quad Monitor Camera System

  • Model : HDS-754D192M4-256G

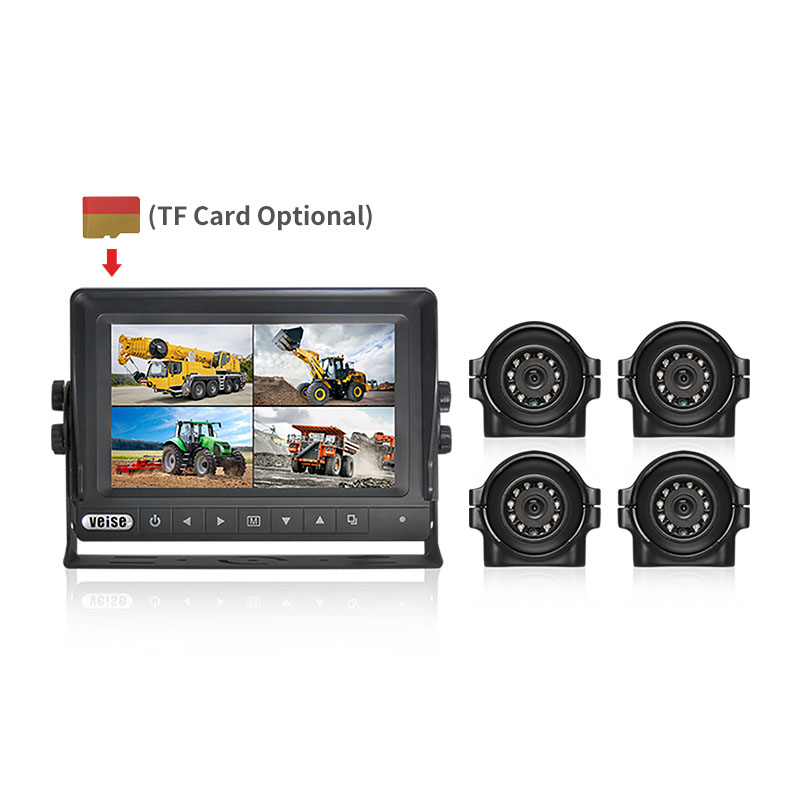

  • Summarize : This system uses four high-definition cameras placed at critical positions around the vehicle (front, rear, left, and right) to achieve 360-degree monitoring without blind spots. With the monitor's quad-split display feature, the driver can view the surveillance footage from all four directions in real-time, fully understanding the surroundings of the vehicle. The monitor supports built-in storage, enabling continuous recording of the surveillance videos, providing the driver with reliable driving records. The video files are automatically saved, making it convenient for later viewing and analysis, effectively preventing collisions and scrapes.
  • More Info : Online Service

Product Features

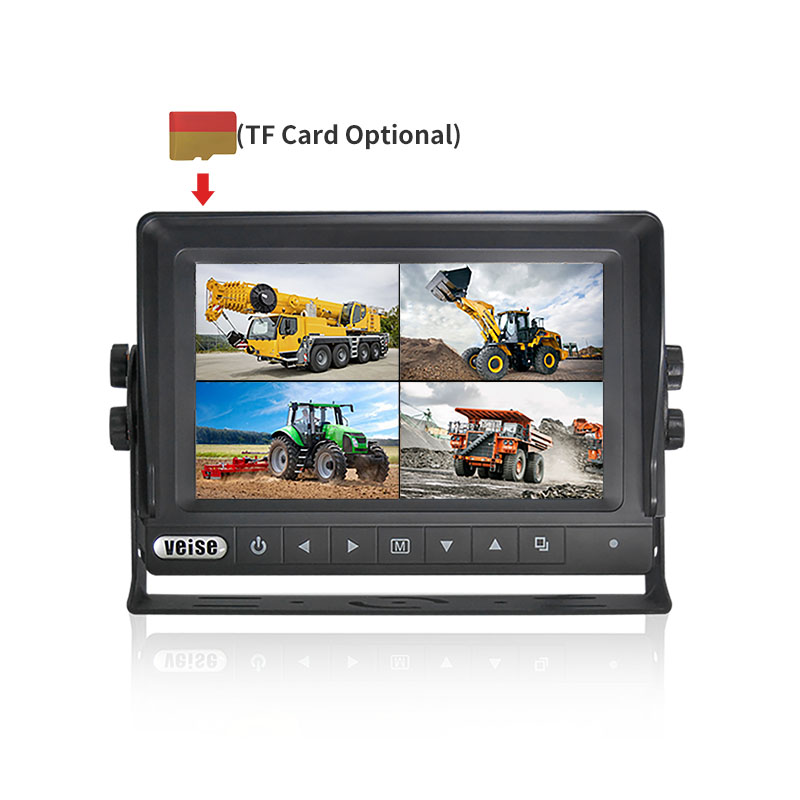

7-inch HD IPS screen waterproof monitor, supporting 4 screen split display, automative-grade DSP, OSD menu to set up the screen mirror or non-mirror image, reversing parking line, trigger priority functions respectively.

DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

AHD camera automative-grade DSP, 2 million HD pixels, IP69K waterproof rating, IR LED night vision function, cold-resistant waterproof signal output cable.

4-core bronze avionics header double-shielded connecting cable, with good anti-interference,low impedance, and small signal transmission attenuation. The aviation connector and tail line are using double injection molding, with good resistance to stretching and swaying ductility.

Product Parameters

Waterproof HD LCD Car Monitor (MHD-754D-256G)

Color Monitor Screen7-inch IPS IPS screen
Resolution1024(H) X 600(V)dot
Video InputMax. support 4CH AHD1080P/960P/720P/CVBS signal mixed input
Picture ModeSingle, dual, triple and quad Monitor
StorageBuilt-in TF card, max. support 512GB
TV SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Load DumpISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)
Waterproof RatingIP68
Vibration ratingGB∕T2423.56-2018 standard (random 5G vibration)
Working Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Working VoltageDC11-32V
Dimension(L x W x T) (218x 149x 82mm)

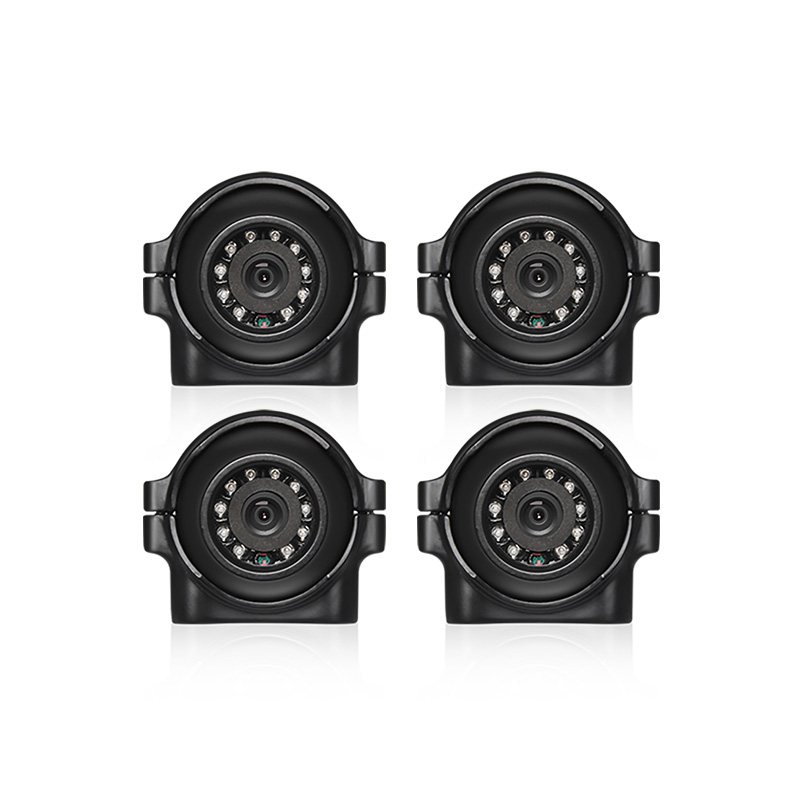

HD Car Waterproof Camera (CHD-192M)

Image Sensor1/2.8 Color Sony
Effective Pixel1920(H) X 1080(V)
Definition1080P
Visible Angle130°
Infrared Distance8meters (built-in 10pcs of 850nm infrared lights)
Waterproof RatingIP69K
Working VoltageDC12V±10%(be powered by the monitor)
Working Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Vibration ratingGB∕T2423.56-2018 standard (random 5G vibration)
Dimension74(W) x 64(H) x 56(D) mm

HD video signal cable(XC-HD0004-B-15M)

interface4 pin aviation connector (male-female)
length15 meters

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
