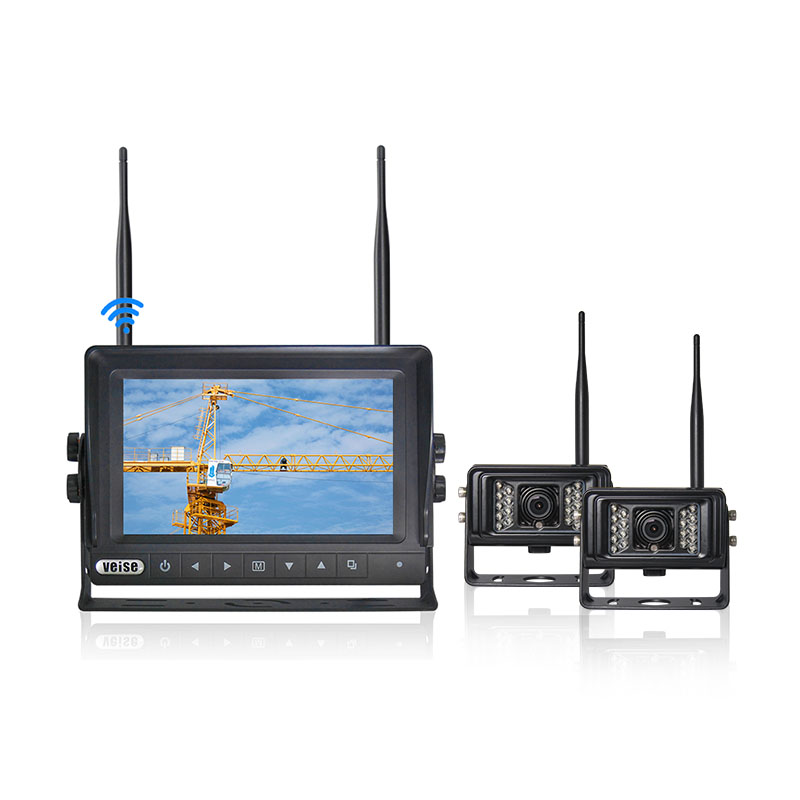

1080P Wireless Backup Camera

  • Model : HDWS-754H152M2
  • Summarize : A wireless monitoring system uses radio waves to transmit video, audio, control, and other signals and chooses to install a wireless video monitoring system quickly when it is impossible and inconvenient to construct wiring. The car wireless monitoring system is especially suitable for operating forklift trucks, cranes, building tower cranes, port container gantry cranes, and mobile monitoring requirements such as home and urban public security.
  • More Info : Online Service

Features

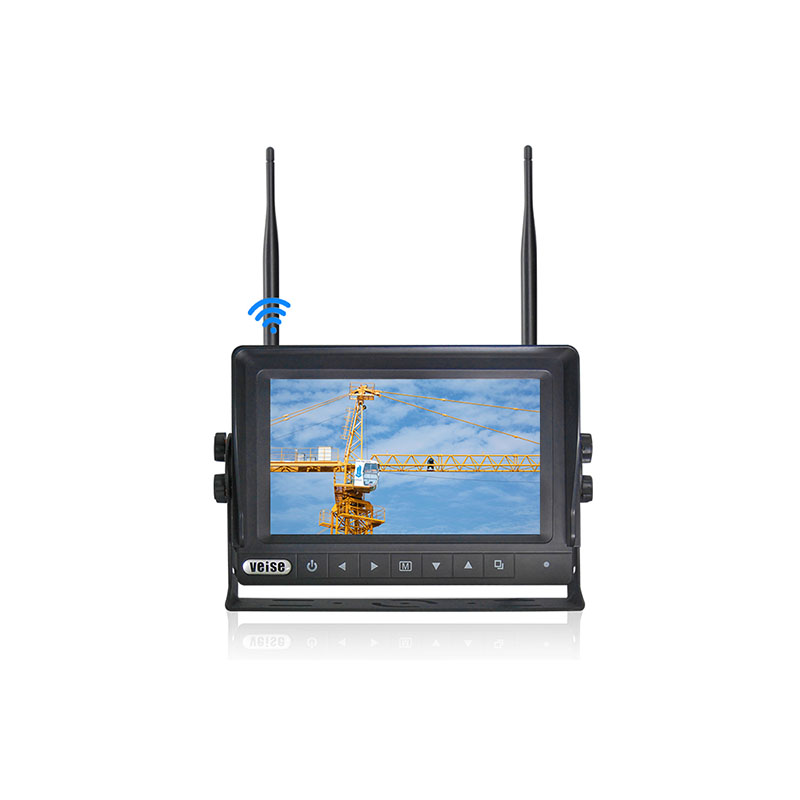

Wireless HD Camera Monitor

7-inch digital screen monitor built-in 2.4GHz wireless receiver, 1024x600 high Resolution and 600cd/㎡

Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 100 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

Front plastic and rear aluminum all-sealed pressure balanced patented waterproof structure design, Waterproof Rating IP68.

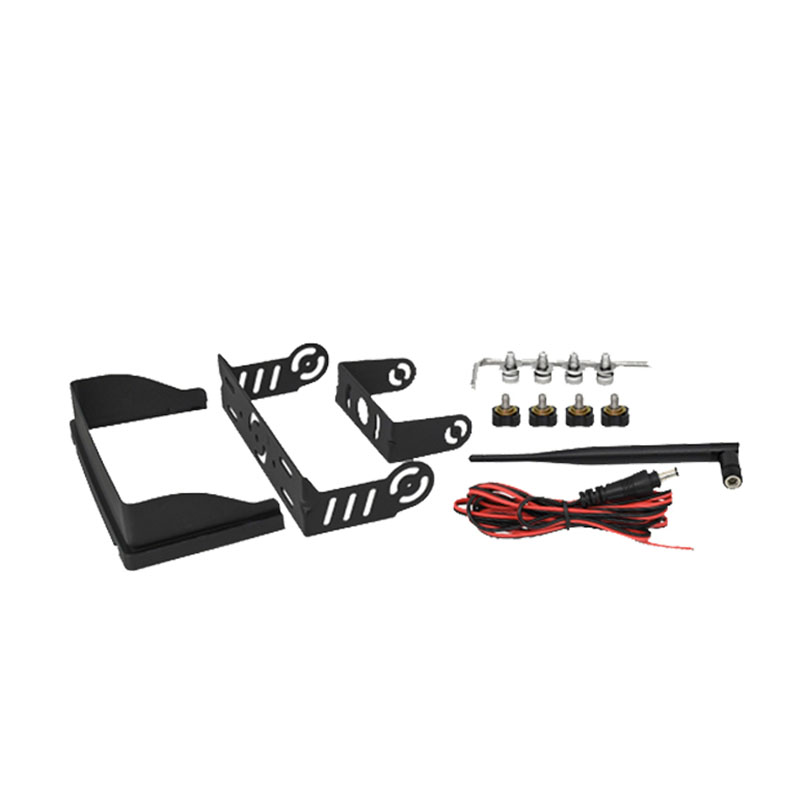

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening anti-vibration design.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period.

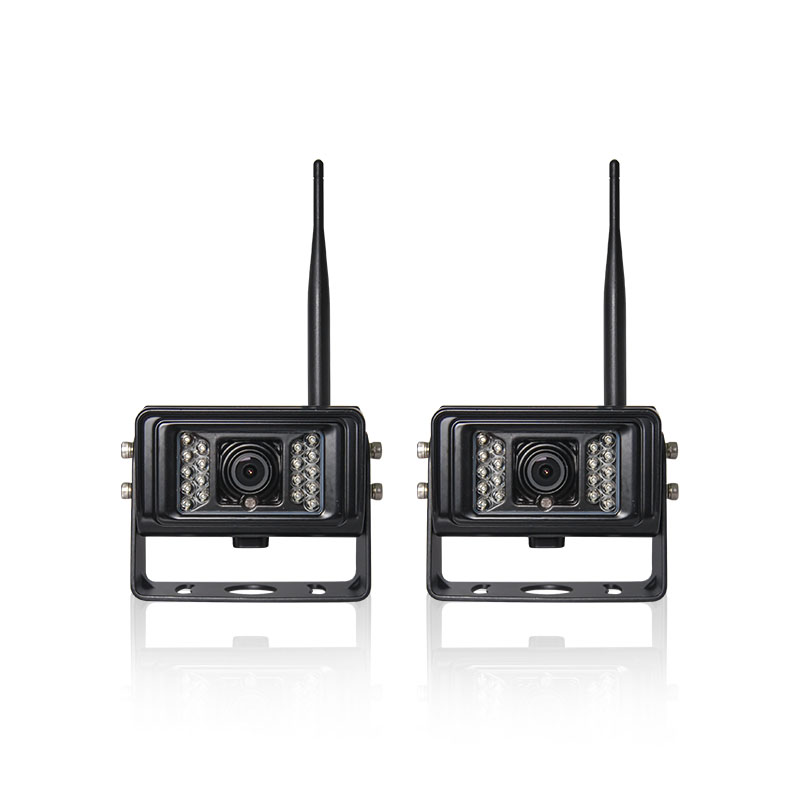

Wireless HD Rear View camera

1080P 2.4GHz wireless camera, automotive-grade DSP,millions of high-definition pixels, IP69K Waterproof Rating, IR LED night vision function.

Parameter

Waterproof wireless HD Camera Monitor (MWHD-754H)

Display screen

7-inch IPS screen

Wireless receiving

built-in 2.4G wireless receiver

Picture mode

signle picture/double pictures /

Operating frequency

2400〜2483.5MHZ

Receiving sensitivity

≤-86 dB

Receiving distance

open space ≤200 meters

Multiple frequency point automatic frequency hopping channel code

80

Resolution

1024(H) X 600(V)dot

Color system

PAL/NTSC (AUTO)

Brightness(cd/m2)

600

Load dump

ISO16750-2 standard (24V system Us=174V,Ri= 4Ω,td=350ms)

Prevention grade

IP68

Anti-vibration Grade

GB∕T2423.56-2018 standard (random 5G vibration )

Operating Temperature

-20℃ to +70℃

Storage tmperature

-30℃ to +80℃

Operating voltage

DC8-32V

Outer dimension

(L x W x T) (218 x 150 x 54mm)

Wireless HD waterproof rear view camera (CWHD-152M)

Image Sensor

1/3.7 Color DSP

Wireless transmission

built-in 2.4G digital wireless transmitter

Transmit frequency

18dBm

Transmit distance

open space≤100 meters

Resolution

1080P

Effective Pixels

1920(H) X 1080(V)

Visible angle

130°

Infrared distance

15 meters

Shell Material

aluminum alloy

Waterproof Grade

IP69K

Operating voltage

DC8-32V

Operating Temperature

-20℃ to +60℃

Storage Temperature

-30℃ to +70℃

Anti-vibration Grade

GB∕T2423.56-2018 standard (random 5G vibration )

Outer dimension

106(W) x 75(H) x 70.4(D) mm
