Wireless Work Light Camera System

  • Model : HDWS-774H262M2

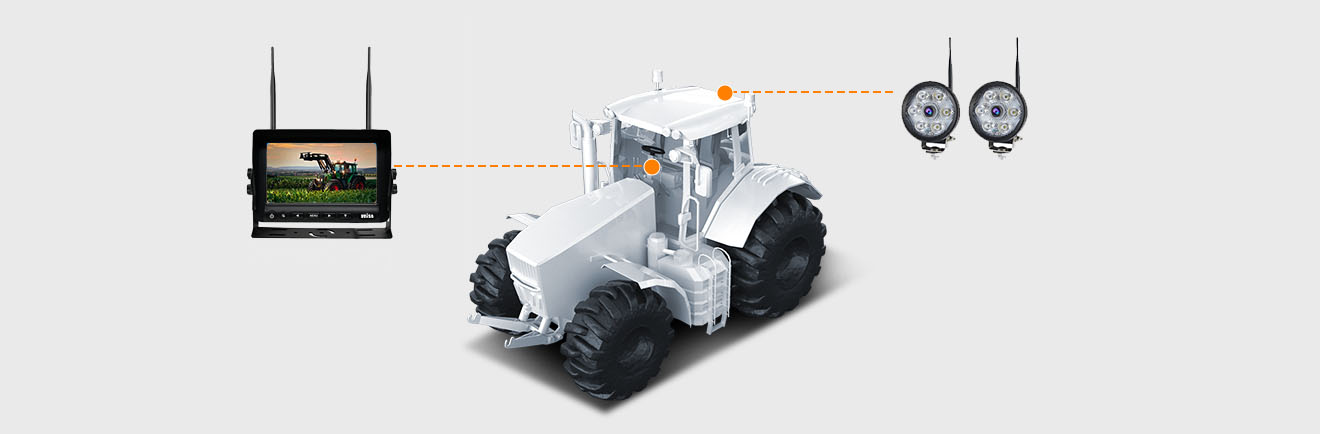

  • Summarize : Engineering machinery and equipment vehicles, agricultural machinery and equipment vehicles, municipal environmental sanitation cleaning vehicles, etc. have the characteristics of wide-body width and long axis, and high driving position. There is a large driving visual safety blind zone around the vehicle. Especially at night when the visibility is low, the safety hazards around the body increase. The wireless camera monitoring system for car lights integrates the wireless camera with the car lights as a whole design, eliminating the complex construction of separated wiring. The wireless camera combines with the strong supplementary light of 18W LED car lights, making the vehicle driving night operation more safe and efficient.
  • More Info : Online Service

Features

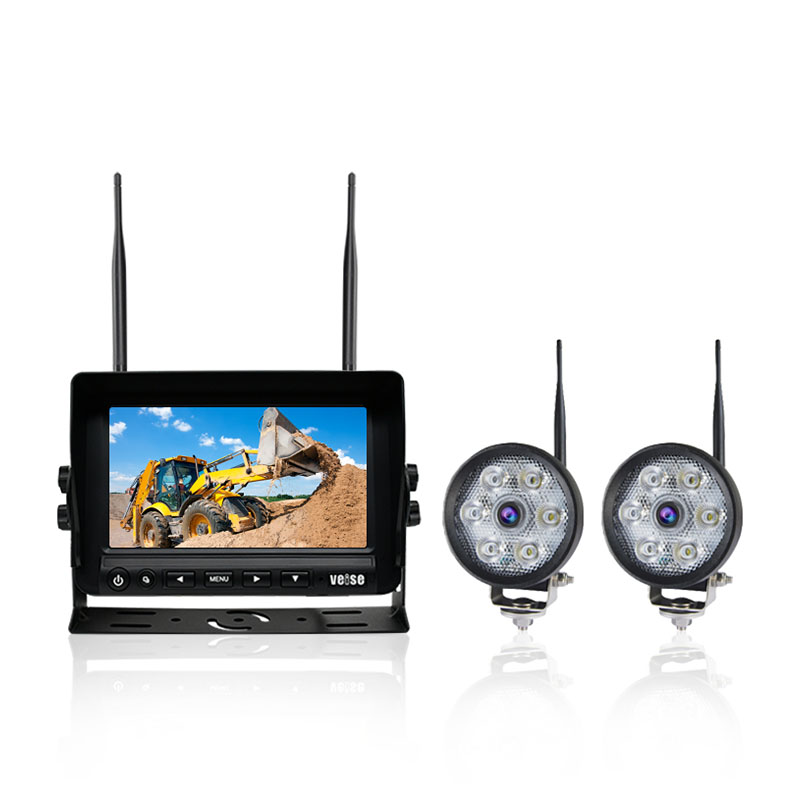

Wireless HD Camera Monitor

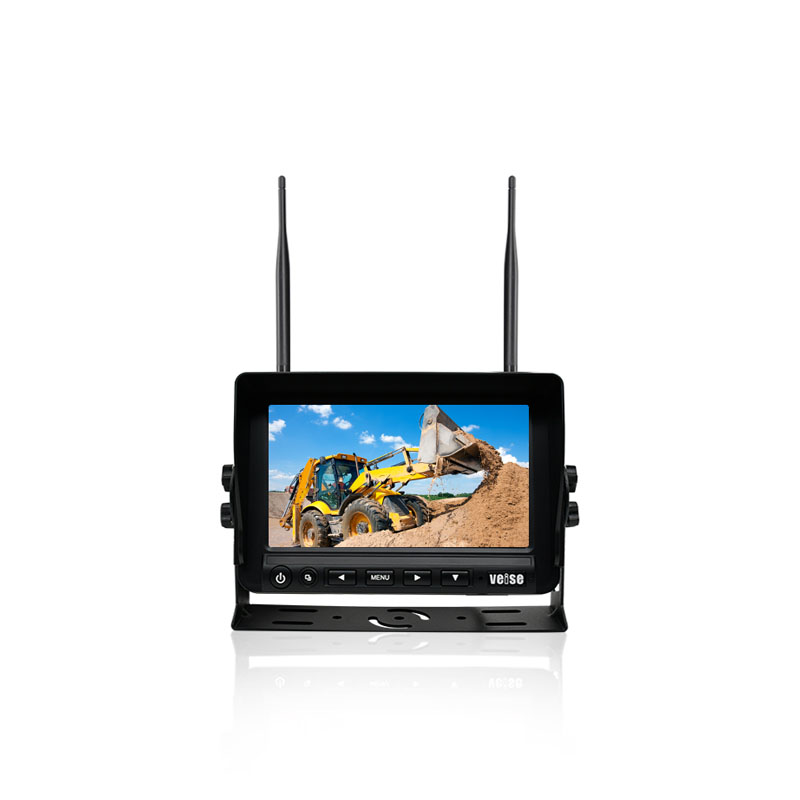

7-inch digital screen monitor built-in 2.4GHz wireless receiver, 1024x600 high Resolution and 600cd/㎡ high-brightness screen.

Multiple frequency point frequency hopping code matching, anti-channel hopping interference, and open transmission distance of 200 meters.

Automotive industry grade DSP, and graphical OSD menu separately sets the functions of picture mirror image and positive image, reversing scale, and trigger priority application.

The bracket is made of rust-proof metal Material, with U-shaped + double-sided fastening anti-vibration design.

Wide Working Voltage DC8~32V, dump load pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current constant voltage protection circuit design to avoid improper use, damage from vehicle pulse voltage, and guarantee of warranty period

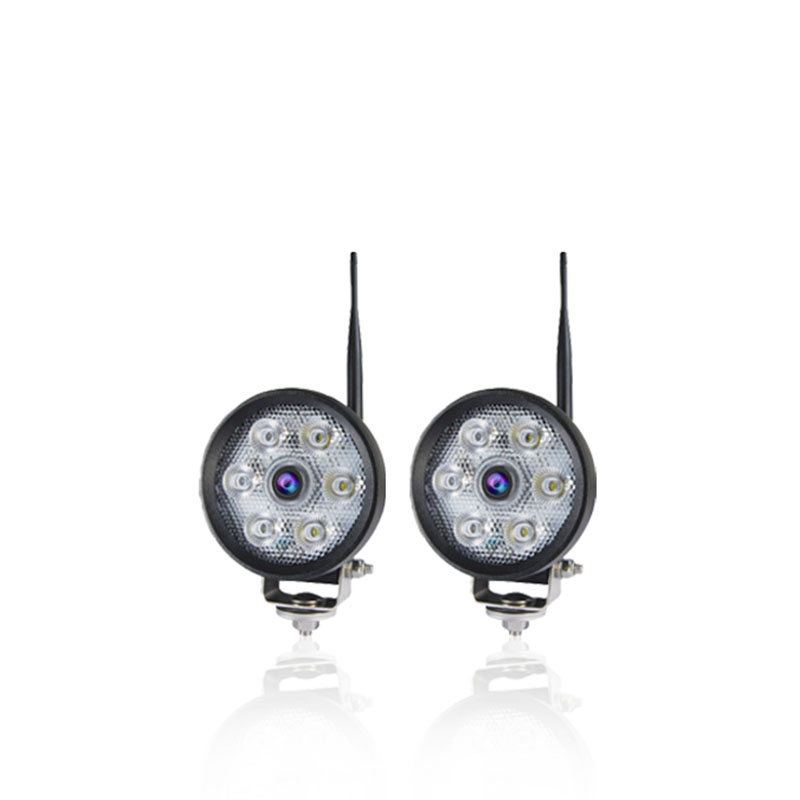

Wireless HD Work Light Camera

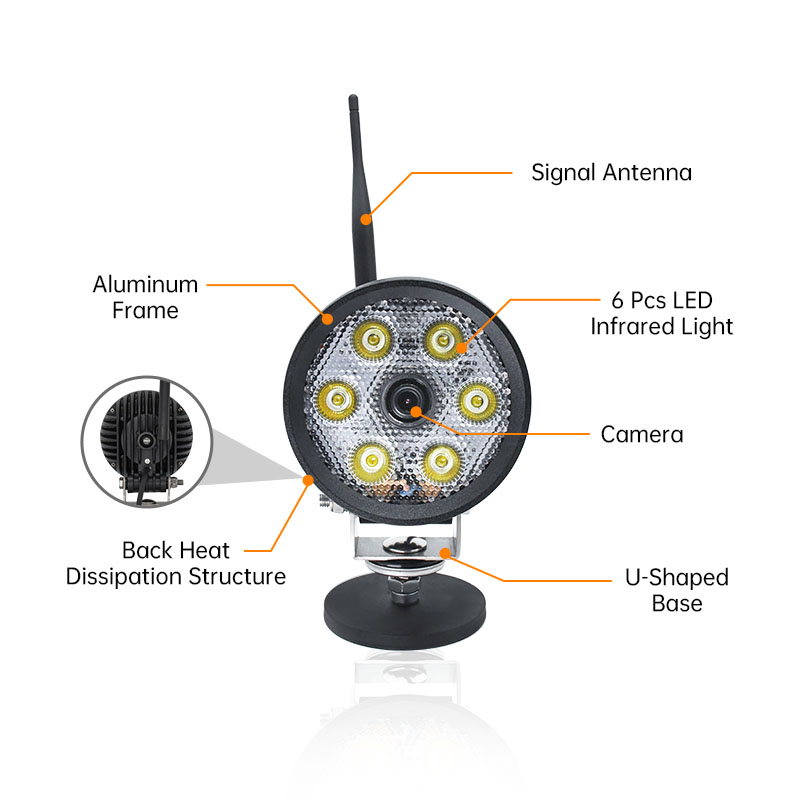

The wireless car light camera is designed as an integrated unit by the high-definition camera and 18W working lamp, to solve the safety hazards brought about by the insufficient infrared light of the monitoring camera during the night operation of engineering machinery and equipment vehicles.

18W LED, the LED aluminum-based circuit board is equipped with a wide range Working Voltage DC10-30V circuit, reverse polarity, vehicle pulse voltage protection circuit, and electronic thermal management control circuit to ensure the stability of the product.

PMMA acryllic Lens, aluminum alloy fish scale type heat dissipation shell, fully sealed pressure balance in the center of the patent and shockproof design, with a Waterproof Rating of IP69K.

Parameter

HD Wireless Backup Camera Monitor(MWHD-774H)

Display screen 7-inch IPS screen
Wireless Reveiving built-in 2.4G wireless reveiver
Picture Modesingle-picture/double-picture/three-picture/four-picture
Operating Frequency2400〜2483.5MHZ
Receiving Sensitivity≤-86 dB
Receiving DistanceOpen area≤200 meters
Multiple frequency point automatic frequency hopping channel code matching selection80
Resolution1024(H) X 600(V)dot
Color SystemPAL/NTSC (AUTO)
Brightness (cd/m2)600
Resist dump load pulse voltage24V standard Us=174V,Ri= 4Ω,td=350ms ( ISO16750-2 standard))
Anti-vibration GradeGB∕T 2423.56-2018 standard(random 5G vibration)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating TemperatureDC8-32V
Outer Dimension(L x W x T) (216 x 150 x 80mm)

Wireless HD Work Light Camera(CWHD-262M)

Image Sensor1/3.7 Color DSP
Wireless Transmissionbuilt-in 2.4G digital wireless transmitter
Trasmission Power18dBm
Transmission Distanceopen area≤200 meters
Resolution 1080P
Effective Pixels 1920(H) X 1080(V)
Operating light power18w(6pcs LED3w CREE)
Operating Light Flux>1150lm
Visible Angle130°
Housing MaterialDie-cast aluminum alloy shell + PMMA Lens
Temperature Control FunctionBuilt-in constant temperature control circuit design
Waterproof GradeIP69K
Operating VoltageDC8-32V
Operating Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Anti-vibration GradeGB∕T 2423.56-2018 standard(random 5G vibration)

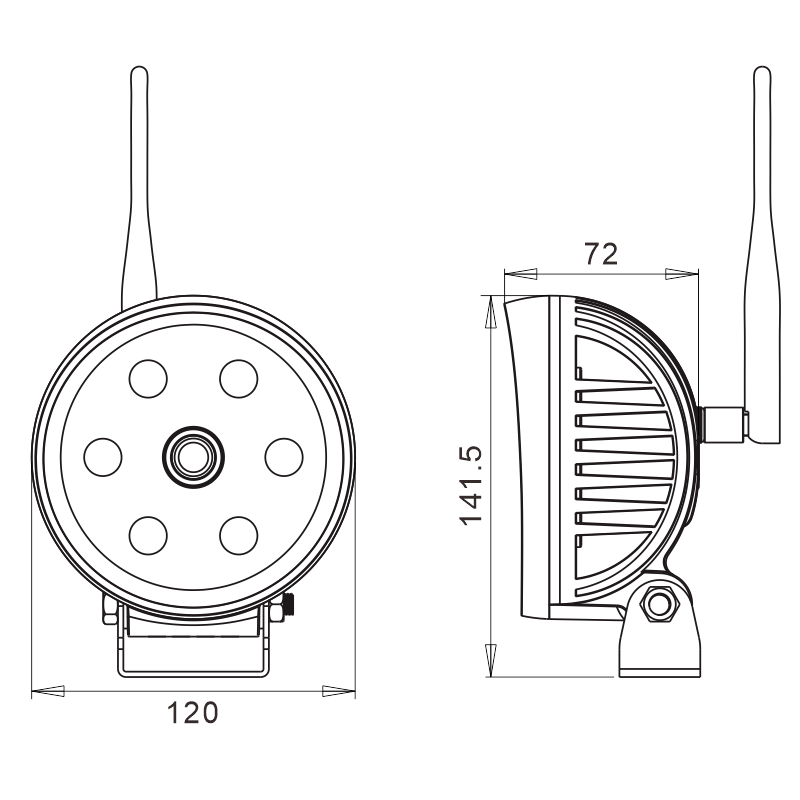

Size72(W) x 141.5(H) x 120(D) mm
