Product Features

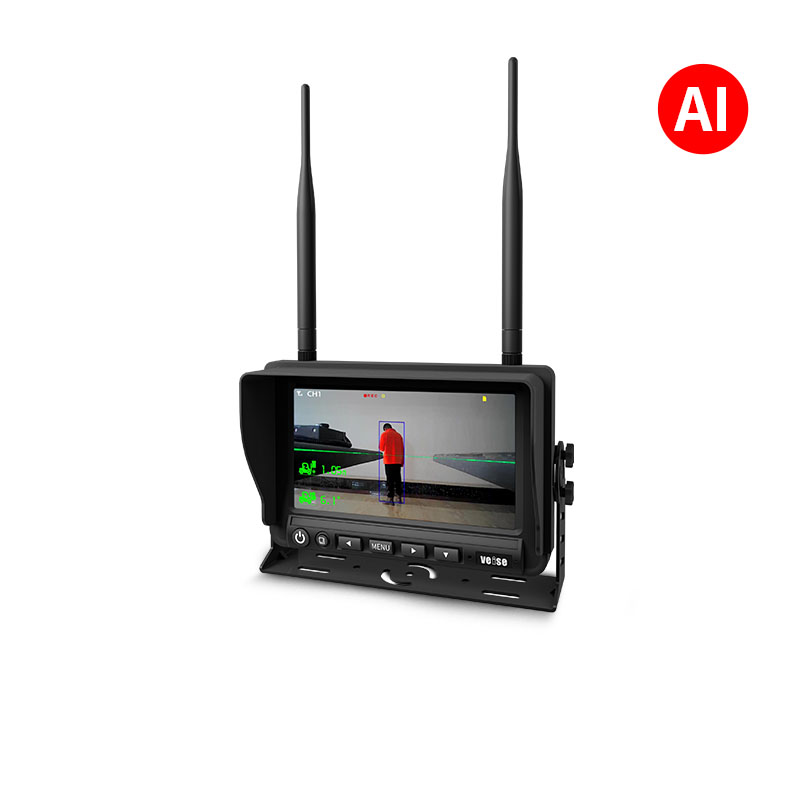

Wireless HD LCD Vehicle Monitor
I. Core Hardware Specifications
7-inch high-resolution LCD display with 1024×600 resolution, housing made of high temperature resistant ABS material
Ultra-wide voltage input DC 8V–32V, compatible with power systems of all forklifts and industrial vehicles
Built-in 2.4GHz dual-antenna wireless receiver module, stable transmission distance up to 100 meters in open area
II. Display & Operation Functions
Supports 4-channel wireless digital video input, free switching among single-screen, dual-screen and quad-screen modes
Supports automatic cyclic screen switching; each channel image can be independently flipped vertically or horizontally
Equipped with adjustable reverse guidelines, supporting straight and cross auxiliary lines; independent parameter configuration for each channel via OSD menu
III. Safety & Reliability
Built-in reverse polarity protection circuit to effectively prevent equipment damage caused by misoperation
Adopts constant current circuit design for backlight, greatly extending service life
Compact integrated structure with 8G shock resistance, perfectly suitable for the bumpy working environment of forklifts
IV. Additional Functions
Real-time battery level monitoring, automatic alert when power is below 10%
Supports local video recording with automatic loop overwrite, AVI format, single 3-minute file approx. 5MB
Supports video playback and storage device formatting for convenient post-operation review
Product Parameters
Wireless HD LCD Vehicle Monitor (MWHD-772MAI) |
| Color LCD Screen | 7-inch IPS screen |
| Wireless Reception | Built-in 2.4G wireless receiver |
| Display Modes | Single / Dual / Triple / Quad screen |
| Operating Frequency | 2400〜2483.5MHZ |
| Recording Function | Supports up to 256GB TF card |
| Video File Format | AVI |
| Receiving Sensitivity | ≤ -86 dBm |
| Reception Distance | ≤ 100 meters in open area |
| Resolution | 1024 x 600 |
| Color System | PAL/NTSC (AUTO) |
| Brightness | 600 |
| Load Dump | Compliant with ISO 16750-2 (24V system Us=174V, Ri=4Ω, td=350ms) |
| Vibration Resistance | 5G (Compliant with GB/T 2423.56-2023) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC11-32V |
| Dimensions | 218 x 150 x 84 mm |

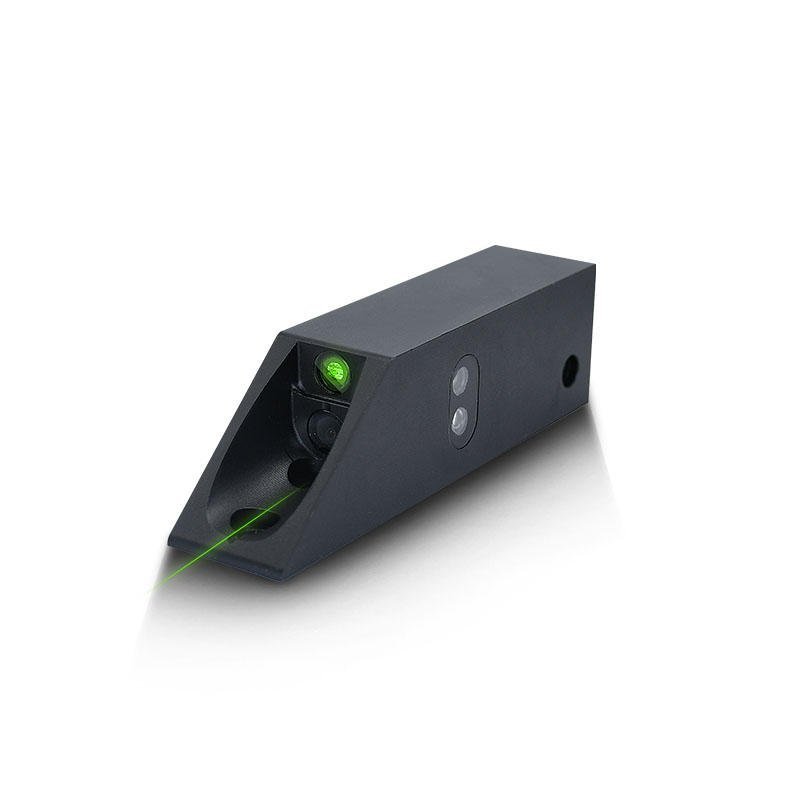

Wireless Camera with Built-in Straight-Line Laser Positioning (CWHD-23T1-AI) |
| Image Sensor | 1/2.9" Color CMOS |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Distance | ≤ 100 meters in open area |
| Resolution | 720P |
| Effective Pixels | 1280 x 720 |
| Viewing Angle | 52° |
| Housing Material | Aluminum alloy, anti-collision design |
| Laser Positioning | Green straight-line laser |
| Waterproof Rating | IP69K |
| Operating Voltage | DC12V |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +70℃ |
| Vibration Resistance | 5G (Compliant with GB/T 2423.56-2023) |
| Dimensions | 130 x 37 x 30 mm |

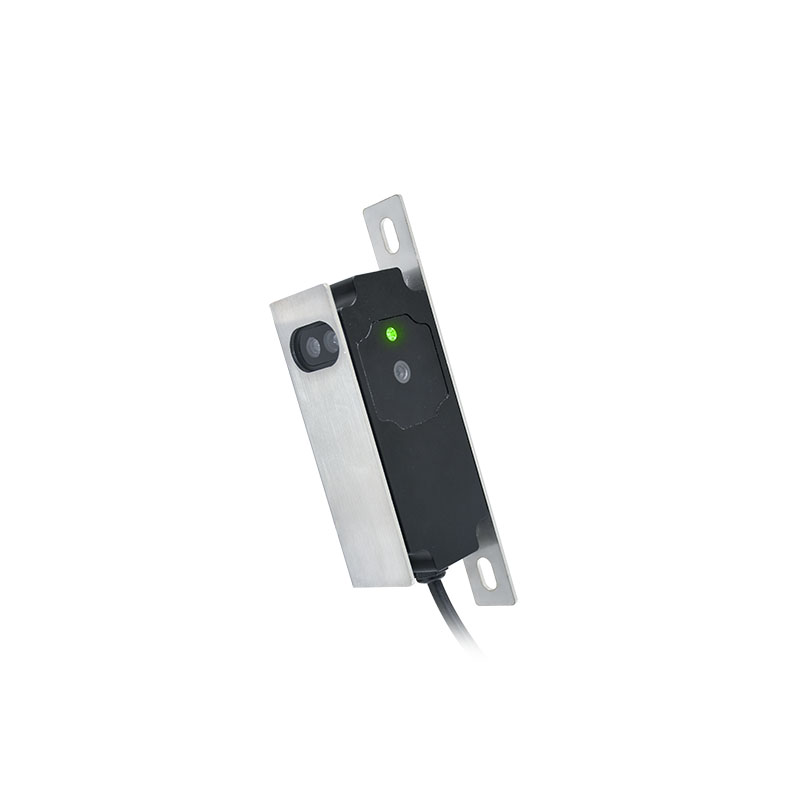

Height Limit Warning Wireless Camera (CWHD-23R1-AI) |
| Image Sensor | 1/2.9 Color CMOS |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Distance | ≤ 100 meters in open area |
| Resolution | 720P |
| Effective Pixels | 1280 x 720 |
| Viewing Angle | 72° |
| Housing Material | Aluminum alloy, anti-collision design |
| Laser Positioning | Green straight-line laser |
| Waterproof Rating | IP69K |
| Operating Voltage | DC12V |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +70℃ |
| Vibration Resistance | 5G (Compliant with GB/T 2423.56-2023) |
| Dimensions | 152 x 47 x 33 mm |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
