Technical Interpretation:
UWB (Ultra-Wide-Band) is a wireless communication method that uses nanosecond non-sinusoidal narrow pulses to transmit data, and this technology adopts high bandwidth and fast pulses with excellent penetration and anti-interference.
This positioning system adopts TOF/TDOA algorithm, based on UWB ranging technology and time-difference positioning technology, the ranging accuracy reaches within 10cm in the laboratory environment; in the ordinary environment, the positioning accuracy can still be maintained within 30cm, and the ranging distance can be up to the level of kilometres.
The system has the advantages of high accuracy, low power consumption, low cost, easy deployment, etc. It is used for high-accuracy positioning of people and objects in complex environments, and solves the demand for accurate positioning based on one-dimensional, two-dimensional and three-dimensional scenes.
Product Parameters:

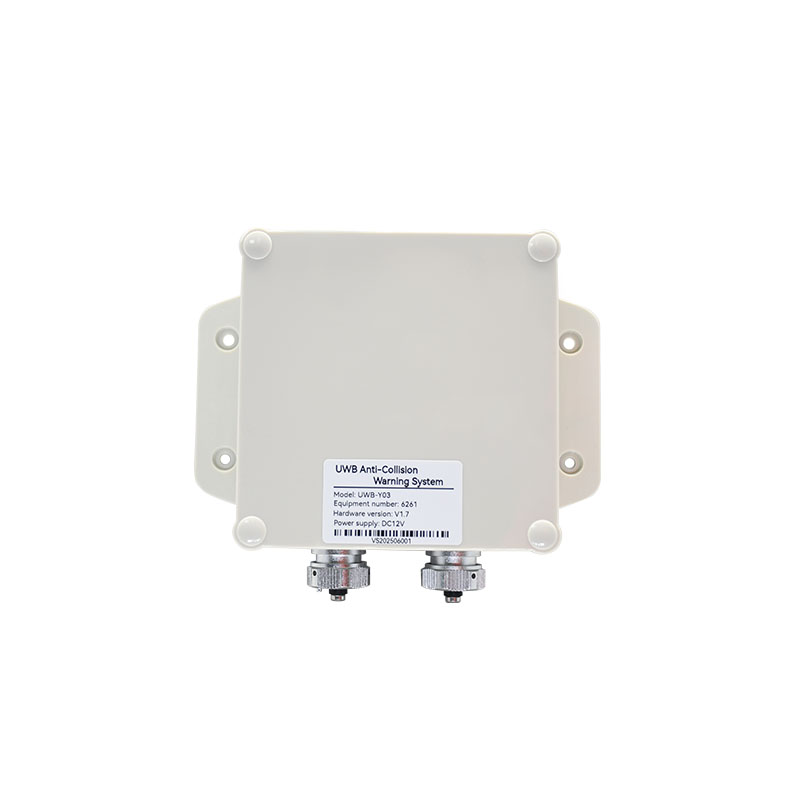

UWB Anti-Collision Warning Unit (Model: UWB-Y03)
| Item | Value |
|---|
| Model | UWB-Y03 |
| Operating Voltage | +9V ～ +12VDC |
| Operating Current | < 500 mA |
| Communication Interface | TTL232 |
| Baud Rate | 115200 bps |
| Mean Time Between Failures (MTBF) | ≥ 70000 hours |
| Link Modulation | BPM/BPSK |
| Operating Frequency | 3.5 – 6.5 GHz |
| Transmission Rate | 110 kbps, 850 kbps |
| Output Power | -41.3 dBm/MHz |
| Antenna Polarization | Vertical |
| Reading & Writing Area | Omnidirectional range |
| Microwave Communication Distance | Radius 100 m |
| Multi-level Early Warning | Level 1, Level 2, Level 3 (customizable & adjustable) |
| Non-reporting Warning | User-friendly operation, driver-free reporting |
| Warning Method | Level 1: alarm sound & light reminder; Level 2 & 3: dry contact output for linkage |
| Error Detection | FEC/CRC bits |
| Bit Error Rate (B.E.R) | 10⁻⁷ |
| Anti-magnetic Interference | 10 V/m, 0.1–1000 MHz AM electromagnetic wave |
| Operating Temperature | -20℃ ～ +60℃ |
| Storage Temperature | -40℃ ～ +80℃ |
| Housing Material | ABS |
| Anti-vibration Level | 5G |
| Protection Rating | IP67 |
| Product Dimensions | 118×118×62 (fixed ear single side MAX 25 mm) |

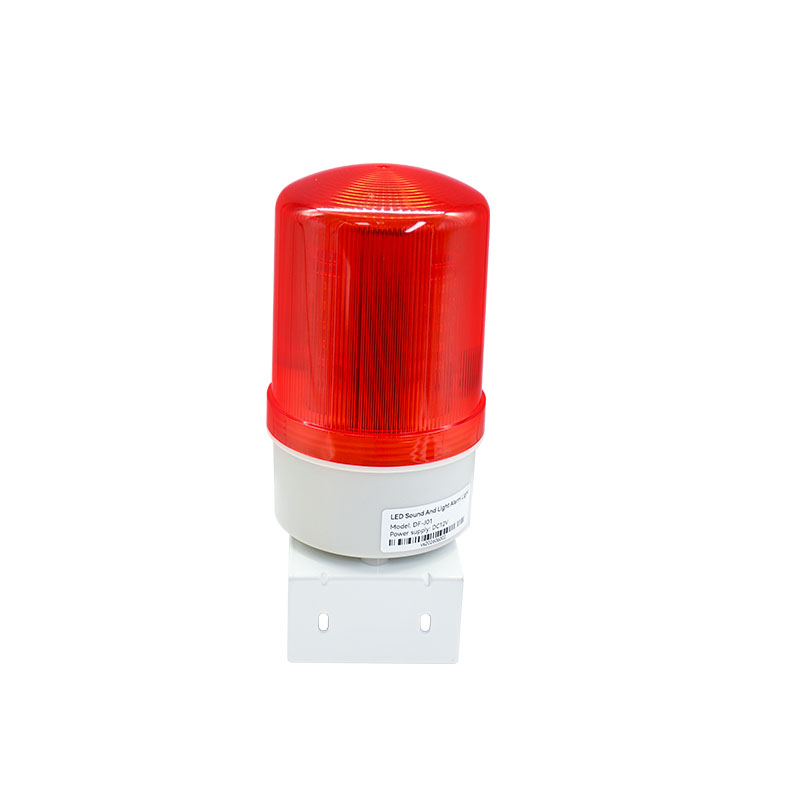

Audible and visual alarm (Model: DF-J01)
| Item | Value |
|---|
| Operating Voltage | +9V ～ +12VDC |
| Operating Current | < 500 mA, < 5 W |
| Communication Interface | I/O Port |
| LED Mode | Red light flashing |
| Warning Method | Audible and visual alarm, max 105 dB
Level 1: DIDI…
Level 2: DI-DI-DI
Level 3: DI
|
| Operating Temperature | -20℃ ～ +60℃ |
| Storage Temperature | -40℃ ～ +80℃ |
| Tail Cable Interface | 1.5 m connector wiring harness |
| Housing Material | ABS |
| Anti-vibration Level | 5G |
| Protection Rating | IP65 |
| Product Dimensions | 160 × D95 (fixed with 3 × M4 screws) |

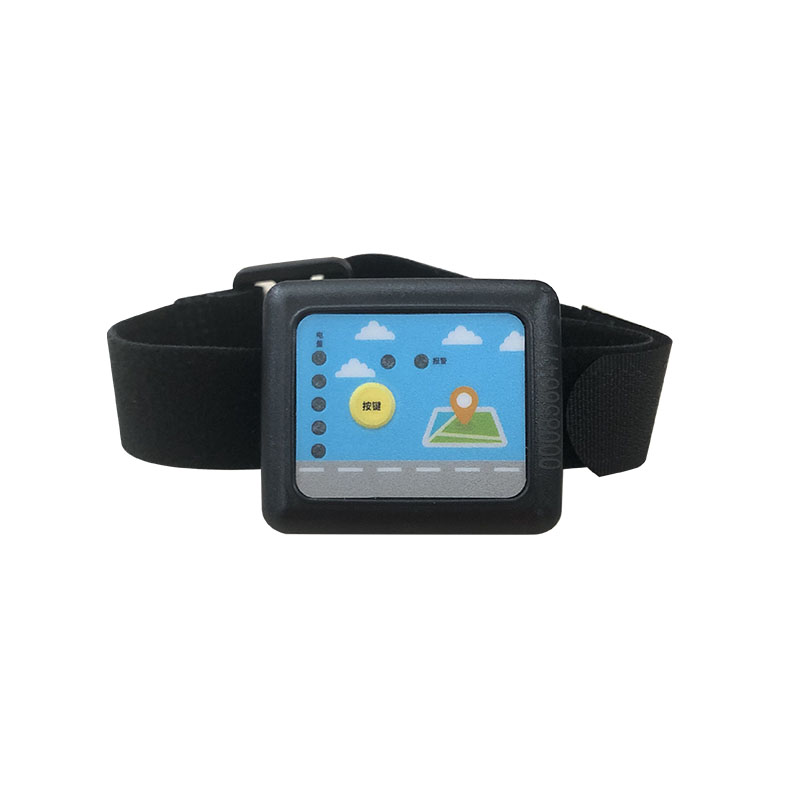

Wristband-style vibrating tag (Model: DF-S01)
| Item | Value |
|---|
| Model | DF-S01 |
| Product Dimensions | 47×40×18 mm (PVC panel customizable) |
| Weight | Approx. 28 g |
| Housing Material | High-temperature modified ABS plastic |
| Interface | Micro-USB (DC 5V) or contact/pogo pin type |
| Antenna Type | Built-in omnidirectional ceramic antenna |
| Wearing Method | Wrist strap, keychain, inside safety helmet |
| Alert Method | Vibration |
| Battery Indicator | Indicator light |
| Static Current | < 10 μA |
| Operating Current | < 25 mA |
| Operating Voltage | 3.3 V |
| Power Supply | Built-in rechargeable battery |
| Battery Life | 3 years |
| Transmission Rate | Once every 0.2 seconds |
| Battery Nominal Voltage | 3.7 V |
| Battery Operating Voltage Range | 4.2 V – 3.0 V |
| Over-Discharge Protection Cutoff Voltage | 3.0 V ± 56 mV |
| Operating Temperature | -20℃ ~ 80℃ |

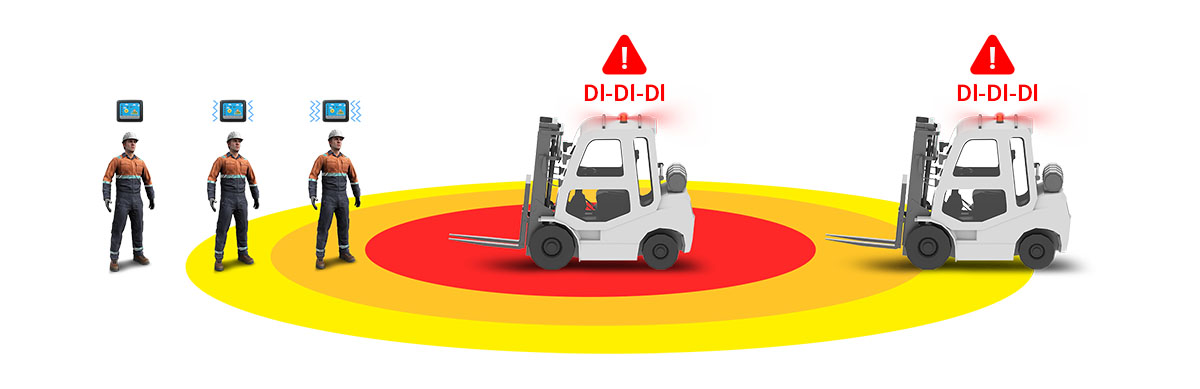

Product Applications:
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
