Technical Interpretation:
UWB (Ultra-Wide-Band) is a wireless communication method that uses nanosecond non-sinusoidal narrow pulses to transmit data, and this technology adopts high bandwidth and fast pulses with excellent penetration and anti-interference.
This positioning system adopts TOF/TDOA algorithm, based on UWB ranging technology and time-difference positioning technology, the ranging accuracy reaches within 10cm in the laboratory environment; in the ordinary environment, the positioning accuracy can still be maintained within 30cm, and the ranging distance can be up to the level of kilometres.
The system has the advantages of high accuracy, low power consumption, low cost, easy deployment, etc. It is used for high-accuracy positioning of people and objects in complex environments, and solves the demand for accurate positioning based on one-dimensional, two-dimensional and three-dimensional scenes.
Product Parameters:
| Category | Specific Parameters |
|---|
| Electrical Characteristics | Quiescent Current: Less than 3μAOperating Current: Less than 500mAOperating Voltage: 9 - 12V DCOperating Frequency: 3 times/2 seconds (customizable)Maximum Power: 5W |
| Operating Environment | Operating Temperature: -15℃ ~ +85℃Operating Humidity: Less than 95%, no condensationStorage Temperature: -25℃ ~ +90℃Free Drop: 1000mm concrete floor, 5 times on each surfaceAnti - Electromagnetic Interference: 10V/m 0.1 ~ 1000MHz AM Modulated Electromagnetic Wave |
| Microwave Link | Signal Modulation Method: TDOACommunication Rate: Bidirectional 204.8Kbit/sOperating Frequency: 4.85GHzOutput Power: ≤0dBmCommunication Distance: ≤100mTTL232 Baud Rate: 115200 bpsBit Error Rate: 10⁻⁹ |
| Physical Characteristics | Shell Material: High - temperature Modified ABS Engineering PlasticLabel Type: Read - only TypeAppearance Dimensions: D=9.8, H=152 (foot fixed foot 18) mmProduct Weight: 285gMTBF≥70000 hoursFactory Preset: 5m AlertProtection Class: IP54 CT4 |
| Product Features | Long - distance Coverage with No Seam and No Dead AngleMinimum Precision Error Less than 10cmNo Polarization in Omnidirectional RangeMicrowave Communication Distance Can Be Set IndependentlyStrong Ability to Resist Multipath FadingSupports Precise Positioning and Simultaneous Data TransmissionIntensive Product Structure DesignRich Application Scenarios and Excellent Reliability |

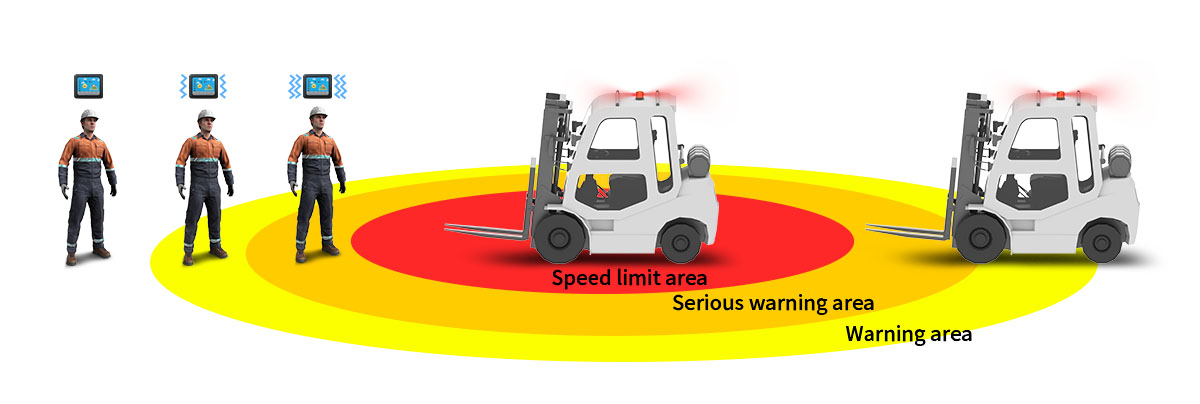

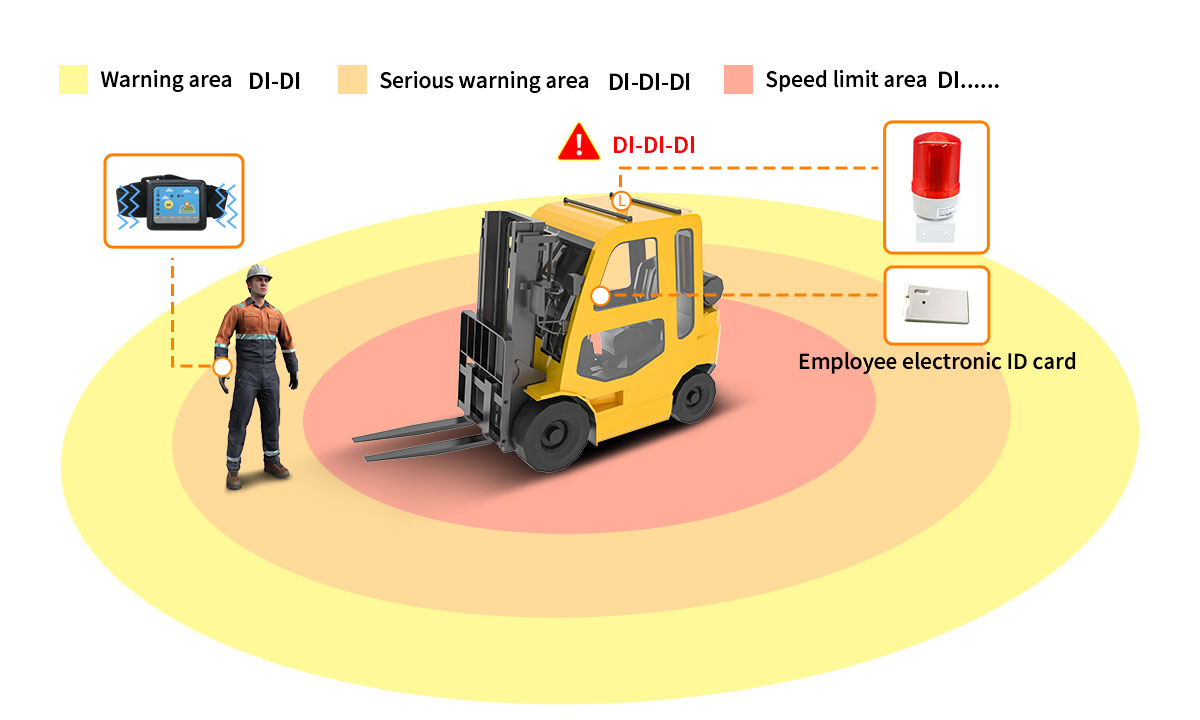

Product Applications:
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
