Product Features
This CHD-816ZR-XG camera is equipped with a GC2053 image sensor and supports the PAL video system. It can output AHD1080P high-definition video at 1920×1080 resolution and 25 frames per second, with an image clarity of 1920TVL.
It has a minimum illumination of 0.01Lux, features starlight full-color night vision, and offers a viewing angle of 110° (80° horizontal).

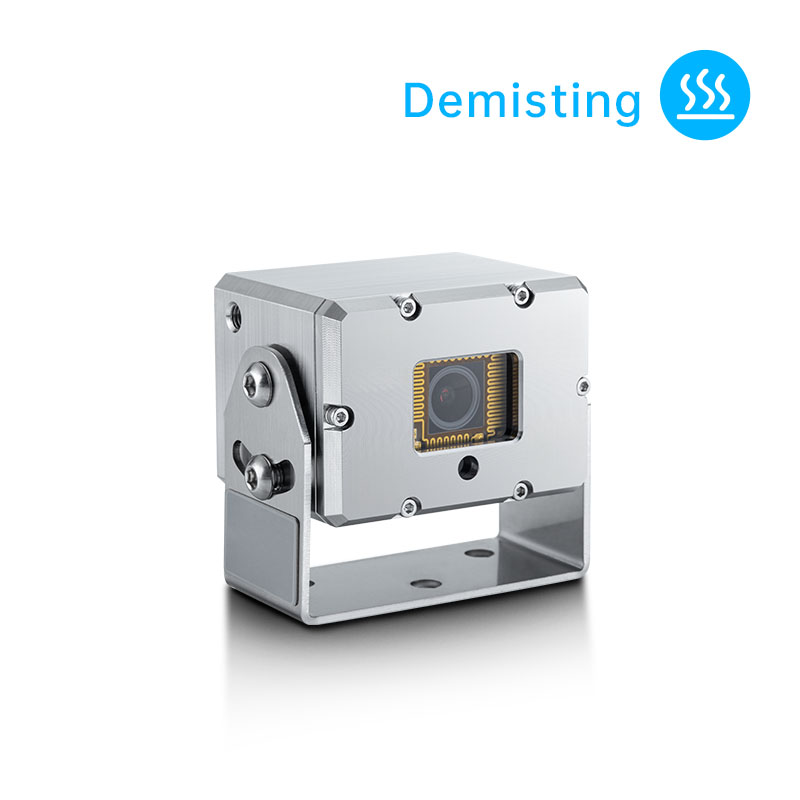

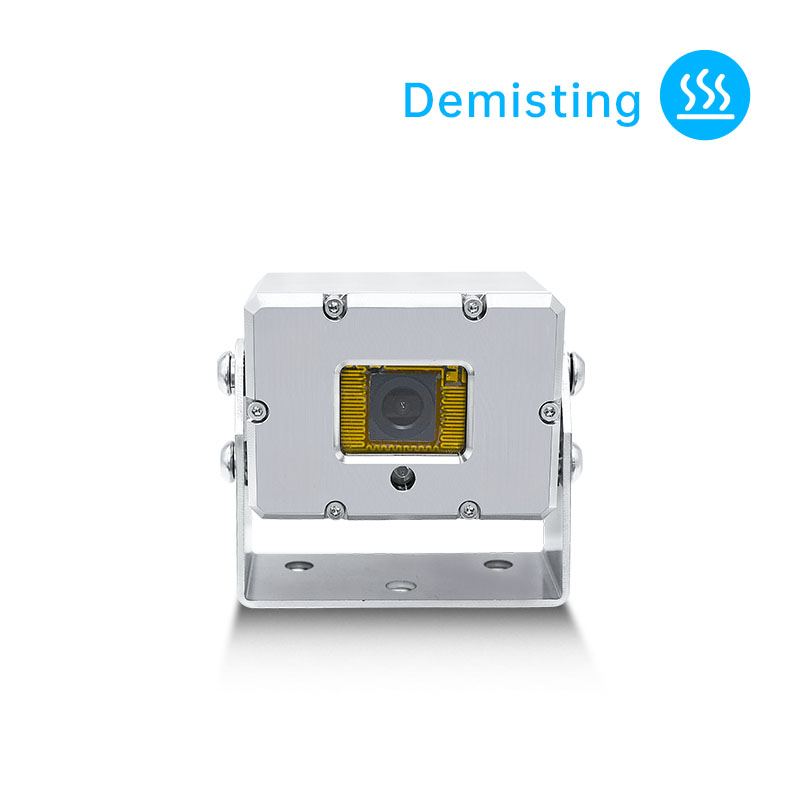

It supports a defog function that automatically activates heating below 25℃ and stops when the temperature reaches 65℃.
The camera is equipped with automatic white balance and backlight compensation, and has a signal-to-noise ratio of ≥60dB.
Its rated operating voltage is DC12V (power consumption <4.5W), with rated operating currents of 70mA in normal mode and 350mA in heating mode.
The body is made of 304 stainless steel, with an IP68 protection rating and an anti-vibration grade of 56.
The operating temperature range is -40℃ to 70℃, and the storage temperature range is -40℃ to 80℃.
It complies with explosion-proof standards such as GB3836.1-2010 and GB3836.2-2010, and carries the explosion-proof marking Exd IIC T6 Gb.
It is suitable for harsh environments such as explosive atmospheres, with stable and reliable overall performance, making it ideal for professional surveillance scenarios requiring high standards of explosion protection, ingress protection, starlight full-color night vision, and low-temperature defogging capabilities.
Product Parameters
| Item | Content |
|---|
| Model | CHD-816ZR-XG |
| Image Sensor | GC2053 |
| Video System | PAL |
| Effective Pixels | 1920 (H) * 1080 (V) |
| Image Clarity | 1920TVL |
| Frame Rate | 25FPS |
| Video Signal | AHD1080P |
| Minimum Illumination | 0.01Lux |
| Viewing Angle | Viewing angle 110°, horizontal 80° |
| Defog Function | Supported (heating starts automatically below 25℃ and stops automatically when heated to 65℃) |
| Signal-to-Noise Ratio | ≥60dB |
| White Balance | Auto |
| Backlight Compensation | Auto |
| Night Vision Function | Starlight full-color |
| Rated Operating Voltage | DC12V / ＜4.5W |
| Rated Operating Current | Normal current: 70mA; Heating current: 350mA |
| Operating Temperature | -40℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Material | 304 Stainless Steel |
| Protection Class | IP68 |
| Anti-vibration Grade | 56 (Compliant with GB-T2423056-2006 standard) |
| Compliance Standards | GB3836.1-2010 Explosive atmospheres - Part 1: Equipment - General requirements; GB3836.2-2010 Explosive atmospheres - Part 2: Equipment protected by flameproof enclosures "d" |
| Explosion-proof Marking | Exd IIC T6 Gb |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
