360° Surround View Touch All-in-One Machine

360° Surround View Touch All-in-One Machine

Summarize : The product also integrates a CAN communication module internally, which incorporates speed monitoring, Blind Spot Detection (BSD) and Lane Change Assist (LCA) sensors. Through independently developed algorithms, it combines image-based passive safety technologies with sensor-based active safety technologies such as ultrasonic radar and millimeter-wave radar, achieving a 360° all-round active driving safety assistance for vehicles.

Product Description

Product Features

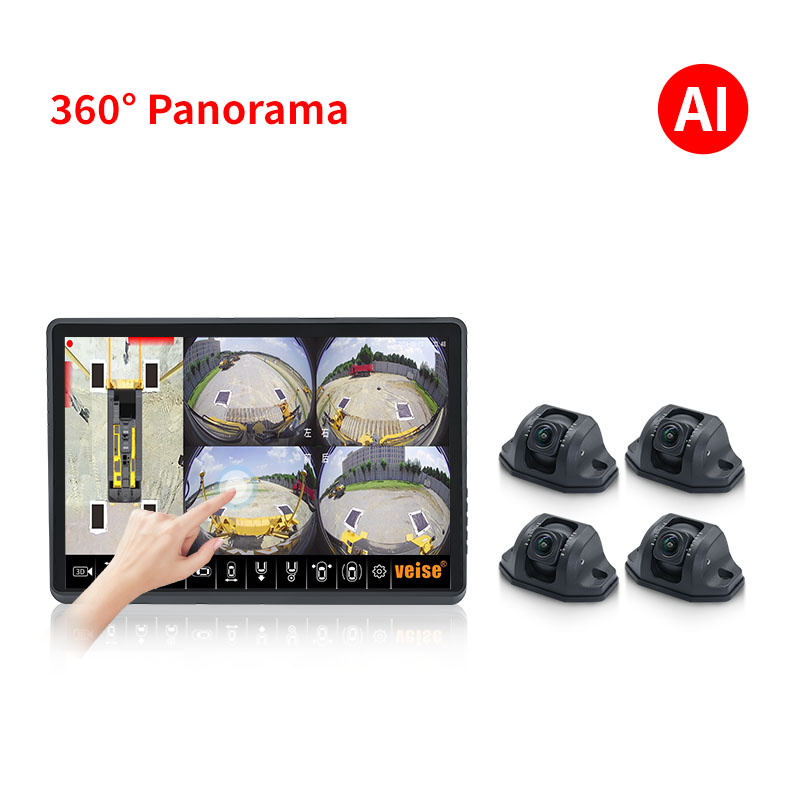

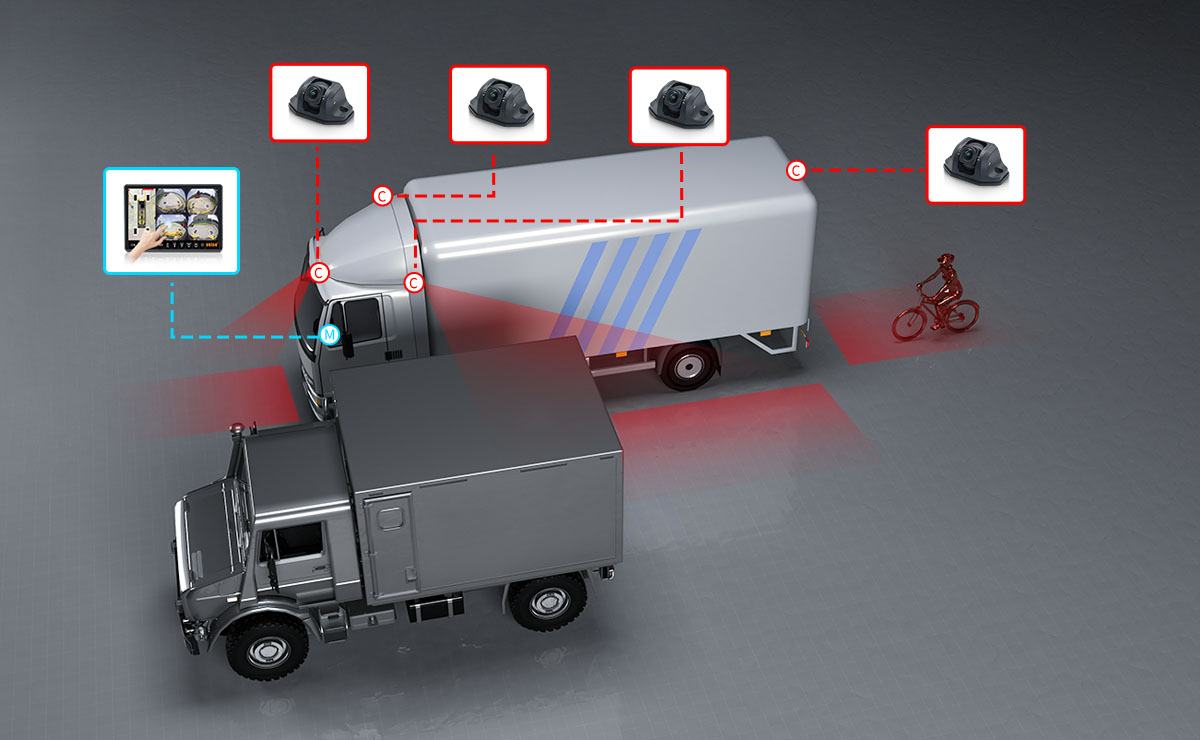

The 360° Surround View Touch All-in-One Machine is a 360° panoramic imaging and active driving safety assistance system developed to address the blind spot issues of engineering vehicles, heavy-duty vehicles, special-purpose vehicles, forklifts and other vehicle types. By using ultra-wide-angle cameras installed around the vehicle body and synthesizing a panoramic bird's-eye view via proprietary algorithms, the system enables drivers to clearly monitor the real-time conditions around the vehicle, thus significantly reducing traffic accidents caused by blind spots.

The product also integrates a CAN communication module internally, which incorporates speed monitoring, Blind Spot Detection (BSD) and Lane Change Assist (LCA) sensors. Through independently developed algorithms, it combines image-based passive safety technologies with sensor-based active safety technologies such as ultrasonic radar and millimeter-wave radar, achieving a 360° all-round active driving safety assistance for vehicles.

Product Parameters

Category	Specification Parameters	12.1-inch 360° Panoramic Surround Touch Display	10.1-inch 360° Panoramic Surround Touch Display	7-inch Waterproof 360° Panoramic Surround Touch Display
	Model	MHD-1214HDTP-AVM	MHD-1014HDTP-AVM	MHD-7184HDTP-AVM
System	Operating System	LINUX
	Operating Language	Chinese / Traditional Chinese / English / Korean / Russian / Italian (Customizable), Default: Chinese, Traditional Chinese, English
Touch	Operation Method	Button, Touch	Button, Touch	Touch buttons, touch, infrared remote control
	Touch Method	Capacitive Touch Screen	Capacitive Touch Screen	Capacitive Touch Screen

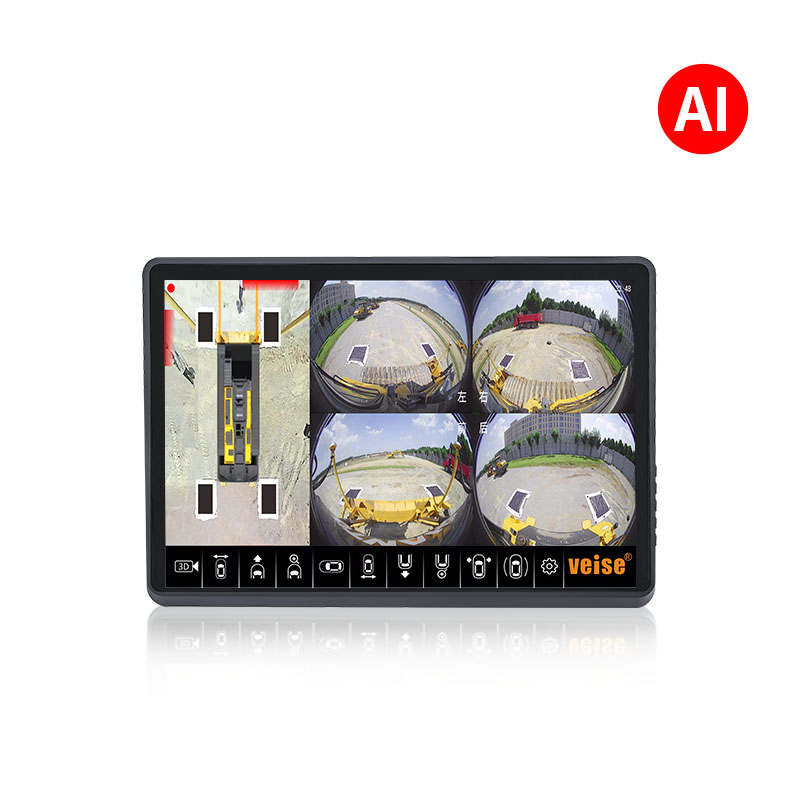

Display	Resolution & Size	12.1-inch LVDS Screen, 1920*1200	10.1-inch IPSP display, 1024×600	7-inch fully laminated IPS display, 1024×600
	Brightness	600cd/m²
	Aspect Ratio	Widescreen 16:10	Widescreen 16:9
	Viewing Angle	85/85/85/85 (Left / Right / Top / Bottom)
	Brightness Adjustment	Light Sensor Automatic Control, 90% during the day, 50% at night
	Screen Mode	2D/3D Free Switching
	Display Mode	3D Mode / 4-Screen Mode / Multiple 3D Display Modes

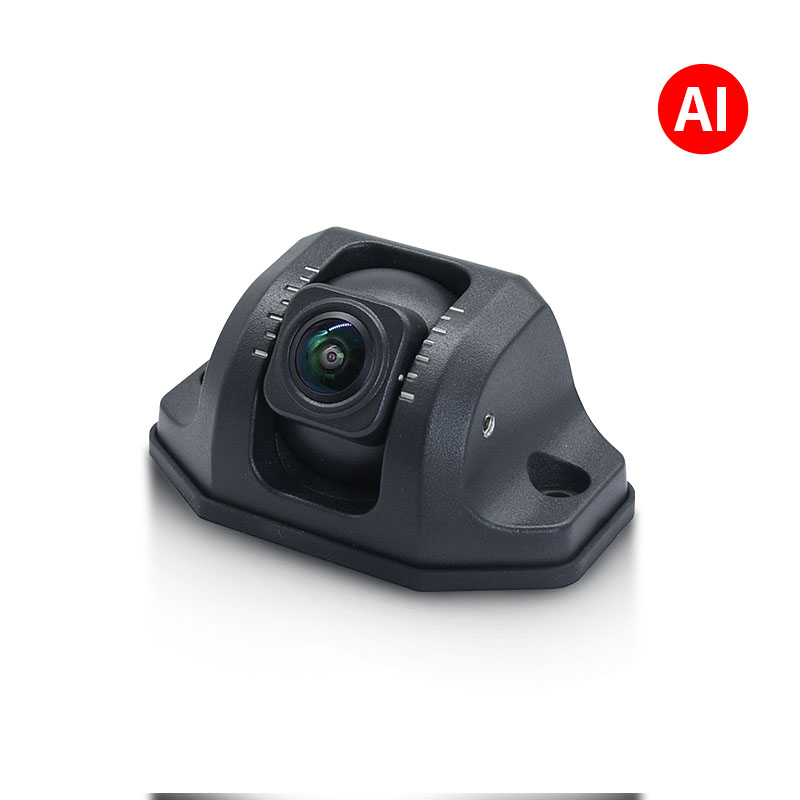

Video	Video Input	4-channel AHD Panoramic Camera + 4-channel AHD Camera (Optional)
	Video Output	Supports 1-channel CVBS Output (Optional)
Speed Sensor	MCU Control	Display Different Screen Modes According to Vehicle Speed (Custom Logic)
Early Warning	AI Visual Early Warning Function	360° Surround System, Built-in AI Vision Algorithm, 4-channel BSD
	FCW (Forward Collision Warning)	Built-in Front View Image Ranging Function
	Detection Target	Human & Non-motor Vehicle + Vehicle Recognition
	Voice	Intelligent Voice Broadcast Early Warning (Customizable Audio Files)
Recording Function	Video Format	H265
	Recording Resolution	1080P
	Recording Capacity	Supports 16GB-1TB TF Card (Standard 64G)
	File Capacity	1.25GB / Hour
	Recording File	Supports Local Independent Playback
Reliability	Operating Temperature	-20℃~+70℃
	Storage Temperature	-40℃~+80℃
	Vibration / Shock	GB/T 2423.56-2018 Standard (Random 5G Vibration)
	Shell Material	Aluminum Alloy
	Protection Level	IP65		IP68
	Operating Voltage	DC12-36V/15-20W
	Product Dimensions	Length × Width × Height = 290.5×200.5×41mm	Length × Width × Height = 265×168×37mm	Length × Width × Height = 210×143×84mm
Radar Host (Optional)	Radar Warning	Supports 16-probe Ultrasonic Radar
	Detection Distance	2.5 Meters
	Power Parameters	DC12-33V/0.2W
	Radar Function	Blind Spot Monitoring (BSD) + Lane Change Assist (LCA) + Parking Assist
CAN Communication (Optional)	Functions & Features	High-speed CAN Bus Transceiver, Complies with ISO11898 Standard, Low Power Management (Display Mode, AI Alarm Data Output)
Audio-Visual Alarm (Optional)	Specification Parameters	DC12-36V/3W, Protection Level IP65, 105dB / 130dB (Optional)
	Operating Voltage	DC8-16V
	Resolution	1080P
	Operating Temperature	-20℃~+70℃
	Storage Temperature	-30℃~+70℃
	Video Frame Rate	25 FPS/30 FPS
	Waterproof Level	IP68
	Low Illumination	0.01 Lux
	Vibration / Shock	GB/T 2423.56-2018 Standard (Random 5G Vibration)
	Horizontal Angle	210 Degrees
	Vertical Angle	126 Degrees

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
